Play manufacturer video for Fisher 3076 Wall-Mount Foot Control Valve, Single Pedal, 1/2" NPT Female Inlet & Outlet, BrassFisher 3076 Wall-Mount Foot Control Valve, Single Pedal, 1/2" NPT Female Inlet & Outlet, Brass
SKU: 3076
$132.32

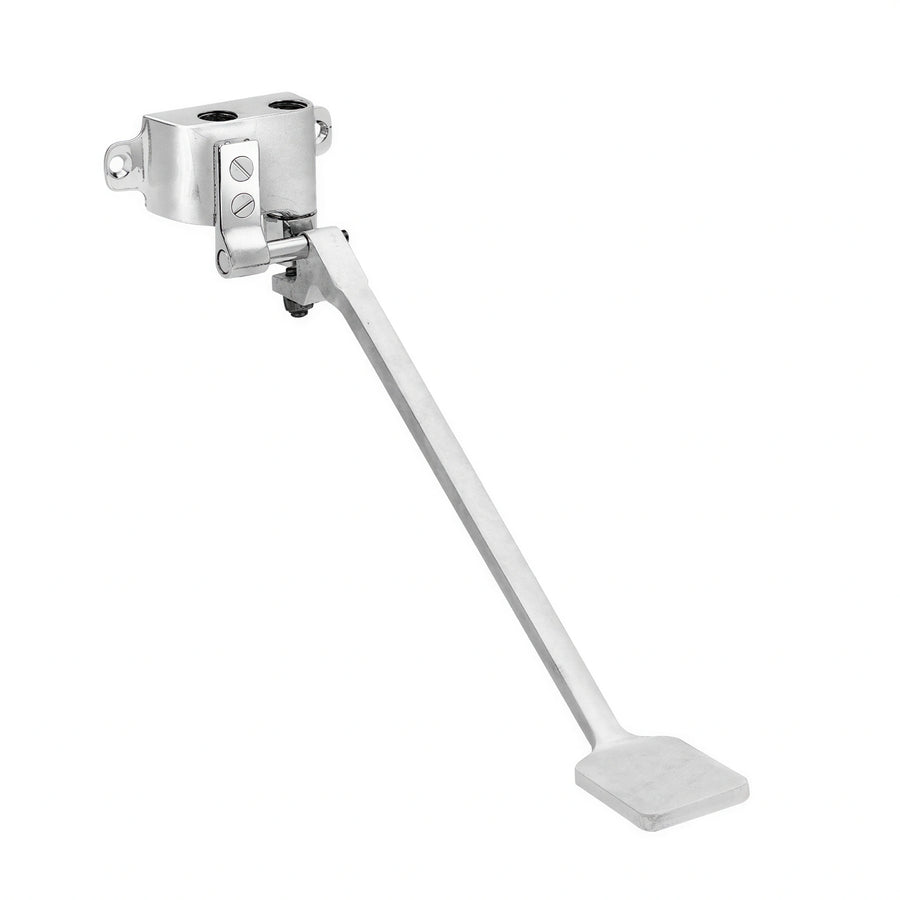

The Fisher 3076 is a wall-mount, single-pedal foot control valve with 1/2-inch NPT female inlet and outlet connections.
- Brass construction
- Anodized aluminum pedal
- Polished chrome finish
- Cylinder closes with water flow
Product Weight:
3.13 lbWall-mount design
Designed for wall-mounted installation.
Single pedal
Uses a single foot pedal for valve control.
Female NPT connections
Includes 1/2-inch NPT female inlet and outlet connections.
Materials and finish
Constructed of brass with an anodized aluminum pedal and polished chrome finish.
Flow-closing cylinder
The cylinder closes with water flow.
Operating limits
Specified for 40°F minimum to 140°F maximum temperature and 200 psi maximum static pressure.
Mounting
Wall mount
Pedal configuration
Single pedal
Inlet connection
1/2-inch NPT female
Outlet connection
1/2-inch NPT female
Material
Brass
Pedal material
Anodized aluminum
Finish
Polished chrome
Recommended setting
110°F at 80 psi
Temperature range
40°F minimum to 140°F maximum
Maximum static pressure
200 psi
Standard
ANSI/A112.18.1M
Weight
3.5 lb
Documents
Frequently Asked Questions
Yes. The Fisher 3076 is a wall-mount foot control valve.
It has a single pedal made of anodized aluminum.
Both the inlet and outlet are 1/2-inch NPT female connections.
The recommended setting is 110°F at 80 psi.
The temperature range is 40°F minimum to 140°F maximum, and the maximum static pressure is 200 psi.
The shipping weight is 3.5 lb.
