Play manufacturer video for Fisher 3074 Knee Control Valve, Single Pedal, 1/2" NPT Female Inlet and Outlet, BrassFisher 3074 Knee Control Valve, Single Pedal, 1/2" NPT Female Inlet and Outlet, Brass
SKU: 3074
$113.16

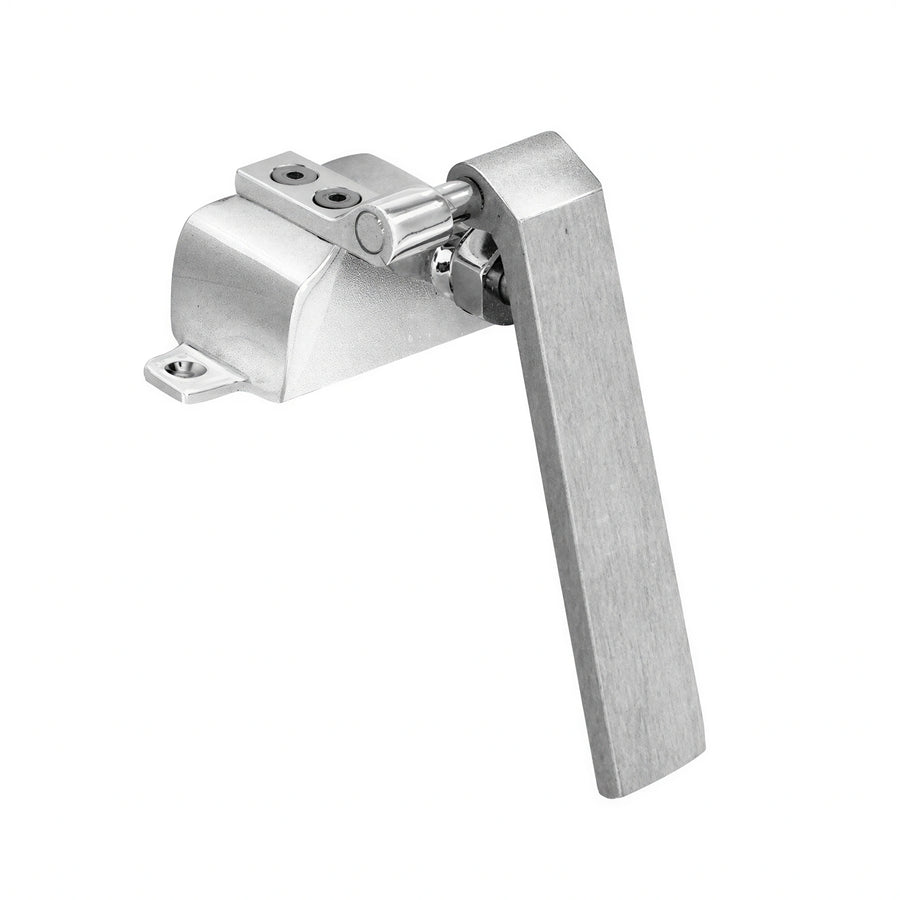

The Fisher 3074 single knee control valve provides pedal-operated faucet control for commercial foodservice applications.
- Single anodized aluminum pedal
- 1/2" NPT female inlet and outlet
- Brass construction with polished chrome finish
- System limits of 40°F minimum to 140°F maximum temperature and 200 PSI maximum static pressure
Overall Dimensions:
4.5"W x 6.5"HProduct Weight:
2.75 lbSingle knee-operated pedal
Controls faucet flow with one pedal operated by the knee.
Anodized aluminum pedal
The pedal is made from anodized aluminum.
Brass construction
The valve is specified with brass construction.
Polished chrome finish
The valve has a polished chrome finish.
Female NPT connections
The inlet and outlet are both 1/2" NPT female connections.
Product type
Knee control valve
Control
Single pedal
Inlet
1/2" NPT female
Outlet
1/2" NPT female
Material
Brass
Pedal material
Anodized aluminum
Finish
Polished chrome
Recommended setting
110°F at 80 PSI
System temperature range
40°F minimum to 140°F maximum
Maximum static pressure
200 PSI
Weight
2.75 lb
Standard
ANSI/A112.18.1M
Documents
Frequently Asked Questions
It uses a single knee-operated pedal to control faucet flow.
Both the inlet and outlet are 1/2" NPT female connections.
The recommended setting is 110°F at 80 PSI.
The temperature limits are 40°F minimum and 140°F maximum, with a maximum static pressure of 200 PSI.
The shipping weight is 2.75 lb.
