Play manufacturer video for Fisher DrainKing 22349 Waste Valve with Locking Basket Strainer, Cast Red Brass Body, 3-1/2" Sink Opening, 1-1/2" or 2" Drain OutletFisher DrainKing 22349 Waste Valve with Locking Basket Strainer, Cast Red Brass Body, 3-1/2" Sink Opening, 1-1/2" or 2" Drain Outlet
SKU: 22349
$136.62
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout

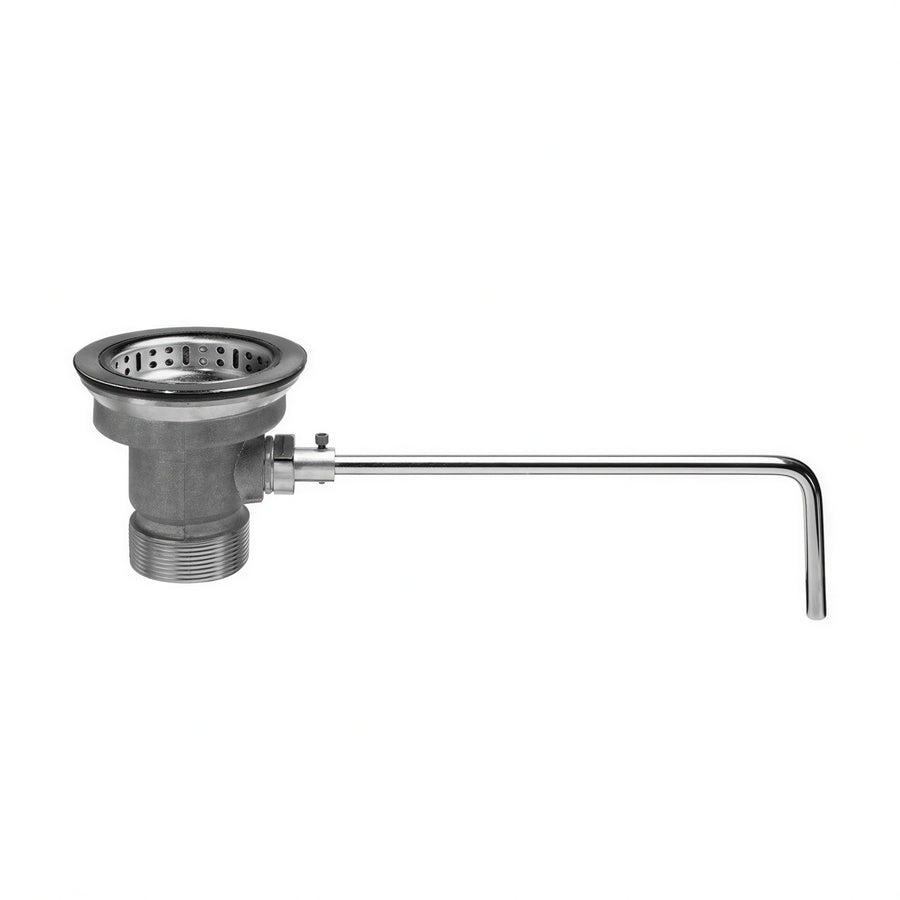

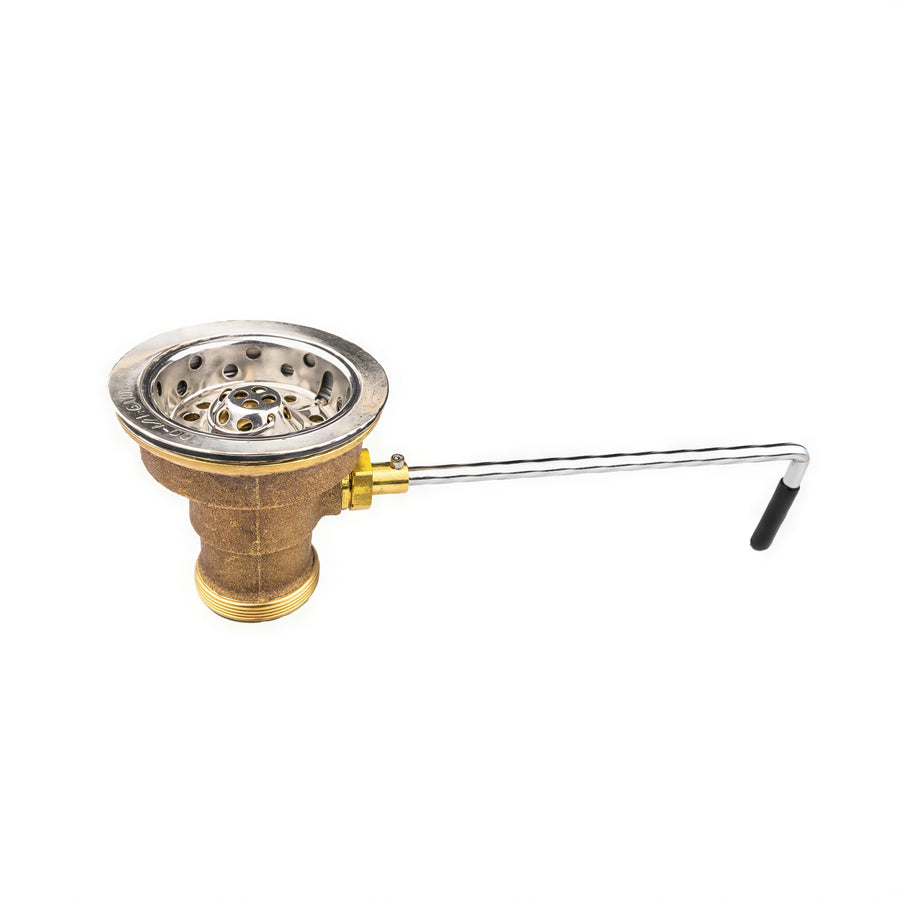

The DrainKing 22349 waste valve features a cast red brass body, locking basket strainer, and twist operation for a 3-1/2-inch sink opening.
- Accepts a 1-1/2-inch NPT female or 2-inch NPT male drain outlet.
- Uses dual Teflon seals, a stainless steel ball, and a stainless steel clamping ring.
- The valve fully opens and closes with a 1/4 turn and has a clear-through opening for snaking without disassembly.
Product Weight:
5.0 lbWaste valve type
Twist waste valve.
Locking basket strainer
Includes a stainless steel locking basket strainer.
Cast red brass body
The valve body is cast red brass.
Dual Teflon seals
Uses dual Teflon seals.
Stainless steel ball
Uses a stainless steel ball.
Stainless steel clamping ring
Includes a stainless steel clamping ring.
Clear-through opening
The clear-through opening allows snaking without disassembly.
Sealing angle
The industry-standard sealing angle fits flush to standard stainless steel sinks.
Quarter-turn operation
A 1/4 turn fully opens and closes the valve.
Drain rate
Rated at 12 GPM.
Type
Twist waste valve
Strainer
Locking basket strainer
Body material
Cast red brass
Seal material
Teflon
Ball material
Stainless steel
Clamping ring material
Stainless steel
Sink opening
3-1/2 in.
Drain outlet
1-1/2 in. NPT female or 2 in. NPT male
Drain rate
12 GPM
Valve operation
1/4 turn
Standard
ANSI/A112.18.1M
Frequently Asked Questions
It is specified for a 3-1/2-inch sink opening.
The product has a 1-1/2-inch NPT female or 2-inch NPT male drain outlet.
The specified drain rate is 12 GPM.
Yes. The 22349 is specified with a locking basket strainer, and the cutsheet identifies it as stainless steel.
A 1/4 turn fully opens and closes the valve.
The listed weight is 5.0 lb, also identified as the shipping weight on the cutsheet.
