Play manufacturer video for Fisher DrainKing 22330 Twist Waste Valve with Locking Basket Strainer, 3-1/2" Sink Opening, 1-1/2" or 2" Drain OutletFisher DrainKing 22330 Twist Waste Valve with Locking Basket Strainer, 3-1/2" Sink Opening, 1-1/2" or 2" Drain Outlet
SKU: 22330
$216.86
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout

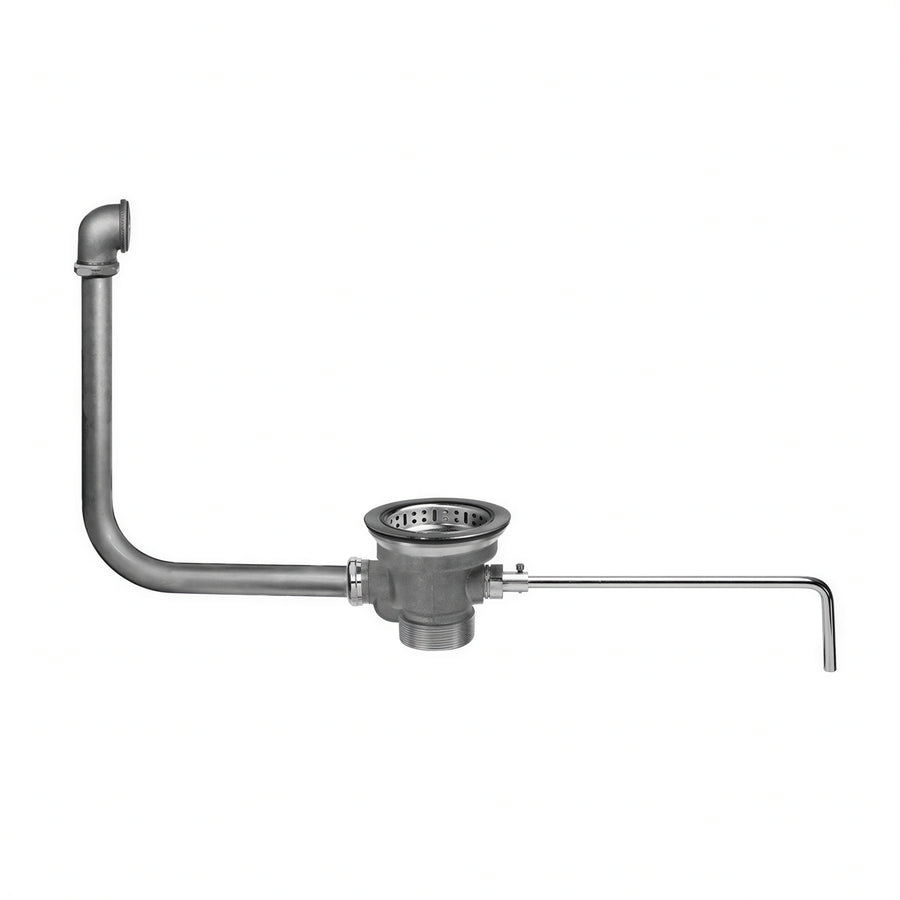

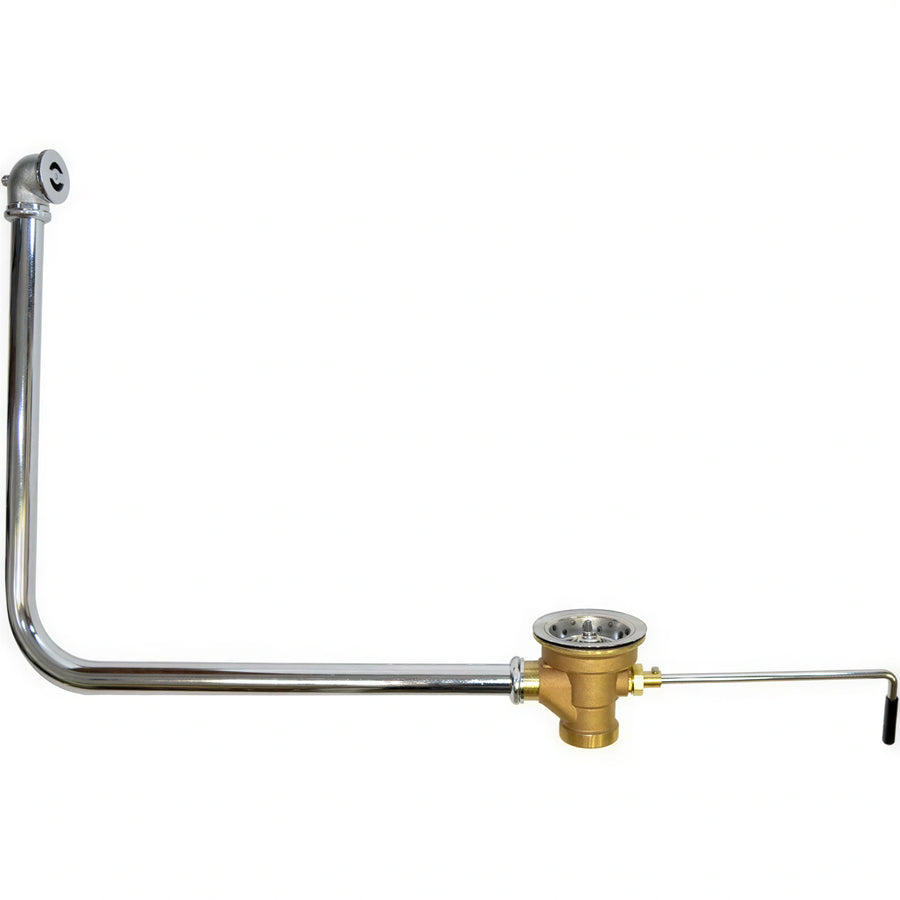

The Fisher DrainKing 22330 is a twist waste valve for a 3-1/2 in sink opening with a locking basket strainer, 14 x 16 in overflow tube and elbow, and a 1-1/2 or 2 in drain outlet.
- Cast red brass body with dual Teflon seals and a stainless steel ball.
- The valve fully opens and closes with a 1/4 turn and provides a listed 12 GPM drain rate.
- A clear-through opening allows snaking without disassembly.
Product Weight:
10.0 lbLocking basket strainer
The 22330 is configured with a locking basket strainer.
14 x 16 in overflow
Includes a 14 x 16 in overflow tube and elbow.
Cast red brass body
The valve body is cast red brass.
Dual Teflon seals
Uses dual Teflon seals.
Stainless steel ball
Uses a stainless steel ball.
Clear-through opening
The clear-through opening allows snaking without disassembly.
1/4-turn operation
A 1/4 turn fully opens and closes the valve.
Stainless steel clamping ring
Includes a stainless steel clamping ring and stainless steel flat strainer.
Type
Twist waste valve
Sink opening
3-1/2 in
Drain outlet
1-1/2 in or 2 in
Overflow size
14 x 16 in tube and elbow
Drain rate
12 GPM
Body material
Cast red brass
Seals
Dual Teflon
Ball material
Stainless steel
Clamping ring
Stainless steel
Strainer
Locking basket, stainless steel flat strainer
Valve operation
1/4 turn
Weight
10.0 lb
Documents
Frequently Asked Questions
The 22330 is specified for a 3-1/2 in sink opening.
The listed drain outlet is 1-1/2 in or 2 in; the cut sheet shows 1-1/2 in NPT female and 2 in NPT male connections.
Yes. It is configured with a 14 x 16 in overflow tube and elbow.
The listed drain rate is 12 GPM.
A 1/4 turn fully opens and closes the valve.
