Fisher

Fisher 22100 Wall-Mounted Pre-Rinse Spring Assembly with Mixing Valve, 8-Inch Adjustable Centers, 36-Inch Hose, 1.15 GPM Spray Valve

SKU: 22100 GTIN: 642889221000
$399.18
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Faucets & Plumbing Equipment Equipment Faucet Components Fisher New Arrivals Plumbing & Water Treatment Plumbing & Water Treatment Pre-rinse Faucet Parts Pre-Rinse Faucet Systems Restaurant Equipment Restaurant Equipment Parts Sinks & Handwashing Stations

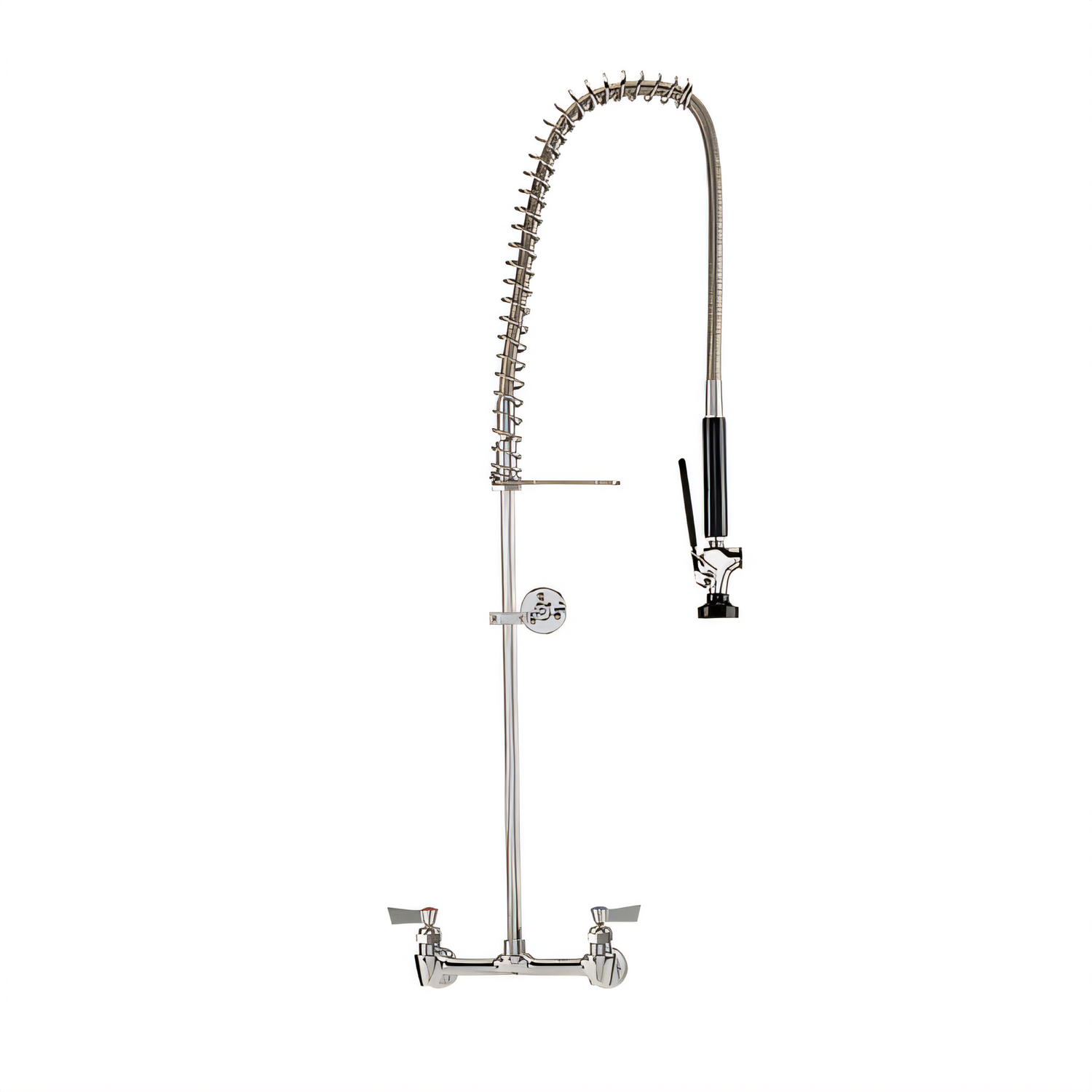

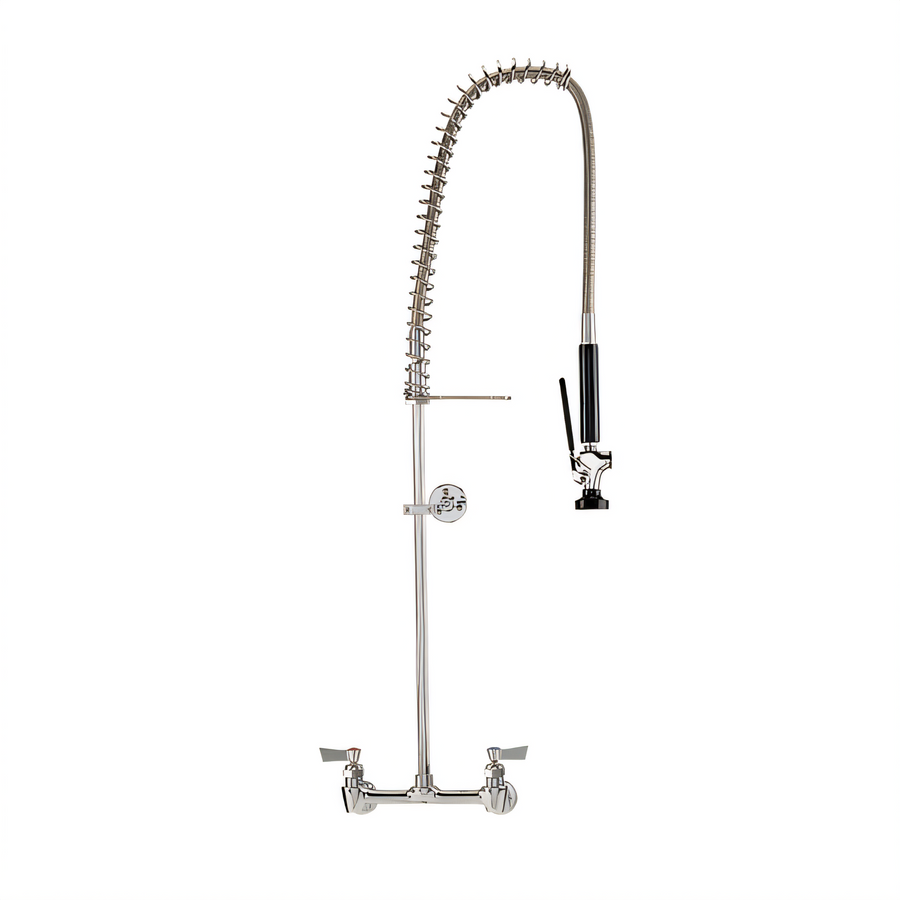

Fisher Wall-Mounted Pre-Rinse Spring Style Assembly with Mixing Valve, Flexible Gooseneck, Ultra-Spray PLUS Valve, Wall Bracket, and 8-Inch Adjustable Centers

1.15 GPM Spray Valve, 36-Inch Hose, 1/2-Inch NPT Female Connection

This wall-mounted pre-rinse assembly gives busy kitchens an adjustable spring gooseneck and low-flow Ultra-Spray performance for fast, efficient rinsing.

  • Wall-mounted pre-rinse assembly with mixing valve, flexible spring gooseneck, and included wall bracket.
  • Adjustable 8-inch centers fit rough-ins from 7-3/4 to 8-1/4 inches.
  • Ultra-Spray PLUS valve delivers 1.15 GPM at 60 PSI for efficient rinsing.
  • 36-inch hose includes stainless steel end fittings, an external jacket, and field-repairable construction.
  • Internal spring-loaded check valves and stainless steel wear components support dependable operation.
  • Wall bracket adjusts from 2 to 12 inches for installation flexibility.

Product Weight:

12.5 lb

Adjustable Centers

Eccentrics adjust from 7-3/4 to 8-1/4 inches for flexible wall-mount installation.

Ultra-Spray PLUS Valve

Low-flow spray valve delivers 1.15 GPM at 60 PSI, is designed without O-rings to leak, and fits all brands.

Spring-Action Gooseneck

Flexible spring-style hose provides reach and positioning over the sink.

36-Inch Hose

Hose includes stainless steel end fittings, a stainless steel external jacket, and a 3-ply fiber-reinforced internal rubber hose.

Internal Check Valves

Spring-loaded check valves and swivelling seat disks help support reliable operation.

Wall Bracket

Included wall bracket adjusts from 2 to 12 inches.

Stainless Steel Wear Components

Stainless steel seats, seat screws, and handle screws are used for added durability.

Hot and Cold Stem Orientation

Hot side stem is right-hand and cold side stem is left-hand for straightforward service.

Operating Limits

Designed for a minimum temperature of 40°F, a maximum temperature of 140°F, and up to 200 PSI static pressure.

Type Pre-Rinse Assembly
Style Spring Style
Installation Type Wall Mounted
Faucet Centers 8 Inches
Flow Rate 1.15 GPM at 60 PSI
Water Inlet Size 1/2 Inch NPT Female
Temperature Range 40°F to 140°F
Weight 12.5 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download

Frequently Asked Questions

The eccentrics adjust from 7-3/4 to 8-1/4 inches, and the unit is listed as 8-inch centers.
The Ultra-Spray PLUS valve delivers 1.15 GPM at 60 PSI.
Model 2210 is listed without a wall bracket, while 2210-WB includes the wall bracket.
The system limits are 40°F minimum temperature, 140°F maximum temperature, and 200 PSI maximum static pressure.
Yes. The 36-inch hose is described as repairable in the field with simple tools.
