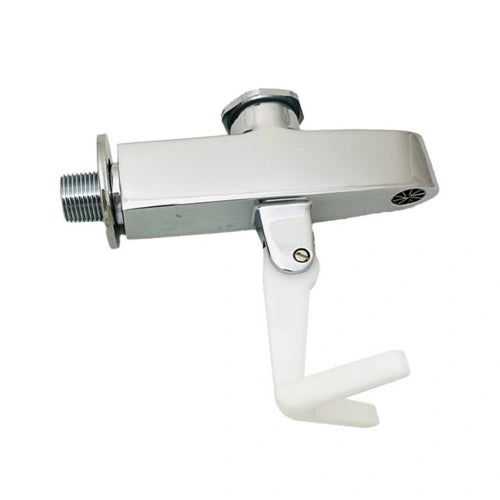

Play manufacturer video for Fisher 10200 Wall-Mount Push-Back Glass Filler Replacement Head, Low Lead, 3/8 in Female with Closed Nipple and FlangeFisher 10200 Wall-Mount Push-Back Glass Filler Replacement Head, Low Lead, 3/8 in Female with Closed Nipple and Flange
SKU: 10200
$92.94
The Fisher 10200 is a wall-mounted, push-back glass filler replacement head for Fisher and T&S glass fillers.
- Uses a 3/8 in female connection with a 3/8 in closed nipple, flange, and locking compound.
- Features a stainless steel head, tamper-proof volume control, non-marring Delrin prong, stainless steel seat screws, and a stainless steel stream strainer.
- Handles both paper and glass cups.
- Specified as CSA-Sanitation and ANSI/NSF 61, Section 9 certified.
Product Weight:
1.34 lbPush-back operation
Uses a push-back valve for glass filler operation.
Wall or splash mounting
Designed for wall-mounted or splash-mount installation.
Cup compatibility
Handles both paper and glass cups.
Tamper-proof volume control
Includes a tamper-proof volume control.
Durable components
Features a stainless steel head, stainless steel seat screws, and a stainless steel stream strainer.
Non-marring prong
Uses a non-marring Delrin prong.
Connection assembly
Specified with a 3/8 in female connection, 3/8 in closed nipple, flange, and locking compound.
Product type
Glass filler replacement head
Mounting
Splash / wall mount
Filler type
Push-back valve
Lead compliance
Low lead
Connection assembly
3/8 in female connection, 3/8 in closed nipple, flange, and locking compound
Head material
Stainless steel
Prong material
Delrin
Volume control
Tamper-proof
Cup compatibility
Paper and glass cups
Seat screws
Stainless steel
Stream strainer
Stainless steel
Flow rate
2.2 gpm at 80 psi
Maximum static pressure
100 psi
Temperature range
40°F minimum to 140°F maximum
Rough-in
3/4 in (19 mm)
Applicable standard
ANSI/A112.18.1M
Certifications & Compliance
Documents
Frequently Asked Questions
It is a wall-mounted, push-back glass filler replacement head.
It is specified with a 3/8 in female connection and a 3/8 in closed nipple.
Yes. The product is specified to handle both paper and glass cups.
The specified flow rate is 2.2 gpm at 80 psi.
