Firex (Middleby)

Baskett UPRIG122M_V1 Tilting Gas Steam Kettle with Mixer, 122 Gallon

SKU: UPRIG122M_V1
$356,401.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment Firex (Middleby) New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steam Kettle Steam Kettles

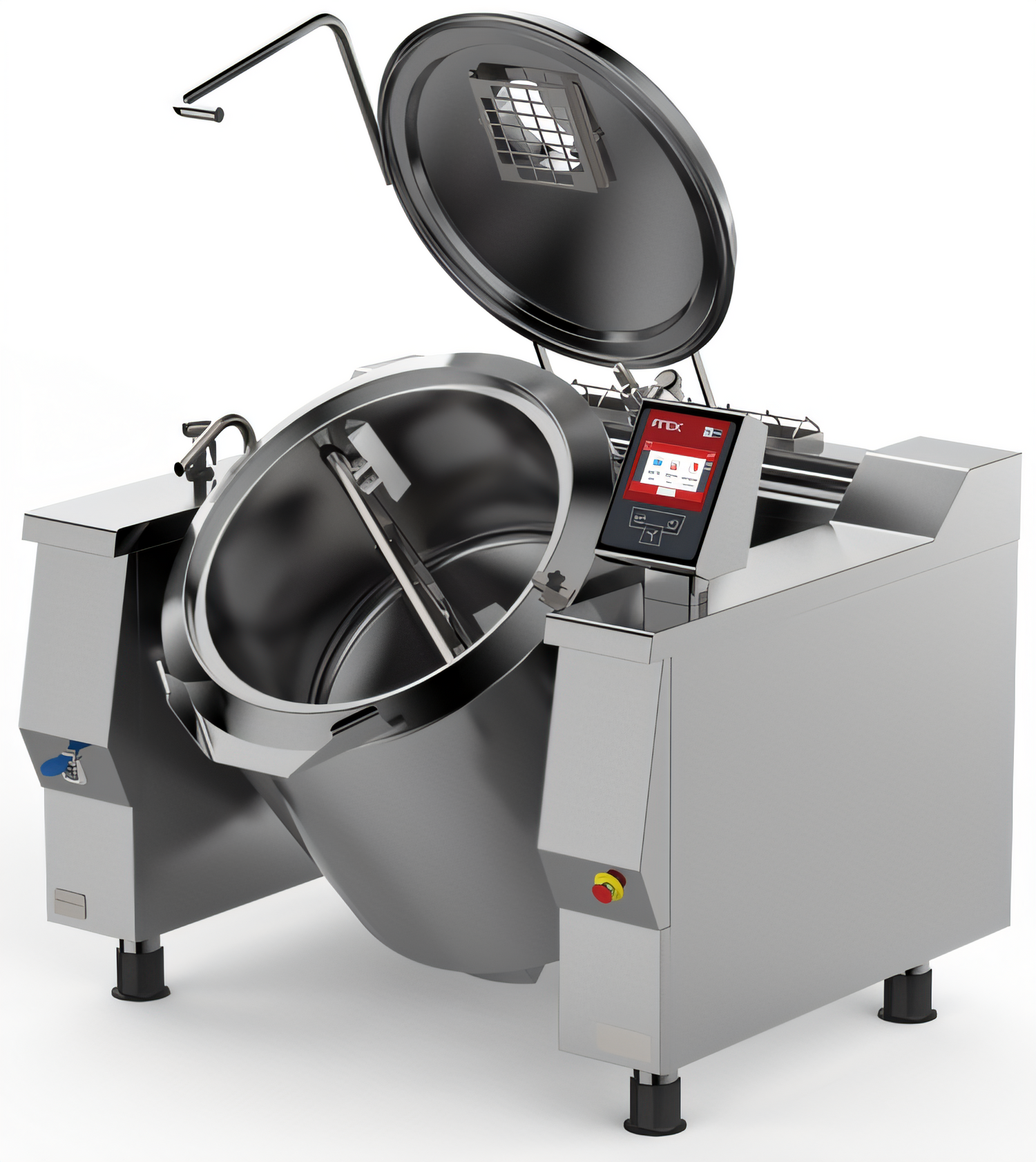

Baskett UPRIG122M_V1 Tilting Gas Steam Kettle with Mixer, 122 Gallon

Indirect Heat, Full Jacket, Stainless Steel Construction

Experience superior cooking versatility and efficiency with the Baskett UPRIG122M_V1 tilting gas steam kettle, featuring a sophisticated mixer and precise temperature controls.

  • Large 122 gallon capacity ideal for high-volume commercial kitchens.
  • Indirect gas heating with high-efficiency stainless steel tube burners for even cooking.
  • Equipped with a 2-arm mixer featuring 4 removable POM scrapers, programmable via a 7" touchscreen.
  • Durable AISI 316 stainless steel cooking vessel and AISI 304 stainless steel jacket and frame.
  • Advanced electronic controls offer 5 cooking modes, multiphase programming, and precise temperature management.
  • Automatic electric tilting for safe and easy product discharge and cleaning.

Overall Dimensions:

69.09"W x 64.96"D x 58.39"H

Product Weight:

1731.0 lb

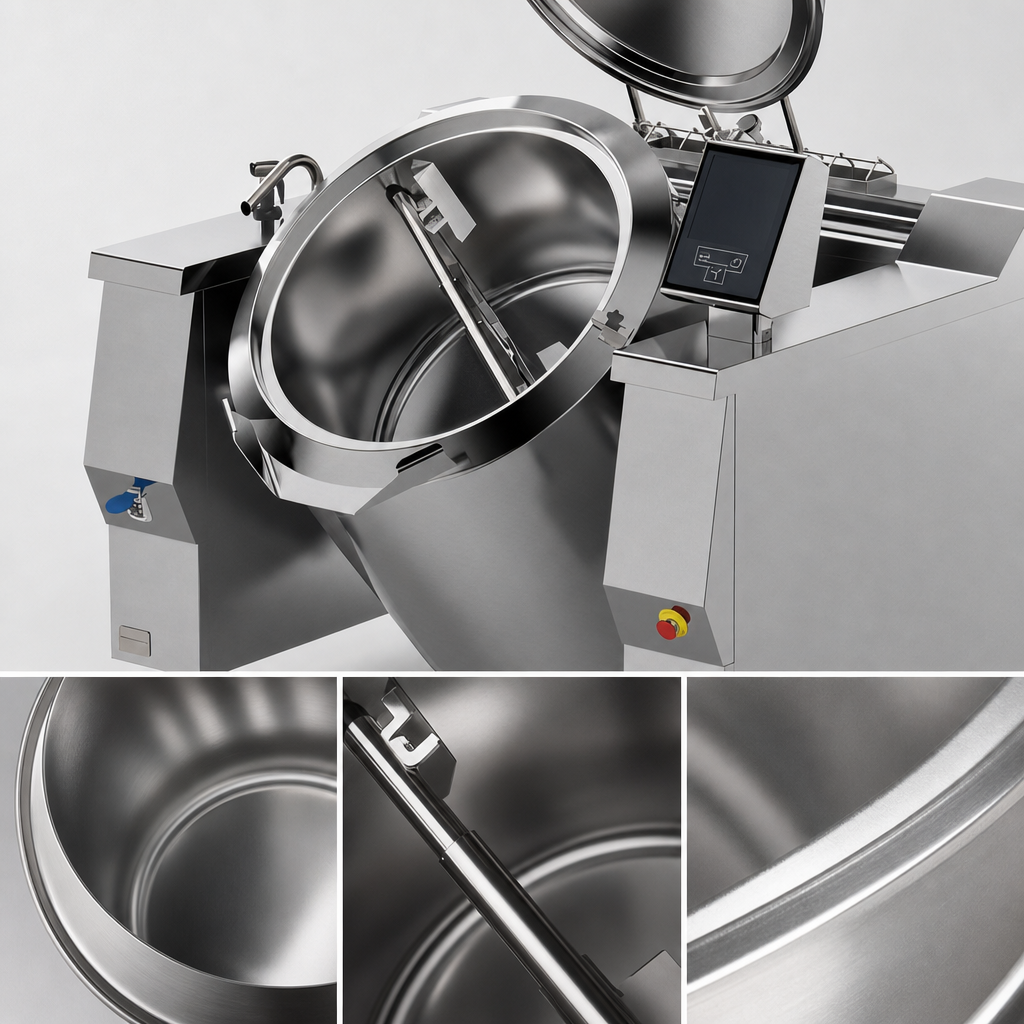

AISI 316 Stainless Steel Cooking Vessel

Specifically designed for processing particularly acidic products, ensuring superior durability and corrosion resistance.

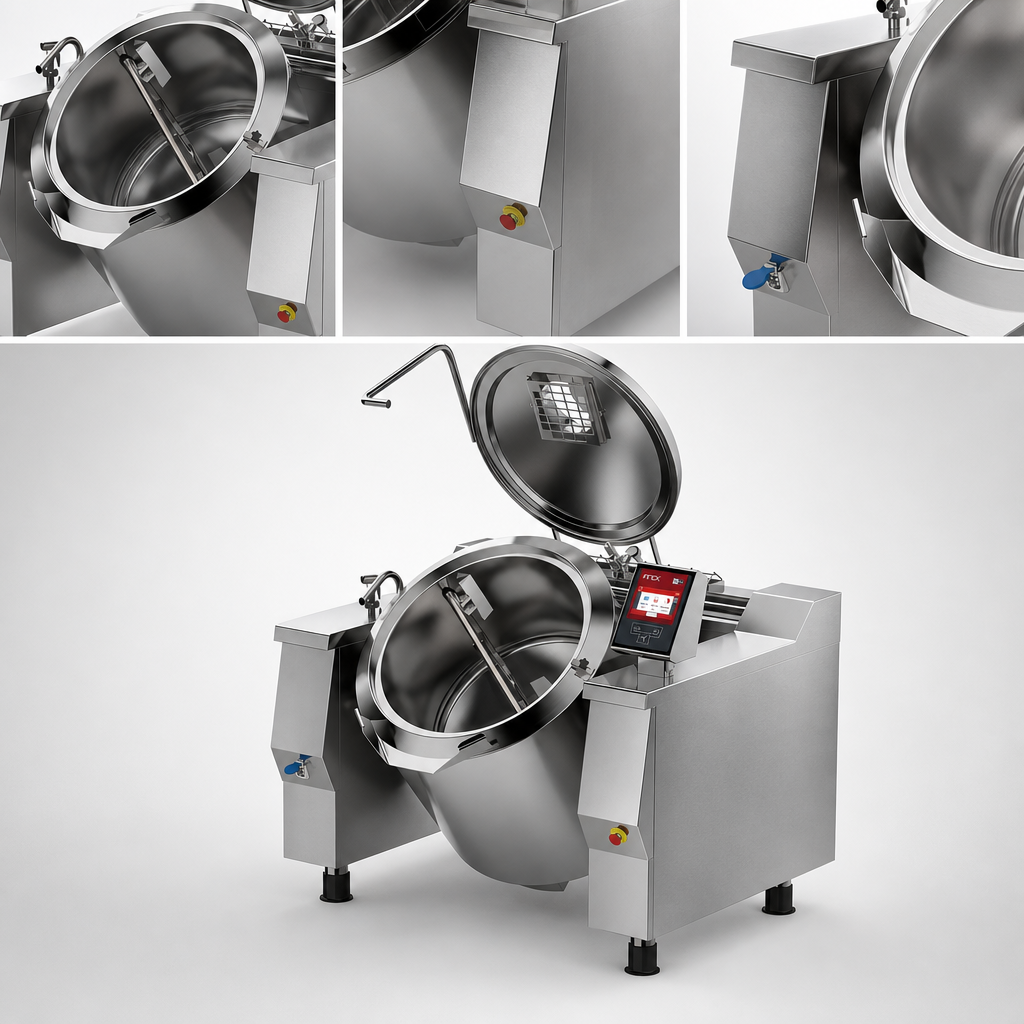

AISI 304 Stainless Steel Construction

The self-supporting frame, jacket, and outer covers are constructed from high-grade 304 stainless steel for robust performance and easy cleaning.

Electric Tilting Mechanism

Allows for effortless and safe emptying of the cooking vessel, improving operational efficiency and user safety.

Insulated Double Cover Lid

Features AISI 304 stainless steel construction, an ergonomic handle, and gas springs for balanced, easy opening and optimal heat retention.

High-Efficiency Gas Heating

Utilizes stainless steel tube burners with automatic ignition and flame control, providing rapid, even, and consistent indirect heating without a pilot burner.

Advanced Electronic Control System

A multifunctional keyboard with a 7" resistive touch screen provides intuitive control over cooking parameters, mixer settings, and program creation.

Programmable 2-Arm Mixer

Equipped with 4 easily removable POM scrapers, this mixer is programmable with adjustable speed, rotation times, and pause times, and can be fully removed for cleaning.

Multiple Cooking Modes

Offers 5 distinct cooking modes, with an optional 6th mode for cooling, allowing for versatile preparation of various dishes.

Precise Temperature Management

Two probes (product and jacket) ensure accurate temperature control, preventing overheating and optimizing cooking results.

Automatic Jacket Filling

Simplifies operation by automatically filling the double-jacket, ensuring it's always at the optimal level for efficient heating.

USB Connectivity

Allows for HACCP data download, software updates, and loading of custom cooking programs for enhanced operational management and record-keeping.

Adjustable Stainless Steel Feet

Provides stability and allows for easy leveling on uneven floors, with removable covers for hygienic cleaning operations.

Comprehensive Safety System

Includes an emergency button, heating block for excess temperature or minimum water level, a double-jacket safety valve, and heating interruption during vat tilting for operator protection.

Type Tilting Kettle with Mixer
Style Full Jacket
Installation Type Floor Model
Capacity 122 Gallons
Gas Type Natural Gas
Controls Programmable Digital Touch Screen
Interior Finish 316 Stainless Steel
Material 304 Stainless Steel
Jacket Operating Pressure 8.7 bar
Jacket Safety Valve Pressure 12.3 PSI
Protection Level IPX5
Selling Unit Each
Units Per Case 1
Shipping Width 70 Inches
Shipping Depth 65 Inches
Shipping Height 59 Inches
Shipping Weight 1731.0 lb.

Warranty & Protection

1-year parts and labor, with an extended 10-year hemisphere warranty for kettles.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Baskett UPRIG122M_V1 tilting kettle has a substantial capacity of 122 gallons, making it suitable for high-volume commercial cooking operations.
The cooking vessel is made from AISI 316 stainless steel, specifically chosen for its resistance to acidic products. The jacket, frame, and outer covers are constructed from durable AISI 304 stainless steel, ensuring longevity and ease of cleaning.
Yes, it includes a 2-arm mixer equipped with 4 removable POM scrapers. The mixer can be completely removed from the basin to facilitate thorough cleaning operations, and the scrapers are easily installed/removed with a snap-fit system.
The kettle features an advanced electronic control system with a 7" resistive touch screen. This allows for intuitive management of 5 different cooking modes, creation of multiphase programs, and precise adjustments for temperature and mixer settings.
Safety features include an emergency button, automatic heating blockade if excess temperature is detected or water level in the jacket is too low, a double-jacket safety valve, and automatic heating interruption during vat tilting to prevent accidents.
Yes, the kettle is equipped with a USB connection, allowing users to download HACCP data, update the software, and load customized cooking programs for efficient operation and record-keeping.
