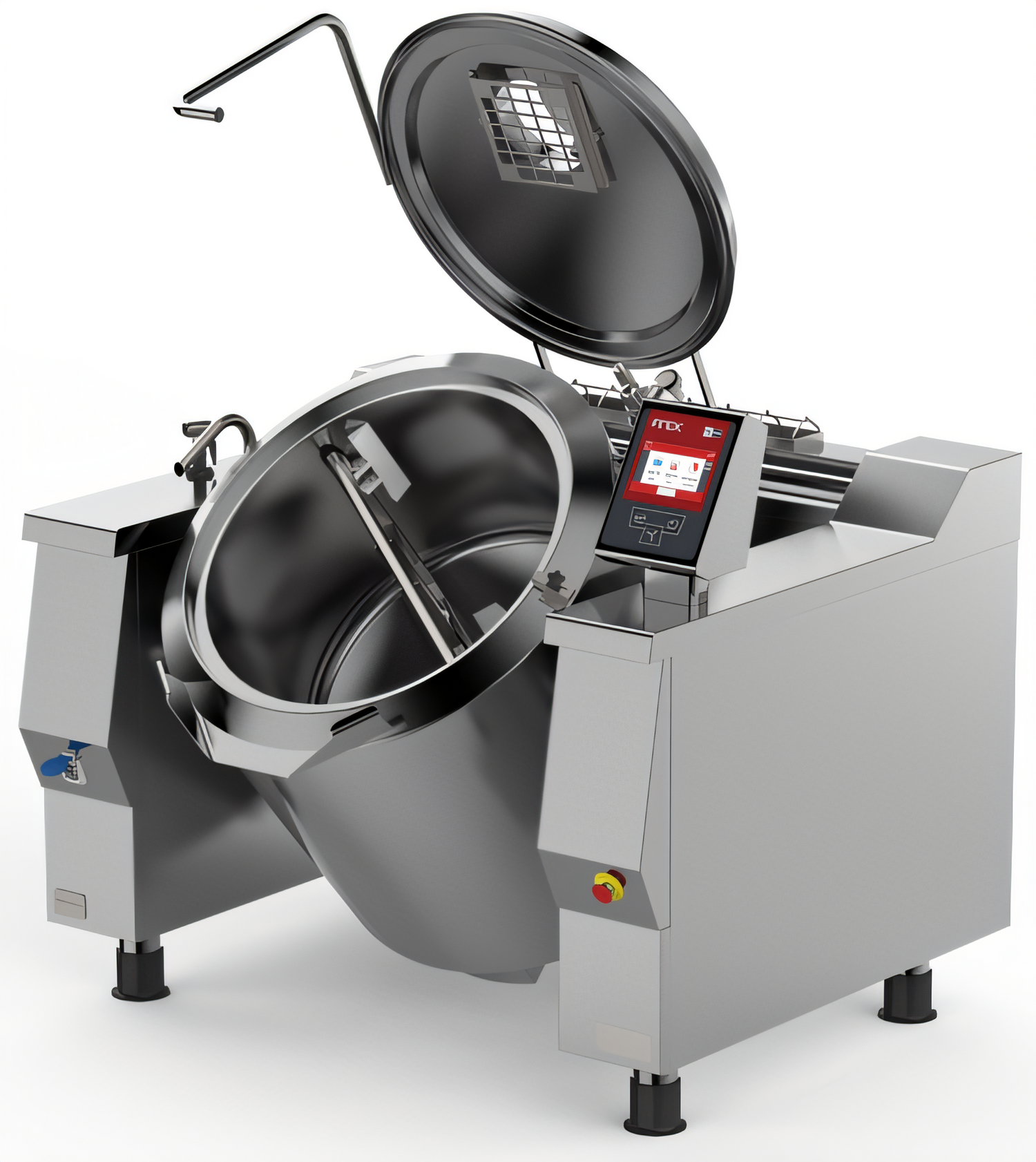

Baskett UPRIG062M_V1 62 Gallon Gas Tilting Kettle with Mixer
Indirect Heating, Full-Jacket, 316 Stainless Steel Inner Liner
This 62-gallon gas tilting kettle with an integrated mixer is engineered for efficient, precise cooking of diverse products in high-volume commercial kitchens.
- Large 62-gallon capacity ideal for high-volume production and batch cooking.
- Integrated 2-arm mixer with removable POM scrapers ensures thorough product processing and easy cleaning.
- Advanced electronic controls featuring a 7-inch touchscreen for intuitive operation and programmable cooking cycles.
- Constructed with a durable AISI 316 stainless steel inner liner, perfect for acidic products, and an AISI 304 stainless steel frame and jacket.
- Indirect gas heating with high-efficiency tube burners provides even and controlled temperature distribution.
- Offers 5 standard cooking modes with an optional cooling double-jacket for versatile food preparation.
- Equipped with comprehensive safety systems, including an emergency button, safety valves, and automatic heating blocks.
- USB connectivity facilitates HACCP data downloads, software updates, and custom cooking program uploads.
Overall Dimensions:
61.22"W x 54.73"D x 52.48"HProduct Weight:

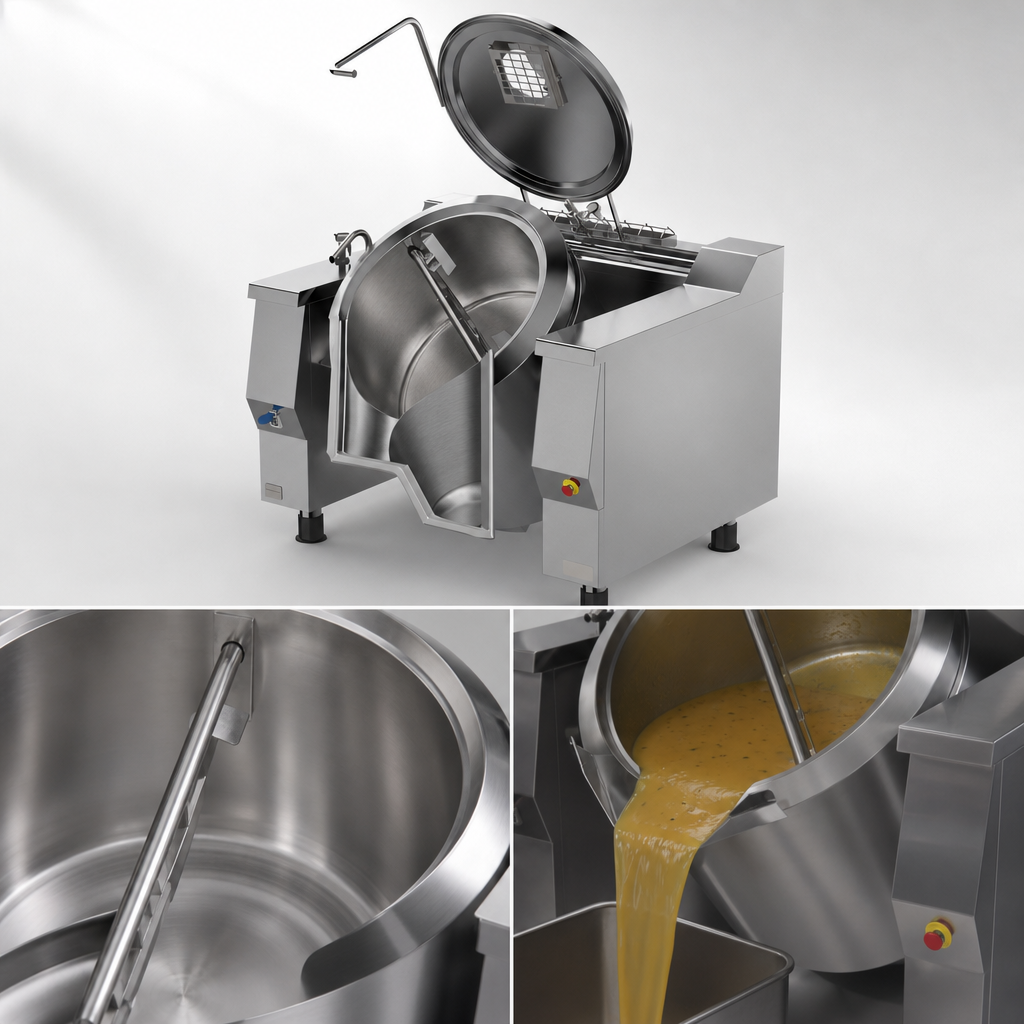

1389.0 lbCooking Vessel
Constructed with an AISI 316 stainless steel inner liner (25-40/10 thickness) specifically designed for acidic products, and an AISI 304 stainless steel jacket. Features electric tilting on the front part for easy pouring.

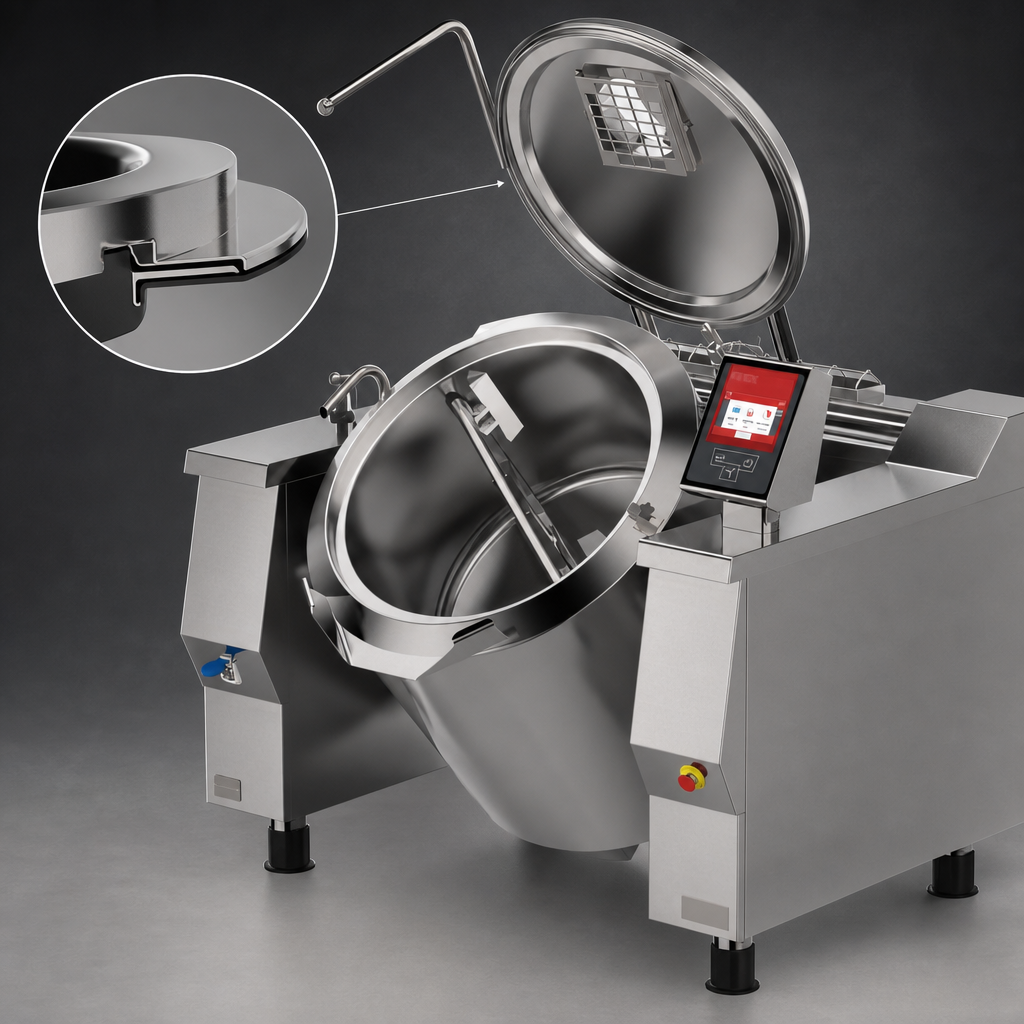

Insulated Lid
Double cover in AISI 304 stainless steel (20/10 thickness) with an ergonomic handle, balanced by gas springs for smooth opening and closing.
Robust Construction
Self-supporting frame and outer cover made of AISI 304 stainless steel (30-40/10 frame, 12-15/10 outer cover) with a fine satin finish, ensuring durability and easy cleaning. Heat insulation is provided by thick glass fiber panels.
High-Efficiency Gas Heating
Utilizes high-efficiency stainless steel tube burners with automatic ignition and flame control, eliminating the need for a pilot burner. Heating is controlled by an electronic board and pressure switch set at 8.7 PSI to optimize steam usage.
Precise Temperature Control
Temperature is monitored and controlled using two probes (one for the product, one for the jacket). Heating automatically activates 4°F before the setpoint for consistent results.
Automated Double-Jacket Management
Features a breather valve to eliminate air for faster heating and automatic filling of the double-jacket. Pressure is controlled by a pressure switch, safety valve (12.3 PSI), vacuum valve, and an analog pressure gauge.
Integrated Mixer with Removable Scrapers
Equipped with a 2-arm mixer made of AISI 304 stainless steel and 4 removable POM scrapers. The mixer can be completely removed for cleaning and is programmable via the control panel. Scrapers use a tool-free snap-fit system.
Intuitive Touch Screen Controls
Electronic control via a multifunctional keyboard with a 7-inch resistive touch screen, displaying clear messages for ease of use.
Programmable Cooking Modes
Offers 5 different cooking modes (6 with optional cooling). Users can operate in 'Manual' or 'Program' mode, and create/edit multiphase cooking programs with customizable parameters, mixer settings, and text messages per phase.
Data Management & Connectivity
Includes a USB connection for downloading HACCP data, updating software, and loading cooking programs. Supports MODBUS over RS485 serial interface for machine interrogation.
Comprehensive Safety System
Incorporates an emergency button, blocking of heating for excess temperature with a manual resettable thermostat, heating block at minimum water level, double-jacket safety valve, heating interruption during vat tilting, and mixer operation at minimum speed with the lid open.
Adjustable Stainless Steel Feet
Features adjustable feet in AISI 304 stainless steel for leveling, with removable covers for simplified cleaning and maintenance.
Warranty & Protection
1-year parts and labor warranty, effective from the date of original purchase, with a 10-year Hemisphere warranty on kettles.
