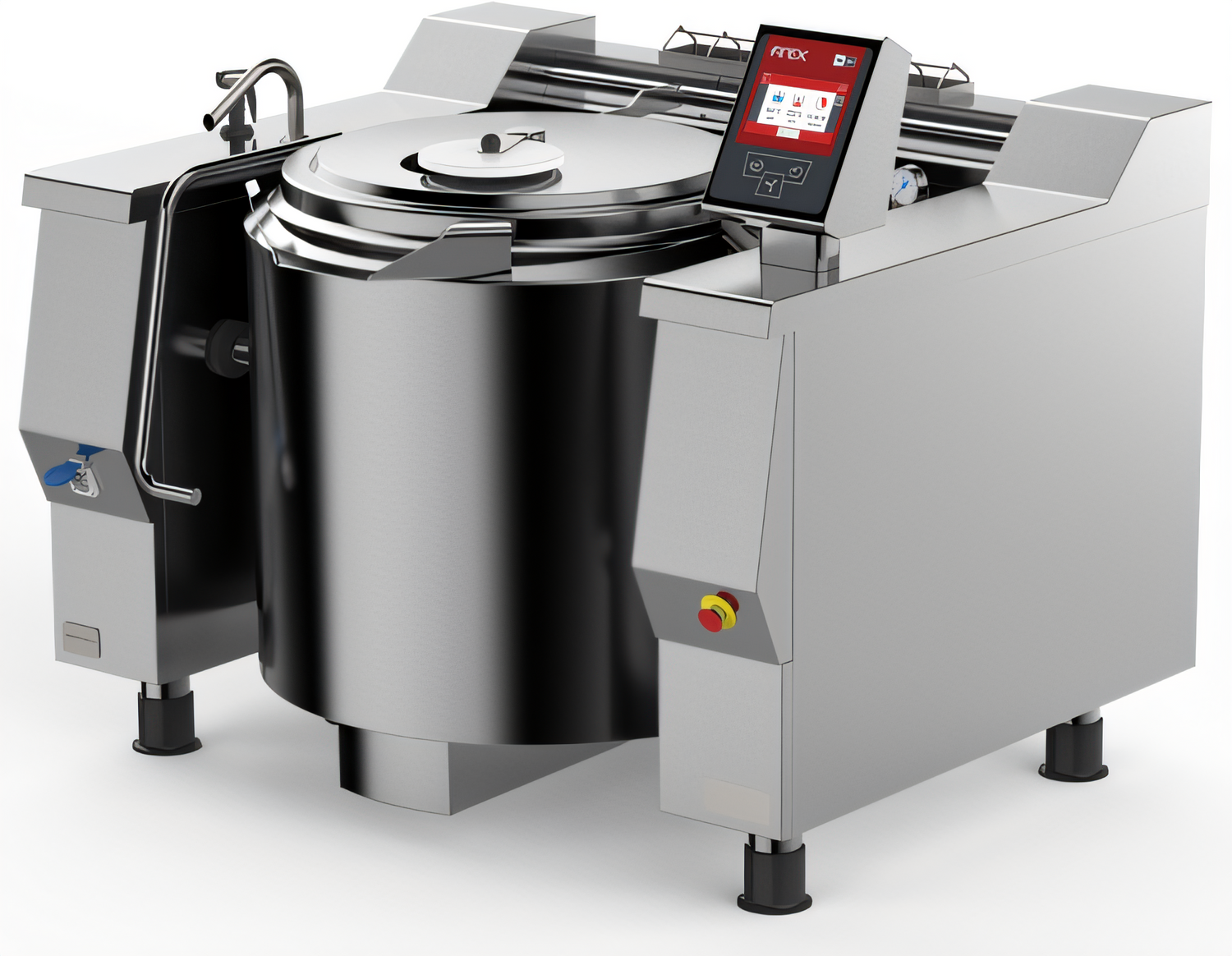

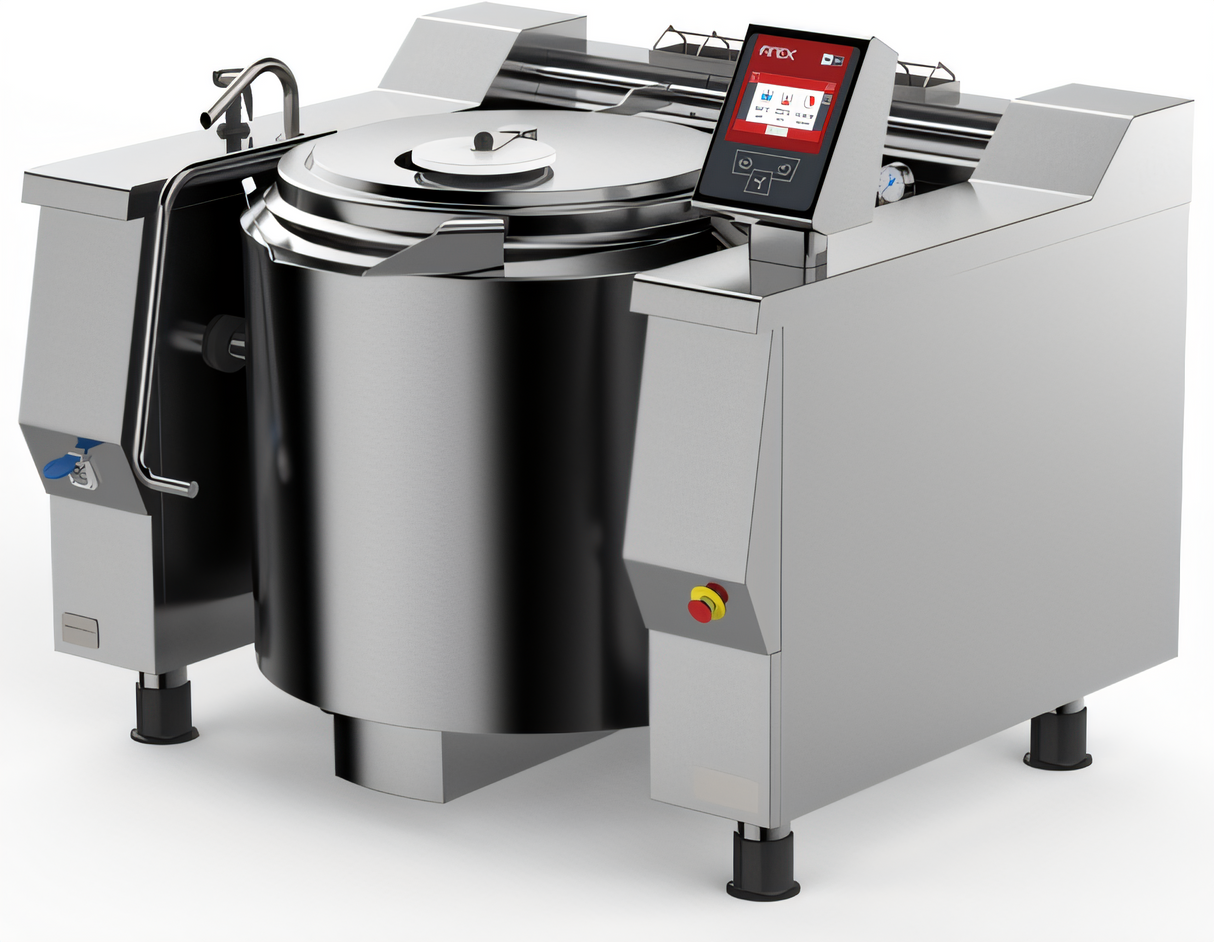

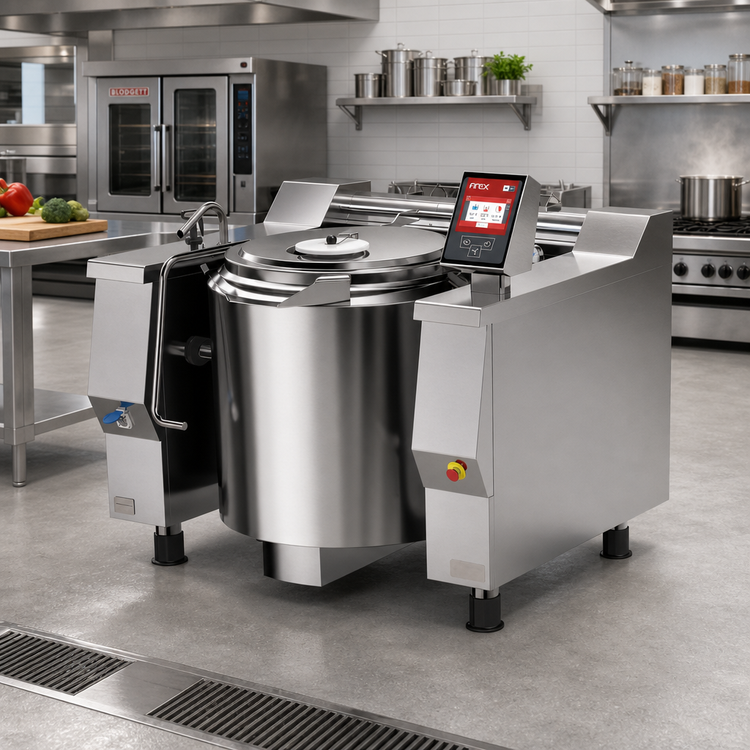

Firex Baskett UPRIG048_V1 48 Gallon Tilting Gas Indirect Heating Steam Kettle
Firex Baskett UPRIG048_V1 48 Gallon Tilting Gas Indirect Heating Steam Kettle
48 Gallon, Gas, Indirect Heat, 316 Stainless Steel Liner
Experience superior cooking precision and efficiency with the Firex Baskett UPRIG048_V1 48 Gallon Tilting Gas Kettle, designed for the most demanding commercial kitchens.
- Constructed with a high-grade 316 stainless steel inner vessel, ideal for acidic products.
- Features efficient indirect heating via stainless steel tube burners and automatic ignition.
- Equipped with a 7-inch multifunctional touch screen for intuitive control and program creation.
- Automatic electric tilting mechanism ensures safe and effortless product discharge.
- Advanced temperature control using dual probes (product and jacket) for consistent results.
- Includes robust safety systems with an emergency button and multiple pressure controls.
- Designed with an IPX4 protection level for durability in commercial kitchen environments.
Overall Dimensions:
57.28"W x 51.57"D x 52.48"HProduct Weight:

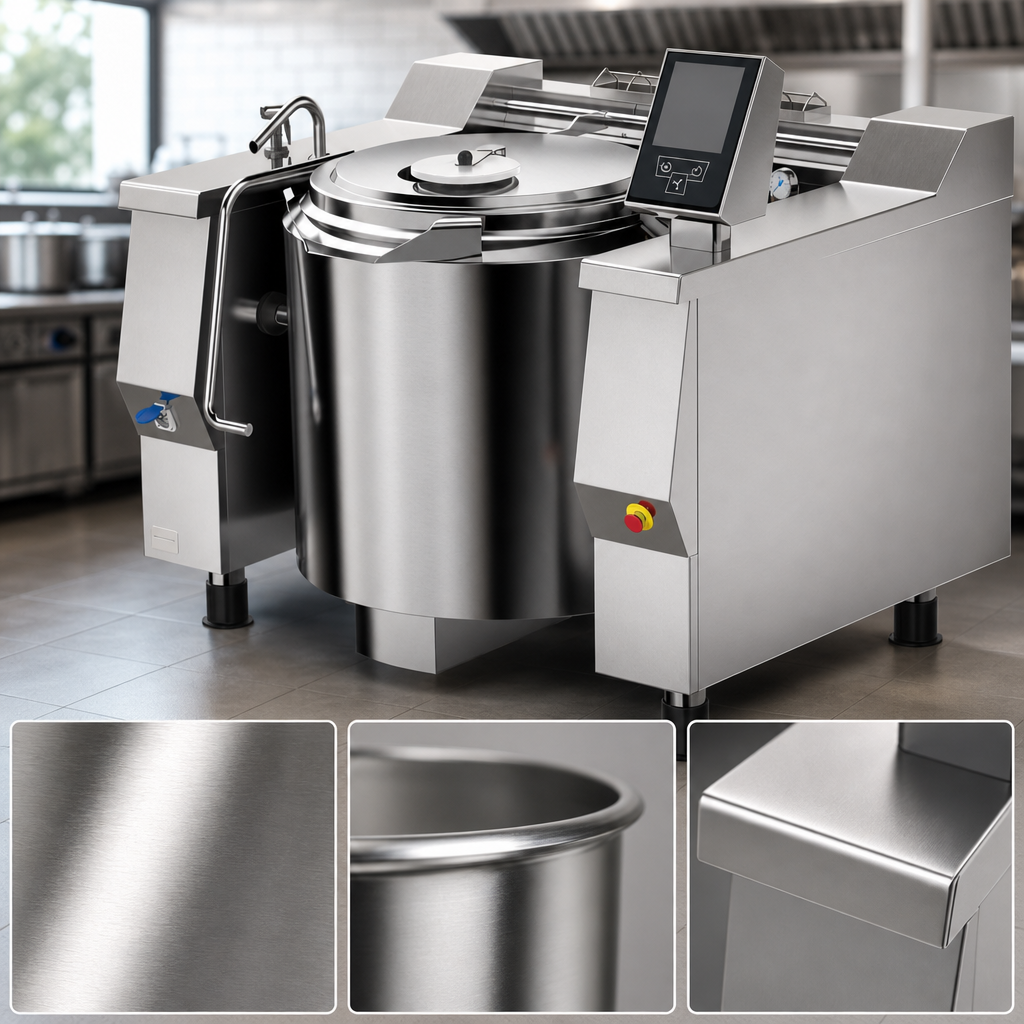

1113.0 lbStainless Steel Construction
Cooking vessel crafted from AISI 316 stainless steel (2.5-4mm thickness) specifically for acidic products, with the jacket and self-supporting frame made of durable AISI 304 stainless steel.

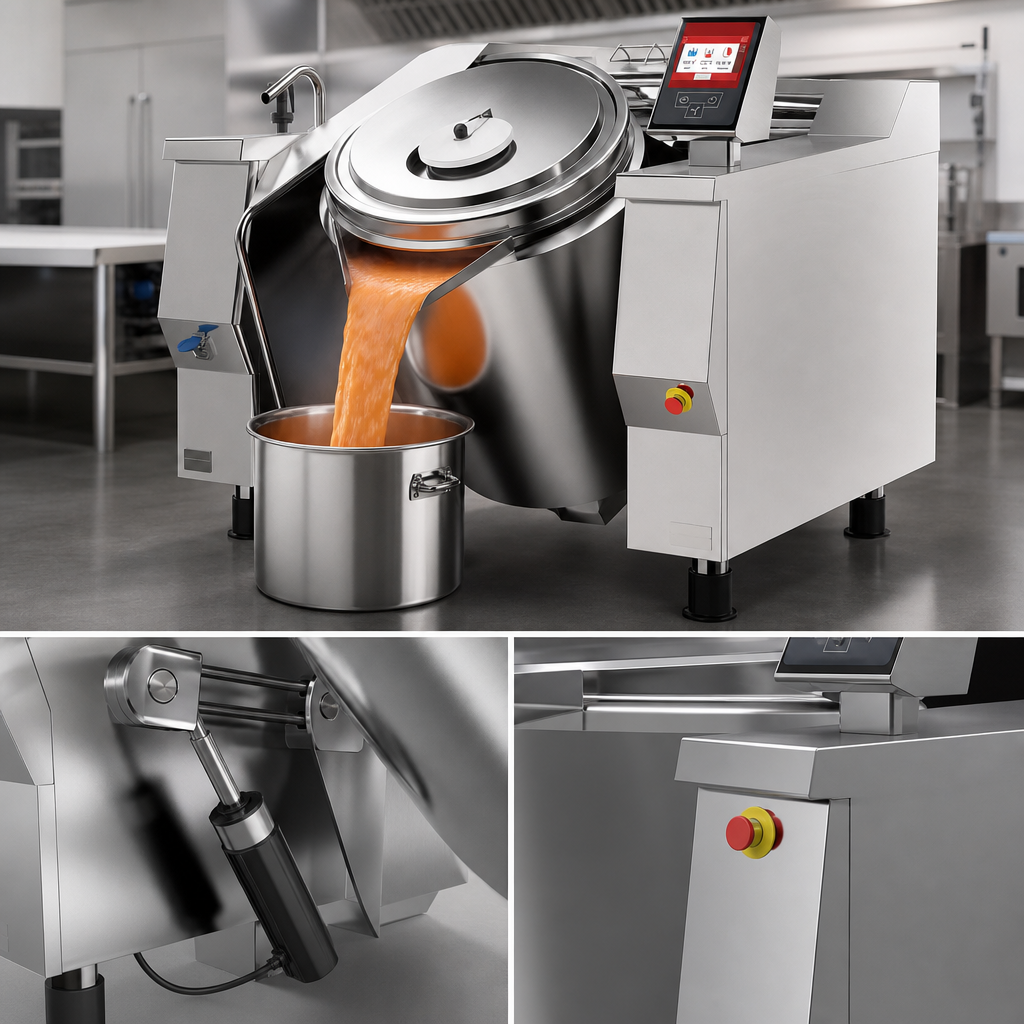

Electric Tilting
The vessel features an electric tilting mechanism on the front, allowing for easy and safe product discharge and simplified cleaning.
Insulated Double-Cover Lid
An insulated lid with a double cover in AISI 304 stainless steel, complete with an ergonomic handle and balanced by gas springs for smooth operation.
High Efficiency Indirect Heating
Heating is achieved through high-efficiency stainless steel tube burners, providing consistent and uniform indirect heat.
Automatic Ignition and Flame Control
Features an automatic ignition and flame control system that operates without the need for a pilot burner.
Precise Temperature Control
Temperature is precisely controlled by two probes (one for product, one for jacket) via an electronic board, with heating activation automatically adjusted 4°F before the setpoint.
Comprehensive Pressure Management
Includes a pressure switch set at 8.7 PSI, a safety valve (12.3 PSI), a vacuum valve, and an analogic pressure gauge for accurate and safe pressure regulation.
Automatic Double-Jacket Filling
The double-jacket automatically fills with water, ensuring optimal heating performance.
Multifunctional Touch Screen Control
An intuitive 7-inch resistive touch screen with a multifunctional keyboard allows selection of 5 different cooking modes (6 with optional cooling), manual cooking, program mode, and creation/editing of multiphase programs.
HACCP Data & Software Management
Equipped with a USB connection for downloading HACCP data, updating software, and loading custom cooking programs.
Adjustable Stainless Steel Feet
Four adjustable feet in AISI 304 stainless steel ensure proper leveling of the kettle, with removable covers for easy cleaning.
IPX4 Protection Level
Rated IPX4 for protection against splashing water from any direction, making it suitable for demanding kitchen environments.
Integrated Safety Systems
Features an emergency button, heating blockage for excess temperature (with manual resettable safety thermostat), heating block at minimum water level in cavity, a double-jacket safety valve, and heating interruption during vat tilting.
Warranty & Protection
1-year parts and labor, 10-year Hemisphere warranty on kettles.
