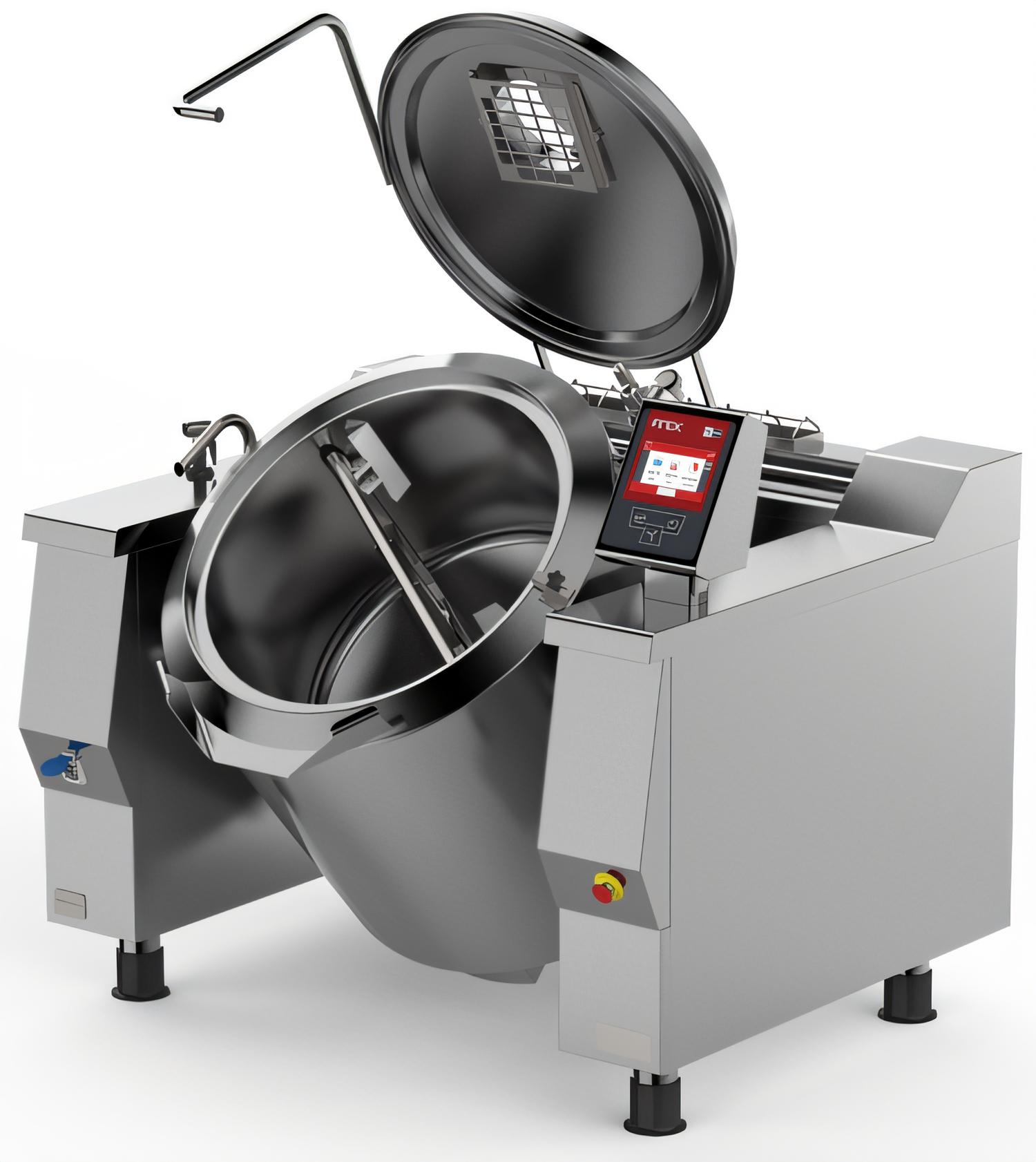

Baskett UPRIE122M_V1 122 Gallon Electric Indirect Heating Tilting Kettle with Mixer
Baskett UPRIE122M_V1 122 Gallon Electric Indirect Heating Tilting Kettle with Mixer
Full-Size, 316 Stainless Steel Liner, 7" Touch Screen Controls
The Baskett UPRIE122M_V1 electric tilting kettle offers a robust 122-gallon capacity with advanced mixing and precise temperature control, perfect for high-volume commercial kitchens.
- Large 122-gallon capacity efficiently handles high-volume production needs.
- Integrated 2-arm mixer with removable POM scrapers ensures thorough and adaptable ingredient blending.
- Advanced temperature control using dual probes and an electronic board delivers consistent cooking results.
- Intuitive 7" touch screen control panel enables easy programming of cooking modes and HACCP data download.
- Durable construction with AISI 316 stainless steel inner vessel and AISI 304 outer for longevity and hygiene.
- Electric indirect heating system with a double-jacket provides uniform and efficient cooking performance.
- Features an electric tilting mechanism for easy product discharge and cleaning.

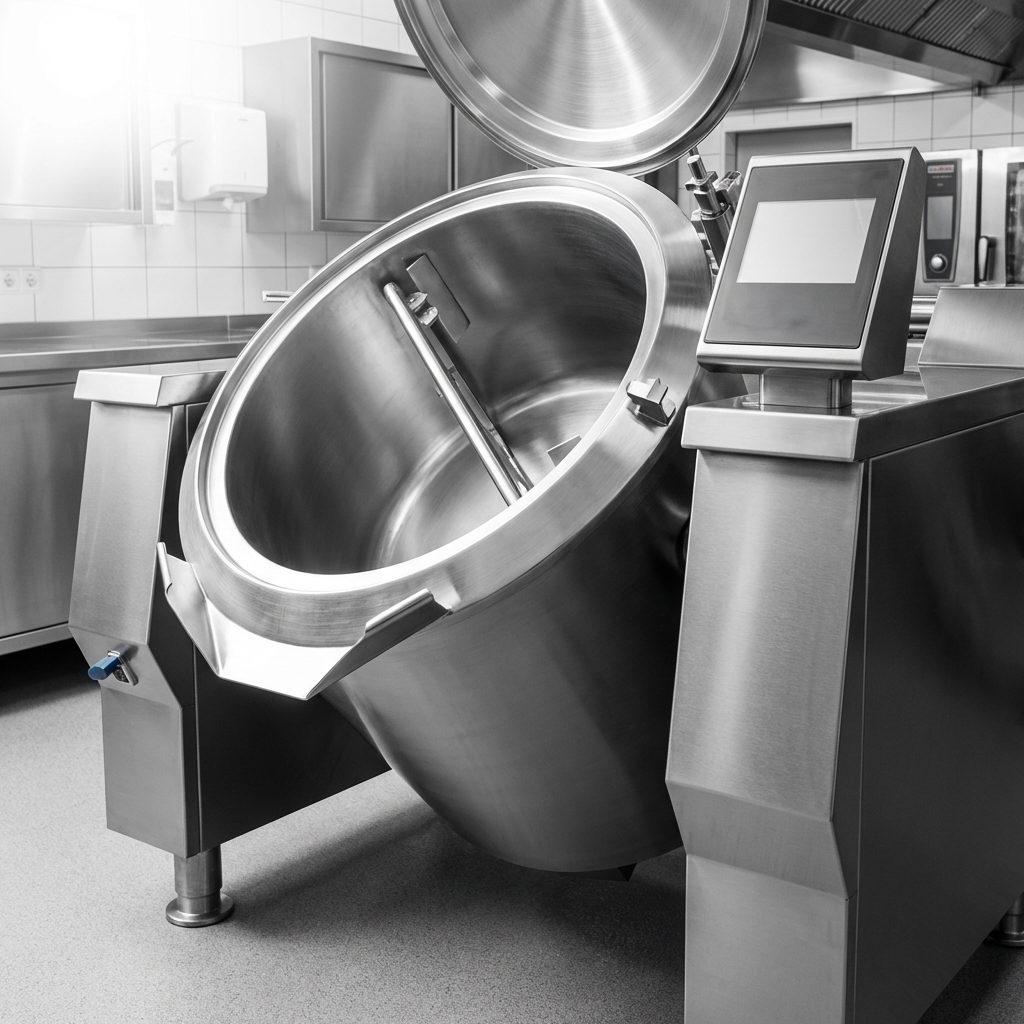

Heavy-Duty Stainless Steel Construction
Cooking vessel made of AISI 316 stainless steel (25-40/10 thickness) specifically designed for processing acidic products, with an AISI 304 stainless steel jacket and outer cover (12-15/10 thickness) and a self-supporting frame (30-40/10 thickness).

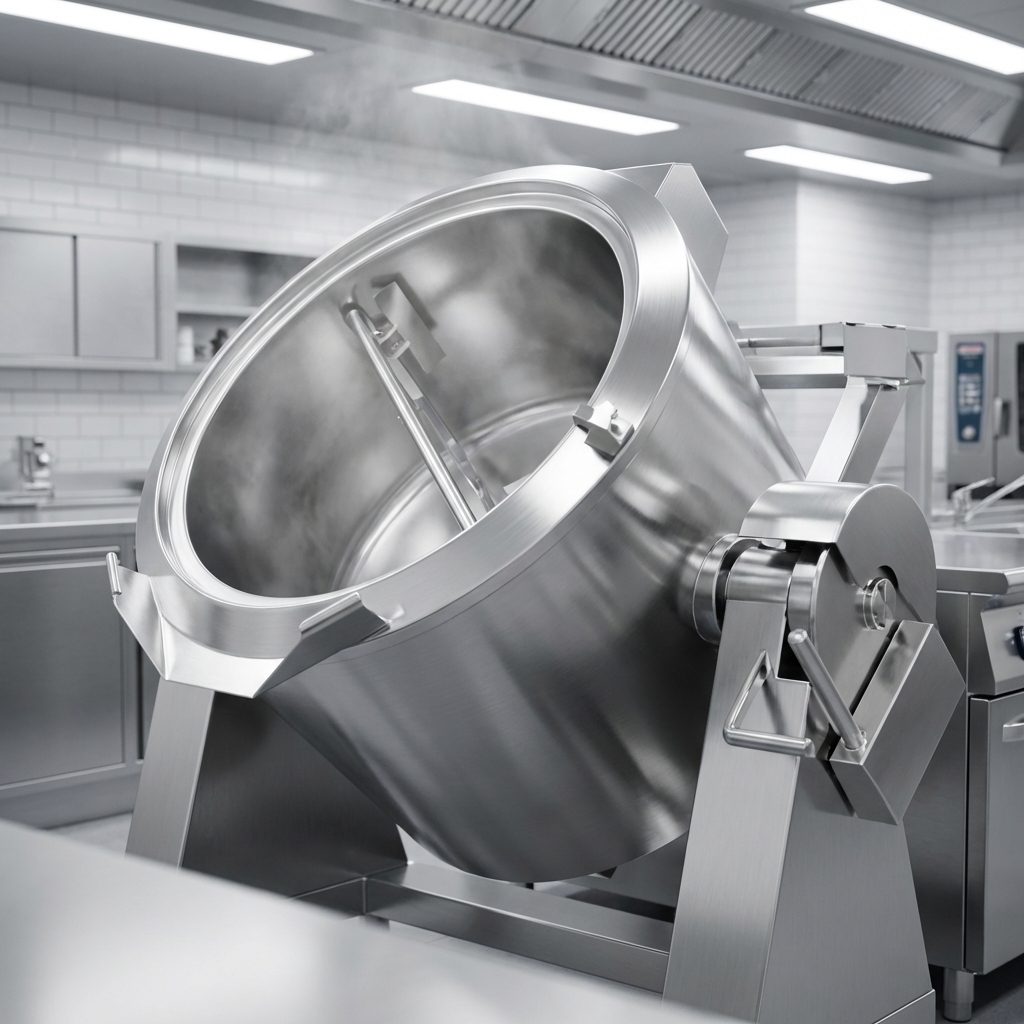

Electric Tilting Mechanism
Vessel features electric tilting on the front part for convenient emptying and cleaning, controlled via the touch screen or keyboard.

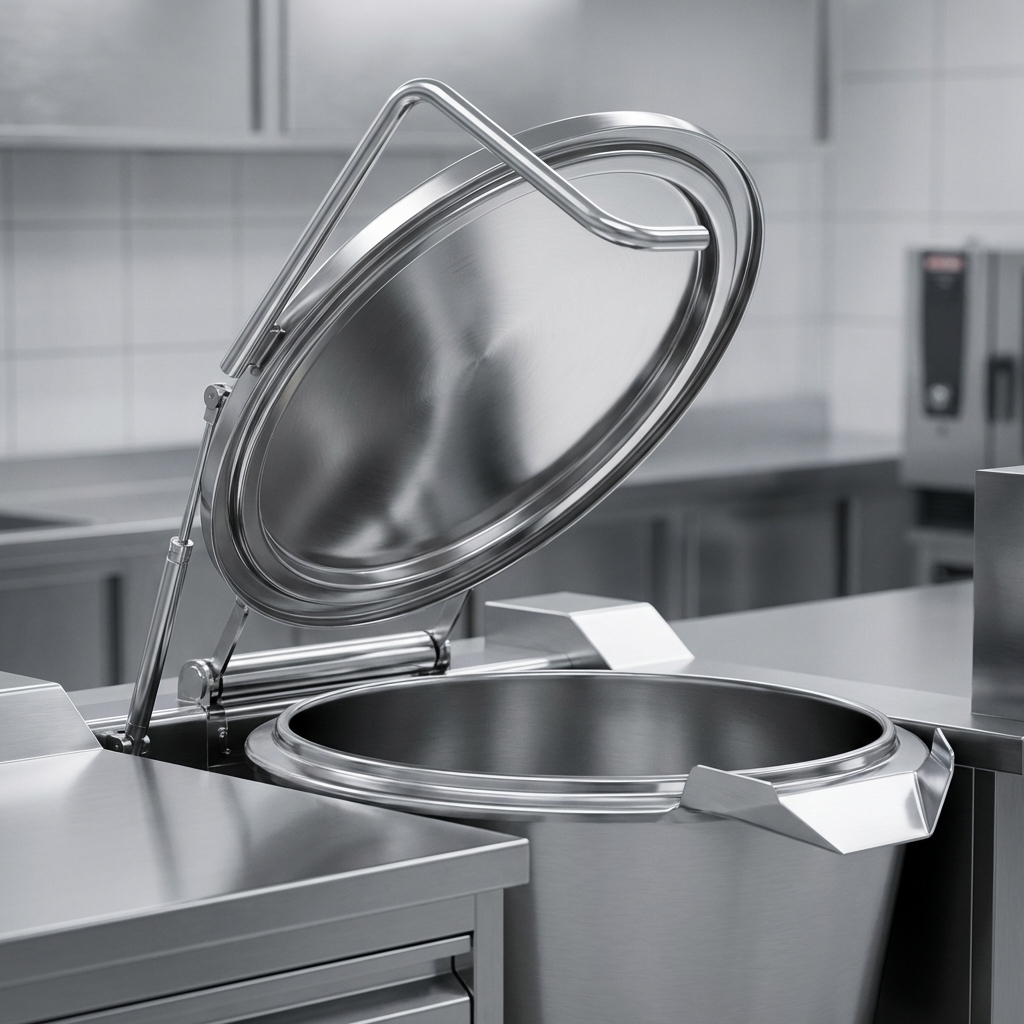

Insulated Lid with Double Cover
Insulated lid with a double cover in AISI 304 stainless steel (20/10 thickness), equipped with an ergonomic handle and balanced by gas springs for easy operation.
Efficient Indirect Heating System
Heating is achieved by armored INCOLOY-800 alloy elements, controlled by an electronic board that activates 4°F before the setpoint to prevent steam outlet and power waste, regulated by a pressure switch set at 8.7 PSI.
Precision Temperature Control
Temperature is precisely controlled by two probes (one for the product, one for the jacket) to ensure optimal cooking conditions.
Integrated 2-Arm Mixer
Equipped with a 2-arm mixing tool made of AISI 304 stainless steel, featuring 4 removable POM scrapers that can be easily installed or removed without tools, programmable from the control panel for speed, rotation times, and pause times, and can operate at minimum speed during tilting.
7" Resistive Touch Screen Control
Electronic control system features a multifunctional keyboard with a 7" resistive touch screen for clear messages, selection of 5 cooking modes (6 with optional cooling), manual/program cooking, multiphase program creation, and various settings.
HACCP Data & Software Management
Includes a USB connection for downloading HACCP data, updating software, and loading custom cooking programs.
Double-Jacket Cooling Capability
The kettle features a double-jacket with the capability for cooling, allowing for precise temperature management during various cooking stages.
Comprehensive Safety Features
Includes an emergency button, heating block for excess temperature (with manual resettable thermostat), heating block at minimum water level in cavity, double-jacket safety valve, heating interruption during vat tilting, and mixer operation at minimum speed with lid open.
IPX5 Protection Level
Designed with an IPX5 protection level for enhanced water resistance and durability in commercial kitchen environments.
Specifications
| Type | Tilting Kettle with Mixer |
|---|---|
| Style | Indirect Heating |
| Installation Type | Floor Model (With Quad-Leg Base) |
| Capacity | 122 Gallons |
| Interior Finish | 316 Stainless Steel |
| Material | 304 Stainless Steel |
| Finish | Satin |
| Controls | Programmable Digital Touch Screen |
| Compartments | 1 |
| Voltage | 208 Volts |
| Amps | 82.4 Amps |
| Watts | 29.7 kW |
| Hertz | 60 Hz |
| Phase | 3-Phase |
| Mixer Power | 2.20 kW |
| Mixer Torque | 464 Nm |
| Mixing Speed | 12-40 Rpm |
| Water Connection | Required |
| Water Inlet Size | 3/4" |
| Water Pressure | 25-50 PSI |
| Drain Connection | Required (via tilting) |
| Country of Origin | Italy |
| IP Rating | IPX5 |
| Shipping Width | 70 Inches |
| Shipping Depth | 65 Inches |
| Shipping Height | 59 Inches |
| Shipping Weight | 1587 lbs |
| Selling Unit | Each |
| Units Per Case | 1 |
Overall Dimensions:
69.09"W x 64.96"D x 58.39"HProduct Weight:
1587.0 lbWarranty & Protection
1-year parts and labor warranty, with a 10-year hemisphere warranty on kettles.
