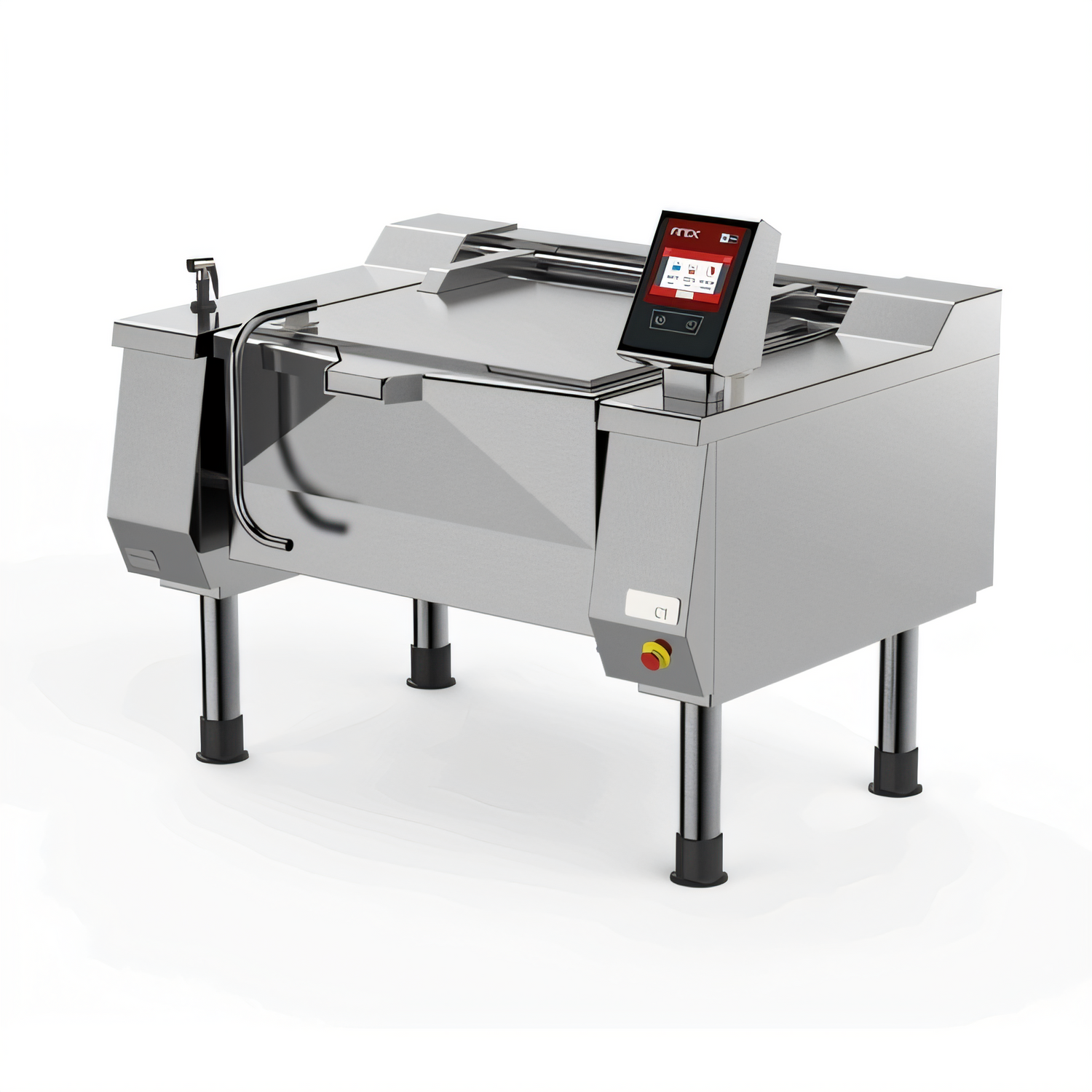

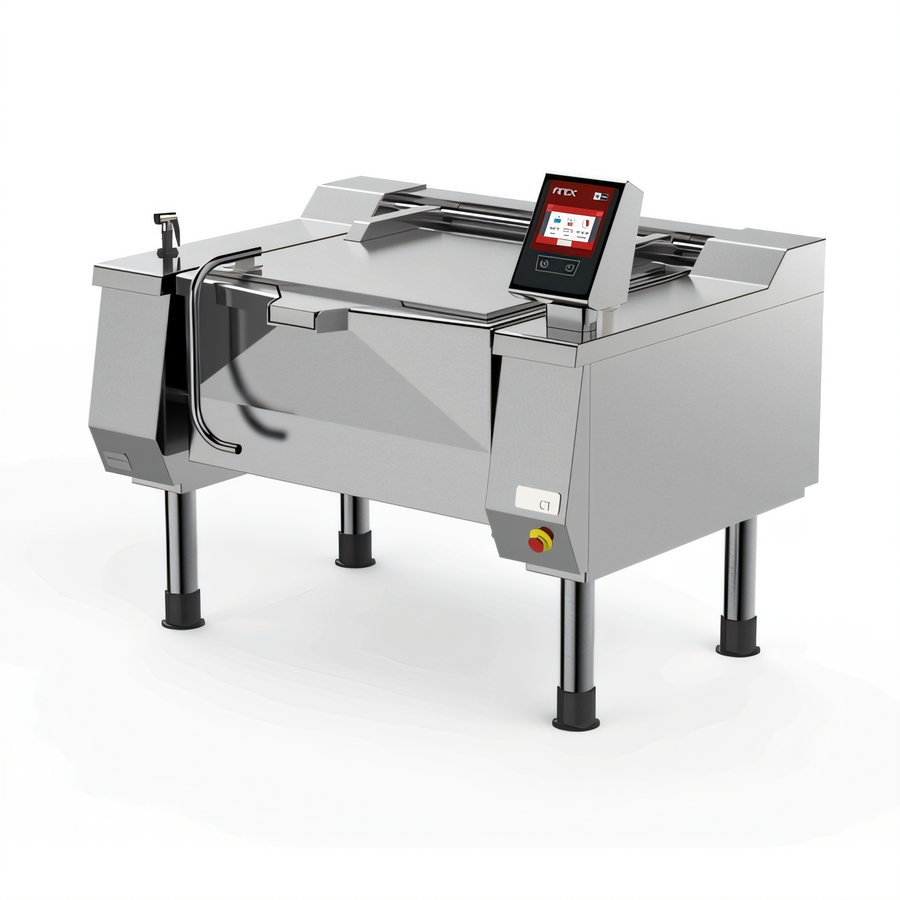

Betterpan UDBRG048V1 48 Gallon Gas Tilting Skillet Braising Pan with 7" Touch Screen Controls
Betterpan UDBRG048V1 48 Gallon Gas Tilting Skillet Braising Pan with 7" Touch Screen Controls
Full-Size, Natural Gas, Programmable Electronic Controls
Achieve versatile cooking and precise temperature management with the Betterpan UDBRG048V1 gas tilting skillet, engineered for high-volume commercial kitchens.
- Large 48 gallon capacity ideal for batch cooking and high-volume operations.
- Programmable electronic controls with an intuitive 7" touch screen for precise temperature settings and custom cooking cycles.
- Equipped with high-efficiency stainless steel tube burners for powerful and consistent gas heating.
- Features automatic electric tilting for effortless and safe emptying of cooked contents.
- Constructed from durable AISI 304 stainless steel for longevity, hygiene, and easy cleaning.
- Includes a fixed core temperature probe for accurate internal product temperature monitoring and a USB connection for HACCP data.
Overall Dimensions:
78.75"W x 44.25"D x 50.63"HProduct Weight:

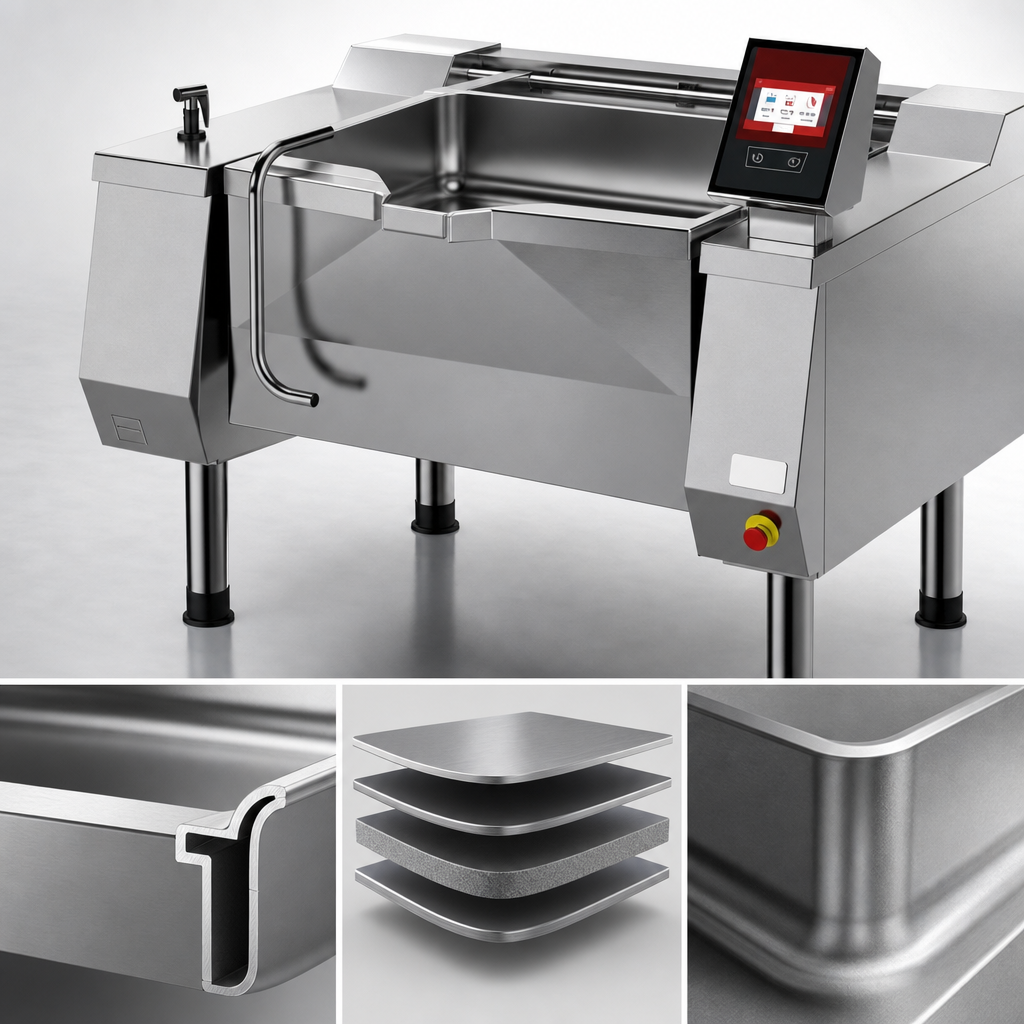

1157.0 lbHeavy-Duty Cooking Vessel
Constructed from AISI 304 stainless steel with a 15 mm thick bottom and 2.5 mm thick walls, featuring rounded corner angles and an anti-overflowing lip for durability and ease of use.

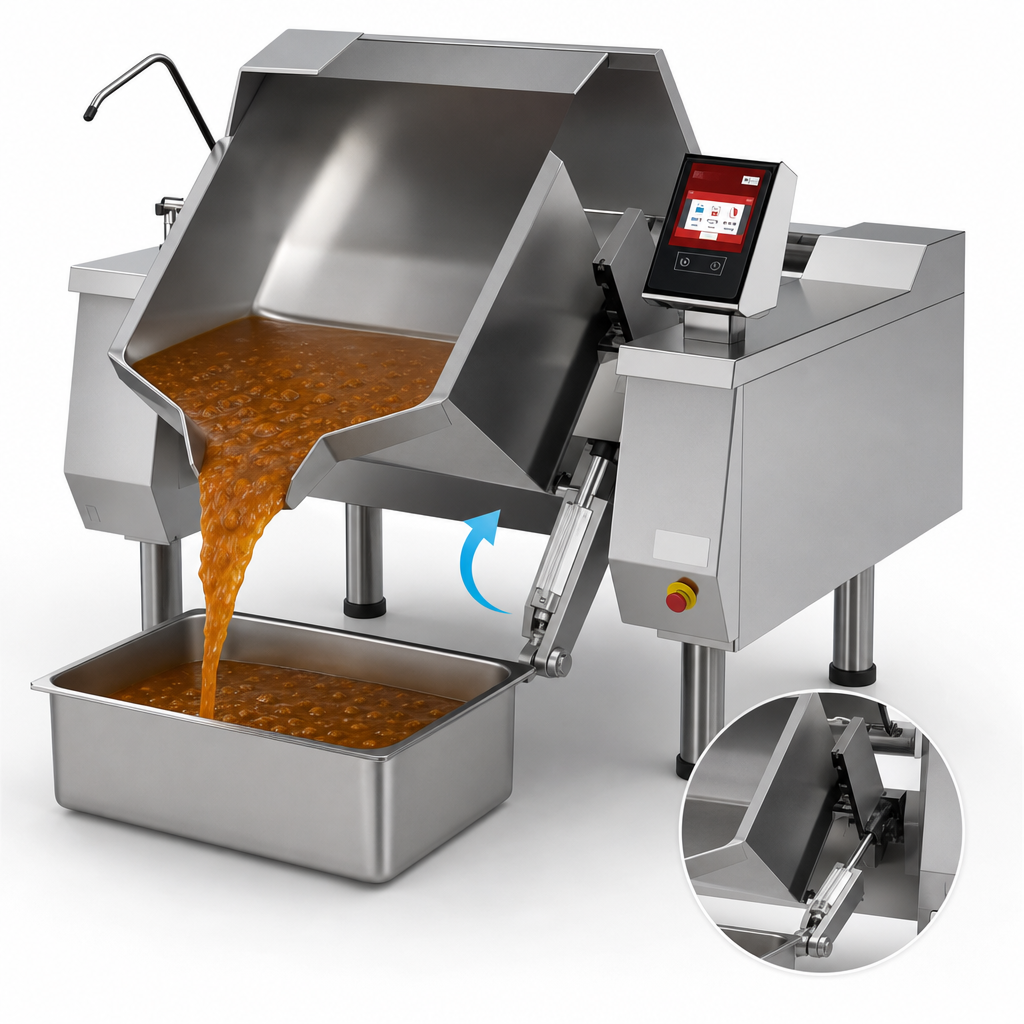

Electric Tilting Mechanism
Allows for front-part electric tilting of the vessel, facilitating safe and controlled pouring and emptying of contents.
Insulated Spring-Balanced Lid
Double-cover lid made of AISI 304 stainless steel (12/10 thickness) with an ergonomic handle, balanced by gas springs for smooth opening and closing.
Robust Stainless Steel Frame
Features a self-supporting frame made of AISI 304 stainless steel (30-40/10 thickness) for exceptional stability and strength.
Fine Satin Finish Exterior
Outer cover in AISI 304 stainless steel with a fine satin finish (12-15/10 thickness), ensuring a professional appearance and easy maintenance.
Adjustable Leveling Feet
Equipped with adjustable AISI 304 stainless steel feet with removable covers, allowing for precise leveling and simplified cleaning underneath the unit.
Easy Access for Maintenance
Frontal panels provide fast accessibility to main functional parts such as the electronic card, fuses, and thermostats for quick servicing.
High-Efficiency Gas Heating
Utilizes high-efficiency stainless steel tube burners for rapid and even heating across the cooking vessel.
Automatic Ignition and Flame Control
Features an automatic ignition system and flame control without the need for a pilot burner, enhancing safety and efficiency.
Dual-Probe Temperature Control
Heating controlled by an electronic board with a sophisticated dual-probe system (product/bottom) for accurate temperature management.
7" Resistive Touch Screen Controls
Multi-functional keyboard with a 7" resistive touch screen for intuitive electronic control, displaying clear messages and cooking parameters.
USB Connectivity
Includes a USB connection for convenient download of HACCP data, software updates, and loading of custom cooking programs.
Fixed Core Temperature Probe
A core temperature probe is fixed at the lid, allowing for precise monitoring of the product's internal temperature during cooking.
Programmable Cooking Modes
Offers manual and program modes, with the ability to create and edit multiphase cooking programs, setting cooking type, temperature, and time for each phase.
Automatic Water Filling
Allows for setting and automatic measurement of hot (up to 140°F) or cold water directly into the cooking tank.
Delayed Cooking Function
Enables setting for delayed cooking cycles with specific date and time programming.
IPX5 Water Protection
Certified with IPX5 protection level, indicating resistance to water jets, making it suitable for commercial kitchen environments.
Safety Systems
Equipped with an emergency button, heating block for excess temperature with a manual resettable safety thermostat, and heating interruption during vat tilting for operational safety.
Certifications & Compliance
Warranty & Protection
1-year parts and labor limited warranty.
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
