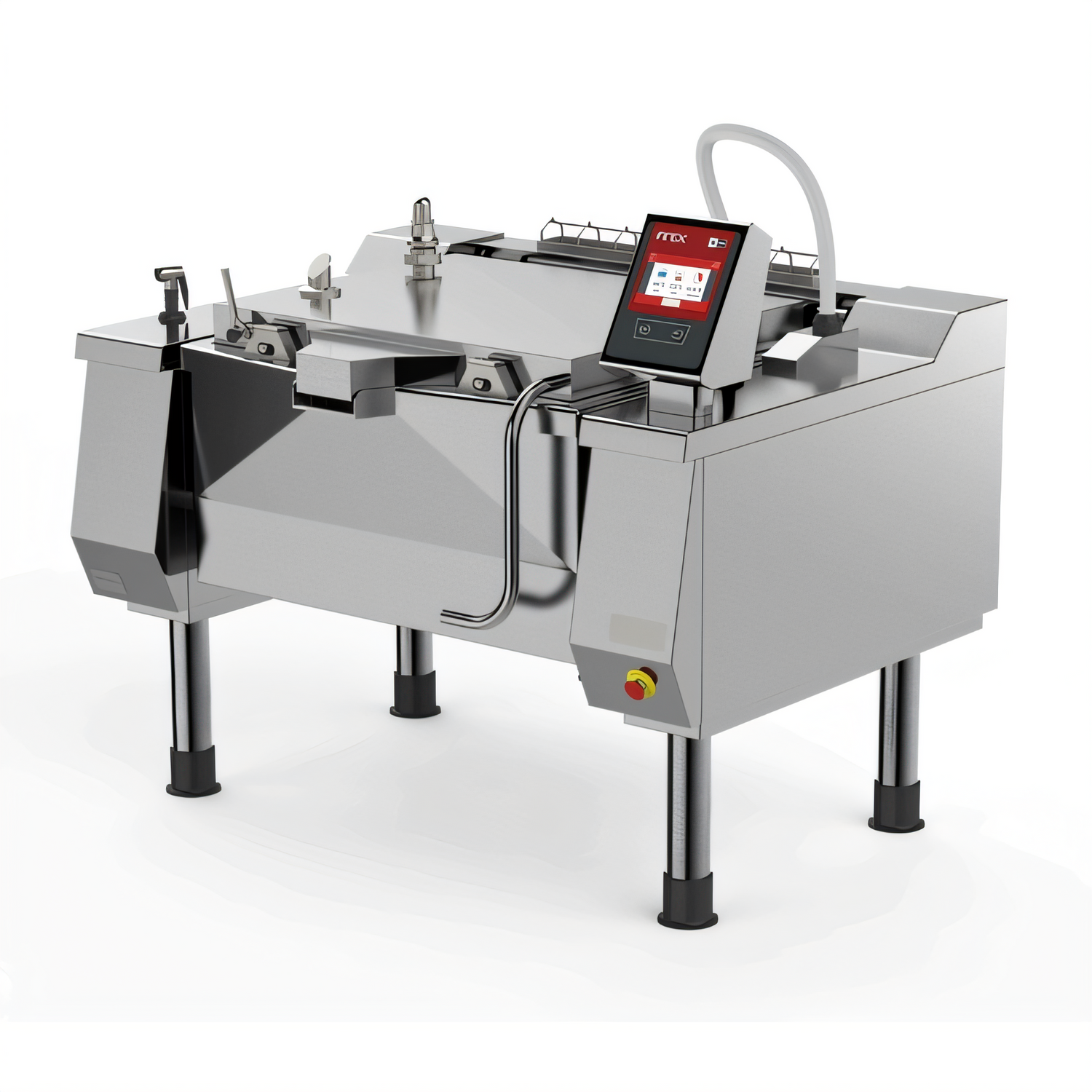

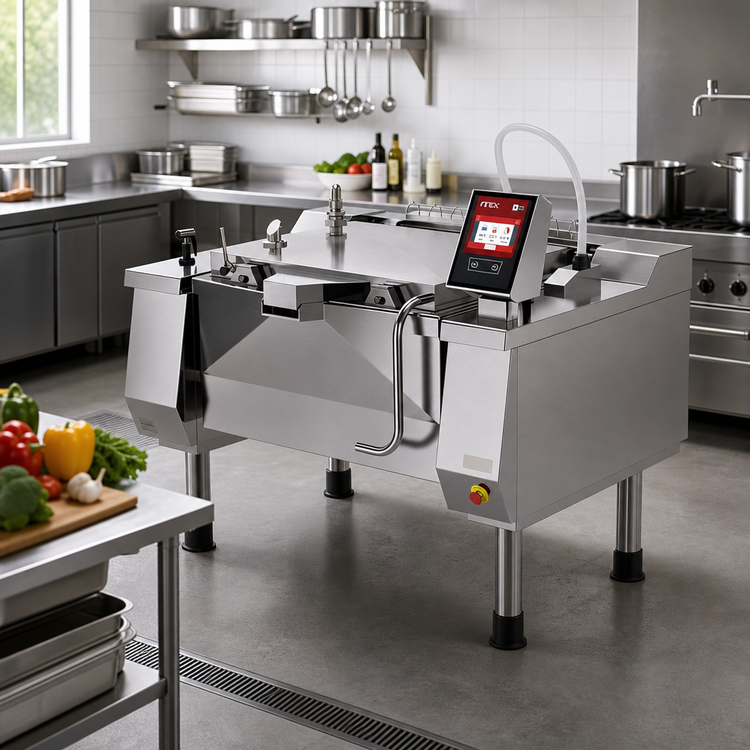

Betterpan UDBRG048AV1 48 Gallon Gas Tilting Skillet Pressure Braising Pan
Betterpan UDBRG048AV1 48 Gallon Gas Tilting Skillet Pressure Braising Pan
Full-Size, Gas, Programmable Electronic Controls, Automatic Pressure Cooking
Achieve superior cooking results and efficiency with the Betterpan UDBRG048AV1, a versatile gas tilting skillet and pressure braising pan designed for high-volume commercial kitchens.
- Large 48-gallon capacity ideal for mass production and high-volume operations.
- Advanced 7" touch screen controls for precise temperature management and programmable cooking modes.
- Features pressure cooking with automatic air elimination and steam condensation for faster cooking and safer lid opening.
- Robust stainless steel construction ensures durability and easy cleaning.
- Integrated core temperature probe guarantees consistent and accurate internal product temperatures.
- Equipped with electric tilting for effortless emptying and cleaning.
Overall Dimensions:
78.75"W x 44.25"D x 50.63"HProduct Weight:

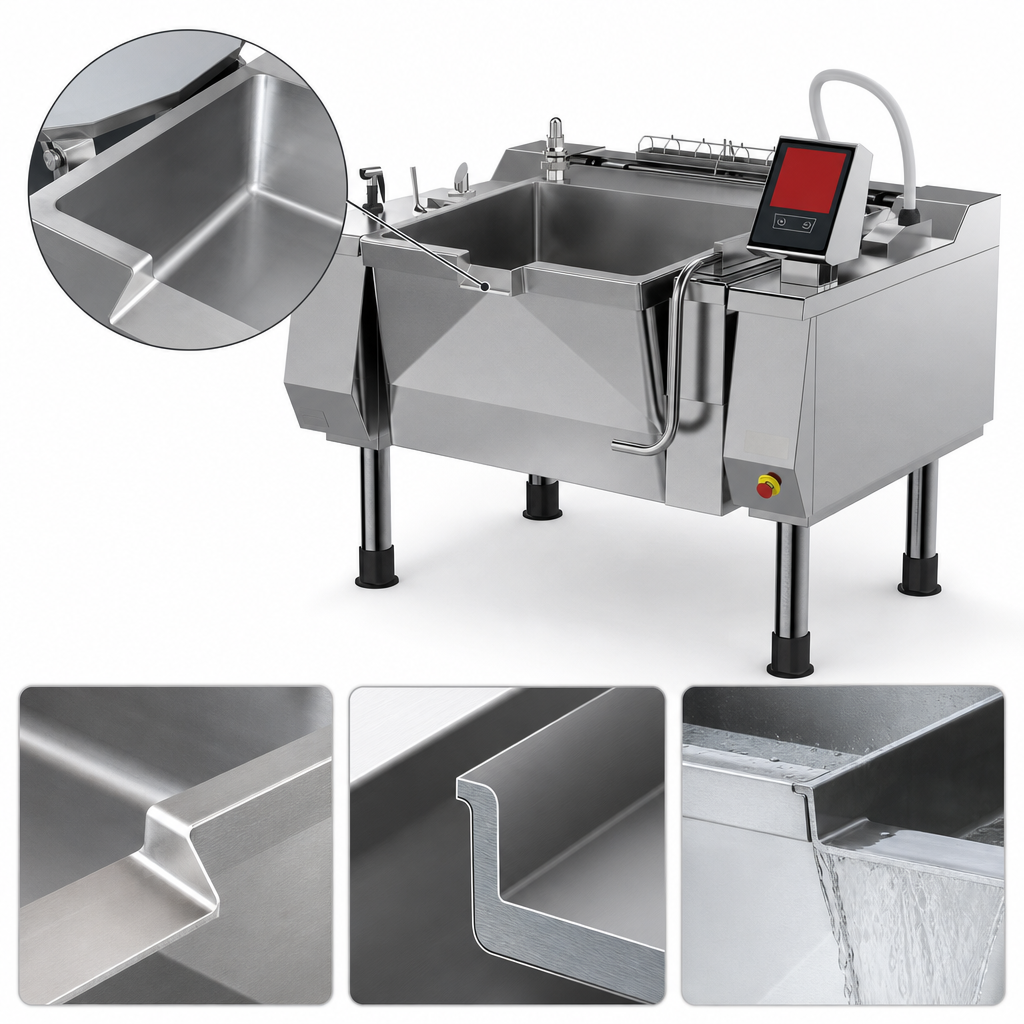

1224.0 lbStainless Steel Cooking Vessel
Constructed from AISI 304 stainless steel with a 15mm thick bottom and 2.5mm thick walls, featuring rounded corner angles and an anti-overflowing lip for durability and ease of cleaning.

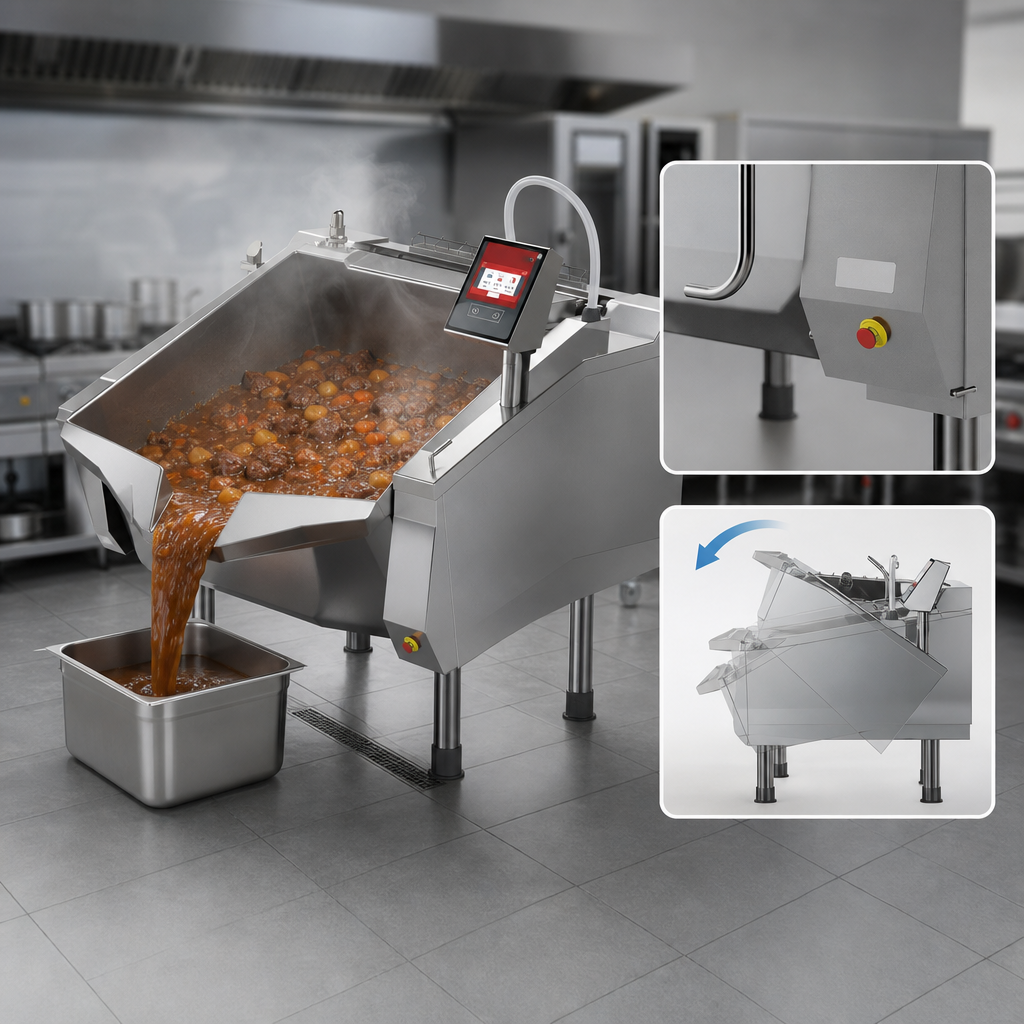

Electric Tilting Mechanism
The cooking vessel is equipped with electric tilting on the front part for easy and safe emptying of contents.
Spring-Balanced Hinged Lid
Stainless steel AISI 304 double-cover lid with ergonomic handle, reinforced 4-point locking system on sliding shafts, and lever-type control bolts that block opening under pressure. Balanced by gas springs for smooth operation.
Alimentary Silicone Gasket
A single-jointed, alimentary silicone gummy gasket ensures a tight seal for pressure cooking.
Self-Supporting Stainless Steel Frame
Built with a sturdy AISI 304 stainless steel frame for exceptional stability and longevity.
Fine Satin Finish Outer Cover
The exterior is clad in AISI 304 stainless steel with a fine satin finish, providing a professional appearance and corrosion resistance.
Adjustable Stainless Steel Feet
Equipped with AISI 304 stainless steel feet for leveling the unit, with removable covers for easy cleaning access.
Frontal Panel Accessibility
Designed for fast accessibility to main functional parts like the electronic card, fuses, and thermostats by simply removing the frontal panels.
High Efficiency Gas Heating
Utilizes high-efficiency stainless steel tube burners with automatic ignition and flame control system, eliminating the need for a pilot burner.
Dual-Probe Temperature Control
Temperature is precisely controlled by an electronic board using a system with two probes (one for product, one for bottom).
Automatic Pressure Cooking System
Includes an automatic system for eliminating air from the cooking container for saturated steam cooking and automatic steam condensation after cooking, allowing for fast and safe lid opening without steam dispersion.
Fixed Core Temperature Probe
A core probe is fixed at the lid as a standard feature, providing accurate internal product temperature readings.
7-Inch Touch Screen Electronic Control
Features a multifunctional keyboard with a resistive 7" touch screen for intuitive control, displaying easy and clear messages.
USB Connection
Allows for downloading HACCP data, updating software, and loading custom cooking programs.
MODBUS Communication Protocol
Ability to interrogate the machine using MODBUS over an RS485 serial interface.
Multiphase Cooking Programs
Create and edit complex cooking programs with multiple phases, setting cooking type, parameters (temperature and time), and custom text messages for each phase.
Automatic Water Load Setting
Tank water load can be set for hot (up to 140°F) or cold water with automatic liter measurements.
Delayed Cooking
Program cooking cycles with specific dates and times for delayed operation.
Multi-Unit Display Options
Display units of measurement can be set to °C/°F and Liters/gallons.
Comprehensive Safety System
Includes an emergency button, heating blocking for excess temperature with a manual resettable safety thermostat, mechanical lid opening lock under pressure, lid safety valve, and heating interruption during vat tilting.
Certifications & Compliance
Warranty & Protection
1-year parts and labor
