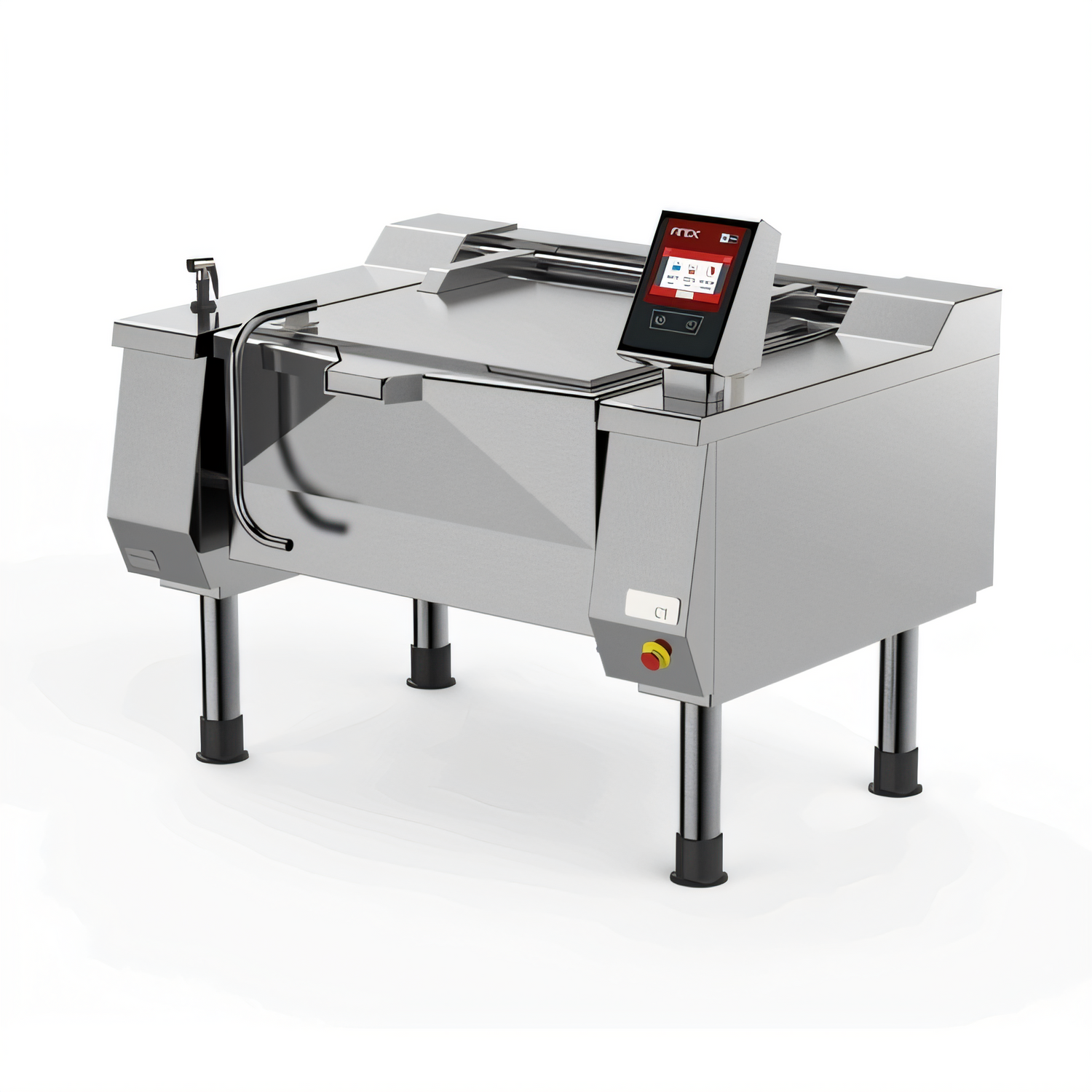

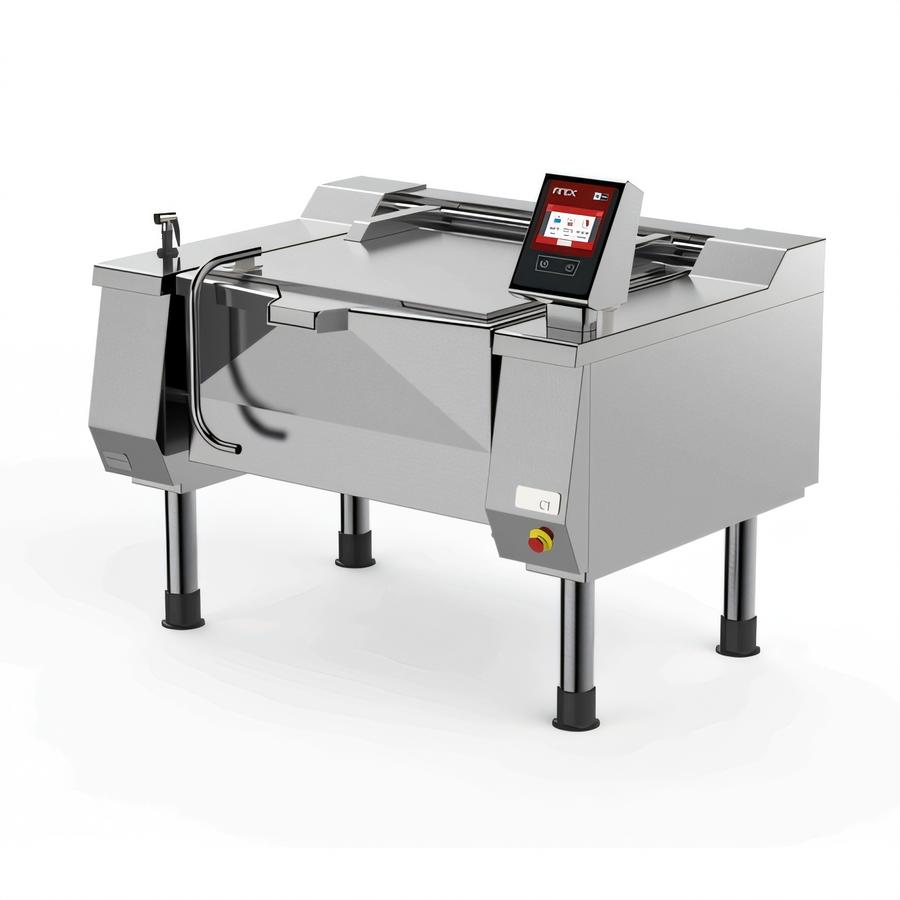

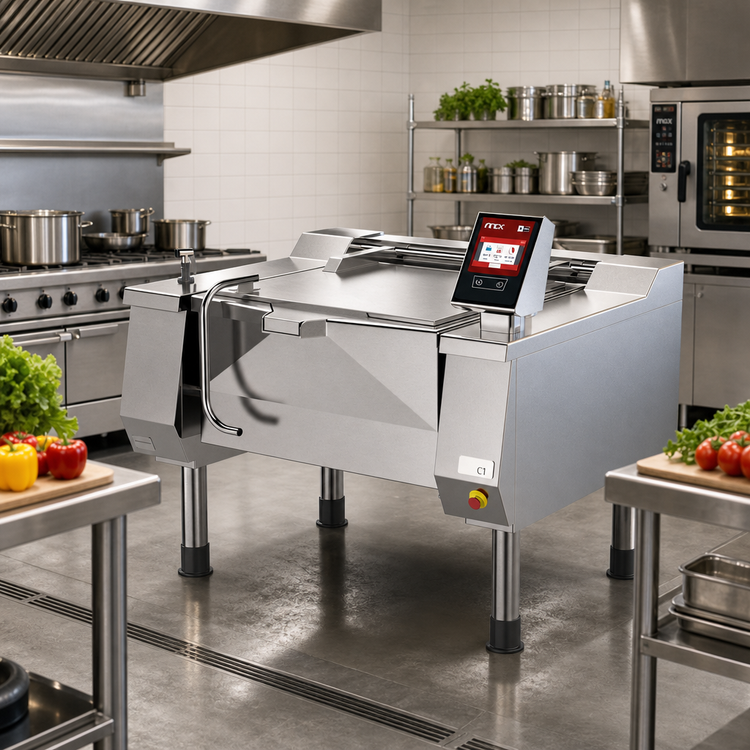

Betterpan UDBRG038V1 38 Gallon Gas Tilting Skillet Braising Pan
Floor Model, Programmable Digital Controls, Console Base
Achieve consistent, high-volume cooking with the Betterpan UDBRG038V1, a robust 38-gallon gas tilting skillet braising pan featuring intuitive 7-inch touchscreen controls and durable stainless steel construction.
- Large 38-gallon capacity perfectly suited for high-volume commercial kitchen operations.
- Features a 7-inch resistive touch screen with programmable electronic controls for precise cooking and recipe management.
- Constructed from high-quality AISI 304 stainless steel for exceptional durability and easy sanitation.
- Electric tilting mechanism and spring-balanced lid facilitate safe, efficient loading, cooking, and emptying.
- Integrated USB connection allows for HACCP data download, software updates, and program loading.
- Equipped with high-efficiency stainless steel tube burners with automatic ignition for reliable performance.
- Designed with an IPX5 protection level, ensuring resistance to water for easy cleaning and robust operation.
Overall Dimensions:
68.5"W x 44.25"D x 50.63"HProduct Weight:

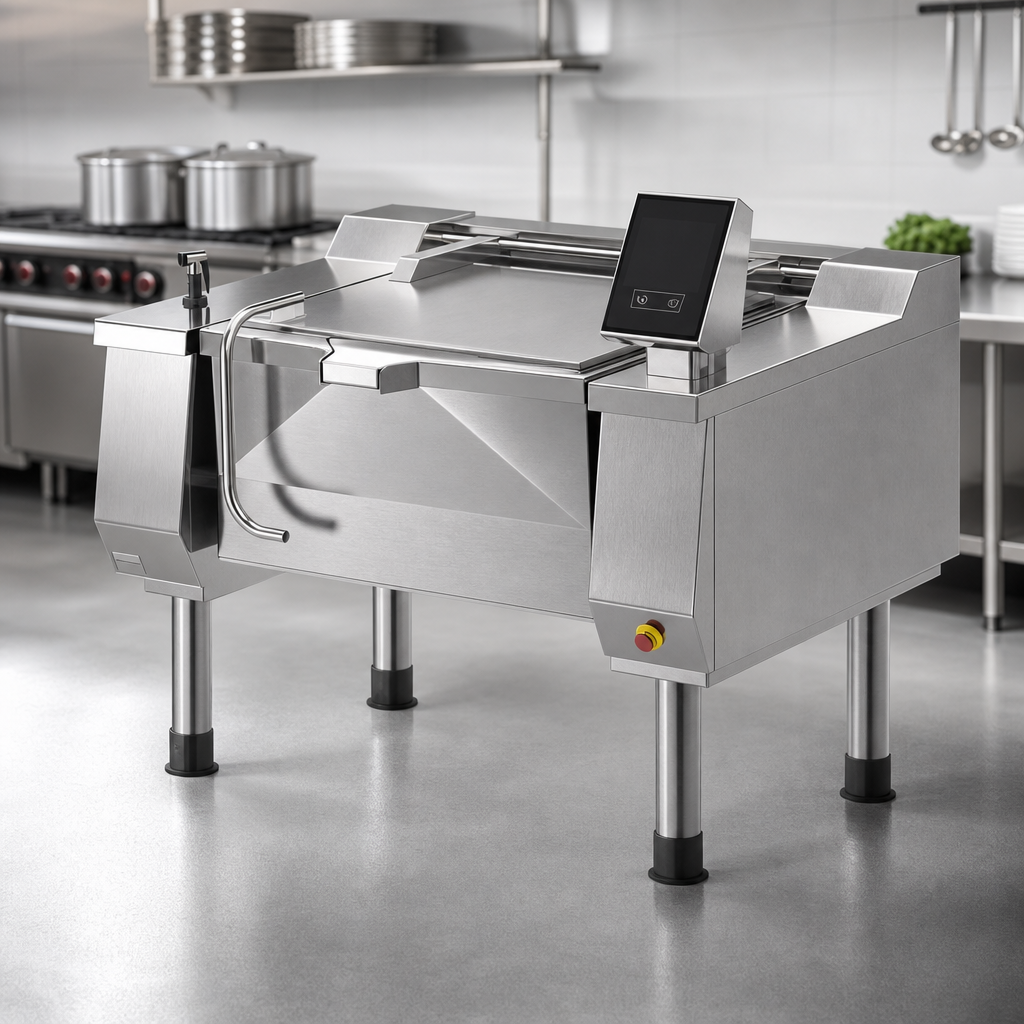

1036.0 lbDurable Stainless Steel Construction
The cooking vessel, self-supporting frame, and outer cover are made of AISI 304 stainless steel, with a 15 mm thick bottom and 2.5 mm thick walls for the vessel, ensuring longevity and hygienic operation. Features rounded corner angles and an anti-overflowing lip.

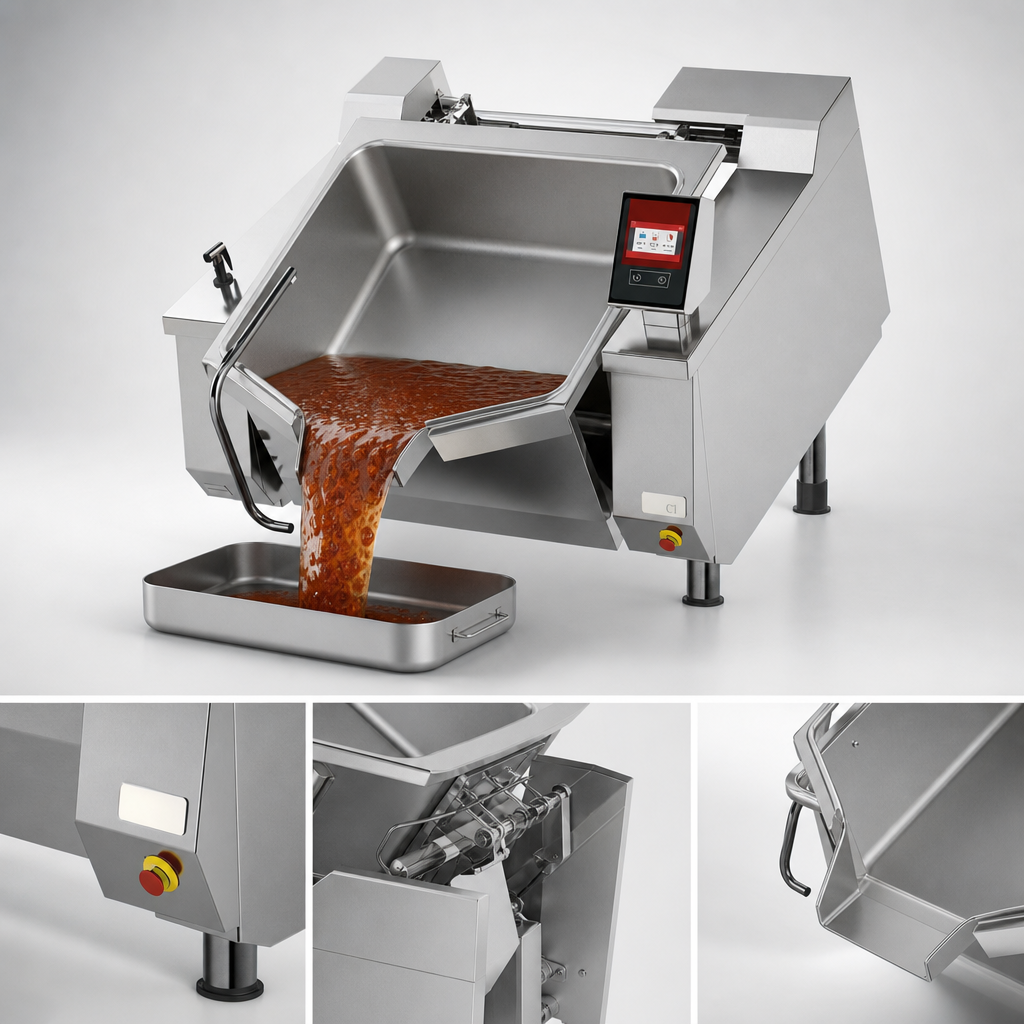

Electric Tilting Vessel
The cooking vessel electrically tilts on the front part, allowing for easy and safe emptying of contents and simplified cleaning procedures.
Insulated & Balanced Lid
An insulated lid with a double cover in AISI 304 stainless steel and an ergonomic handle is balanced by gas springs, providing smooth and controlled opening and closing.
Advanced 7-Inch Touch Screen Controls
Operate the unit with a multifunctional keyboard featuring a 7-inch resistive touch screen, offering clear messages and easy-to-use controls for various cooking functions.
Programmable Cooking Modes
Select from 3 different cooking modes (expandable to 5 with an optional core probe), with the ability to set precise working temperatures.
Multi-Phase Cooking Programs
Create and edit complex multi-phase cooking programs, defining cooking type, parameters (temperature and time), and custom text messages for each phase.
USB Connectivity
A convenient USB connection allows for downloading HACCP data, updating software, and loading custom cooking programs directly to the unit.
High-Efficiency Gas Heating System
Utilizes high-efficiency stainless steel tube burners with an automatic ignition and flame control system, eliminating the need for a pilot burner.
Automatic Water Load
Features a tank water load setting for both hot (up to 90°C) and cold water, with automatic liter measurements for accurate recipe execution.
Adjustable & Easy-Clean Feet
Equipped with adjustable AISI 304 stainless steel feet for perfect leveling, complete with removable covers for thorough cleaning.
Comprehensive Safety System
Includes an emergency button, automatic heating interruption for excess temperature (with manual resettable thermostat), and heating interruption during vat tilting for enhanced operational safety.
Self-Diagnostics
The unit features self-diagnostics to identify and signal operational issues, aiding in quick troubleshooting and maintenance.
Delayed Cooking Function
Program cooking cycles to start at a specific date and time, enabling flexible kitchen scheduling and preparation.
Certifications & Compliance
Warranty & Protection
1-year parts and labor warranty.
