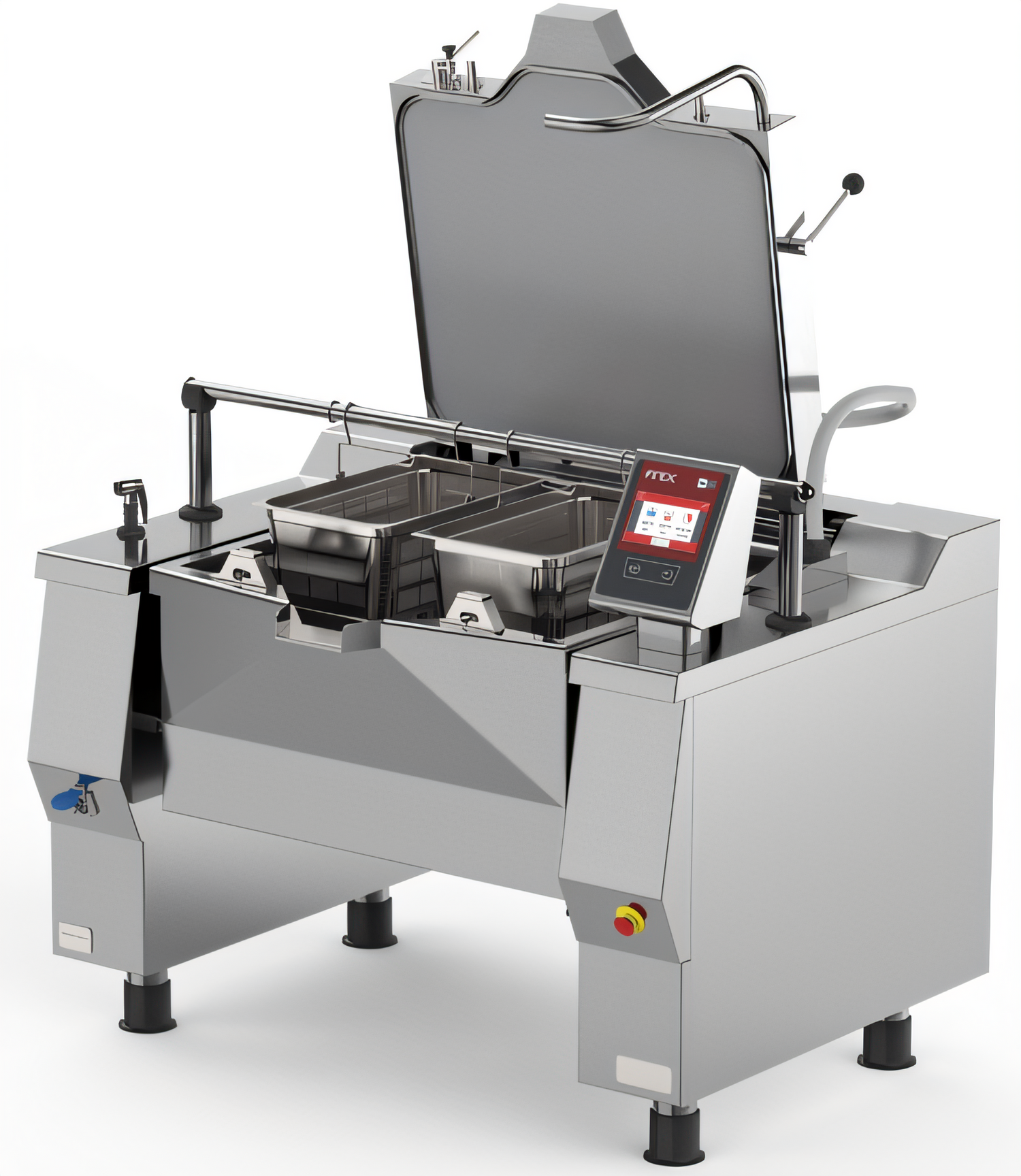

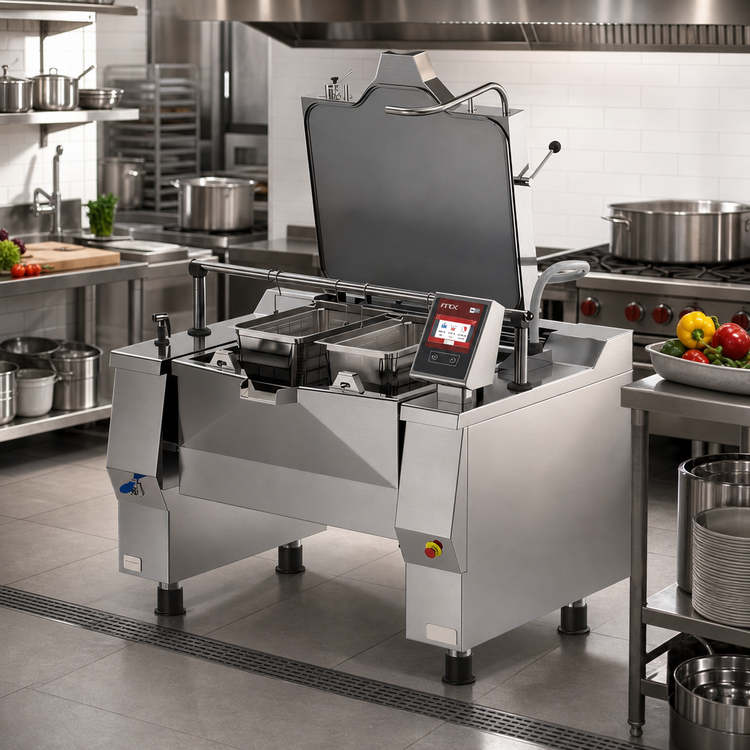

Betterpan UDBRG029ACV1 29 Gallon Gas Tilting Skillet Pressure Braising Pan

Full-Size, Natural Gas, Programmable Touchscreen Controls

Experience advanced, efficient cooking with the Betterpan UDBRG029ACV1, a versatile gas tilting skillet and pressure braising pan designed for high-volume commercial kitchens.

  • Large 29-gallon capacity ideal for diverse commercial cooking applications.
  • Programmable electronic controls with a 7-inch touchscreen for intuitive operation and consistent results.
  • Features pressure cooking capabilities with automatic air elimination and steam condensation for safety and efficiency.
  • Equipped with an automatic basket lifting system and a fixed core temperature probe for precise cooking.
  • Durable AISI 304 stainless steel construction and IPX4 protection ensure longevity and easy cleaning.
  • USB connection allows for HACCP data download, software updates, and custom program loading.

Overall Dimensions:

57.88"W x 44.25"D x 50.63"H

Product Weight:

1014.0 lb

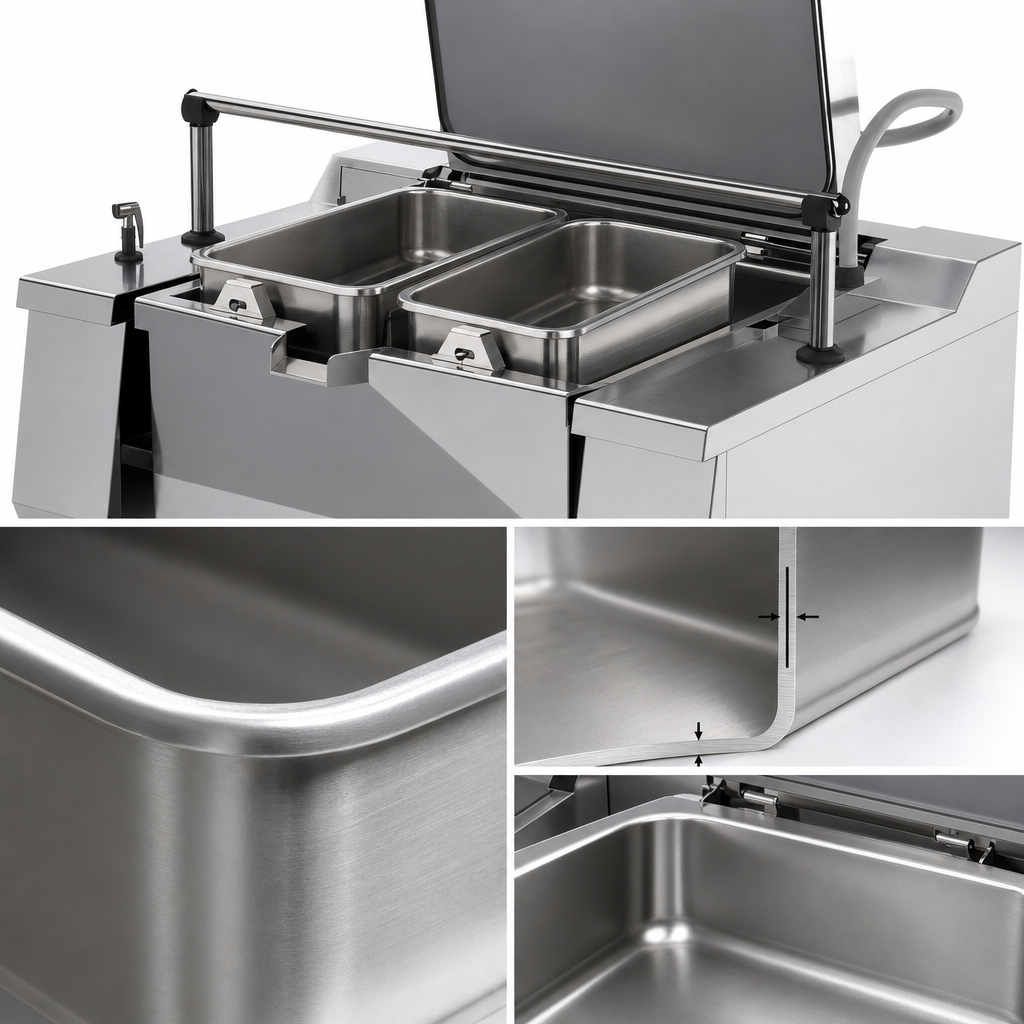

Stainless Steel Cooking Vessel

Constructed from AISI 304 stainless steel with a 15 mm bottom and 2.5 mm wall thickness, featuring rounded corners and an anti-overflowing lip for easy cleaning and durability.

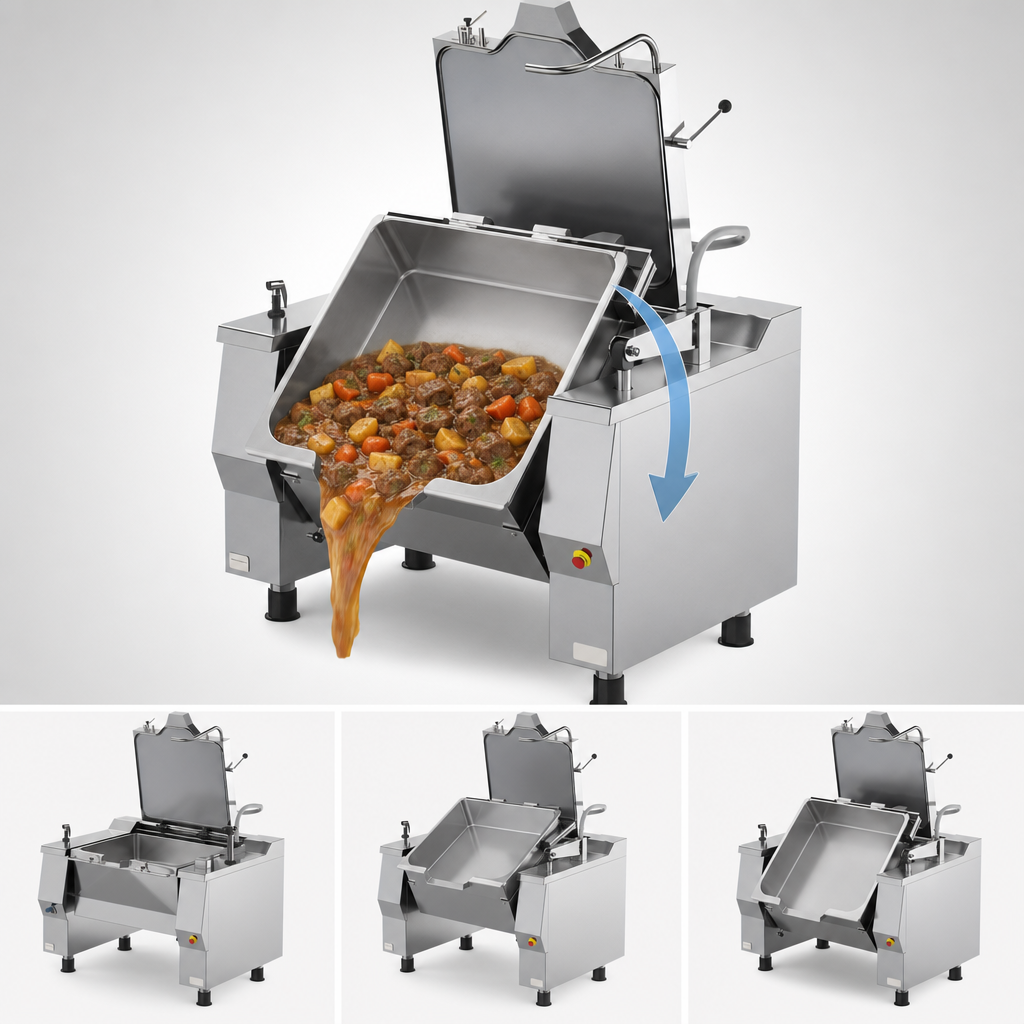

Electric Tilting Mechanism

The cooking vessel features electric tilting on the front part, enabling effortless pouring, emptying, and cleaning.

Reinforced Hinged Lid

Double-covered AISI 304 stainless steel lid with an ergonomic handle, a reinforced 4-point locking system, and lever-type control bolts that prevent opening under pressure, balanced by gas springs.

Advanced Pressure Cooking

Includes an automatic system for eliminating air from the cooking container during pressure cooking to ensure saturated steam, and automatic steam condensation after cooking for fast and safe lid opening without steam dispersion.

Programmable Touch Screen Controls

Electronic control via a multifunctional keyboard with a 7-inch resistive touchscreen display, offering 7 different cooking modes, precise time and temperature settings, and the ability to create and edit multiphase programs.

Integrated Core Temperature Probe

A core temperature probe is fixed at the lid as a standard feature, allowing for accurate internal product temperature monitoring.

Automatic Basket Lifting System

Electrically powered system for automatically lifting baskets, controlled by the electronic card for hands-free operation.

USB Connectivity

Equipped with a USB connection for downloading HACCP data, performing software updates, and loading custom cooking programs.

Adjustable Stainless Steel Feet

Stainless steel adjustable feet ensure proper leveling on various surfaces and feature removable covers for simplified cleaning.

High-Efficiency Gas Heating

Utilizes high-efficiency stainless steel tube burners with an automatic ignition and flame control system, eliminating the need for a pilot burner.

Comprehensive Safety System

Includes an emergency button, heating blockage for excess temperature with a manual resettable thermostat, mechanical lid lock with tank under pressure, a lid safety valve, and heating interruption during vat tilting.

Type Tilting Skillet
Style Pressure Braising Pan
Installation Type Floor Model (Console Base)
Capacity 29 Gallons
Cooking Surface Width 31 3/4 Inches
Cooking Surface Depth 25 5/8 Inches
Cooking Surface 806 Square Inches
Max Cooking Pressure 5.8 PSI
BTU 95,500 BTU/h
Gas Type Natural Gas
Gas Connection Size 3/4 Inches
Water Connection Required
Water Inlet Size 3/4 Inches
Water Inlet Pressure 25-50 PSI
Drain Connection Size 1 Inch
Controls Programmable Digital Touch Screen
Material 304 Stainless Steel
Interior Finish 304 Stainless Steel
Voltage 220-240 Volts
Phase 2-Phase
Hertz 60 Hz
Watts 0.50 kW
Protection Level IPX4
Shipping Width 58 Inches
Shipping Depth 45 Inches
Shipping Height 51 Inches
Shipping Weight 1014 lb
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This braising pan has a generous cooking capacity of 29 gallons, with a cooking vessel surface area of 806 square inches, making it suitable for large-batch preparations.
The Betterpan UDBRG029ACV1 features programmable electronic controls with a 7-inch resistive touchscreen. It allows for selecting 7 different cooking modes, setting temperatures, and creating multi-phase cooking programs.
Yes, it supports pressure cooking with a maximum cooking pressure of 5.8 PSI. It includes an automatic system for air elimination from the cooking container and automatic steam condensation after cooking for safety and efficiency.
The standard electrical configuration is 220-240 Volts, 2-Phase, 60 Hz, drawing 0.50 kW. An optional configuration of 208 Volts, 2-Phase, 60 Hz, drawing 0.40 kW is also available.
Yes, the unit is equipped with a USB connection for downloading HACCP data, updating software, and loading cooking programs. It also supports communication via MODBUS over RS485 serial interface.
The cooking vessel is made from durable AISI 304 stainless steel, with a 15 mm thick bottom and 2.5 mm thick walls, ensuring longevity and even heat distribution.
