Firex (Middleby)

Betterpan UDBRE048CV1 Electric Tilting Skillet Braising Pan, 48 Gallon

SKU: UDBRE048CV1
$140,698.95
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Braising Pan & Tilt Skillet Braising Pans & Tilt Skillets Cooking Equipment Cooking Equipment Firex (Middleby) New Arrivals Restaurant Equipment Specialty Cooking Equipment Steam Cooking Equipment

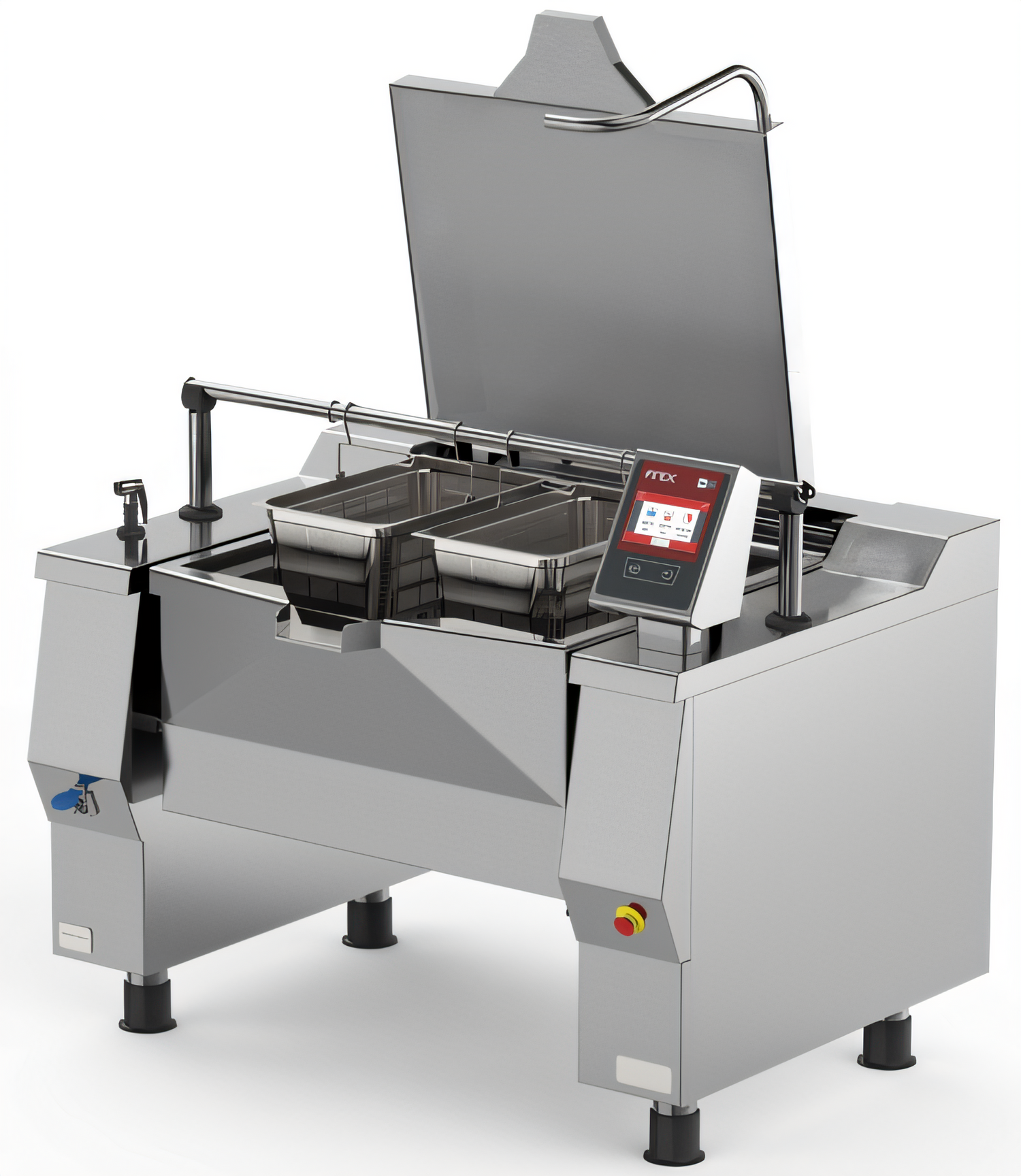

Betterpan UDBRE048CV1 Electric Tilting Skillet Braising Pan, 48 Gallon

Full-Size, Electric, Programmable Controls, Automatic Lifting System

Experience advanced cooking versatility and efficiency with the Betterpan UDBRE048CV1 electric tilting skillet braising pan, designed for high-volume commercial kitchens.

  • Large 48-gallon capacity for versatile high-volume cooking.
  • Programmable electronic controls with a 7-inch touch screen for precise operation.
  • Automatic tilting and basket lifting systems enhance workflow and safety.
  • Durable stainless steel construction with IPX5 water protection for longevity and easy cleaning.
  • Equipped with a core temperature probe and USB connectivity for HACCP data and program updates.

Stainless Steel Cooking Vessel

AISI 304 construction with a 15mm bottom thickness and 2.5mm wall thickness, featuring rounded corner angles and an anti-overflowing lip, designed for electric tilting.

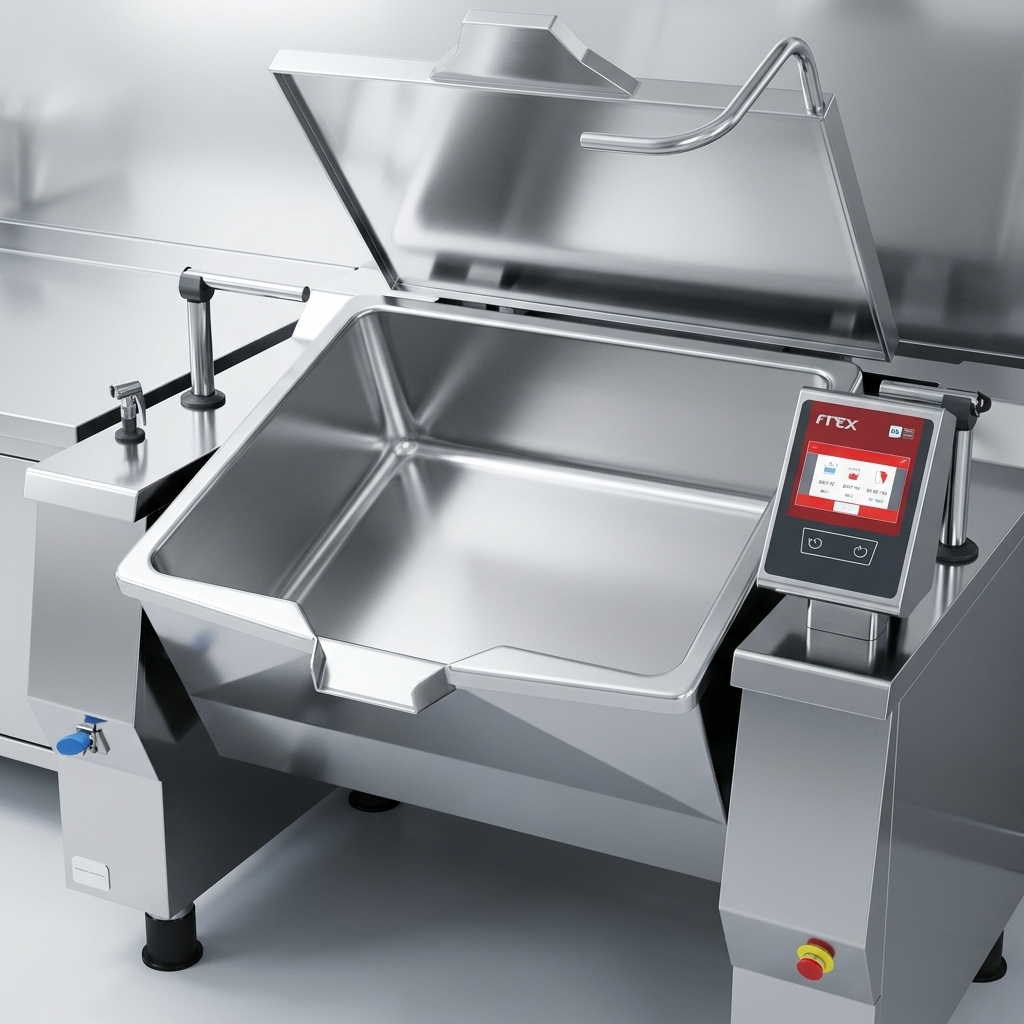

Experience superior durability and effortless cleaning with the robust, high-grade stainless steel cooking vessel, featuring smooth rounded corners and an anti-overflowing lip.

Insulated Hinged Lid

Double cover in AISI 304 stainless steel (12/10 thickness) with an ergonomic handle, balanced by gas springs for easy and safe operation.

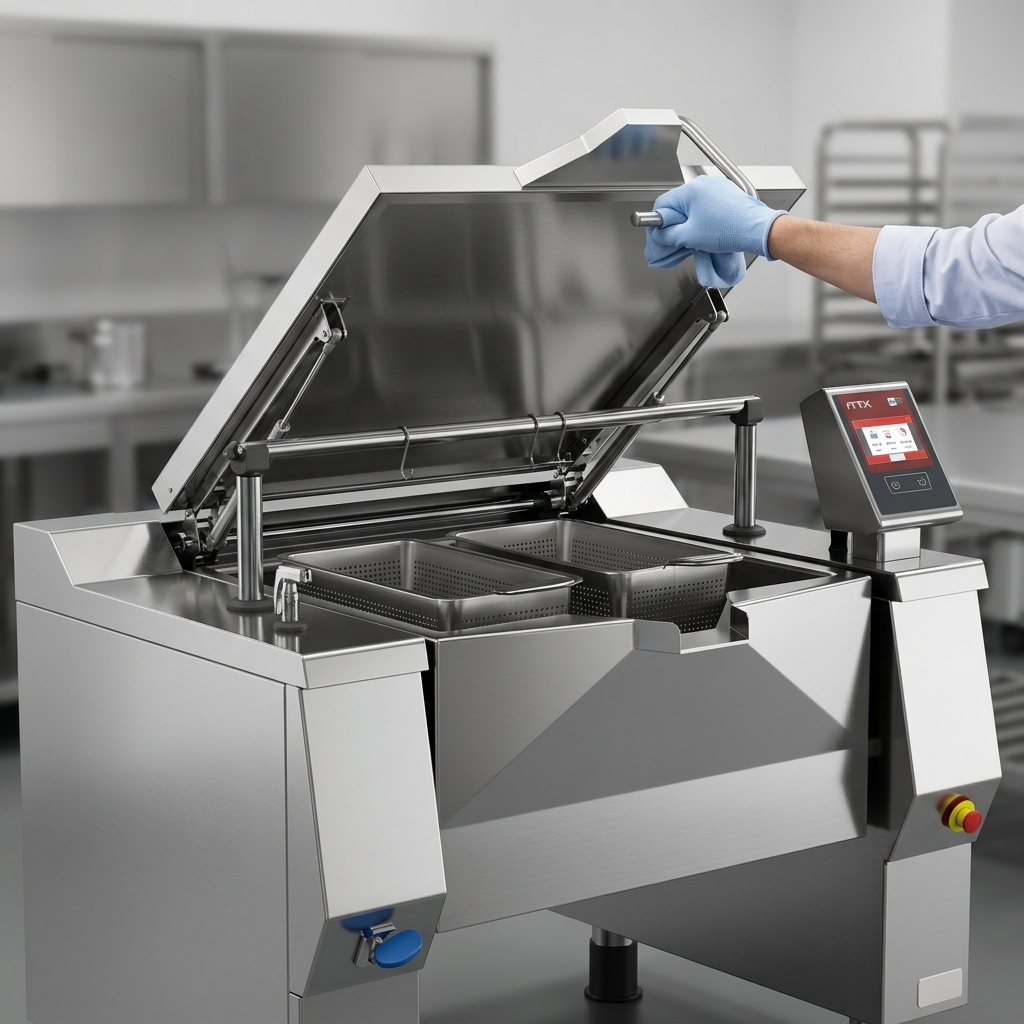

This image highlights the braising pan's insulated hinged lid, which opens effortlessly with its ergonomic handle and balanced gas springs.

Robust Frame and Outer Cover

Self-supporting frame in AISI 304 stainless steel (30-40/10 thickness) and a fine satin finish outer cover (12-15/10 thickness) ensure overall durability.

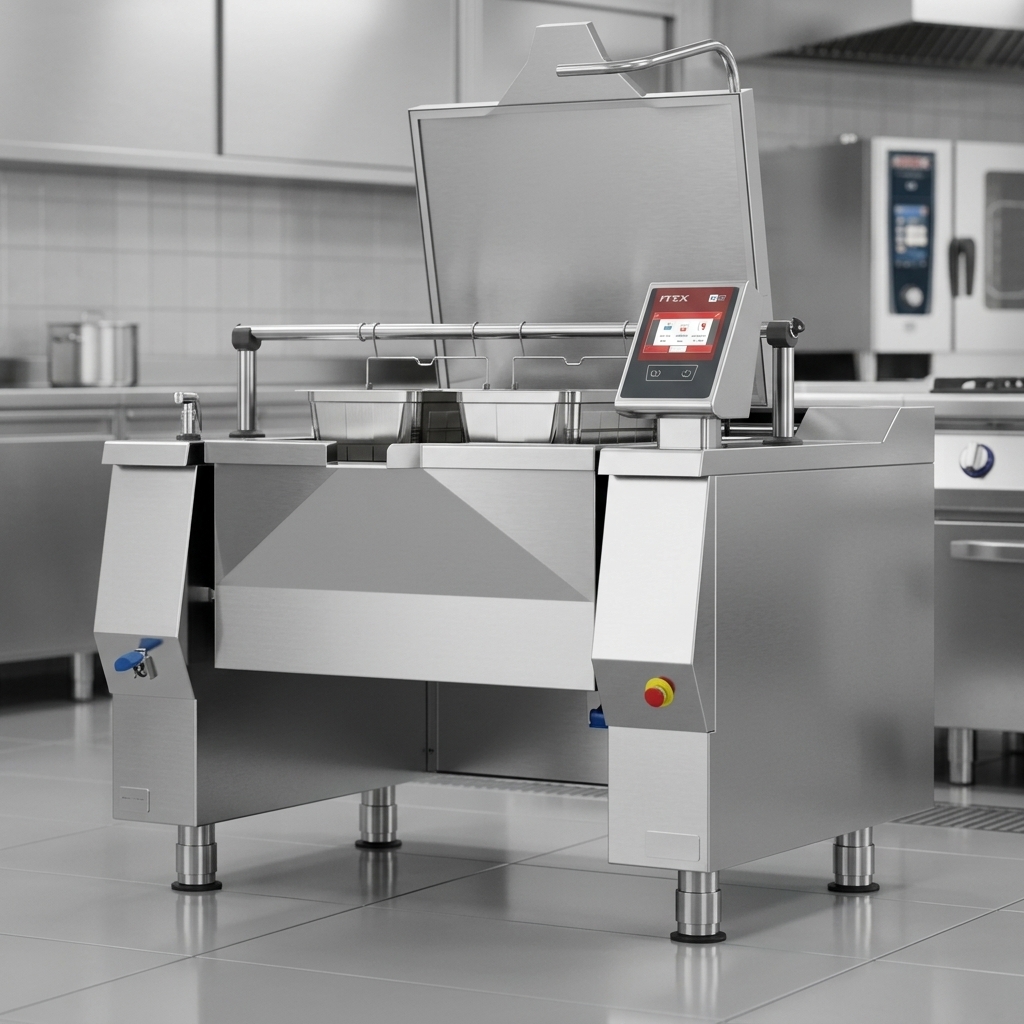

This image highlights the Betterpan's exceptionally robust AISI 304 stainless steel frame and thick satin-finish outer cover, engineered for maximum durability and strength.

Adjustable Feet

AISI 304 stainless steel adjustable feet ensure proper leveling and feature removable covers for easy cleaning.

Easy Maintenance Access

Fast accessibility to main functional parts such as the electronic card, fuses, and thermostats by simply removing the frontal panels.

IPX5 Protection Level

Ensures resistance to water jets, making it suitable for rigorous commercial kitchen cleaning environments.

Efficient Heating System

Heating is provided by armored INCOLOY-800 elements in direct contact with a steel thermodiffuser plate fixed on the vessel bottom for uniform heat distribution.

Dual Temperature Control

Equipped with a system using two probes (product/bottom) for precise temperature management and control.

Automatic Basket Lifting System

Electric motors controlled by an electronic card provide automatic lifting and lowering of baskets.

7-inch Touch Screen Control

Features a resistive 7-inch touch screen with a multifunctional keyboard for intuitive electronic control and clear message display.

USB Connection

Allows for downloading HACCP data, updating software, and loading custom cooking programs.

MODBUS over RS485 Interface

Enables interrogation of the machine using a communication protocol for integration and data retrieval.

Power Economizer Connection

Includes a connection for an external power economizer system to manage energy consumption.

Versatile Cooking Modes

Offers selection of different cooking modes with working temperature settings, including manual and program modes.

Core Temperature Probe

A core temperature probe is fixed at the lid for accurate internal product temperature monitoring.

Multiphase Program Cooking

Create and edit multiphase cooking programs, setting cooking type, parameters (temperature, time), and text messages for each phase.

Automatic Water Load

Allows for setting tank water load (hot up to 140°F/cold) with automatic liter measurements.

Delayed Cooking Setting

Enables scheduling cooking cycles with specific date, time, and programming cycles.

Comprehensive Display and Signals

Displays cooking type, temperature probes used, set temperature, time to end of cycle, and provides audible/visible warnings for automatic basket movements and safety alerts.

Advanced Safety System

Includes an emergency button, blocking of heating for excess temperature with a manual resettable safety thermostat, and heating interruption during vat tilting.

Specifications

Type Braising Pan & Tilting Skillet
Style Floor Model
Installation Type Floor Model (Adjustable Feet)
Capacity 48 Gallons
Vessel Width 55 1/2 Inches
Vessel Depth 25 5/8 Inches
Vessel Height 16 1/2 Inches
Cooking Surface 1348 Square Inches
Material AISI 304 Stainless Steel
Interior Finish 304 Stainless Steel
Controls Programmable Electronic Touch Screen
Voltage 220-240 Volts
Phase 3-Phase
Hertz 60 Hz
Amps 71.5 Amps
Watts 26.40 kW
Water Connection Required
Cold Water Inlet 3/4 Inches
Hot Water Inlet 3/4 Inches
Water Pressure 25-50 PSI
Shipping Width 79 Inches
Shipping Depth 45 Inches
Shipping Height 51 Inches
Shipping Weight 1268 lb.
Selling Unit Each
Units Per Case 1
Country of Origin Italy

Overall Dimensions:

78.75"W x 44.25"D x 50.63"H

Product Weight:

1268.0 lb
Manufacturer Firex (Middleby)
Brand name Betterpan
Certifications ["cETLus", "ETL-Sanitation", "IPX5"]
Height 50.63in
Width 78.75in
Depth 44.25in
Shipping Weight 1268.0lbs
Specifications Betterpan Tilting Skillet Braising Pan, electric, 48 gallon capacity, programmable electronic controls with 7" touch screen, auto fill, spring-balanced hinged lid, automatic lifting system, core temperature probe fixed at lid, USB connection, adjustable feet, stainless steel construction, IPX5, cETLus, ETL-Sanitation

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Betterpan UDBRE048CV1 electric tilting skillet has a cooking vessel capacity of 48 gallons.
It features programmable electronic controls accessible via a 7-inch resistive touch screen, allowing for both manual and multiphase program cooking.
The cooking vessel is made from durable AISI 304 stainless steel with a 15mm thick bottom and 2.5mm thick walls, designed for longevity and even heating.
Yes, it has a tank water load setting with automatic liter measurements for both hot (up to 140°F) and cold water.
The unit is equipped with an automatic basket lifting system, powered by electric engines and controlled by the electronic card for convenient and safe operation.
Yes, the Betterpan UDBRE048CV1 includes a core temperature probe that is fixed at the lid for precise internal product temperature monitoring.
