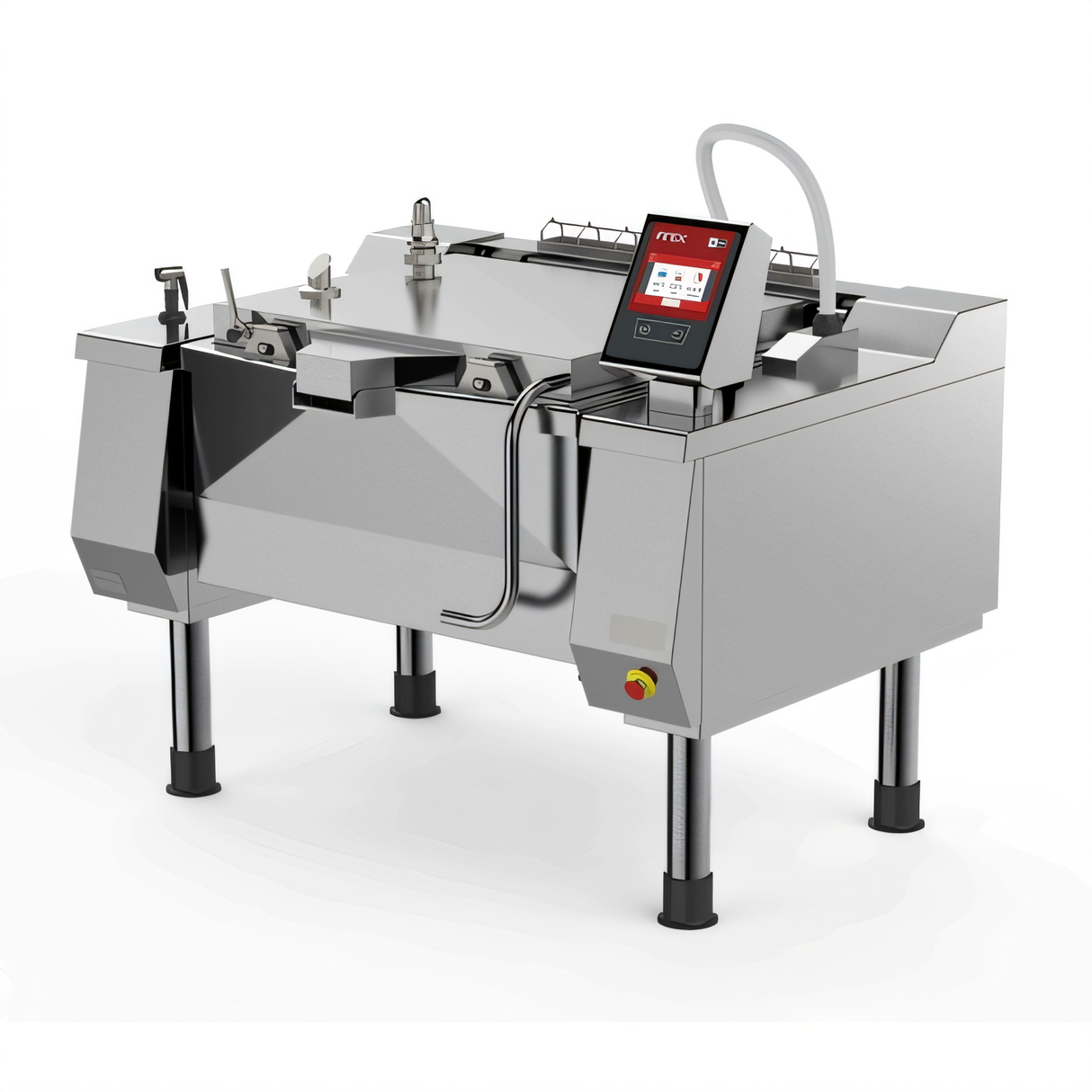

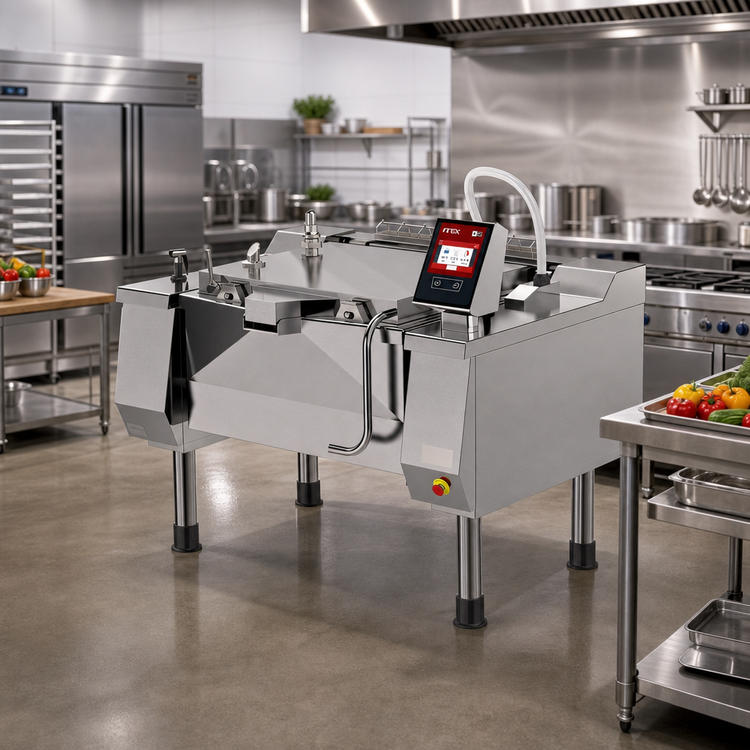

Betterpan UDBRE048AV1 Electric Tilting Skillet Pressure Braising Pan, 48 Gallon, Programmable Touchscreen
Betterpan UDBRE048AV1 Electric Tilting Skillet Pressure Braising Pan, 48 Gallon, Programmable Touchscreen
Full-Size, Electric, Modular Enclosed Base
Revolutionize your kitchen's cooking process with the Betterpan UDBRE048AV1, offering precise pressure braising and versatile cooking modes with intuitive touchscreen control.
- Large 48-gallon capacity ideal for high-volume commercial kitchens.
- Advanced programmable electronic controls with a 7" touchscreen for precise operation.
- Features pressure cooking capabilities with automatic air elimination and steam condensation for safety and efficiency.
- Robust stainless steel construction ensures durability and easy cleaning.
- Equipped with an automatic fill system and a fixed core temperature probe for consistent results.
- IPX5 water protection rating ensures durability in demanding kitchen environments.
Overall Dimensions:
78.75"W x 44.25"D x 50.63"HProduct Weight:

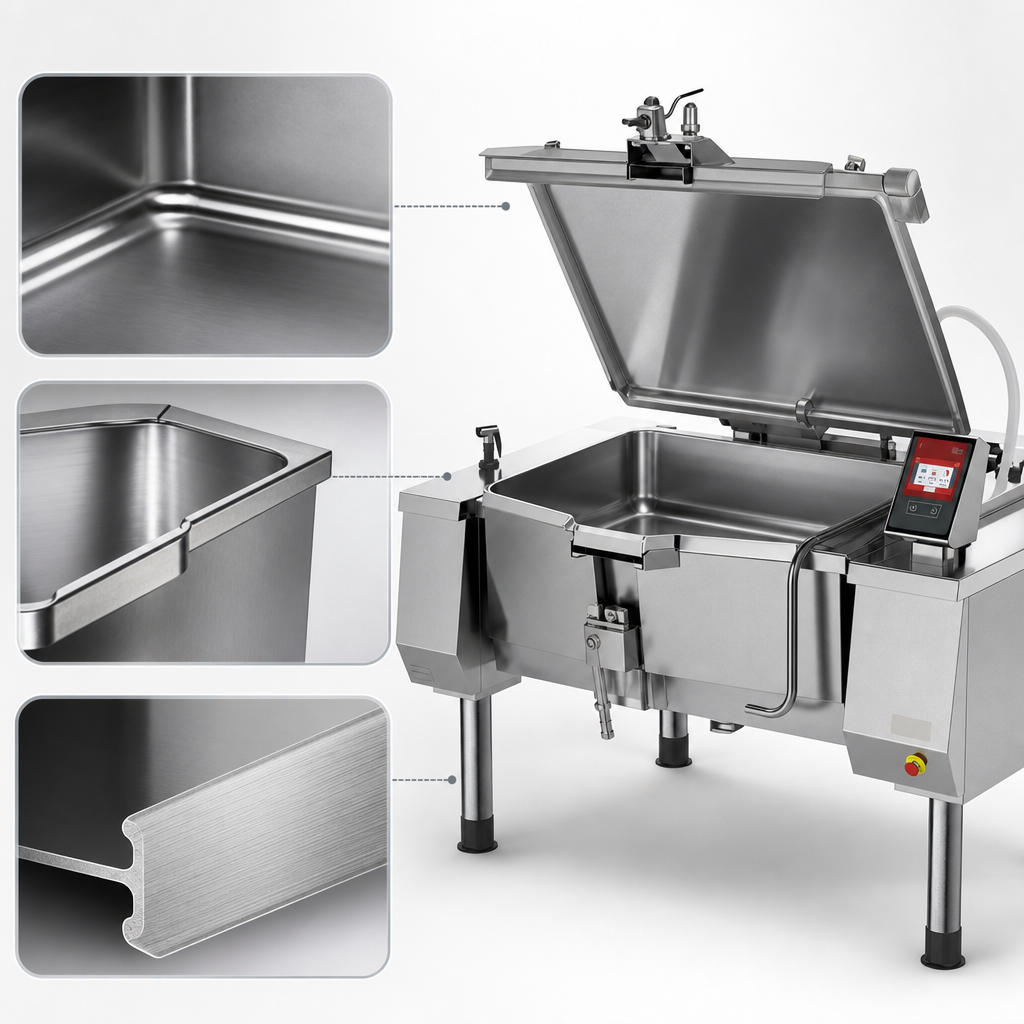

1202.0 lbCooking Vessel Construction
Crafted from AISI 304 stainless steel with a 15 mm thick bottom and 2.5 mm thick walls, featuring rounded corner angles and an anti-overflowing lip for durability and easy cleaning.

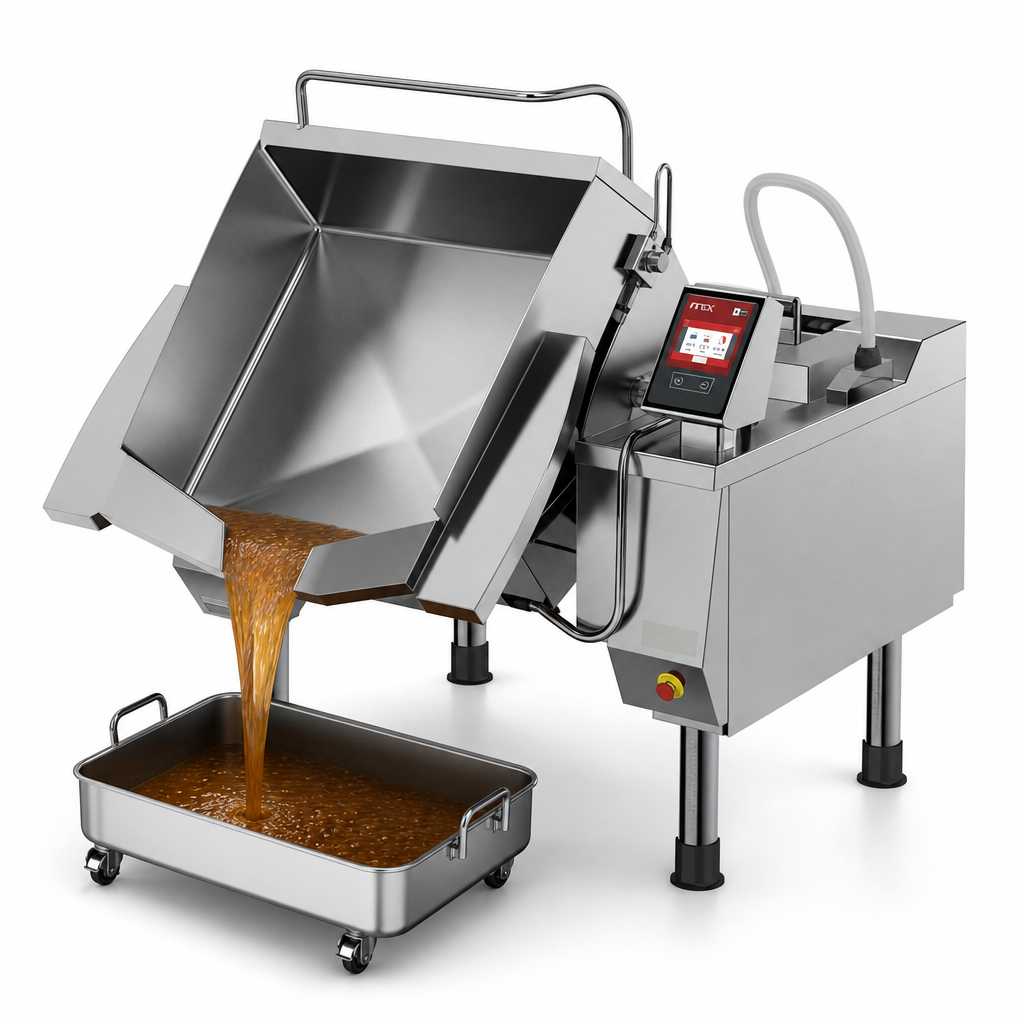

Electric Tilting
The vessel is designed for electric tilting on the front, allowing for effortless emptying and cleaning.
Spring-Balanced Hinged Lid
Made from AISI 304 stainless steel (20/10 thickness) with a double cover, ergonomic handle, and a reinforced locking system at 4 points on sliding shafts, ensuring secure closure, especially during pressure cooking.
Pressure Locking System
Features lever-type control bolts with a blocking mechanism to prevent lid opening while the unit is under pressure, enhancing operational safety.
Alimentary Silicone Gasket
A food-grade silicone gummy gasket with a single jointing point ensures a tight seal, balanced by gas springs for smooth operation.
Self-Supporting Frame
Built with a robust AISI 304 stainless steel frame (30-40/10 thickness) for stability and long-term use.
Satin Finish Outer Cover
The exterior is covered in fine satin finish AISI 304 stainless steel (12-15/10 thickness), providing a professional appearance and added durability.
Adjustable Feet
Equipped with AISI 304 stainless steel adjustable feet to ensure perfect leveling on uneven floors, with removable covers for easy cleaning.
Easy Maintenance Access
Frontal panels are easily removable, providing fast access to main functional parts such as the electronic card, fuses, and thermostats for servicing.
IPX5 Protection Level
Offers IPX5 protection, ensuring the unit is resistant to water jets and suitable for demanding kitchen environments.
Direct Contact Heating
Heating is achieved by armoured INCOLOY-800 elements directly in contact with a steel thermodiffuser plate fixed on the vessel bottom for efficient and even heat distribution.
Dual Probe Temperature Control
A system with two probes (product/bottom) provides precise temperature control for optimal cooking results.
Automatic Pressure Cooking System
Includes an automatic system for eliminating air from the cooking container for saturated steam cooking, and automatic steam condensation after cooking to allow fast and safe lid opening without steam dispersion.
Fixed Core Temperature Probe
A core temperature probe is fixed at the lid as a standard feature, allowing for accurate internal food temperature monitoring.
Programmable Electronic Controls
Features a multifunctional keyboard with a 7-inch resistive touchscreen for intuitive operation and clear messaging, simplifying complex cooking tasks.
USB Connection
A USB connection allows for downloading HACCP data, updating software, and loading custom cooking programs.
MODBUS Communication Protocol
Ability to interrogate the machine using communication protocol MODBUS over an RS485 serial interface for integration with other systems.
Power Economizer Connection
Equipped with a connection point for an optional power economizer.
Multiple Cooking Modes
Selection of 8 different cooking modes with working temperature settings, offering versatility for various culinary applications.
Multiphase Cooking Programs
Allows for creating and editing multiphase cooking programs, setting cooking type, parameters (temperature, time), and text messages for each phase.
Automatic Water Load Setting
Provides automatic liter measurements for tank water load, capable of handling hot water up to 90°C or cold water.
Delayed Cooking Setting
Ability to set delayed cooking with specific date, time, and programming cycle for greater operational flexibility.
Comprehensive Safety System
Includes an emergency button, heating blocking for excess temperature with a manual resettable safety thermostat, mechanical lid opening lock with tank under pressure, a lid safety valve, heating interruption during vat tilting, and prevention of water filling in 'frying' cooking mode.
Self-Diagnostics
Features a self-diagnostics system to assist in troubleshooting and maintenance.
Certifications & Compliance
Warranty & Protection
1-year parts and labor limited warranty.
