Firex (Middleby)

Betterpan UDBRE038AV1 Electric Tilting Skillet Pressure Braising Pan, 38 Gallon Capacity

SKU: UDBRE038AV1
$154,615.65
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Braising Pan & Tilt Skillet Braising Pans & Tilt Skillets Cooking Equipment Cooking Equipment Firex (Middleby) New Arrivals Restaurant Equipment Specialty Cooking Equipment Steam Cooking Equipment

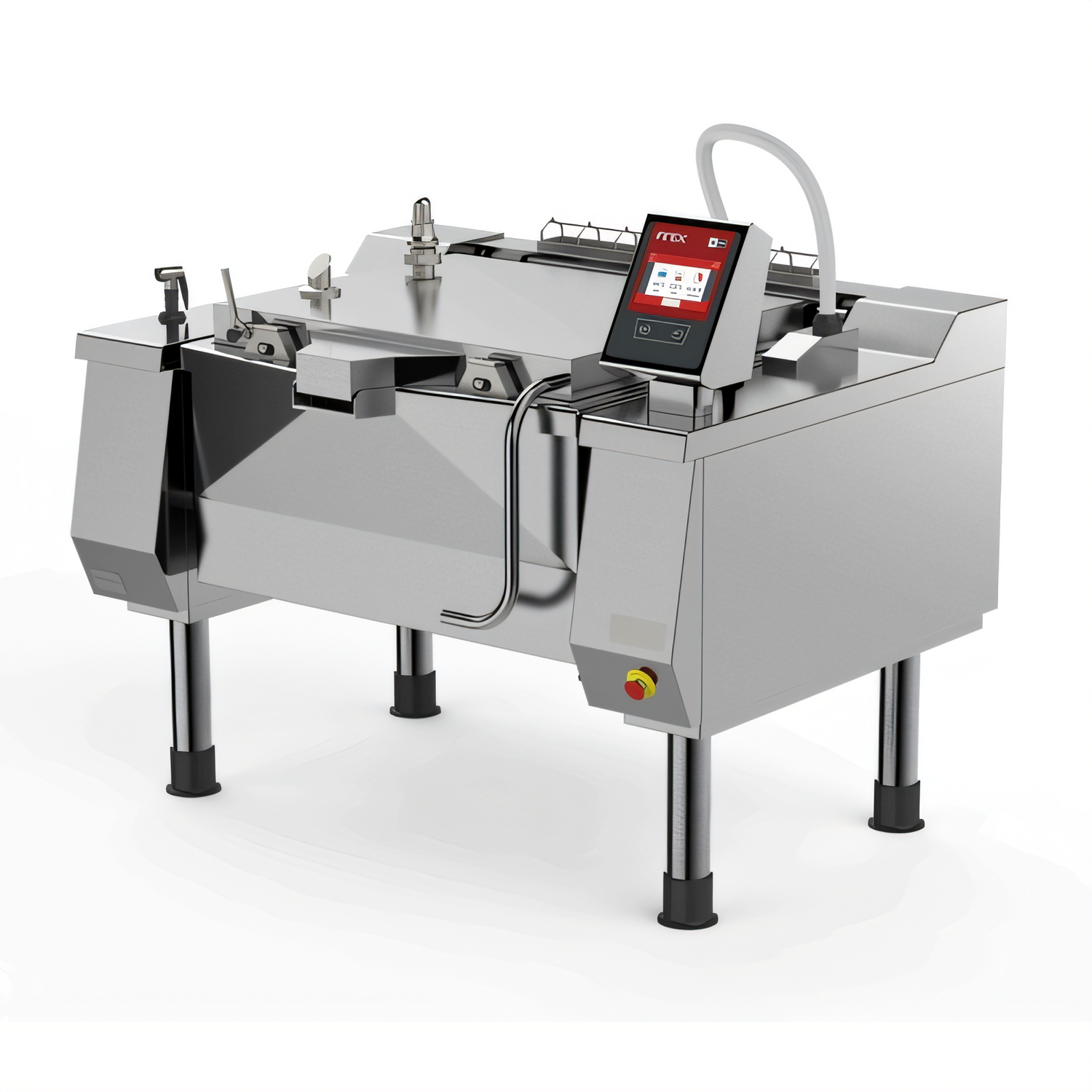

Betterpan UDBRE038AV1 Electric Tilting Skillet Pressure Braising Pan, 38 Gallon Capacity

Electric, 38 Gallon Capacity, Programmable Touch Screen, Pressure Braising

Experience versatile and efficient cooking with the Betterpan UDBRE038AV1 electric tilting skillet, designed for high-capacity braising with precise pressure control and intuitive touch screen programming.

  • Large 38-gallon capacity for high-volume cooking operations.
  • Advanced programmable electronic controls with a 7" resistive touch screen for precise cooking.
  • Features pressure braising with automatic air elimination and steam condensation for efficiency and safety.
  • Durable AISI 304 stainless steel construction ensures longevity and easy cleaning.
  • Electric tilting mechanism allows for safe and convenient unloading of cooked product.
  • IPX5 water protection rating for enhanced durability and easy cleaning.

Overall Dimensions:

68.0"W x 44.25"D x 50.63"H

Product Weight:

1080.0 lb

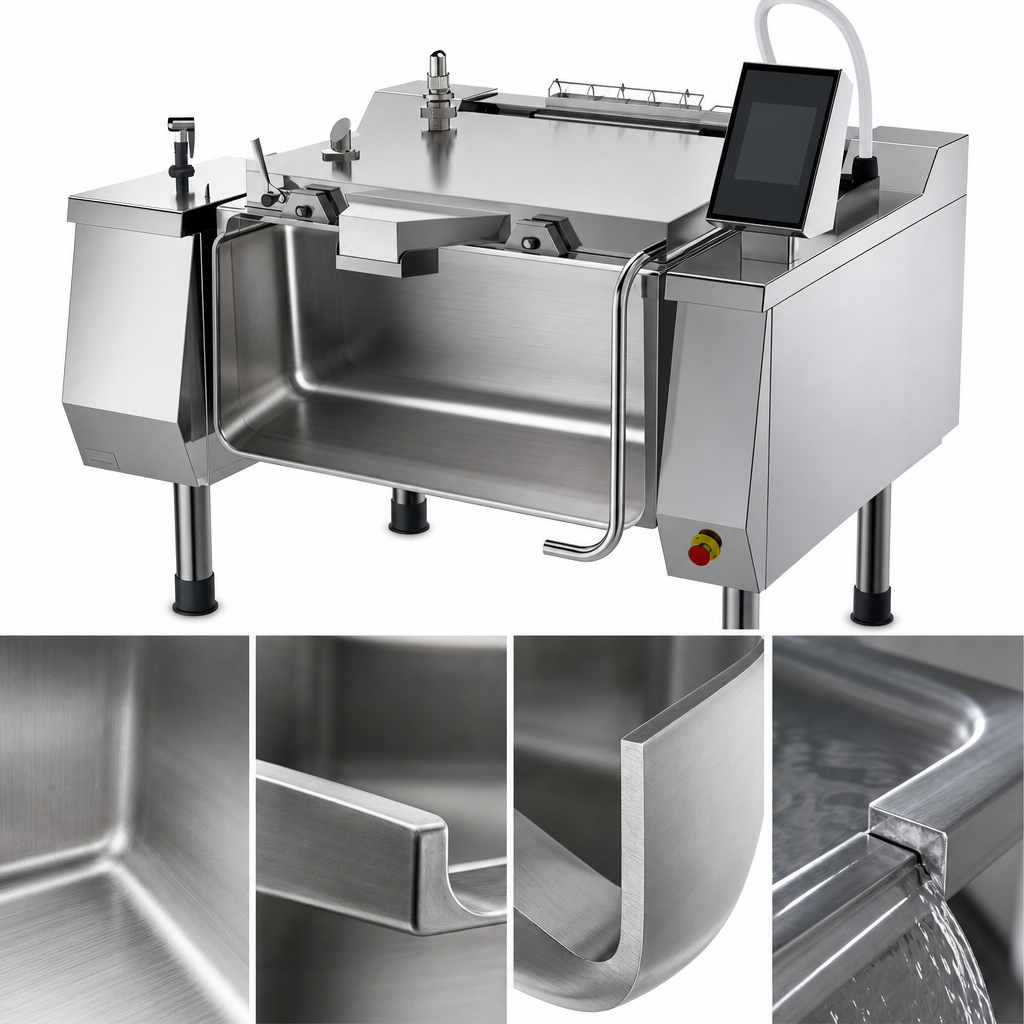

Stainless Steel Cooking Vessel

Constructed from AISI 304 stainless steel with a 15 mm bottom thickness, 2.5 mm wall thickness, rounded corner angles, and an anti-overflowing lip for durability and easy cleaning.

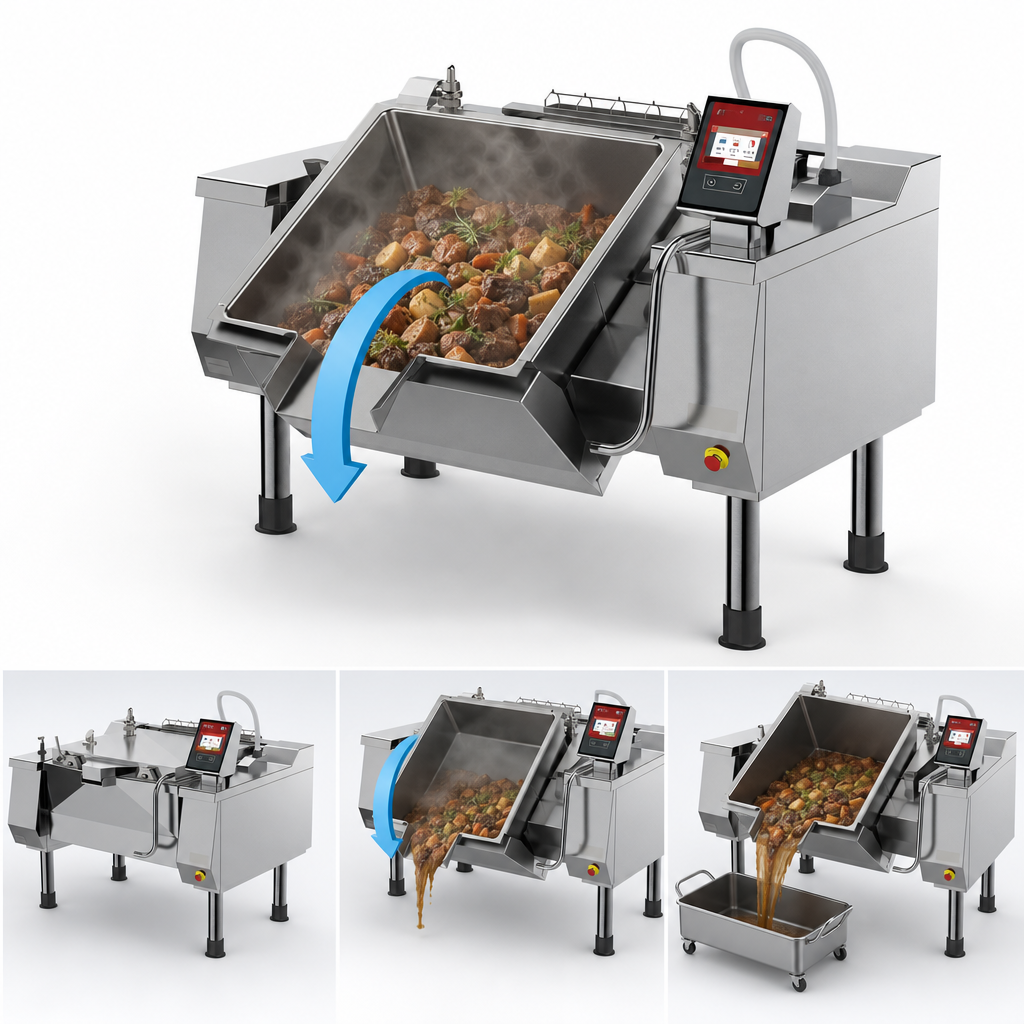

Electric Tilting Mechanism

The cooking vessel features electric tilting on the front part, enabling safe and convenient unloading of prepared food.

Spring-Balanced Hinged Lid

The AISI 304 stainless steel lid includes a double cover, ergonomic handle, and a reinforced 4-point locking system with lever-type control bolts. It features a food-grade silicone gummy gasket and is balanced by gas springs.

Pressure Cooking System

Equipped with an automatic system for eliminating air from the cooking container and automatic steam condensation after cooking, allowing for fast and safe lid opening without steam dispersion.

Fixed Core Temperature Probe

A standard core temperature probe is fixed at the lid, providing accurate internal temperature monitoring during cooking.

Programmable Electronic Controls

Features a user-friendly 7" resistive touch screen and a multifunctional keyboard for setting cooking modes, temperature, and time with ease.

Multi-Phase Cooking Programs

Ability to create and edit multiphase cooking programs, allowing precise control over cooking parameters like temperature and time for each phase, with the option to insert text messages.

USB Connection

Includes a USB connection for convenient downloading of HACCP data, software updates, and loading custom cooking programs.

Automatic Water Fill

Offers tank water load settings for hot (up to 140°F) or cold water, with automatic liter/gallon measurements for precise filling.

Adjustable Stainless Steel Feet

Equipped with adjustable AISI 304 stainless steel feet to ensure proper leveling and stability, with removable covers for simplified cleaning.

IPX5 Water Protection

Rated IPX5 for protection against water jets, ensuring durability and easy cleaning in a commercial kitchen environment.

Comprehensive Safety System

Includes an emergency button, heating interruption for excess temperature with a manual resettable safety thermostat, a mechanical lid opening lock when under pressure, a lid safety valve, and heating interruption during vat tilting for operator safety.

Type Tilting Skillet Pressure Braising Pan
Style Floor Model
Installation Type Freestanding (With Adjustable Feet)
Material Stainless Steel
Interior Finish 304 Stainless Steel
Capacity 38 Gallons
Pressure 5.8 PSI
Controls Programmable Digital Touch Screen
IPX Rating IPX5
Selling Unit Each
Units Per Case 1
Shipping Width 68 Inches
Shipping Depth 45 Inches
Shipping Height 51 Inches
Shipping Weight 1080 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor limited warranty.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Owner's manual PDF Download PDF Crown steam group letter PDF Download PDF Middleby financial flyer PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Betterpan UDBRE038AV1 has a useful cooking capacity of 38 gallons, suitable for high-volume operations.
It features advanced programmable electronic controls with a 7-inch resistive touch screen and a multifunctional keyboard, allowing for selection of various cooking modes, precise temperature, and time settings.
Yes, it is specifically designed for pressure cooking, including an automatic system to eliminate air and condense steam after cooking for safe and rapid lid opening without steam dispersion into the room.
Both the cooking vessel and lid are made from durable AISI 304 stainless steel. The vessel has a 15 mm thick bottom and 2.5 mm thick walls, while the lid is 20/10 thickness and double-covered.
Yes, it includes a tank water load setting for both hot (up to 140°F) and cold water, with automatic liter measurements to ensure precise filling.
The unit is equipped with a USB connection, which allows for downloading HACCP data, updating software, and loading custom cooking programs.
