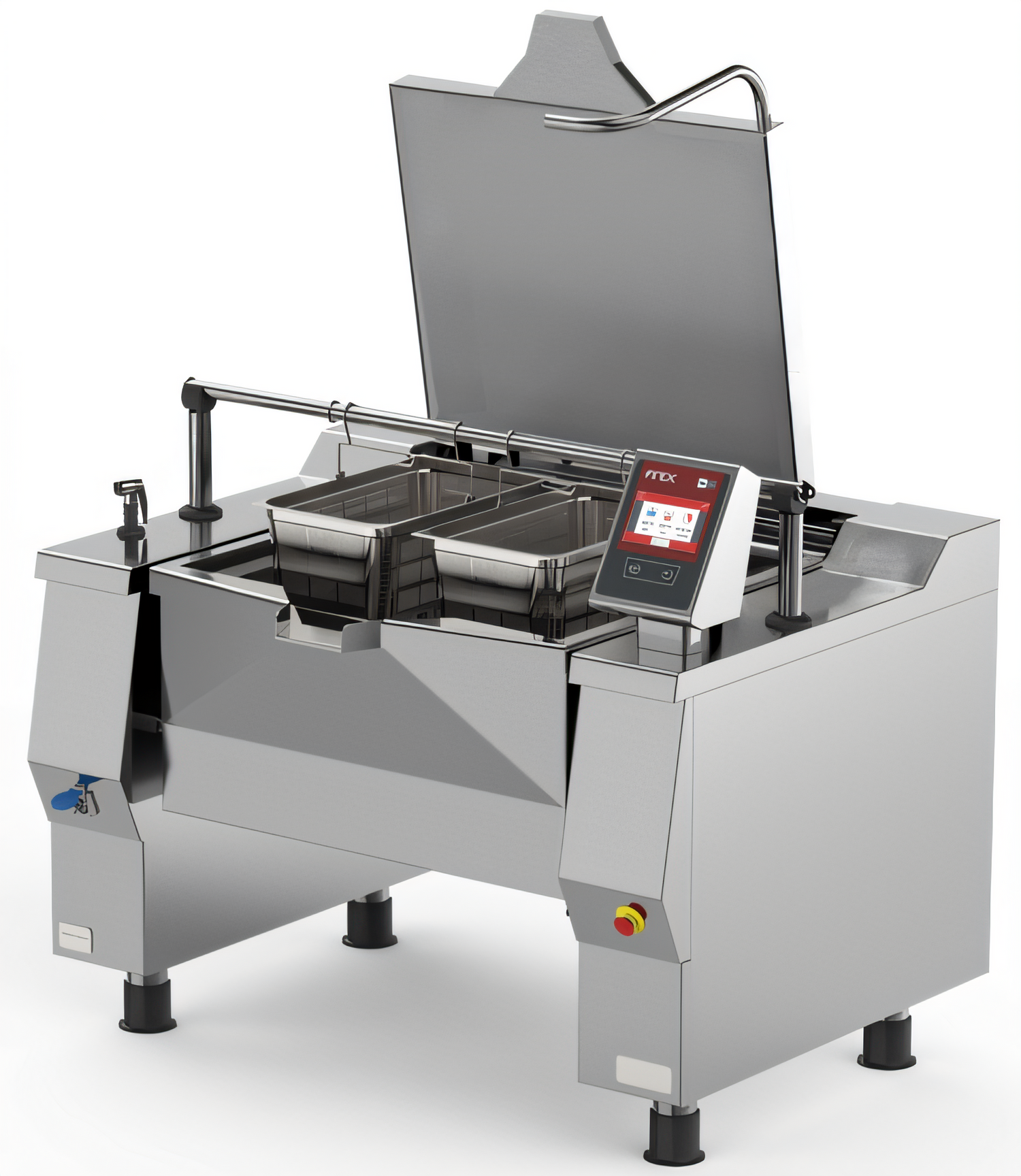

Betterpan UDBRE029CV1 29 Gallon Electric Tilting Skillet Braising Pan with Touch Screen Controls
Betterpan UDBRE029CV1 29 Gallon Electric Tilting Skillet Braising Pan with Touch Screen Controls
29 Gallon Capacity, Electric, Floor Model, Programmable Touch Screen
Experience unparalleled precision and efficiency in your commercial kitchen with the Betterpan UDBRE029CV1 electric tilting skillet, designed for versatile high-volume cooking.
- Large 29-gallon capacity accommodates significant batch cooking requirements.
- Advanced 7-inch touch screen with programmable electronic controls for consistent results and ease of use.
- Durable AISI 304 stainless steel construction ensures longevity and hygiene in a demanding commercial environment.
- Automatic electric tilting system and spring-balanced hinged lid provide safe and convenient operation.
- Integrated USB connection allows for HACCP data download, software updates, and cooking program uploads.
- IPX5 protection level signifies resistance to water jets, making cleaning and maintenance straightforward.
- Equipped with a core temperature probe fixed at the lid for precise internal product temperature monitoring.
Overall Dimensions:
57.88"W x 44.25"D x 50.63"HProduct Weight:

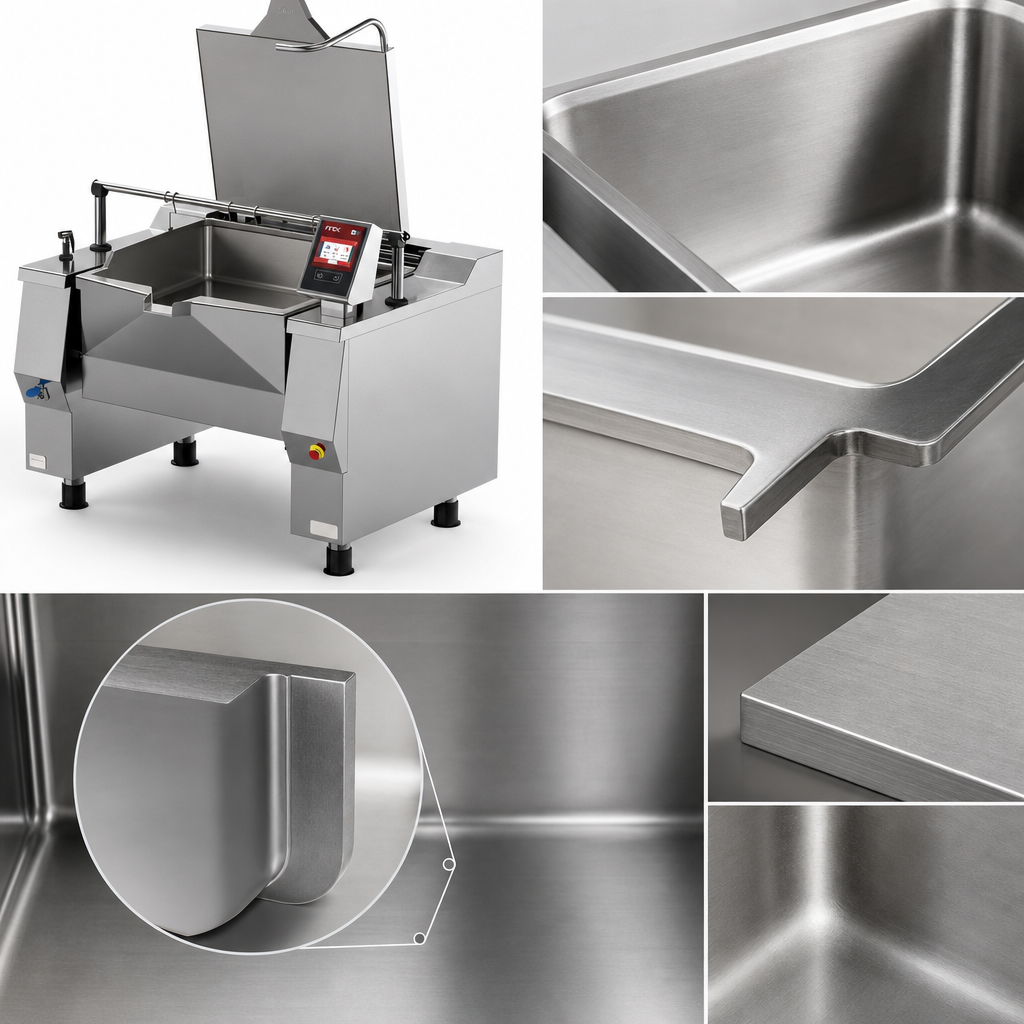

1014.0 lbStainless Steel Cooking Vessel
The cooking vessel is made of AISI 304 stainless steel with a 15 mm bottom thickness and 2.5 mm wall thickness, featuring rounded corner angles and an anti-overflowing lip for durability and easy cleaning.

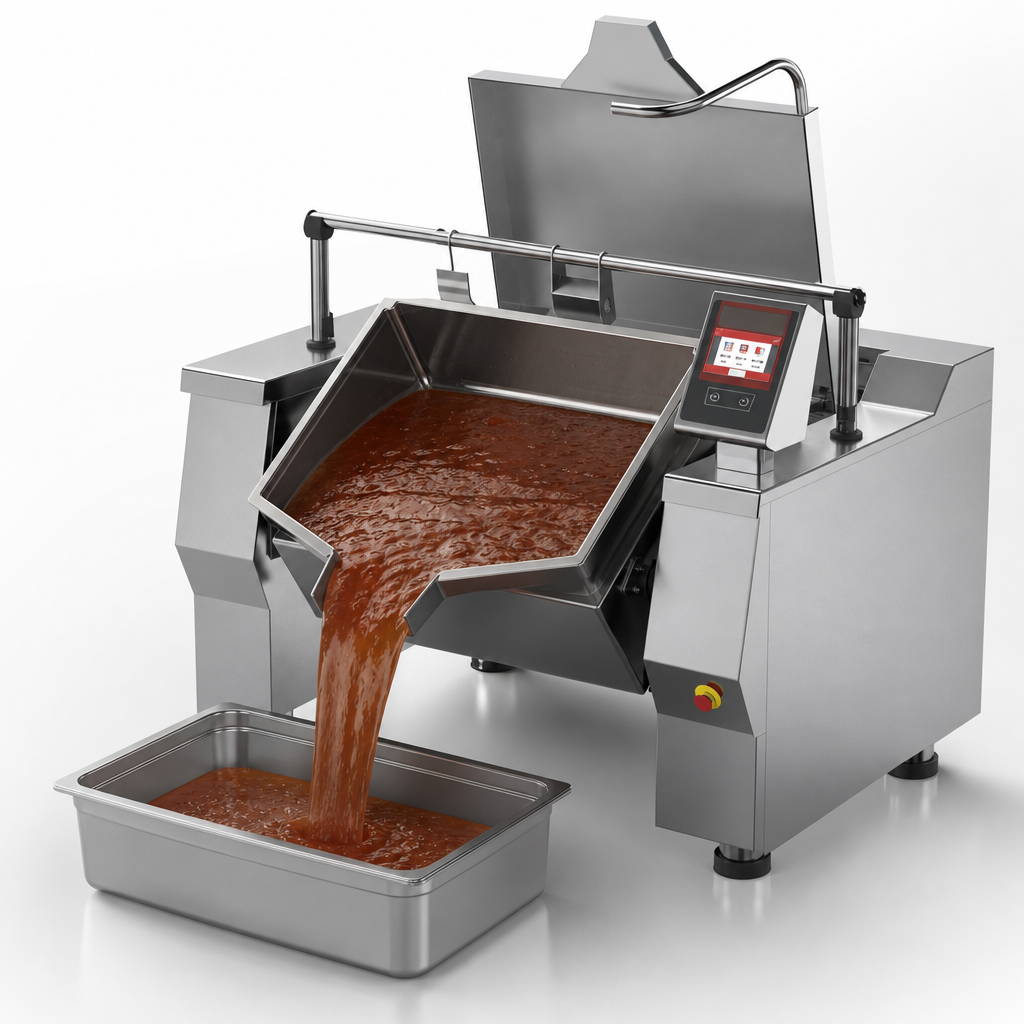

Electric Tilting Mechanism
The vessel features electric tilting on the front part for safe and efficient emptying of contents.
Insulated Hinged Lid
An insulated lid with a double cover in AISI 304 stainless steel (12/10 thickness) includes an ergonomic handle and is balanced by gas springs for smooth opening and closing.
Robust Self-Supporting Frame
Built with a self-supporting frame in AISI 304 stainless steel (30-40/10 thickness) and an outer cover in fine satin finish AISI 304 stainless steel (12-15/10 thickness) for structural integrity and a professional appearance.
Adjustable Stainless Steel Feet
Adjustable feet made of AISI 304 stainless steel ensure perfect leveling and include removable covers for easy cleaning underneath the unit.
IPX5 Protection
Rated with an IPX5 protection level, indicating strong resistance against water jets, ideal for rigorous kitchen cleaning.
Easy Maintenance Access
Frontal panels are easily removable, providing fast accessibility to main functional parts like the electronic card, fuses, and thermostats for servicing.
Direct Heating System
Heating is achieved by armored INCOLOY-800 elements in direct contact with a steel thermodiffuser plate fixed to the vessel bottom, ensuring efficient and even heat distribution.
Dual Probe Temperature Control
Precise temperature control is managed by a system with two probes, monitoring both product and vessel bottom temperatures.
7-inch Resistive Touch Screen Control
Equipped with a multifunctional keyboard and a 7-inch resistive touch screen for electronic control, featuring clear messages and intuitive operation.
USB Connectivity
A USB connection allows for downloading HACCP data, updating software, and loading custom cooking programs.
Modbus Communication Protocol
Ability to interrogate the machine using MODBUS communication protocol over an RS485 serial interface for integration into management systems.
Power Economizer Connection
Includes a connection point for a power economizer, optimizing energy consumption.
Multiple Cooking Modes
Selection of 2 different cooking modes (4 with the optional core probe), with customizable working temperature settings.
Manual & Program Mode Cooking
Offers both 'Manual' mode for direct control and 'Program' mode for executing pre-set cooking cycles.
Multiphase Cooking Programs
Create and edit multiphase cooking programs, setting cooking type, parameters (temperature, time), and adding text messages for each phase.
Automatic Water Fill
Tank water load setting (hot up to 140°F / cold) with automatic liter/gallon measurements for precise ingredient addition.
Delayed Cooking Function
Set delayed cooking cycles with specific date, time, and program scheduling.
Self-Diagnostics
Features self-diagnostics to identify and signal operational issues, enhancing reliability.
Comprehensive Safety System
Includes an emergency button, heating blockage for excess temperature with manual resettable safety thermostat, and automatic heating interruption during vat tilting.
Certifications & Compliance
