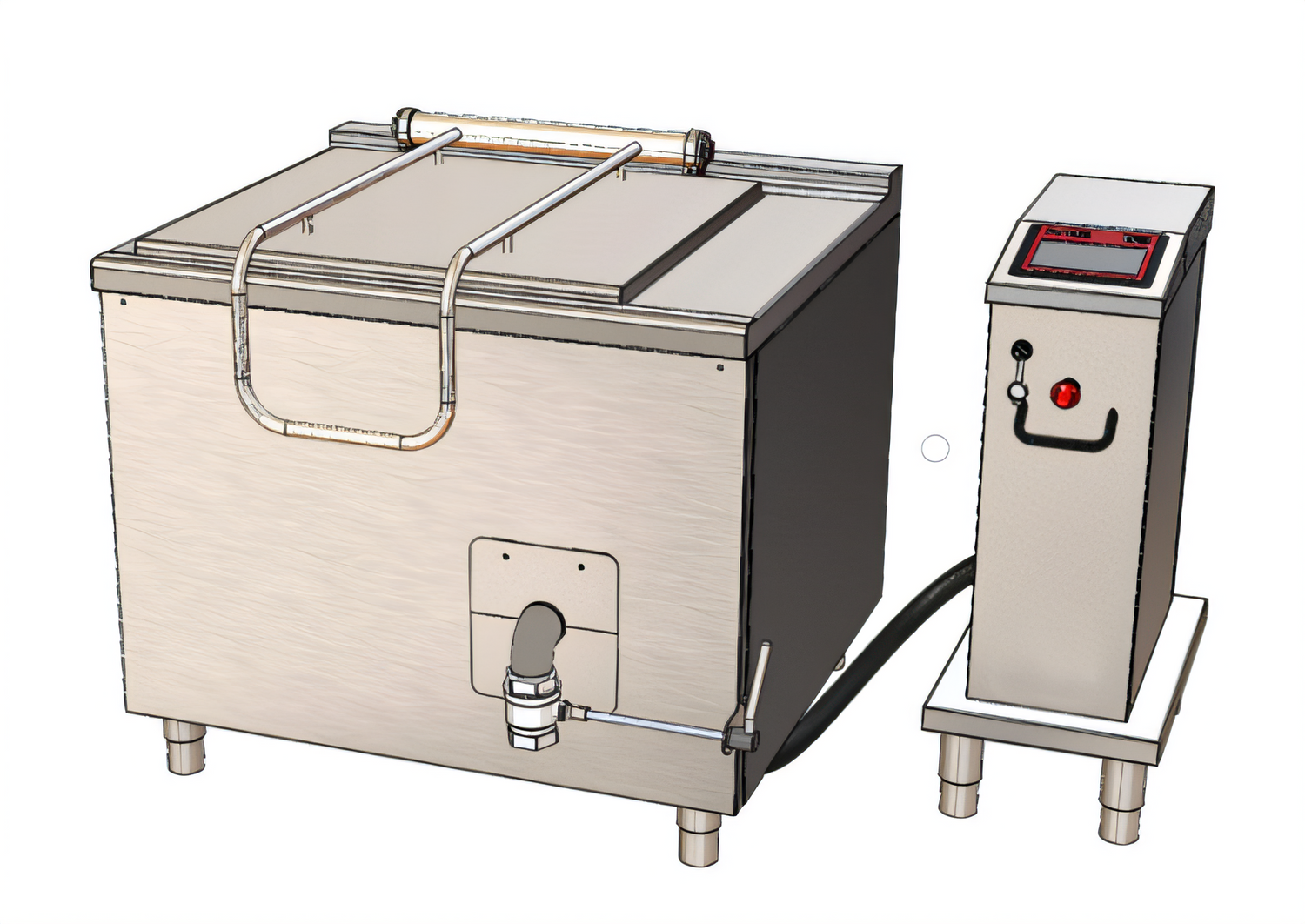

Firex UCPMDG2-32 Double Basin 32 Gallon Gas Multicooker

Double Basin, 32 Gallons Per Basin, Natural Gas, Floor Model

This high-capacity Firex Multicooker features two 32-gallon basins, programmable electronic controls, and automatic basket lifting systems, making it ideal for high-volume pasta cooking and other water bath applications.

  • Dual 32-gallon stainless steel basins for high-volume cooking.
  • Programmable electronic controls with a 7-inch touch screen for precise operation.
  • Automatic water fill and refilling system ensures consistent water levels.
  • Spring-balanced hinged lids and automatic basket lifting system enhance efficiency and safety.
  • Durable stainless steel construction with IPX5 protection level for longevity and easy cleaning.
  • USB connection for HACCP data download, software updates, and cooking program loading.

Cooking Vessels

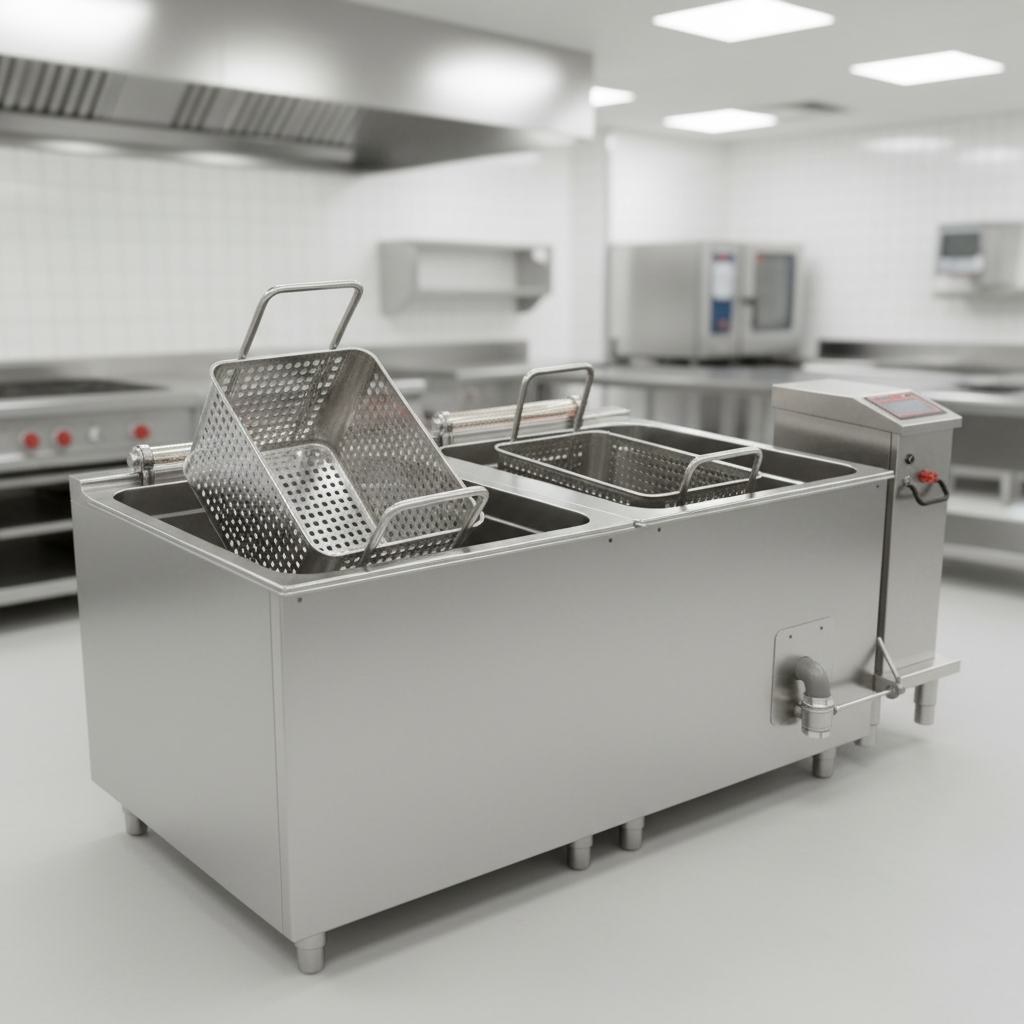

Two cooking vessels made of stainless steel AISI 316 (30/10 thickness) with perforated AISI 316 baskets and electric tilting.

Experience unparalleled cooking versatility with dual robust AISI 316 stainless steel cooking vessels featuring perforated baskets and convenient electric tilting.

Lid Construction

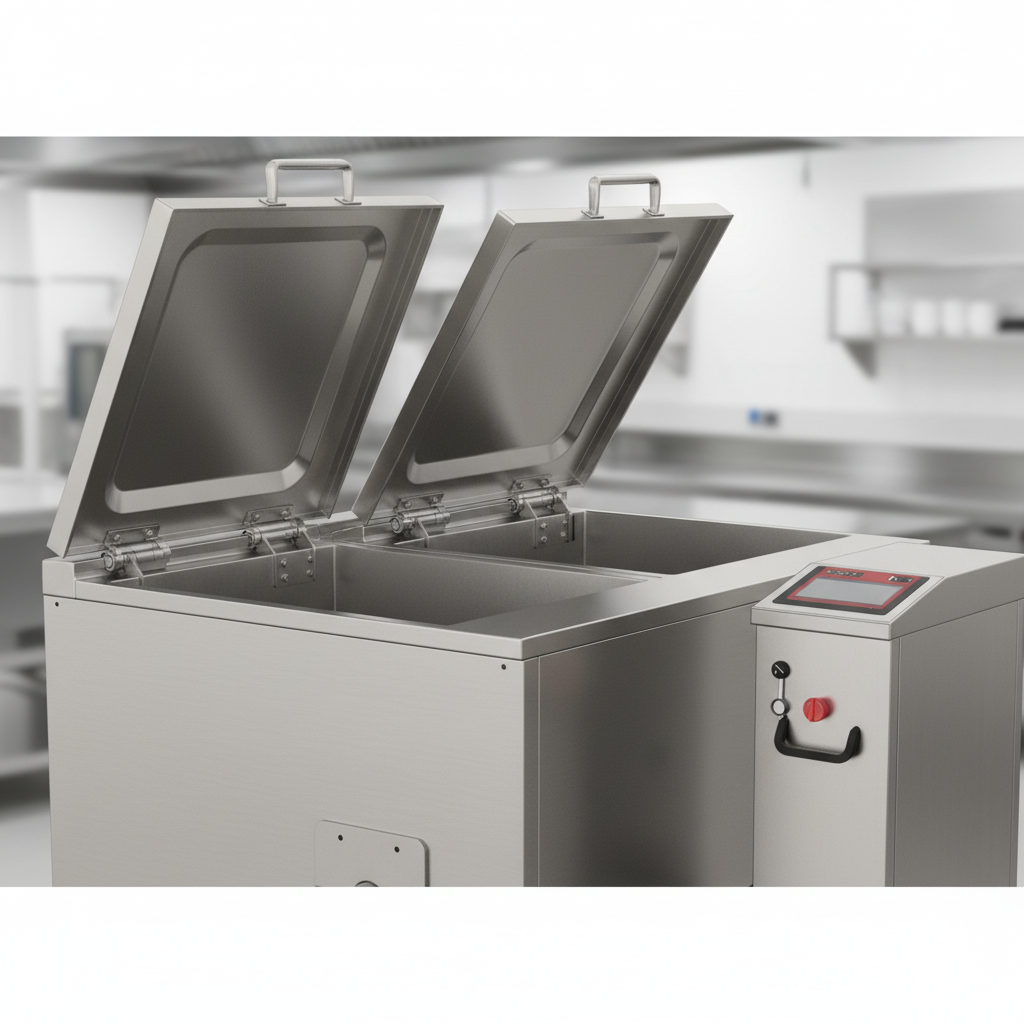

Balanced hinged lids in stainless steel AISI 304 (10/10 thickness).

Experience the durability and effortless operation of this multicooker's balanced hinged lids, crafted from robust AISI 304 stainless steel.

Robust Construction

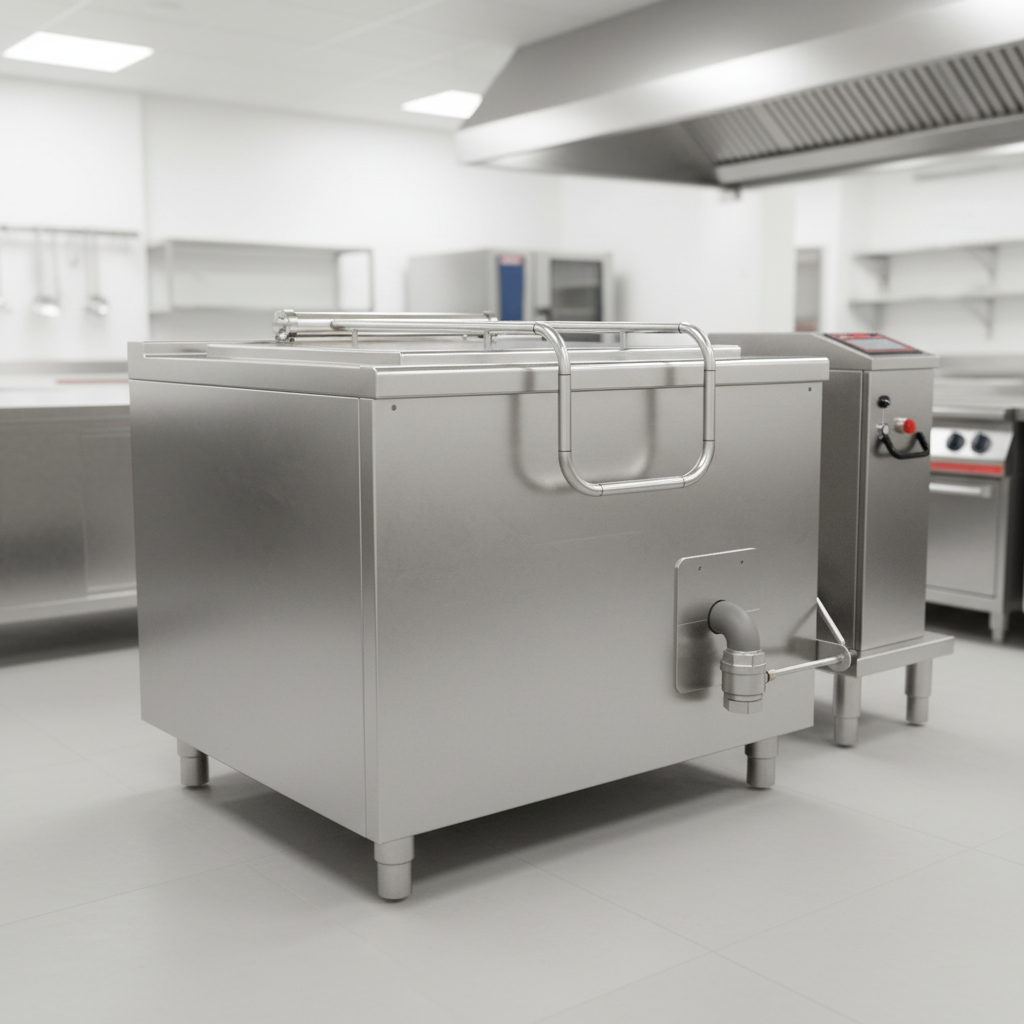

Supporting structure in stainless steel AISI 304 (20-30/10 thickness) and outer cover in stainless steel AISI 304 with a fine satin finish (10/10 thickness).

This image showcases the multicooker's exceptional robust construction, featuring durable stainless steel with a pristine satin finish designed for rigorous commercial kitchen demands.

Heat Insulation

Guaranteed by panels in thick glass fiber for energy efficiency.

Adjustable Leveling

Adjustable feet in stainless steel AISI 304 to ensure proper unit leveling on uneven surfaces.

Efficient Gas Heating

Heating via high-efficiency stainless steel tube burners with an automatic ignition and flame control system, eliminating the need for a pilot burner. Heating is precisely controlled by an electronic board, activating 2°C before the setpoint.

Automatic Water Management

Features automatic filling and refilling of water in the vat, an overflow device, and a front 2-inch stainless steel drain cock with an insulating handle for easy drainage.

Automatic Basket System

Baskets lift and tilt automatically (even with the lid closed), stopping in a dripping position, and are removable for cleaning operations.

Advanced Electronic Controls

Electronic control system with a multifunctional keyboard and a resistive 7-inch Touch Screen display, offering intuitive messages, manual and program cooking modes, delayed cooking, and customizable language settings.

Connectivity

Equipped with a USB connection for downloading HACCP data, updating software, and loading cooking programs. Also includes a MODBUS over RS485 serial interface for machine interrogation.

Safety System

Includes an emergency button and features heating interruption in case of insufficient water in the vat or if there is no gas.

Starch Skimming Function

Dedicated function for effective starch skimming during cooking.

Specifications

Type Multicooker
Style Water Bath
Installation Type Floor Model (With Adjustable Feet)
Compartments 2
Capacity 2x32 Gallons (64 Gallons Total)
Pan Capacity 2 Cooking Baskets
Controls Programmable Digital Touch Screen
Material Stainless Steel (AISI 316 Vessel, AISI 304 Body)
Interior Finish 316 Stainless Steel
Finish 304 Stainless Steel, Fine Satin
BTU 170,600 BTU
Gas Type Natural Gas
Gas Connection Size 3/4 Inch
Voltage 220-240 Volts
Amps 3.5 Amps
Watts 0.80 kW
Hertz 60 Hz
Phase 2-Phase
Water Inlet Size 1/2 Inch
Water Connection Required
Drain Connection Size 2 Inches
Drain Connection Required
Water Pressure 25-50 PSI
Protection Level IPX5
Selling Unit Each
Units Per Case 1
Shipping Width 63 Inches
Shipping Depth 36 Inches
Shipping Height 36 Inches
Shipping Weight null

Overall Dimensions:

62.99"W x 35.43"D x 35.43"H
Manufacturer Firex (Middleby)
Brand name Multicooker
Certifications ["cETLus", "ETL-Sanitation", "IPX5"]
Height 35.43in
Width 62.99in
Depth 35.43in
Tank Quantity 2 tanks
Controls programmable controls
Water fill automatic
Specifications Multicooker, gas, double basin, 32 gallon capacity per basin, programmable electronic controls with 7" touch screen, auto fill, spring-balanced hinged lid, automatic lifting system, USB connection, stainless steel construction, 170,600 BTU, adjustable feet, IPX5, cETLus, ETL-Sanitation

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Firex UCPMDG2-32 features two basins, each with a 32-gallon capacity, for a total cooking capacity of 64 gallons.
It is equipped with programmable electronic controls, featuring a 7-inch resistive touch screen display for easy and clear operation, including manual and program modes.
Yes, it includes automatic filling and refilling of water in the vat, as well as an overflow device to maintain optimal water levels during operation.
The cooking vessels are made of durable AISI 316 stainless steel (30/10 thickness), while the lid, supporting structure, and outer cover are constructed from AISI 304 stainless steel with a fine satin finish.
Yes, the unit features a USB connection that allows you to download HACCP data, update software, and load cooking programs.
The standard electrical requirement is 220-240V, 2-Phase, 60Hz, drawing 3.5 Amps (0.80 kW). An optional configuration is available for 208V, 2-Phase, 60Hz, drawing 4.0 Amps (0.80 kW).
