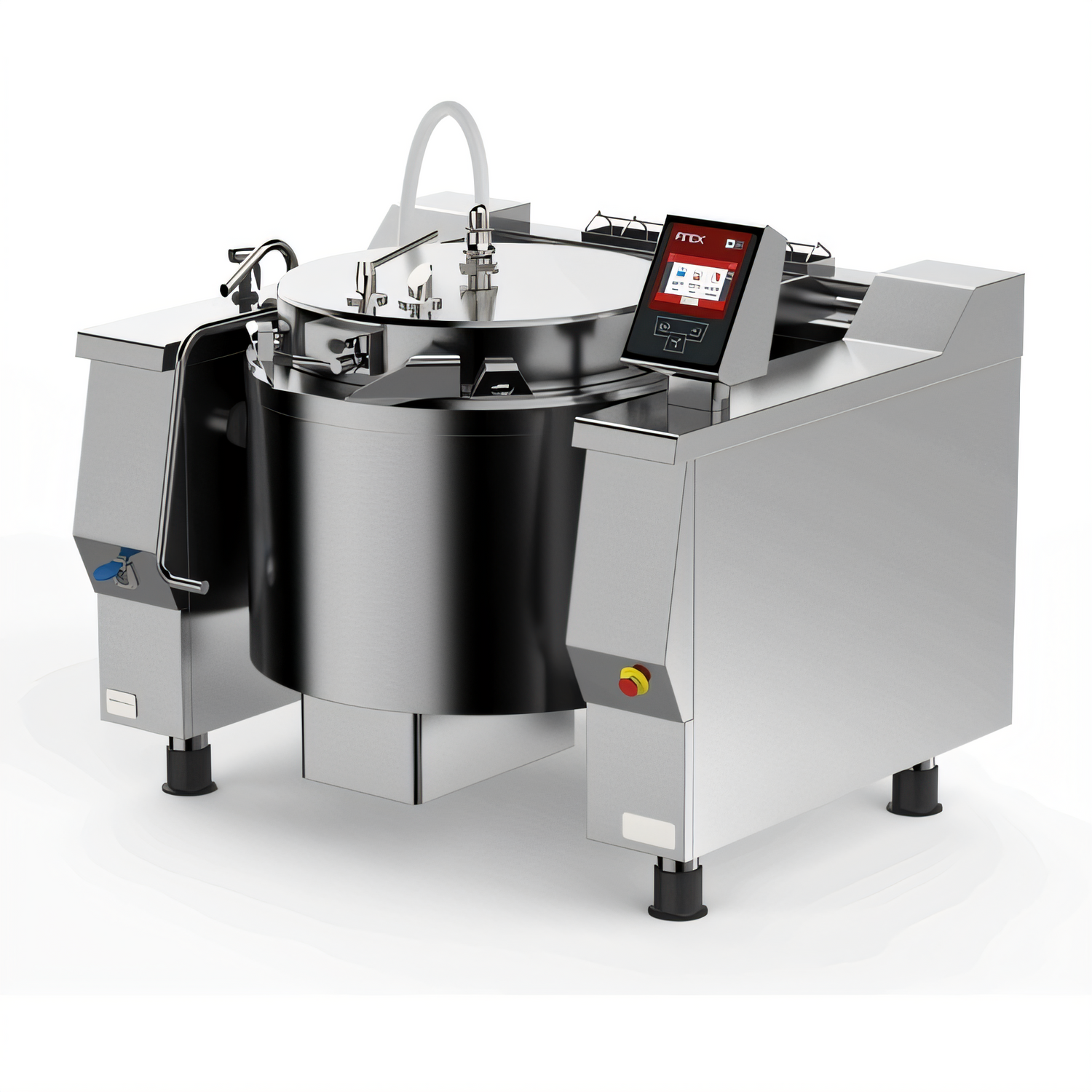

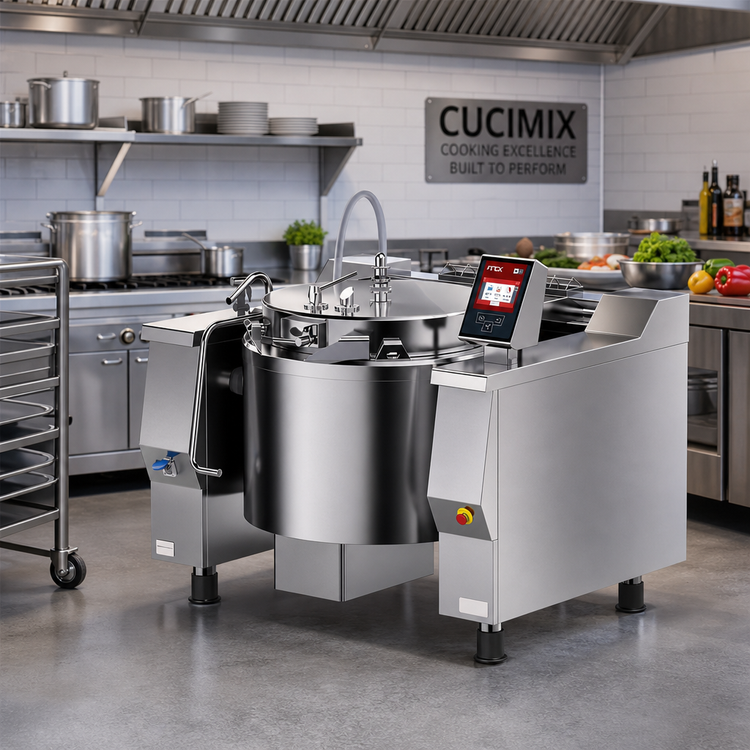

Cucimix UCBTG082AV1 82 Gallon Gas Tilting Skillet Pressure Braising Pan with Automatic Mixer
Cucimix UCBTG082AV1 82 Gallon Gas Tilting Skillet Pressure Braising Pan with Automatic Mixer
Full-Size, Natural Gas, Automatic Mixer, 7-Inch Touch Screen Controls
Experience unparalleled cooking versatility and efficiency with the Cucimix UCBTG082AV1, a robust 82-gallon gas tilting skillet designed for high-volume commercial kitchens.
- Large 82-gallon capacity ideal for high-volume cooking operations.
- Programmable electronic controls with a 7-inch resistive touch screen for precise recipe management.
- Integrated automatic mixer with three removable arms and PTFE scrapers ensures consistent product quality.
- Pressure cooking capability at 4.3 PSI for faster cooking and enhanced flavor retention.
- Durable AISI 304 stainless steel construction for longevity and easy cleaning.
- Equipped with an electric tilting mechanism for safe and effortless product discharge.
Overall Dimensions:
69.09"W x 61.42"D x 37.4"HProduct Weight:

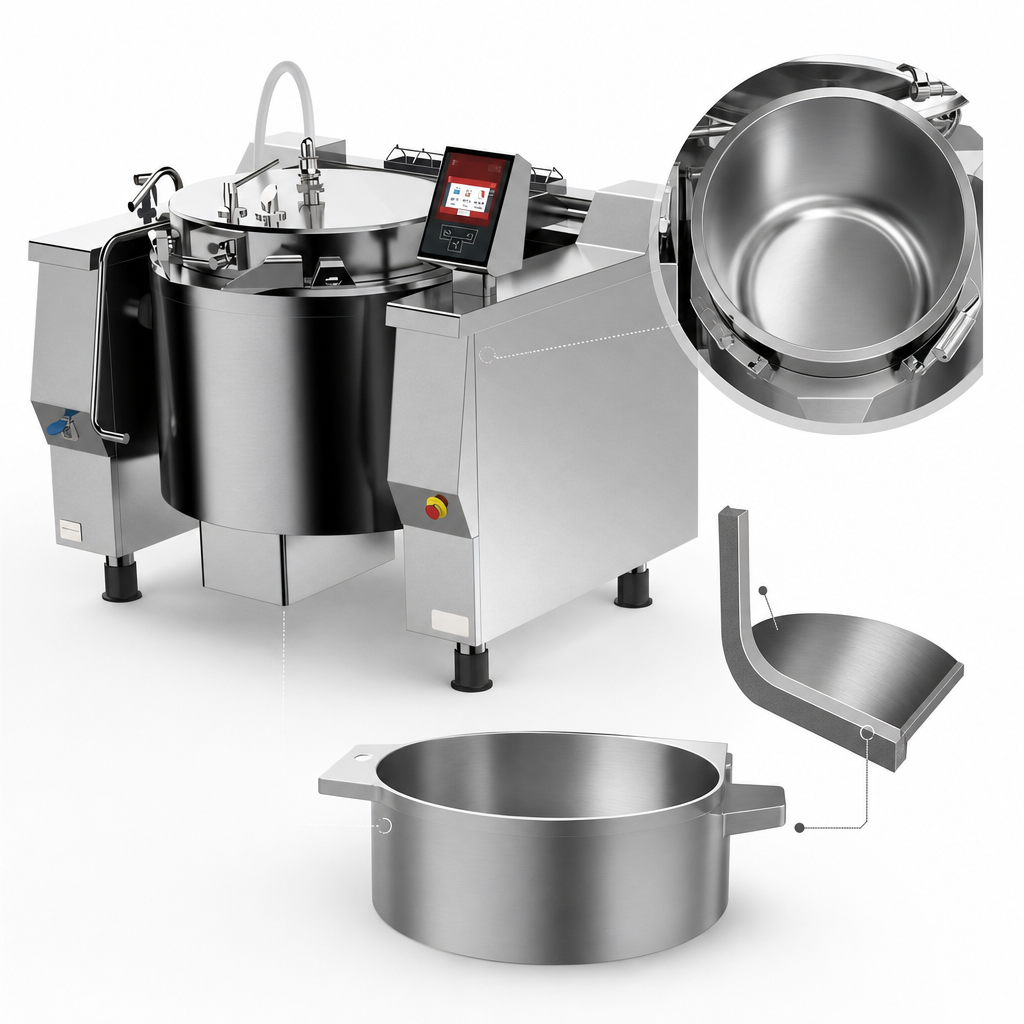

1433.0 lbCooking Vessel
Constructed from AISI 304 stainless steel with a 12 mm thick bottom and 3 mm thick walls, ensuring durability and even heating.

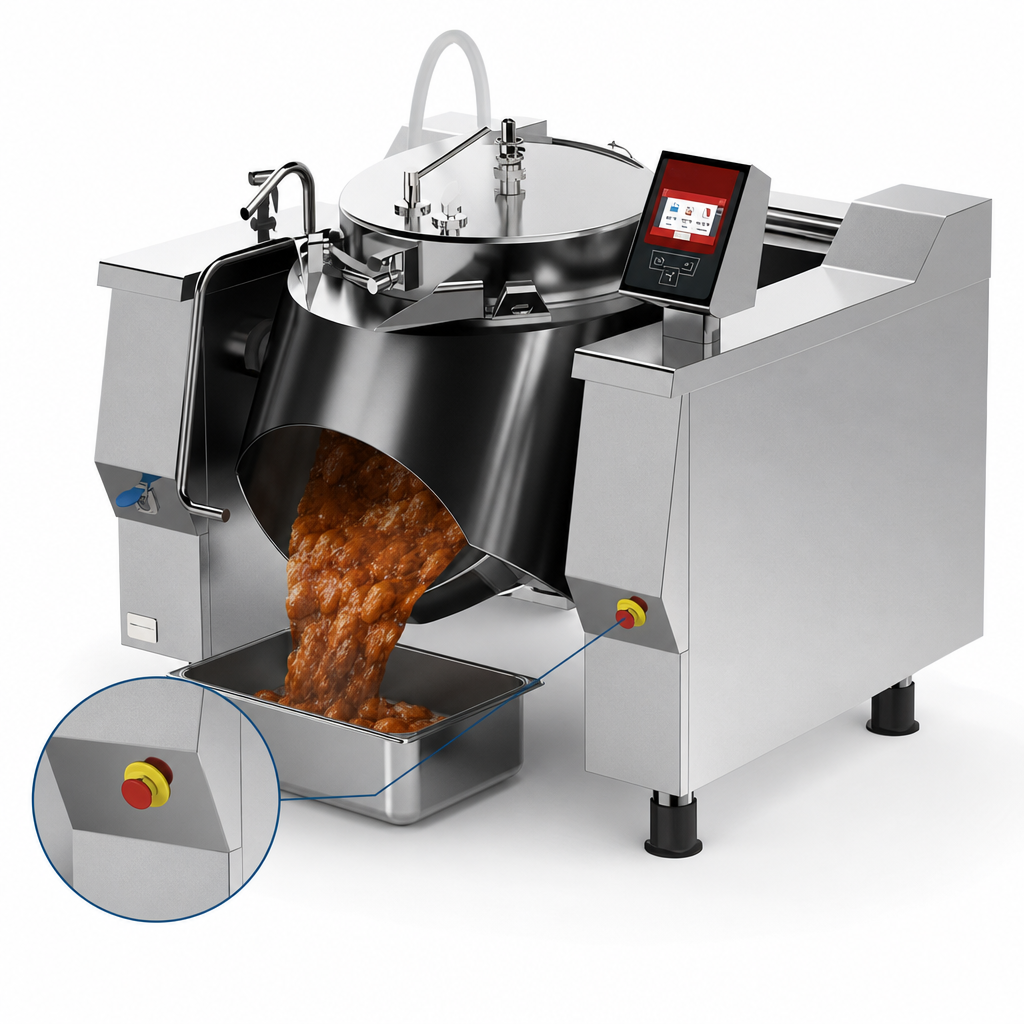

Electric Tilting
The vessel features electric tilting on the front part for easy and safe pouring of cooked product and simplified cleaning.
Insulated Lid
Double-covered lid made of AISI 304 stainless steel, insulated, and balanced by gas springs for ergonomic handling and safe operation. Includes a 4-point reinforced locking system for pressure cooking.
Robust Construction
Features a self-supporting frame in AISI 304 stainless steel and an outer cover with a fine satin finish, providing structural integrity and a professional appearance.
Adjustable Feet
Equipped with adjustable feet in AISI 304 stainless steel to ensure proper leveling and stability, with removable covers for easy cleaning access.
High Efficiency Gas Heating
Heating is achieved through high-efficiency stainless steel tube burners, featuring automatic ignition and a flame control system without a pilot burner for reliable operation.
Advanced Temperature Control
Temperature is precisely controlled by an electronic board using a dual probe system (product/bottom) for accurate monitoring.
Pressure Cooking System
Automatic system for eliminating air from the cooking container and condensing steam after cooking, allowing for fast and safe lid opening without steam dispersion.
Automatic Mixing Device
Completely removable mixing device with three arms and PTFE scrapers, adjustable directly from the control panel for optimal mixing based on the product.
FTC Firex Touch Control
Electronic control via a 7-inch resistive touch screen with a multifunctional keyboard, offering clear messages, 6 different cooking modes, and advanced programming capabilities.
USB Connectivity
USB connection allows for downloading HACCP data, updating software, and loading custom cooking programs.
Multiphase Cooking Programs
Ability to create and edit complex multiphase cooking programs, setting parameters like cooking type, temperature, time, and mixer settings for each phase.
Automatic Water Loading
Features tank water load setting for both hot (up to 140°F) and cold water, with automatic liter measurements.
Comprehensive Safety System
Includes an emergency button, heating blockage for excess temperature with manual resettable thermostat, mechanical lid lock under pressure, lid safety valve, and heating interruption during vat tilting.
IPX4 Protection Level
Certified with IPX4 protection, ensuring the equipment is resistant to splashing water.
Certifications & Compliance
Warranty & Protection
1-year parts and labor warranty from the date of original purchase.
