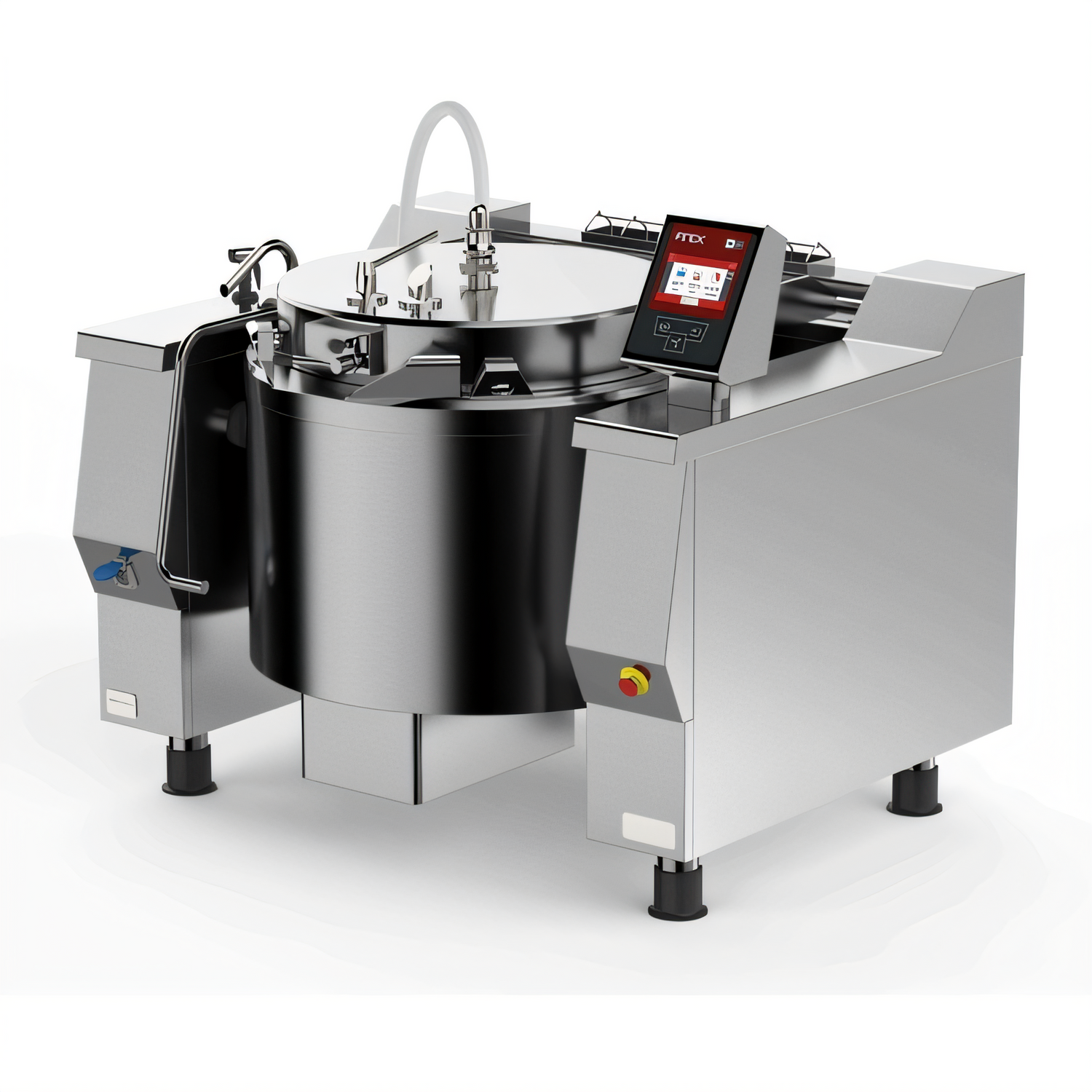

Cucimix UCBTG048AV1 48 Gallon Gas Tilting Skillet Pressure Braising Pan with Mixer

48 Gallon Capacity, Natural Gas, Automatic Mixer, Console Base

Experience advanced cooking versatility and efficiency with the Cucimix UCBTG048AV1, a robust gas-powered tilting skillet and pressure braising pan designed for demanding commercial kitchens.

  • Large 48-gallon capacity ideal for high-volume cooking operations.
  • Features a 7-inch touch screen with FTC Firex Touch Control for intuitive, programmable recipe management.
  • Integrated automatic mixer with three removable arms ensures consistent product quality and reduces manual labor.
  • Achieve faster cooking times with pressure braising capability up to 4.3 PSI.
  • Durable stainless steel construction and IPX4 rating for easy cleaning and long-lasting performance.
  • Equipped with adjustable feet for stable and flexible installation.

Overall Dimensions:

65.16"W x 59.06"D x 37.4"H

Product Weight:

1300.0 lb

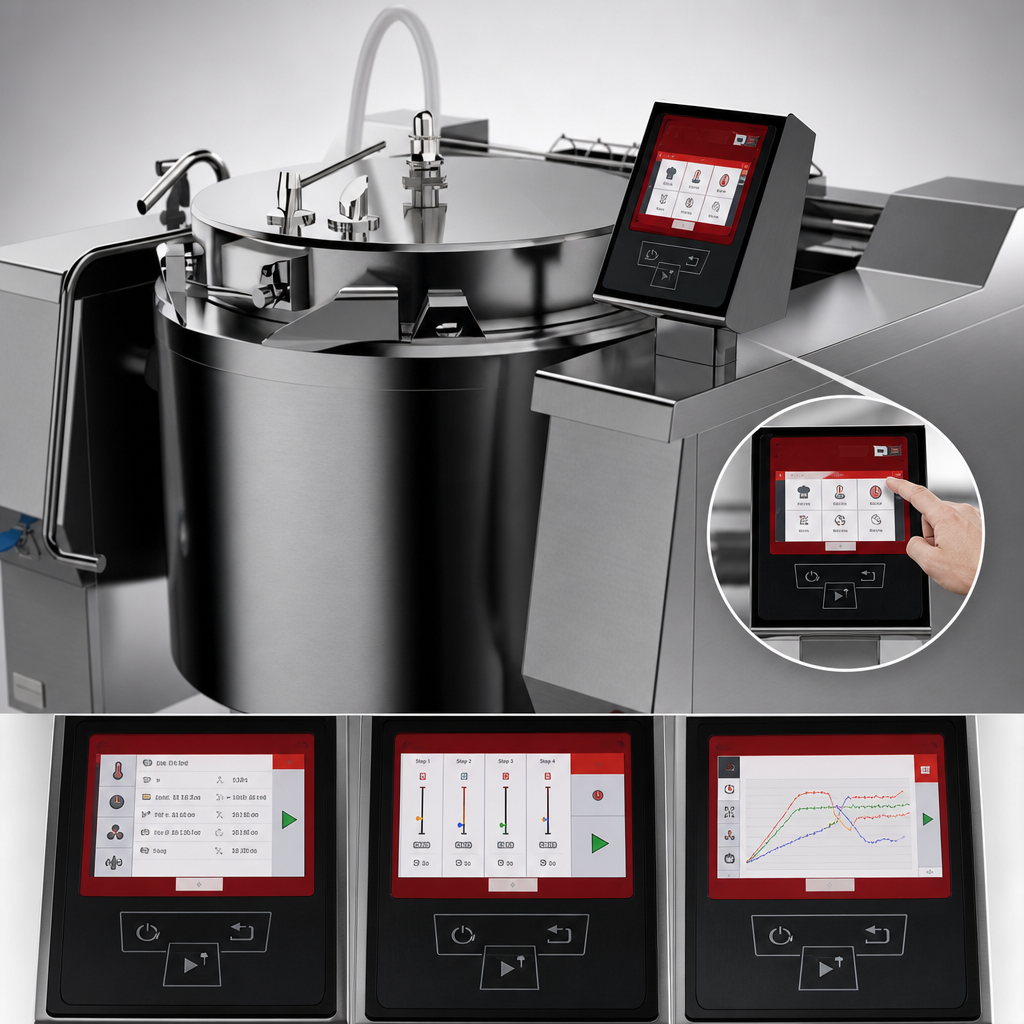

FTC Firex Touch Control System

Practical and intuitive cutting-edge touch-control system with a large 7-inch display for setting and adjusting cooking operations. Allows programming of entire recipes with different stages of cooking and mixing, setting time, temperature, and process diagnostics.

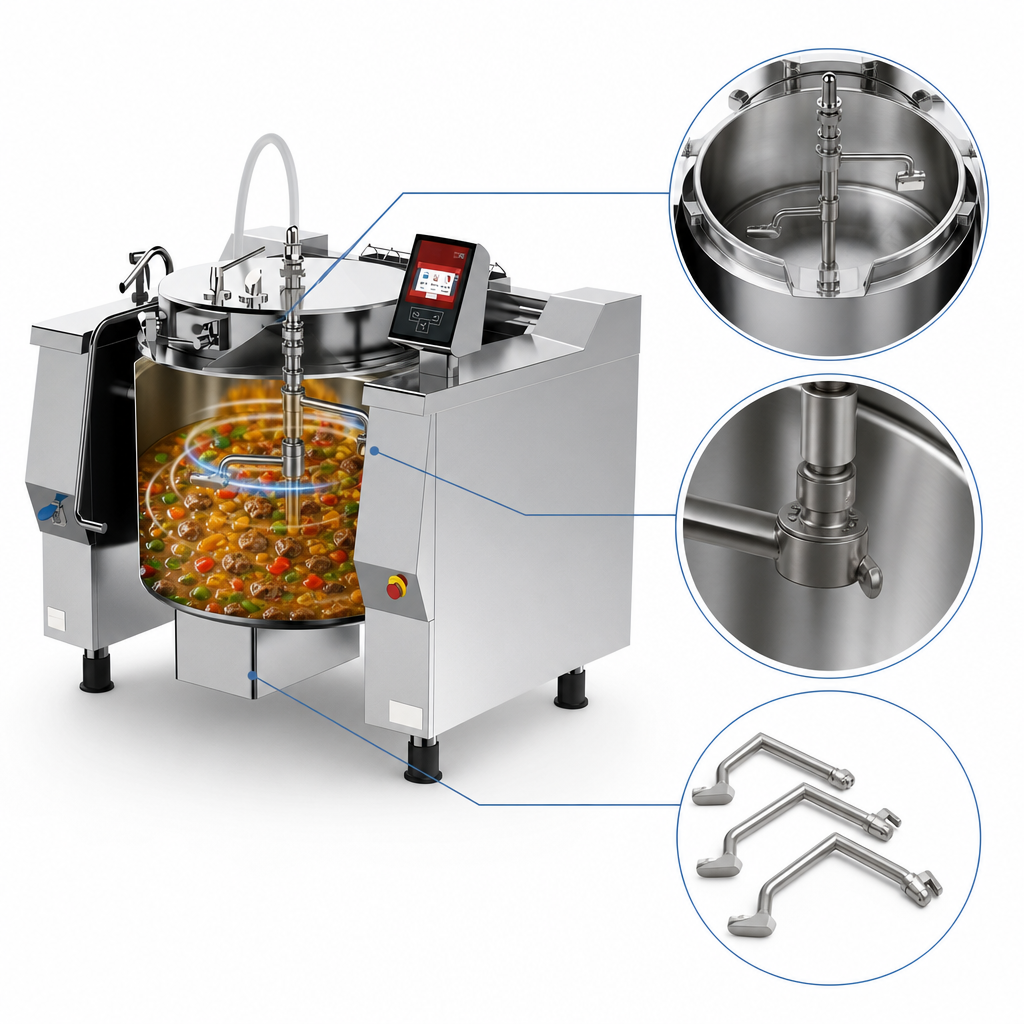

Automatic Mixing Device

Features three removable mixing arms to ensure consistent cooking and reduce the need for constant manual stirring.

Pressure Cooking Capability

Enables pressure cooking at 4.3 PSI (Autoclave units only), significantly reducing cooking times while preserving food quality.

Spring-Balanced Hinged Lid

Equipped with a spring-balanced hinged lid and a four-point reinforced locking system for secure and convenient operation.

USB Connection

Allows for recipe import/export and software updates, enhancing operational flexibility.

Robust Construction

Manufactured with durable stainless steel for longevity and easy maintenance in a commercial environment.

Adjustable Feet

Provides stability and allows for leveling on uneven surfaces, ensuring proper installation.

Second Temperature Probe

Offers enhanced temperature monitoring capabilities for precise cooking control.

Type Tilting Skillet Pressure Braising Pan
Style With Mixer
Installation Type Floor Model (Adjustable Feet)
Capacity 48 Gallons
Controls Programmable Electronic with 7" Touch Screen
Gas Type Natural Gas
BTU 112,500 BTU
Gas Inlet Pressure 4.3 PSI
Material Stainless Steel
Shipping Width 66 Inches
Shipping Depth 60 Inches
Shipping Height 38 Inches
Shipping Weight 1300 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor warranty from the date of original purchase.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Middleby financial flyer PDF Download PDF Crown steam group letter PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Cucimix UCBTG048AV1 has a generous capacity of 48 gallons, making it suitable for high-volume commercial kitchens.
Yes, it features an automatic mixing device with three removable arms to ensure even cooking and reduce manual labor.
It is equipped with programmable electronic controls featuring a 7-inch FTC Firex Touch Control screen, allowing for precise recipe programming and operation adjustments.
Yes, the UCBTG048AV1 is a pressure braising pan capable of pressure cooking at 4.3 PSI, which helps to speed up cooking times.
This model is a gas-powered unit, operating with a BTU output of 112,500 BTU.
