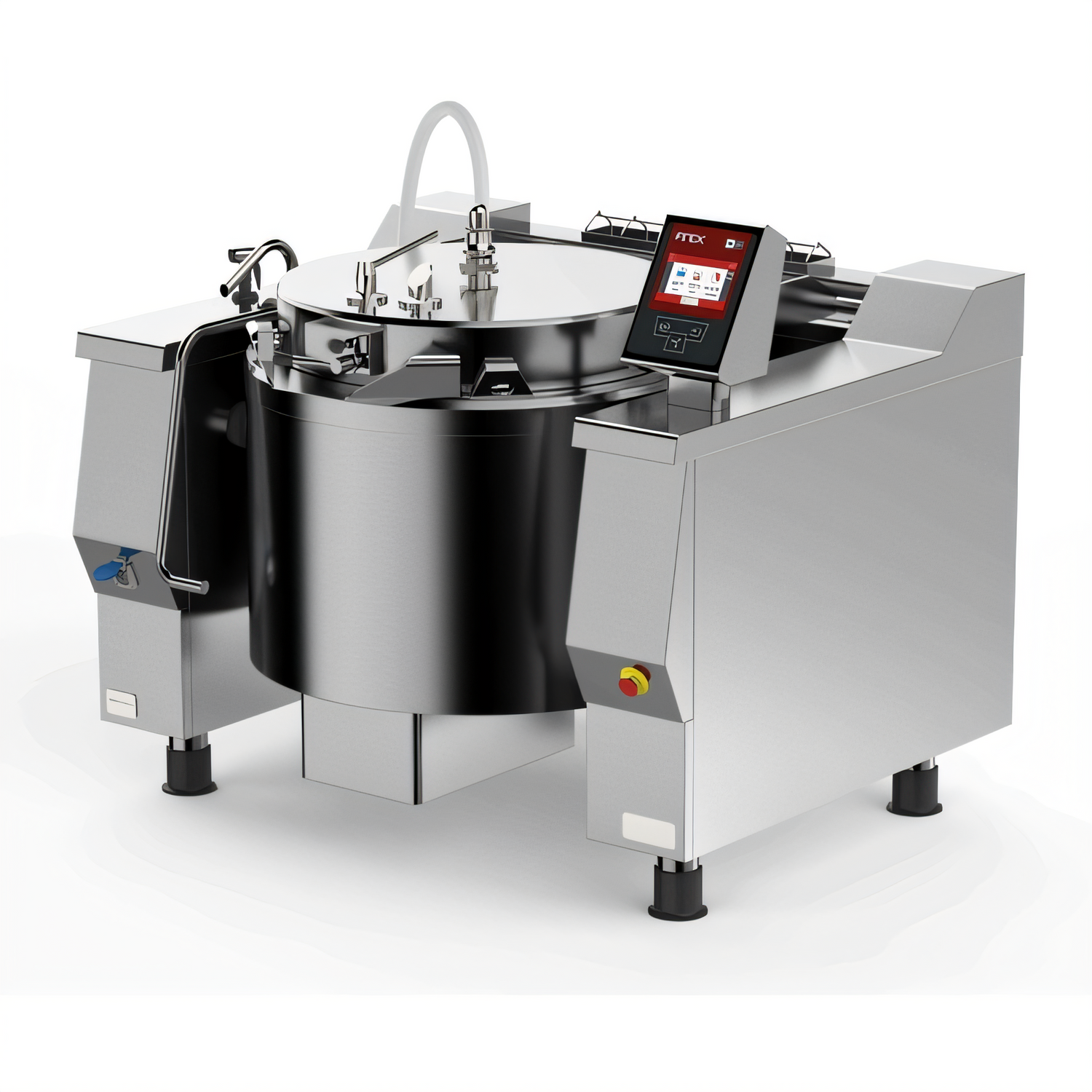

Firex Cucimix UCBTG034AV1 34 Gallon Gas Tilting Skillet Pressure Braising Pan
Firex Cucimix UCBTG034AV1 34 Gallon Gas Tilting Skillet Pressure Braising Pan
Full-Size, Gas, Pressure Cooking, Automatic Mixer, 7" Touch Screen
Revolutionize your kitchen's cooking with the Firex Cucimix UCBTG034AV1, a versatile 34-gallon gas tilting skillet pressure braising pan designed for high-volume, precision cooking.
- Large 34-gallon capacity for high-volume cooking operations.
- Programmable electronic controls with a 7" resistive touch screen for intuitive operation.
- Features automatic mixing with removable three-arm PTFE scrapers for consistent results and easy cleaning.
- Pressure cooking capability up to 5.8 PSI with automatic air elimination and steam condensation.
- Durable stainless steel AISI 304 construction ensures longevity and hygiene.
- Electric tilting mechanism for easy and safe pouring of contents.
- USB connection for HACCP data download, software updates, and program loading.
- IPX4 protection level for robust commercial kitchen environments.
Overall Dimensions:
57.28"W x 50.0"D x 37.4"HProduct Weight:
992.0 lbCooking Vessel

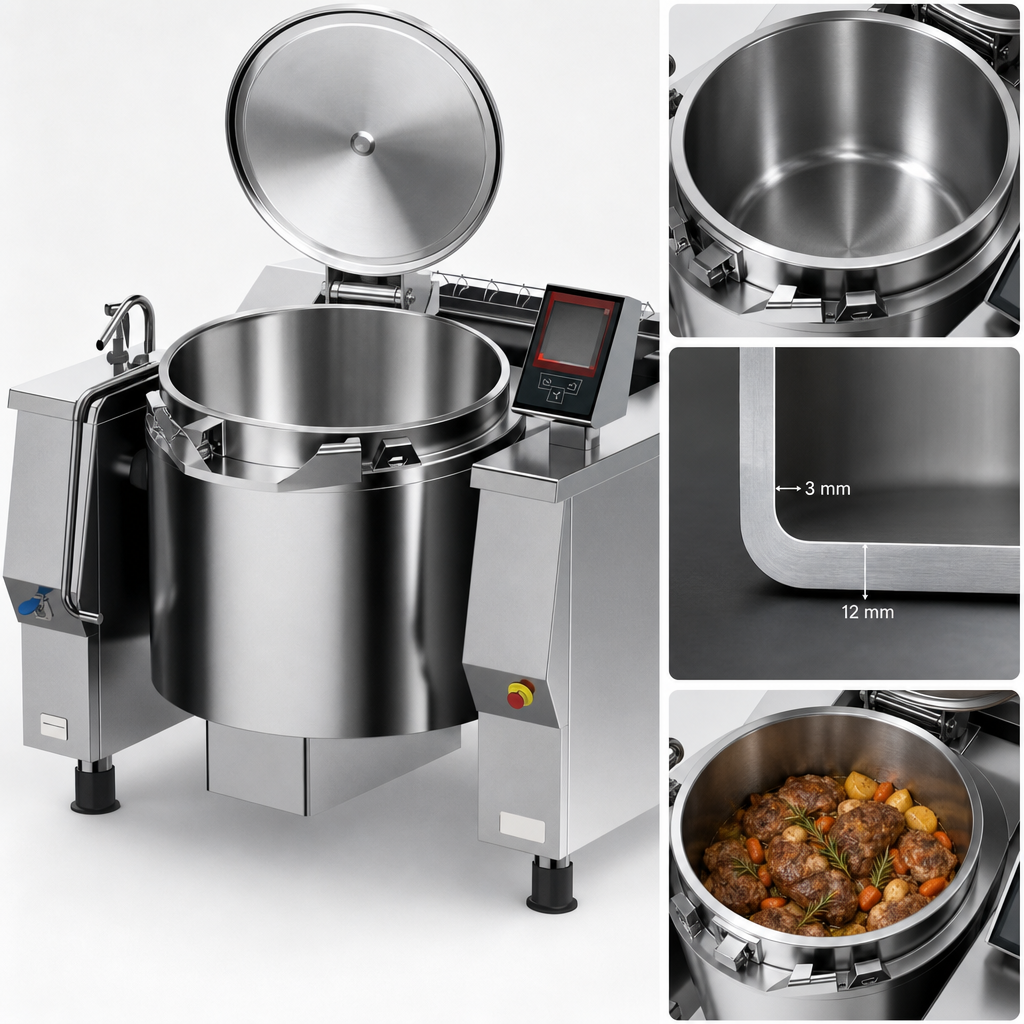

Constructed from stainless steel AISI 304 with a 12 mm thick bottom and 3 mm thick walls, ensuring durability and even heat distribution for consistent cooking.
Electric Tilting

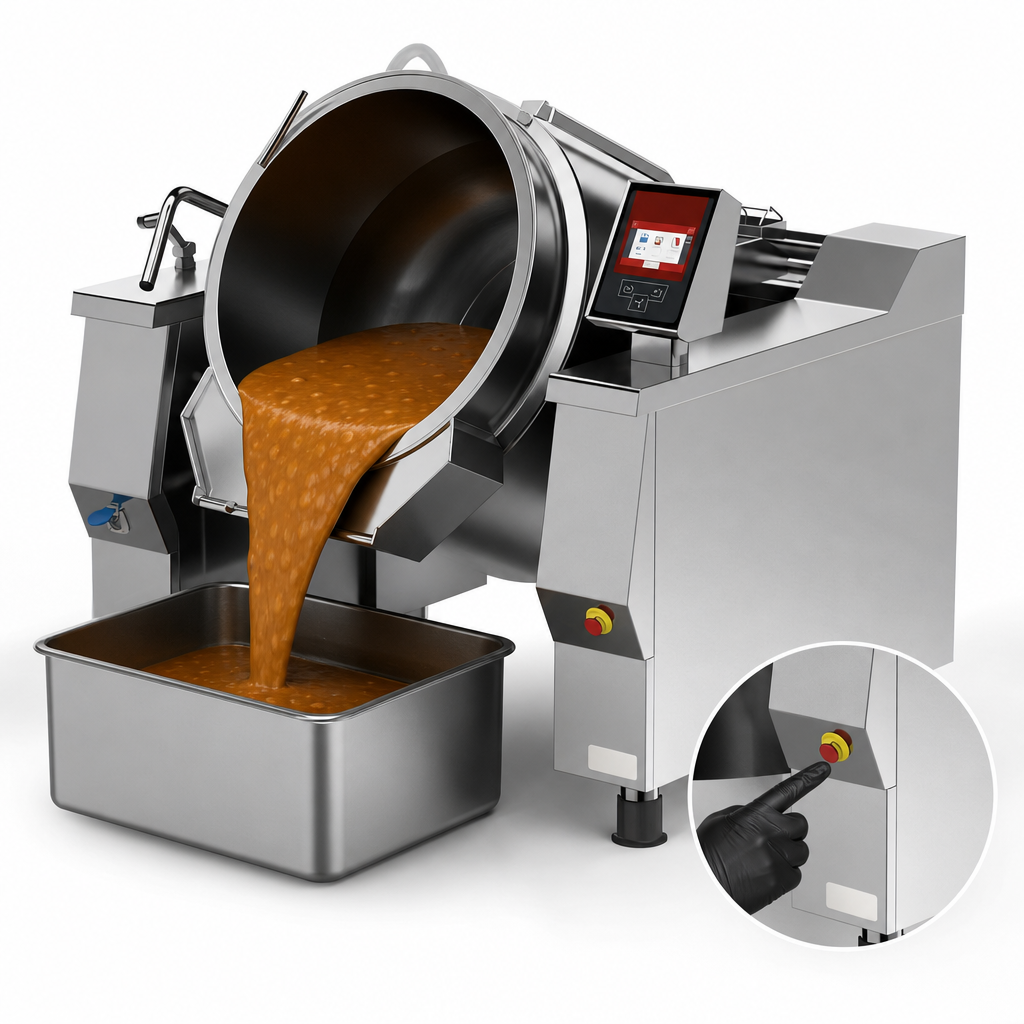

The cooking vessel features electric tilting on the front, allowing for effortless and safe pouring of product directly from the pan.
Insulated Lid
An insulated lid with a double cover in stainless steel AISI 304, balanced by gas springs for smooth operation, includes an ergonomic handle and a 4-point reinforced locking system for secure pressure cooking.
Durable Construction
Features a self-supporting frame and outer cover made from fine satin finish stainless steel AISI 304 (thickness 30-40/10 and 12-15/10 respectively), providing robust structure and a professional appearance.
Adjustable Feet
Equipped with adjustable feet in stainless steel AISI 304 to ensure proper leveling on uneven floors, with removable covers for easy cleaning access.
Easy Maintenance Access
Designed for fast accessibility to main functional parts such as the electronic card, fuses, and thermostats by simply removing the frontal panels.
Efficient Gas Heating
Heating is achieved through high-efficiency stainless steel tube burners, featuring automatic ignition and a flame control system that operates without a pilot burner.
Precise Temperature Control
Temperature is accurately controlled by an electronic board system utilizing two probes, one for the product and one for the bottom of the vessel.
Pressure Cooking System
Includes an automatic system for eliminating air from the cooking container during pressure cooking (for saturated steam) and automatic steam condensation after cooking, allowing for fast and safe lid opening.
Automatic Mixing Device
Features a three-arm mixing device with PTFE scrapers, which is completely removable for easy cleaning and allows for speed, rotation, and pause time adjustments directly from the control panel.
Intuitive Touch Screen Controls
Electronic control is managed via a multifunctional keyboard with a 7" resistive touch screen display, offering clear messages, 6 cooking modes, and the ability to create multiphase cooking programs.
Data Management & Updates
A USB connection allows for downloading HACCP data, updating software, and loading custom cooking programs for enhanced operational efficiency.
Water Load Setting
Allows for precise setting of hot (up to 140°F) or cold water loads into the tank with automatic liter measurements.
Delayed Cooking
Offers the convenience of setting delayed cooking cycles with specific dates and times.
Comprehensive Safety System
Includes an emergency button, heating interruption for excess temperature (with manual resettable thermostat), mechanical lid opening lock when under pressure, a lid safety valve, and heating interruption during vat tilting.
Certifications & Compliance
Warranty & Protection
1-year parts and labor
