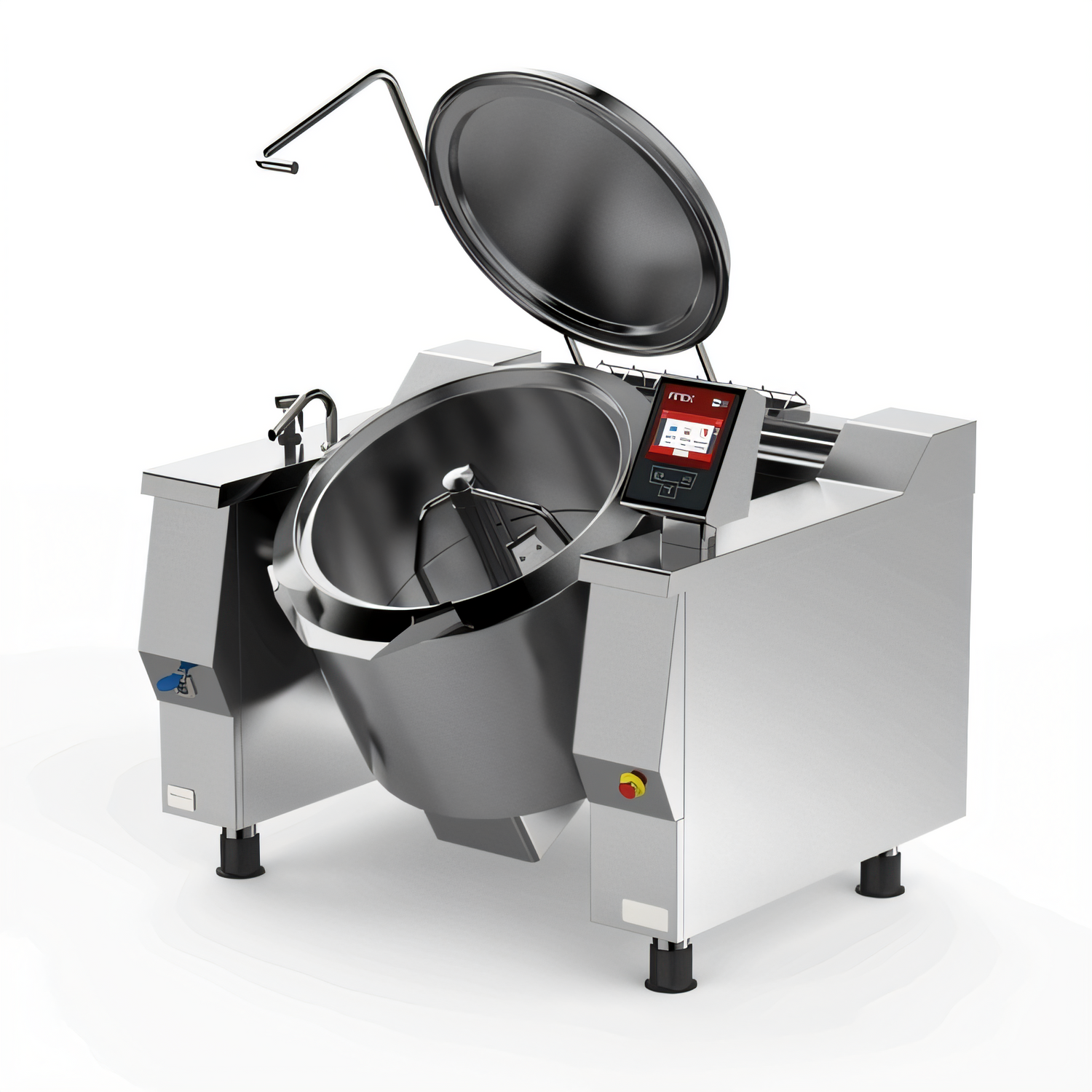

Cucimix UCBTE034V1 34 Gallon Electric Tilting Skillet Braising Pan with Mixer
Cucimix UCBTE034V1 34 Gallon Electric Tilting Skillet Braising Pan with Mixer
Fully Automated, Floor Model, Electric, Automatic Mixer
Experience unparalleled consistency and labor savings with the Cucimix UCBTE034V1, a fully automated electric tilting skillet braising pan designed for high-volume commercial kitchens.
- Fully automated cooking unit with a 34-gallon capacity for efficient large-scale production.
- Programmable electronic controls with a 7-inch resistive touch screen for precise recipe management and ease of use.
- Integrated automatic mixing device with PTFE scrapers ensures thorough and consistent stirring.
- Durable AISI 304 stainless steel construction with an IPX5 protection level for longevity and easy cleaning.
- Features USB connectivity for HACCP data download, software updates, and recipe program loading.
Overall Dimensions:
57.25"W x 50.75"D x 50.63"HProduct Weight:

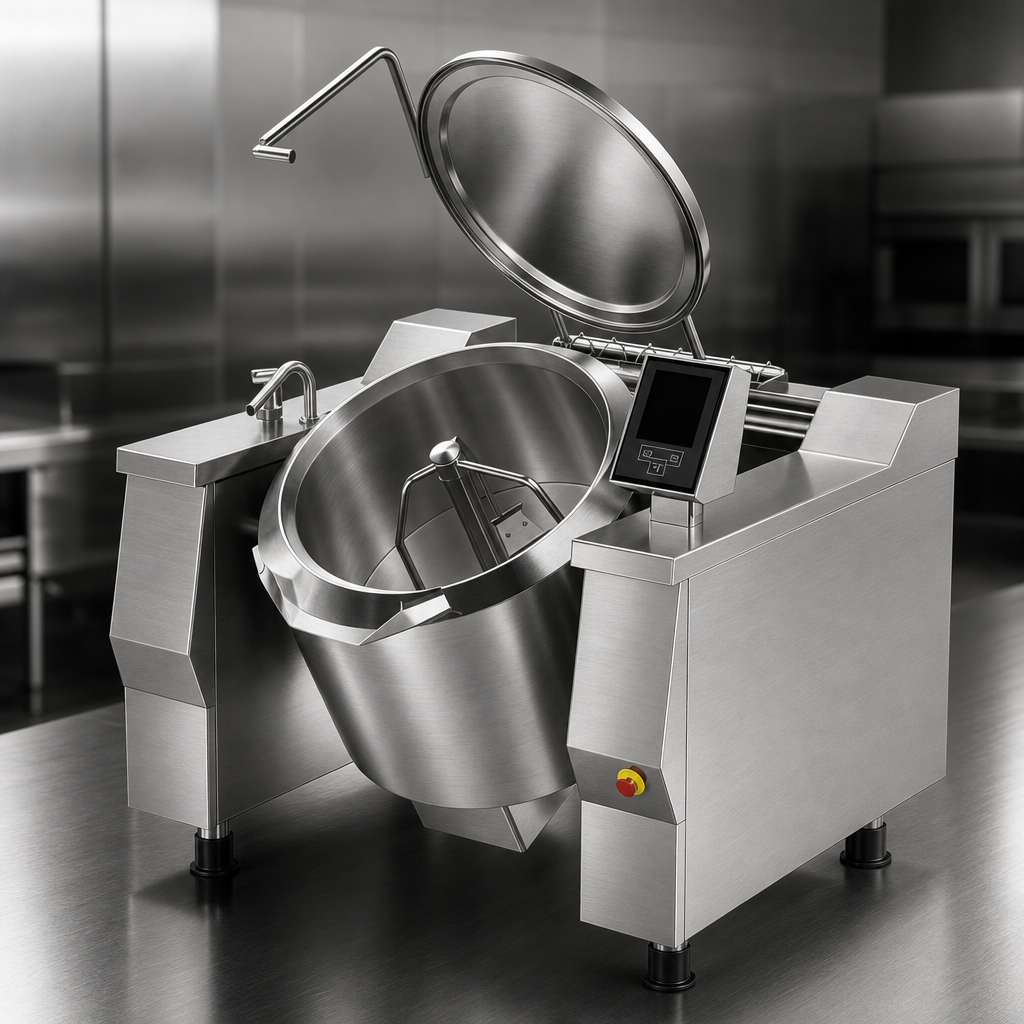

970.0 lbRobust Stainless Steel Construction
Cooking vessel, self-supporting frame, and outer cover are made of AISI 304 stainless steel for maximum durability and hygiene. The vessel features a 12 mm thick bottom and 3 mm thick walls.

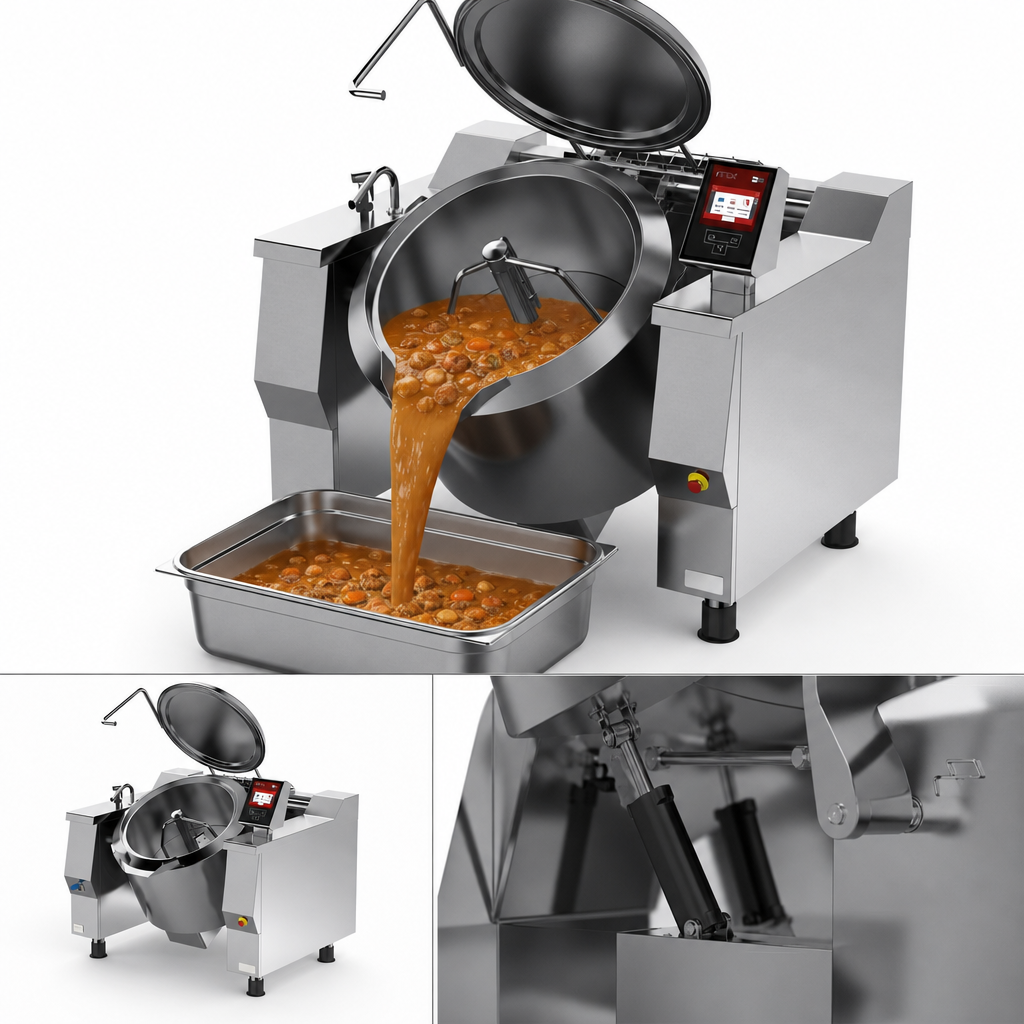

Electric Tilting Vessel
The cooking vessel electrically tilts to the front, allowing for effortless pouring and emptying of product.
Insulated, Spring-Balanced Lid
Double-covered lid in AISI 304 stainless steel, insulated and balanced by gas springs for safe and ergonomic operation.
Adjustable & Accessible Design
Equipped with adjustable AISI 304 stainless steel feet for perfect leveling and easy access to main functional parts (electronic card, fuses, thermostats) by simply removing frontal panels.
IPX5 Protection Level
Ensures the unit is protected against water jets, making cleaning simple and maintaining high sanitary standards.
Advanced Electronic Controls
Features a 7-inch resistive touch screen with a multifunctional keyboard for intuitive operation, providing clear messages and programming options.
Automatic Mixing Device
Three-arm mixer with PTFE scrapers and a vertical blade for efficient wall scraping, fully removable for easy cleaning and adjustable from the control panel based on product consistency.
Efficient 3-Zone Heating System
Heating is achieved by armored INCOLOY-800 alloy elements, controlled electronically with a 3-zone wall heating system that can be activated from the bottom up.
Dual Probe Temperature Control
Temperature is precisely controlled by a system utilizing two probes (one for the product, one for the bottom of the vessel).
USB and MODBUS Connectivity
USB connection enables easy download of HACCP data, software updates, and loading of cooking programs. Also features MODBUS over RS485 serial interface for machine interrogation.
Customizable Cooking Programs
Offers 5 different cooking modes, manual cooking, and the ability to create/edit multiphase programs with specific cooking types, parameters (temperature, time), mixer settings, and text messages.
Flexible Mixer Settings
Allows for speed adjustment, clockwise/counterclockwise rotation, and pause times for the mixer. The mixer can also activate at minimum speed during tank tilting to assist product pouring.
Automatic Water Filling
Setting for hot (up to 140°F) or cold water loading with automatic liter measurements directly into the tank.
Safety Systems
Includes an emergency button, heating block for excess temperature with a manual resettable safety thermostat, and heating interruption during vat tilting.
Certifications & Compliance
Warranty & Protection
1-year parts and 1-year labor warranty from the date of original purchase.
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
