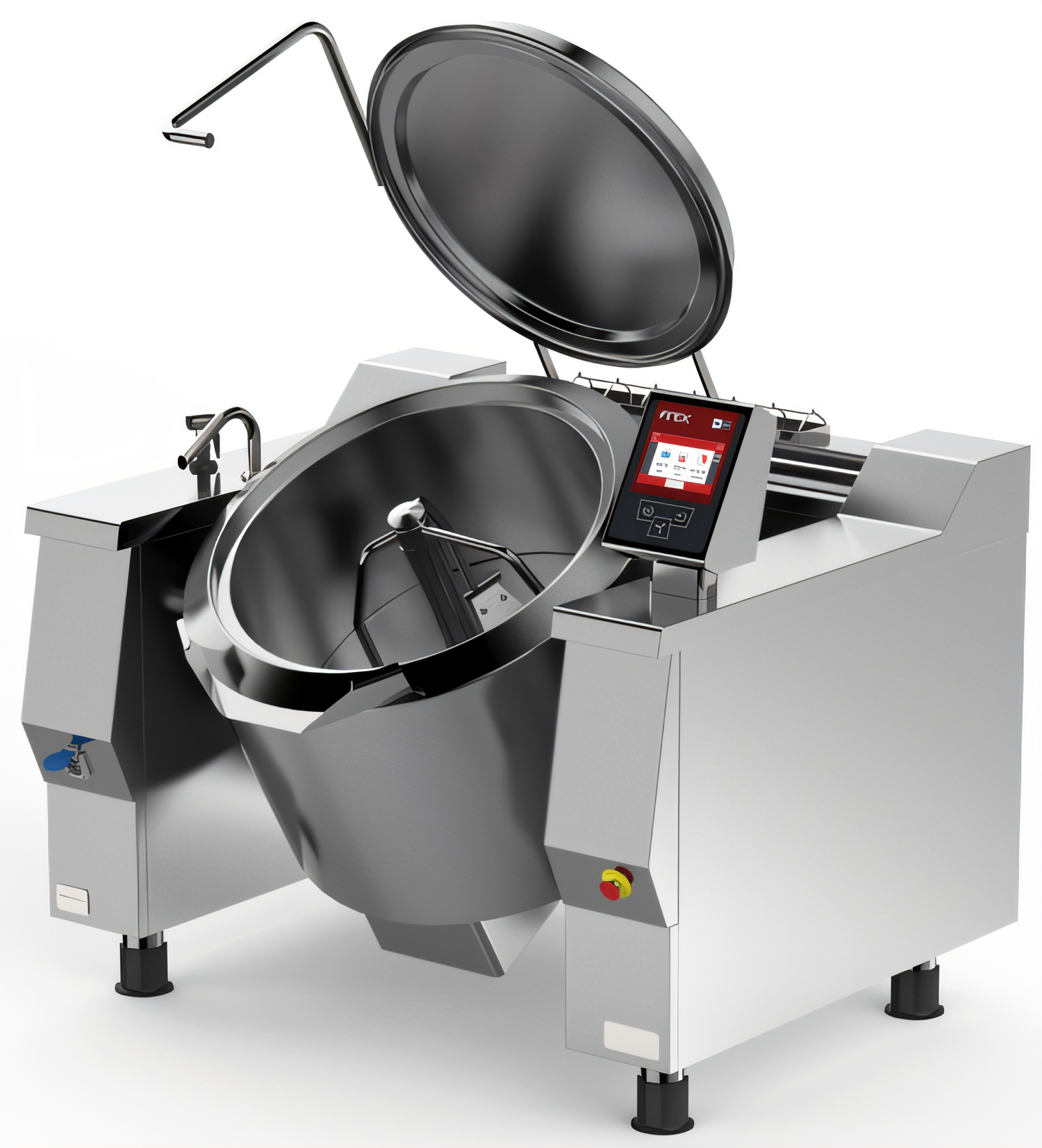

Cucimix UCBTE034CV1 34 Gallon Electric Tilting Skillet Braising Pan with Automatic Mixer
Cucimix UCBTE034CV1 34 Gallon Electric Tilting Skillet Braising Pan with Automatic Mixer
Floor Model, Programmable Touchscreen Controls, Stainless Steel
Experience unparalleled versatility and efficiency in your commercial kitchen with the Cucimix UCBTE034CV1, a 34-gallon electric tilting skillet braising pan designed for high-volume cooking and automatic mixing.
- Large 34-gallon capacity perfect for high-volume braising, simmering, and frying.
- Programmable electronic controls with a 7-inch touchscreen for precise cooking and recipe management.
- Integrated automatic mixer with PTFE scrapers ensures consistent product quality and prevents sticking.
- Durable stainless steel construction (AISI 304) for longevity and easy cleaning.

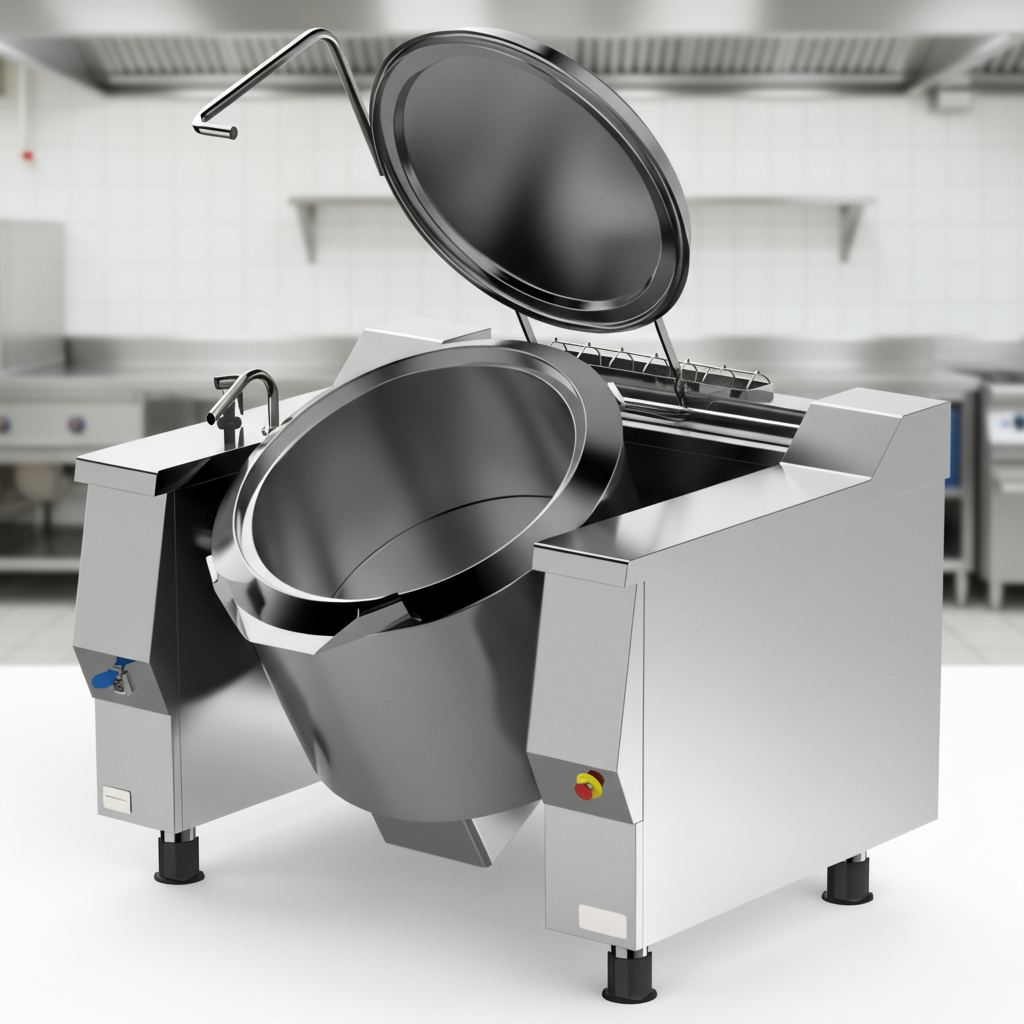

- Electric tilting vessel for safe and convenient product discharge.
- IPX5 water protection rating ensures durability in demanding kitchen environments.
Cooking Vessel
Constructed from stainless steel AISI 304 with a 12 mm thick bottom and 3 mm thick walls, featuring electric tilting for easy pouring.

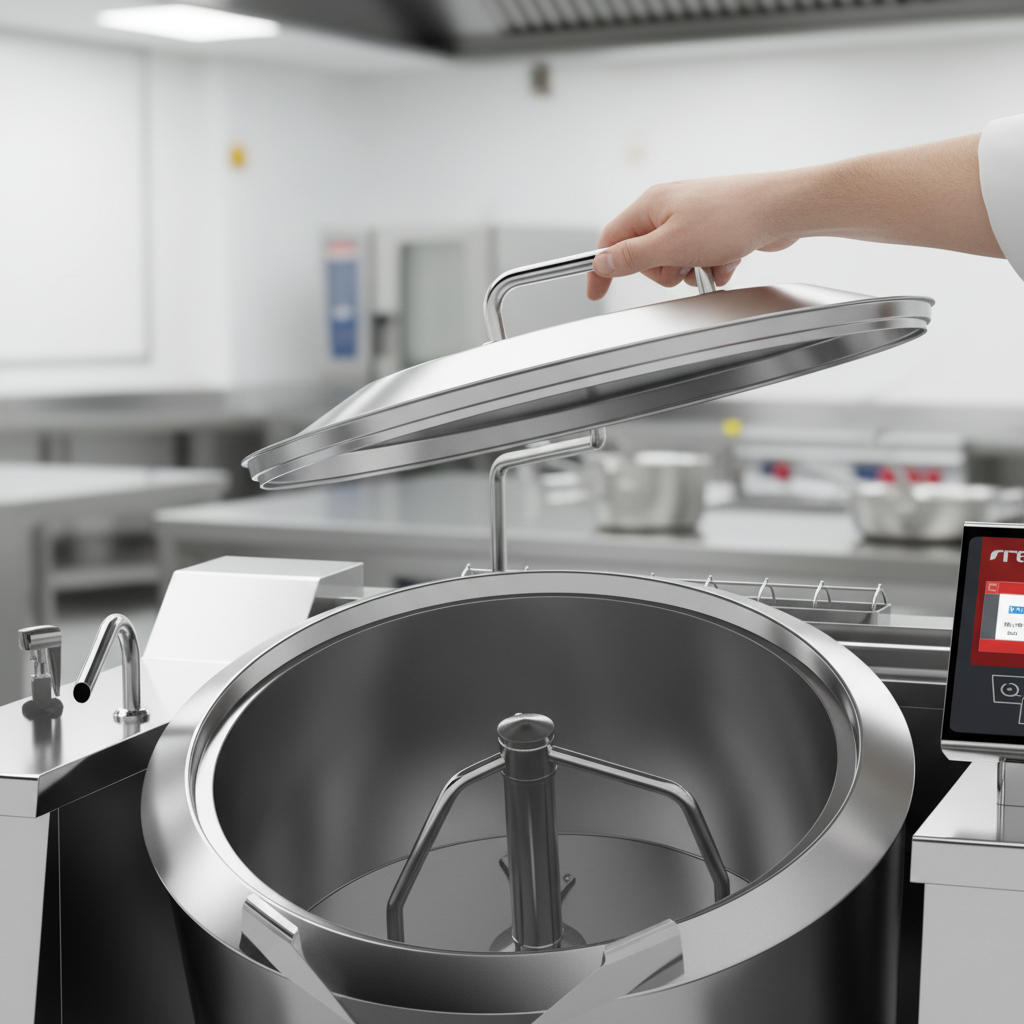

Insulated Lid
Double cover in stainless steel AISI 304 with an ergonomic handle, balanced by gas springs for smooth operation.

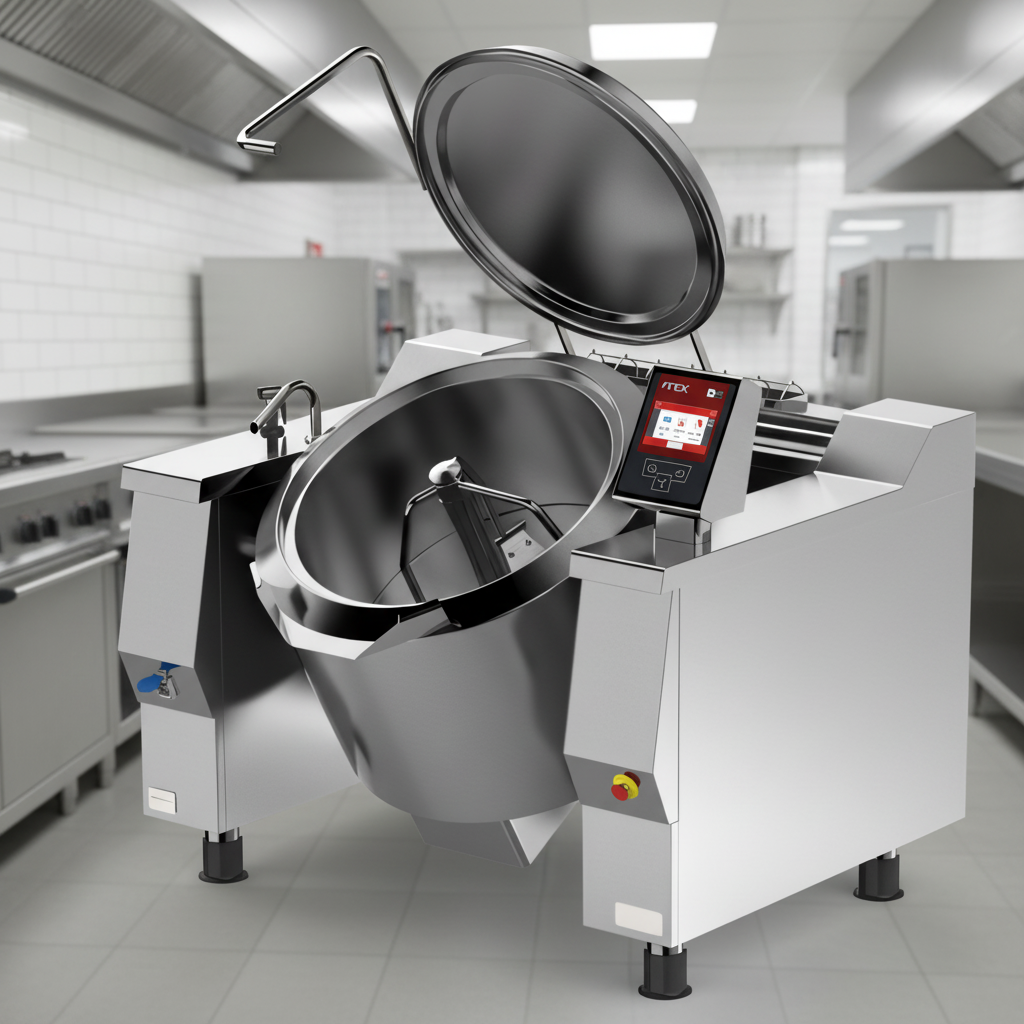

Robust Construction
Self-supporting frame and outer cover made of fine satin finish stainless steel AISI 304 for durability and a professional look.
Adjustable Feet
Stainless steel AISI 304 adjustable feet with removable covers ensure stable leveling and facilitate cleaning operations.
Easy Maintenance Access
Fast accessibility to main functional parts like the electronic card, fuses, and thermostats by simply removing the frontal panels.
Efficient Heating System
Heating via armored INCOLOY-800 alloy elements, precisely controlled by an electronic board with two temperature probes (product/bottom).
Controlled Wall Heating
Three band heaters activate from the bottom up to heat tank walls, controlled electronically, with a temperature range of 122-266° F.
Automatic Mixing Device
Features three arms with PTFE scrapers and a vertical blade for comprehensive wall scraping, fully removable for cleaning, and adjustable from the control panel.
Advanced Electronic Control
Multifunctional keyboard with a 7-inch resistive touchscreen display for intuitive operation, clear messages, and various settings.
USB Connectivity
Allows for downloading HACCP data, updating software, and loading custom cooking programs.
MODBUS Communication Protocol
Enables interrogation of the machine using an RS485 serial interface for advanced integration.
Power Economizer Connection
Supports connection for a power economizer to optimize energy consumption.
Versatile Cooking Modes
Offers 5 different cooking modes with customizable working temperature settings, including manual and multiphase program modes.
Tilted Basin Cooking
Provides the unique capability of cooking with the basin tilted up to 15°.
Customizable Programs
Create and edit multiphase cooking programs, setting cooking type, temperature, time, mixer settings, wall heating, and text messages for each phase.
Mixer Control
Adjust mixing speed (clockwise/counter-clockwise), rotation, and pause times; activate mixer at minimum speed during tilting for easier product pouring.
Automatic Water Load
Set and measure water loads (hot up to 140° F / cold) with automatic liter measurements.
Delayed Cooking
Program cooking cycles to start at a specific date and time for operational flexibility.
Comprehensive Safety System
Includes an emergency button and a heating block for excess temperature with a manual resettable safety thermostat.
Specifications
| Type | Tilting Skillet Braising Pan |
|---|---|
| Style | Floor Model (With Adjustable Feet) |
| Installation Type | Floor Model |
| Capacity | 34 Gallons |
| Material | Stainless Steel |
| Interior Finish | Stainless Steel |
| Controls | Programmable Digital (7" Touch Screen) |
| Voltage | 220-240 Volts |
| Phase | 3-Phase |
| Hertz | 60 Hz |
| Watts | 17.40 kW |
| Amps | 41.9 Amps |
| Mixer Torque | 191 Nm |
| Mixer Power | 0.37 kW |
| Mixing Speed | 6-18 Rpm |
| Water Connection | Required |
| Cold Water Inlet Size | 3/4 Inch |
| Hot Water Inlet Size | 3/4 Inch |
| Water Inlet Pressure | 25-50 PSI |
| Temperature Range | 122-266° F (Wall Heating) |
| Protection Level | IPX5 |
| Country of Origin | Italy |
| Selling Unit | Each |
| Units Per Case | 1 |
| Shipping Width | 58 Inches |
| Shipping Depth | 51 Inches |
| Shipping Height | 51 Inches |
| Shipping Weight | 970 lb |
Overall Dimensions:
57.25"W x 50.75"D x 50.63"HProduct Weight:
970.0 lbCertifications & Compliance
