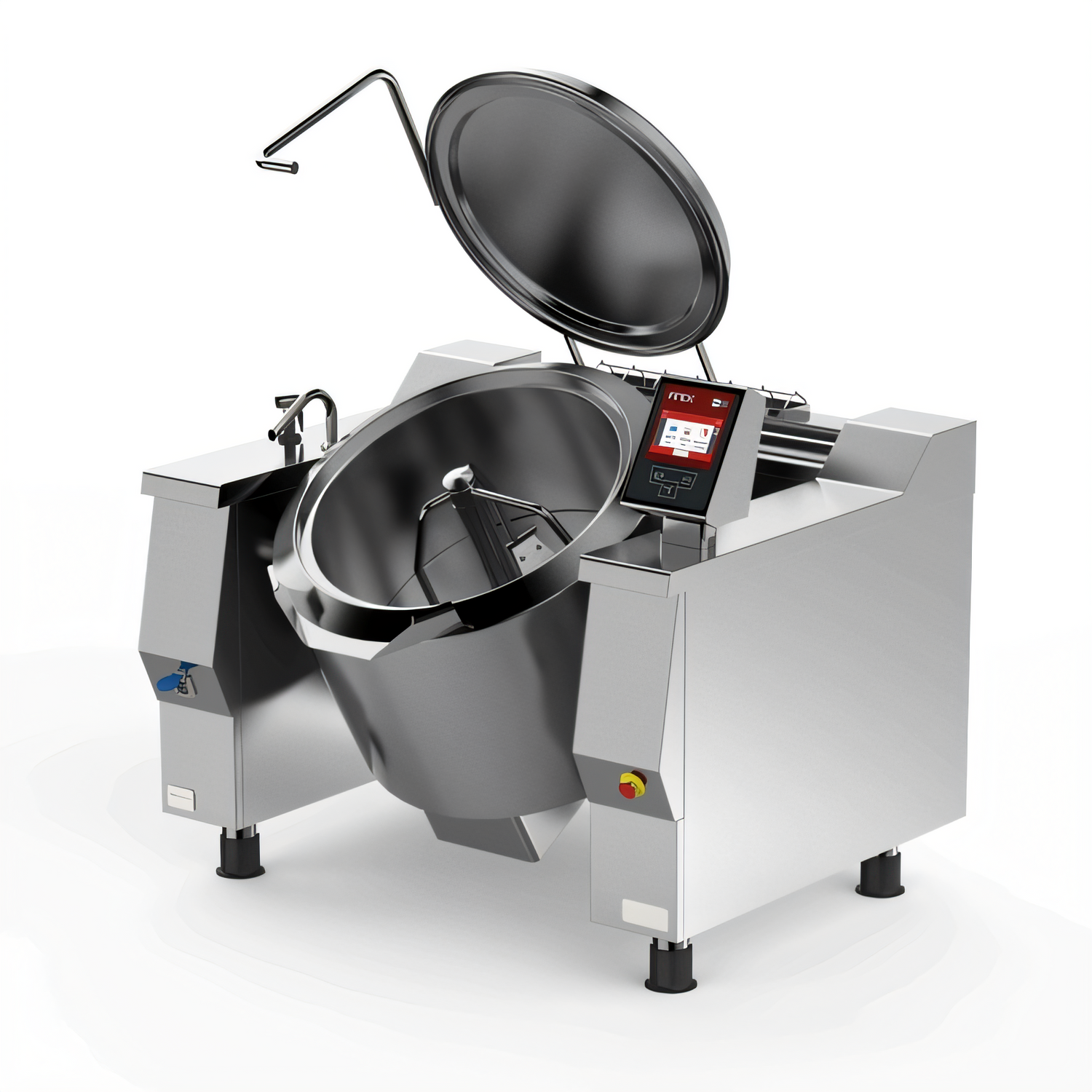

Cucimix UCBTE024V1 24 Gallon Electric Tilting Skillet Braising Pan with Mixer
Cucimix UCBTE024V1 24 Gallon Electric Tilting Skillet Braising Pan with Mixer
Electric, Programmable Touchscreen Controls, Automatic Mixer, IPX5
Automate and enhance consistency in high-volume cooking with the Firex Cucimix UCBTE024V1, featuring programmable controls and an integrated automatic mixer.
- 24-gallon capacity ideal for large volume cooking applications
- Programmable electronic controls with a 7-inch resistive touch screen for precise recipe management
- Automatic mixing device with three arms and PTFE scrapers ensures consistent product preparation
- Robust AISI 304 stainless steel construction with IPX5 protection level for durability and easy cleaning
- Electric tilting mechanism provides effortless product pouring and enhances operator safety
- USB connection allows for easy HACCP data download, software updates, and program loading
Overall Dimensions:
57.25"W x 50.75"D x 50.63"HProduct Weight:

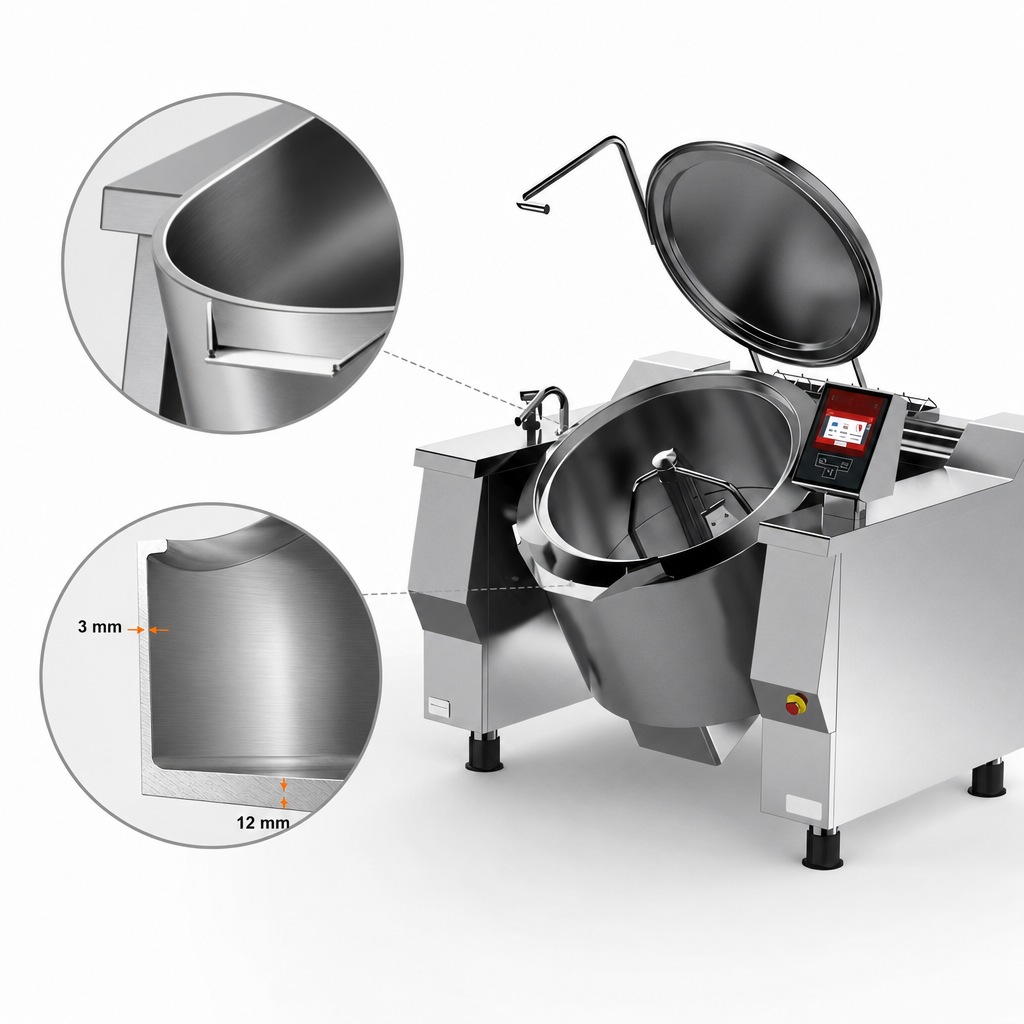

948.0 lbDurable Cooking Vessel
The cooking vessel is made of AISI 304 stainless steel with a 12 mm bottom thickness and 3 mm wall thickness, designed for electric tilting.

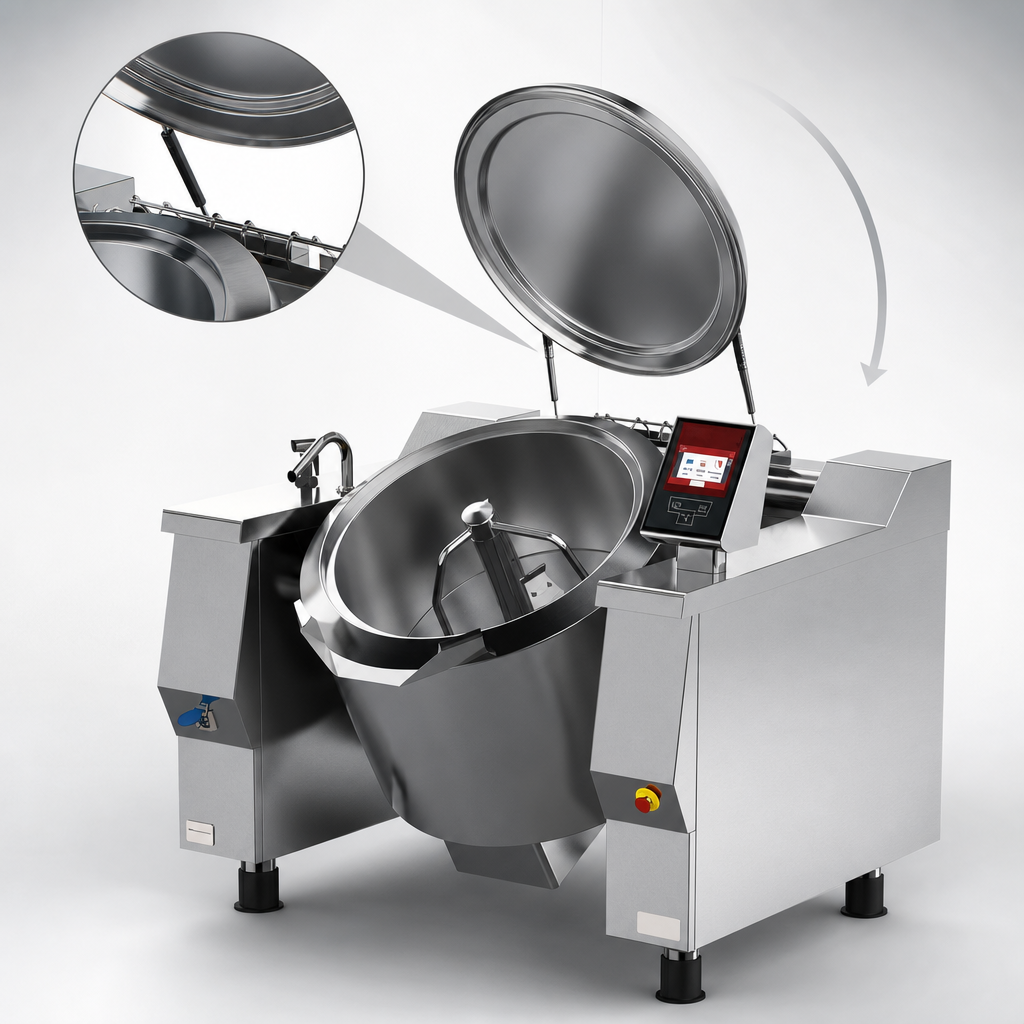

Insulated Spring-Balanced Lid
Features a double-cover insulated lid made of AISI 304 stainless steel with an ergonomic handle, balanced by gas springs for smooth operation.
Robust Stainless Steel Construction
Built with a self-supporting frame and outer cover of AISI 304 stainless steel, ensuring durability and a fine satin finish.
Adjustable Leveling Feet
Equipped with adjustable AISI 304 stainless steel feet for proper leveling, featuring removable covers for convenient cleaning.
Easy Maintenance Access
Frontal panels are easily removable, providing fast accessibility to main functional parts like the electronic card, fuses, and thermostats.
Efficient Heating System
Heating is achieved by armored elements in INCOLOY-800 alloy, precisely controlled by an electronic board and a two-probe temperature system (product/bottom).
Automatic Mixing Device
Includes a three-arm automatic mixing device with PTFE scrapers and a vertical blade, fully removable for easy cleaning and adjustable directly from the control panel. Mixer can activate at minimum speed during tank tilting.
Advanced Touch Screen Controls
Features a multifunctional keyboard with a 7-inch resistive touch screen display, offering easy-to-understand messages and precise control over cooking parameters.
Connectivity Options
Includes a USB connection for downloading HACCP data, updating software, and loading cooking programs. Also supports MODBUS over RS485 serial interface for machine interrogation and a power economizer connection.
Versatile Cooking Modes
Offers five different cooking modes, manual and program modes, and the ability to cook with the basin tilted up to 15 degrees.
Customizable Programs
Allows for creating and editing multiphase cooking programs, setting cooking type, parameters (temperature, time), mixer settings, and inserting text messages for each phase.
Integrated Water Load System
Enables setting for hot (up to 140°F) or cold water loading into the tank with automatic liter measurements.
Comprehensive Display & Safety
The display shows cooking type, temperature, time to end of cycle, and various alarms/signals. Safety features include an emergency button, heating block for excess temperature with manual reset, and heating interruption during vat tilting.
Certifications & Compliance
Warranty & Protection
1-year parts and labor limited warranty.
