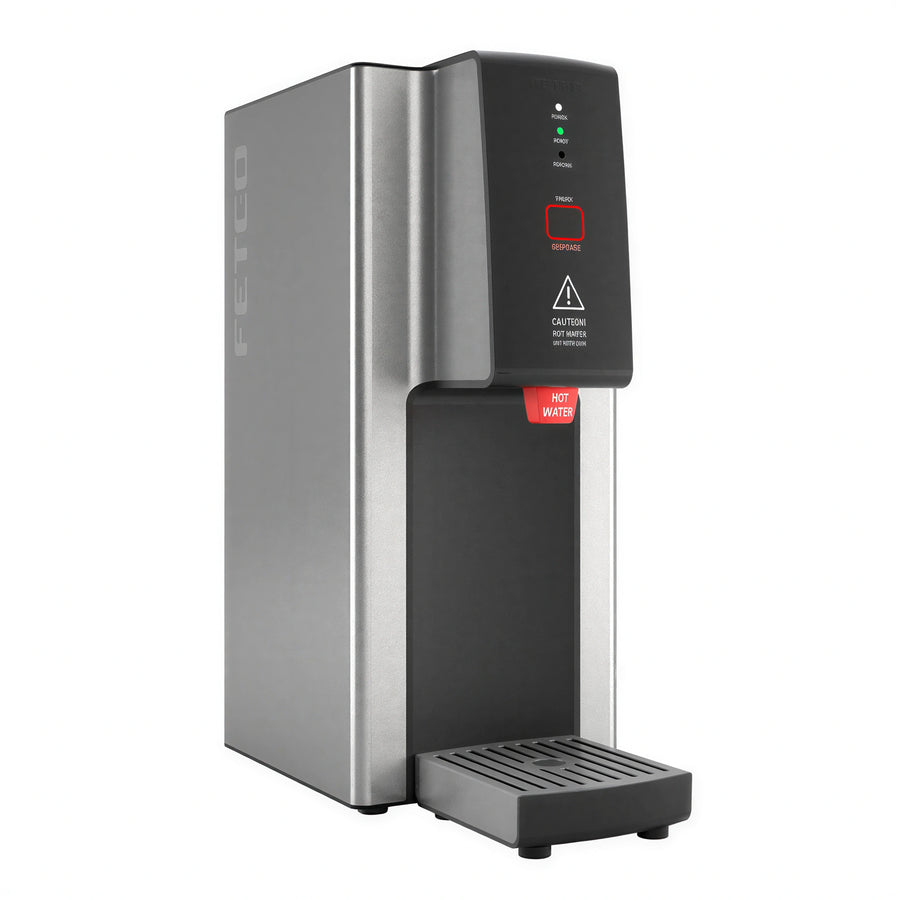

FETCO H210230 2-Gallon Plumbed Automatic-Fill Hot Water Dispenser with Digital Controls

SKU: H210230
$903.16

Want to speak to an expert?

The FETCO H210230 is a 2-gallon plumbed automatic-fill hot water dispenser with digital touch operation.

  • Programmable temperature range from 122°F to 207°F (50°C to 97°C).
  • Dispense time is adjustable from 4 to 40 seconds.
  • Features a soft silicone tap, drip tray overflow indicator, lock mode, and three LED indicator lights.

Overall Dimensions:

8.0"W x 16.13"D x 19.03"H

Product Weight:

25.0 lb

Plumbed automatic fill

Connects to a water supply for automatic filling.

Digital touch operation

Touch operation supports unlocking and timed hot-water dispensing.

Programmable temperature

Offers a single programmable temperature range from 122°F to 207°F (50°C to 97°C).

Timed dispensing

Dispense time can be set from 4 to 40 seconds.

Lock mode

Includes a lock mode for the dispenser controls.

Soft silicone tap

The soft silicone tap is designed to protect glass and ceramic serveware against damage.

Drip tray overflow indicator

The drip tray includes an overflow indicator to help identify when maintenance is needed.

LED status indicators

Three LED indicator lights communicate on, ready-to-dispense, and heating-cycle status.

Capacity 2 gal
Type Plumbed automatic fill
Controls Digital controls
Operation Touch
Minimum flow rate 1.5 gpm
Dispense time 4–40 seconds
Temperature range 122°F to 207°F (50°C to 97°C)
Maximum single dispense 1570 cc / 53 oz in 40 seconds
Water inlet 1/4 in male flare fitting
Water pressure 20–75 psig
Tap Soft silicone
Drip tray Overflow indicator
Indicator lights 3 LED
Construction Mixed material
Heater configuration 1 x 3.2 kW
Voltage 200–240 V
Phase 1-ph
Wires 2+G
Maximum amp draw 13.8 A
Power 3.3 kW
Electrical connection NEMA 6-15P
Output 8.2 gal/h

Frequently Asked Questions

The H210230 has a 2-gallon capacity.
Yes. It is specified as a plumbed automatic-fill hot water dispenser.
The single programmable temperature range is 122°F to 207°F (50°C to 97°C).
The dispense time can be set from 4 to 40 seconds.
The H210230 is specified for 200–240 V, single-phase operation with 2+G wires, a 3.3 kW rating, 13.8 A maximum draw, and a NEMA 6-15P connection.
