Play manufacturer video for FETCO H15011 Electric Hot Water Boiler, 15 gal, Single, Plumbed Automatic Fill
$2,142.00

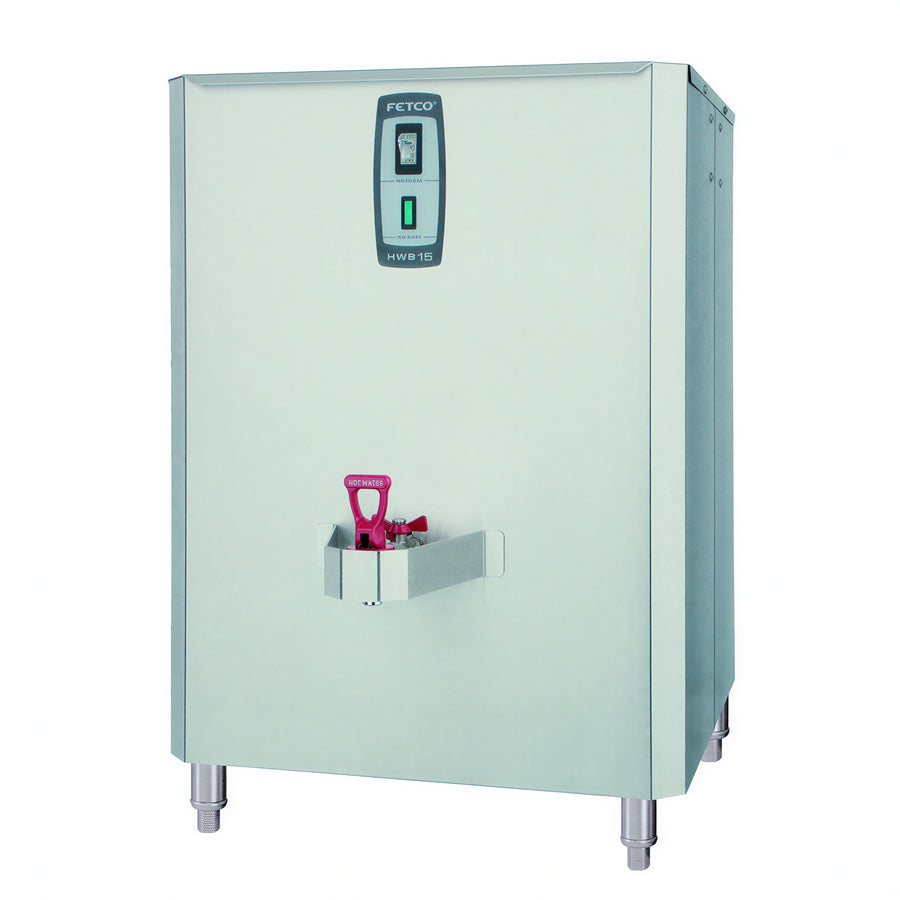

The FETCO H15011 is a 15-gallon electric hot water boiler with plumbed automatic fill, an on/off switch, and top-mounted controls.
- Controlled refill: Automatic refill helps maintain a consistent temperature at the faucet regardless of boiler fill level.
- Insulated construction: The stainless steel unit has insulated sides and top.
- Service features: Includes a drain valve and faucet guard protector.
- Electrical configuration: Uses two 3.0 kW heaters, 120/208-240 V single-phase power, and a terminal block connection.
Overall Dimensions:
20.13"W x 27.75"D x 29.63"HProduct Weight:
105.0 lbPlumbed automatic fill
Controlled refill maintains a consistent temperature from the faucet regardless of boiler fill level.
Stainless steel construction
The boiler is constructed from stainless steel and has insulated sides and top.
Top-mounted controls
Controls are mounted on top and include an on/off switch.
Faucet guard protector
A faucet guard protector is provided.
Drain valve
A drain valve is provided for draining the boiler.
Dual heating system
Uses two 3.0 kW heaters.
Terminal block connection
Electrical connection is through a terminal block.
Capacity
15 gal
Type
Plumbed automatic fill
Operation
Single
Power type
Electric
Construction
Stainless steel
Insulation
Insulated sides and top
Controls
Top-mounted controls; on/off switch
Heater configuration
2 x 3.0 kW
Voltage
120/208-240 V
Phase
1-ph
Wire configuration
3+G wires
Maximum amp draw
22.0-25.4 A
Power range
4.6-6.1 kW
Electrical connection
Terminal block
Output
11.0-15.0 gallons per hour
Water inlet
3/8 inch male flare fitting
Minimum flow rate
3/4 gpm
Water pressure
20-75 psig
Drain
Drain valve
Faucet protection
Faucet guard protector
Certifications & Compliance
Frequently Asked Questions
The H15011 has a 15-gallon capacity.
Yes. It is a plumbed automatic-fill hot water boiler with controlled refill.
It is configured for 120/208-240 V, single-phase power with 3+G wires, a terminal block connection, and a maximum amp draw of 22.0-25.4 A.
The product is 20.13 inches wide, 27.75 inches deep, and 29.63 inches high.
The water inlet is a 3/8 inch male flare fitting. The documented water pressure range is 20-75 psig, with a minimum flow rate of 3/4 gpm.
