Play manufacturer video for FETCO H10031MIP Commercial Hot Water Boiler, 10 gal, plumbed automatic fill, electric, stainless steelFETCO H10031MIP Commercial Hot Water Boiler, 10 gal, plumbed automatic fill, electric, stainless steel
SKU: H10031MIP
$2,146.80
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout

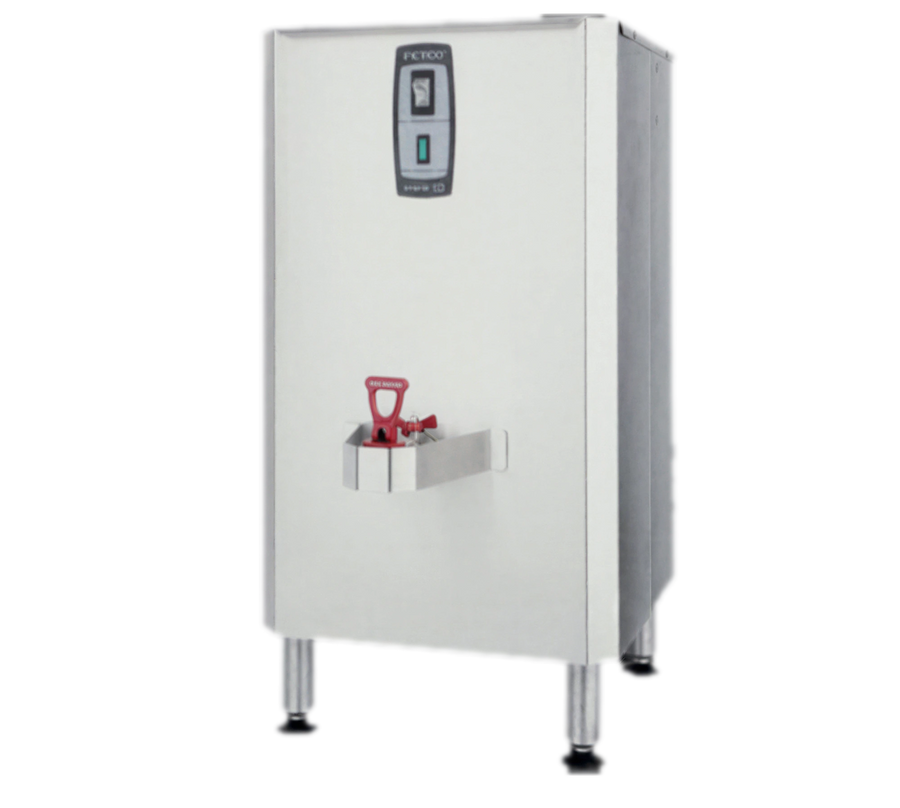

The FETCO H10031MIP is a 10-gallon electric hot water boiler with IP44 protection, plumbed automatic fill, and stainless steel construction.
- Insulated side and top help support the boiler design.
- Controlled refill maintains consistent temperature from the faucet regardless of boiler fill level.
- Features top-mounted controls, a drain valve, and a faucet guard protector.
Overall Dimensions:
16.5"W x 23.63"D x 29.63"HProduct Weight:
79.0 lbIP44 protection
The boiler is identified as an IP44 Maritime Hot Water Boiler.
Automatic fill
The plumbed automatic-fill design uses controlled refill to maintain consistent temperature from the faucet regardless of boiler fill level.
Stainless steel construction
The unit has stainless steel construction with insulated side and top.
Electrical heating
The heater configuration is 2 x 3.0 kW for 220-240 V, three-phase operation.
Top-mounted controls
Controls are mounted on top of the boiler.
Drain and faucet protection
The unit includes a drain valve and faucet guard protector.
Capacity
10 gal
Type
Plumbed automatic fill
Ingress protection
IP44
Construction
Stainless steel
Insulation
Insulated side and top
Heater configuration
2 x 3.0 kW
Voltage
220-240 V
Phase
3 phase
Wiring
3+G wires
Electrical connection
Terminal block
Power
5.1-6.1 kW
Maximum amp draw
11.8-12.9 A
Output
13.0-15.0 gal/hour
Shipping dimensions
17 in W x 24 in D x 30 in H
Weight
79.0 lb
Certifications & Compliance
Frequently Asked Questions
The H10031MIP has a 10-gallon capacity.
It uses a plumbed automatic-fill system with controlled refill.
The boiler uses 220-240 V, three-phase power with 3+G wires, a terminal block connection, 5.1-6.1 kW, and an 11.8-12.9 A maximum amp draw.
The product is 16.5 inches wide, 23.63 inches deep, and 29.63 inches high, with a listed weight of 79.0 pounds.
The listed certifications and ratings are IP44, NSF, UL, and cUL.
