FETCO

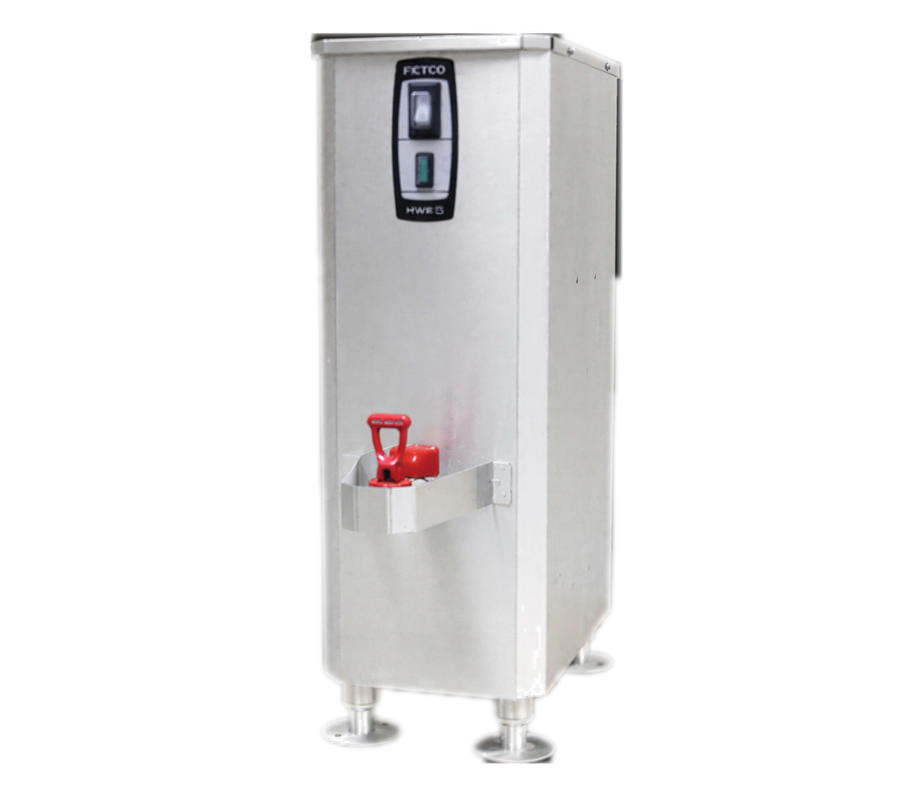

FETCO H05041MIP Commercial Hot Water Boiler, 5 gal, Electric, Plumbed Automatic Fill, Stainless Steel

SKU: H05041MIP
$1,802.40
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Beverage Equipment Beverage Equipment Beverage Equipment Commercial Tea Equipment & Supplies Equipment FETCO Hot Beverage Dispensers Hot Water Dispensers Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment

FETCO H05041MIP is a 5-gallon electric hot water boiler with plumbed automatic fill and stainless steel construction.

Controlled refill helps maintain consistent temperature from the faucet regardless of boiler fill level. The unit includes insulated sides and top, top-mounted controls, a drain valve, and a faucet guard protector.

  • IP44-rated configuration for maritime and other protected exterior environments.
  • Specified for light-duty food and beverage preparation and cleaning tasks.

Overall Dimensions:

10.13"W x 23.63"D x 29.63"H

Product Weight:

57.0 lb

Plumbed automatic fill

Automatic refill maintains consistent temperature from the faucet as boiler fill level changes.

Stainless steel construction

The boiler is specified with stainless steel construction.

Insulated sides and top

The sides and top are specified as insulated.

IP44 protection

The exact configuration is specified as IP44-rated for maritime and other protected exterior environments.

Top-mounted controls

Controls are mounted on top of the boiler.

Drain valve

A drain valve is specified for the unit.

Faucet guard protector

A faucet guard protector is specified.

Capacity 5 gal
Type Plumbed automatic fill
Construction Stainless steel
Ingress protection IP44
Heater configuration 1 x 3.0 kW
Voltage 220-240 V
Phase 1-ph
Wires 2+G
Power 2.6-3.1 kW
Maximum amp draw 11.8-12.9 A
Electrical connection Terminal block
Output 6.0-7.0 gal/h
Water inlet 3/8 in male flare fitting
Minimum flow rate 0.75 gpm
Water pressure 20-75 psig
Insulation Sides and top
Control location Top mounted
Drain valve Yes
Faucet guard protector Yes

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Catalog PDF Download PDF 2019 fetco orders notice PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download

Frequently Asked Questions

Yes. It is specified as a plumbed automatic-fill hot water boiler.
The boiler has a 5-gallon capacity.
It is specified for 220-240 V, single-phase power with 2+G wires, a terminal block connection, and an 11.8-12.9 A maximum amp draw.
The specified output is 6.0-7.0 gallons per hour.
The listed dimensions are 10.13 inches wide, 23.63 inches deep, and 29.63 inches high, with a listed weight of 57.0 pounds.
IP44, NSF, UL, and cUL are explicitly identified for the product or its configuration.
