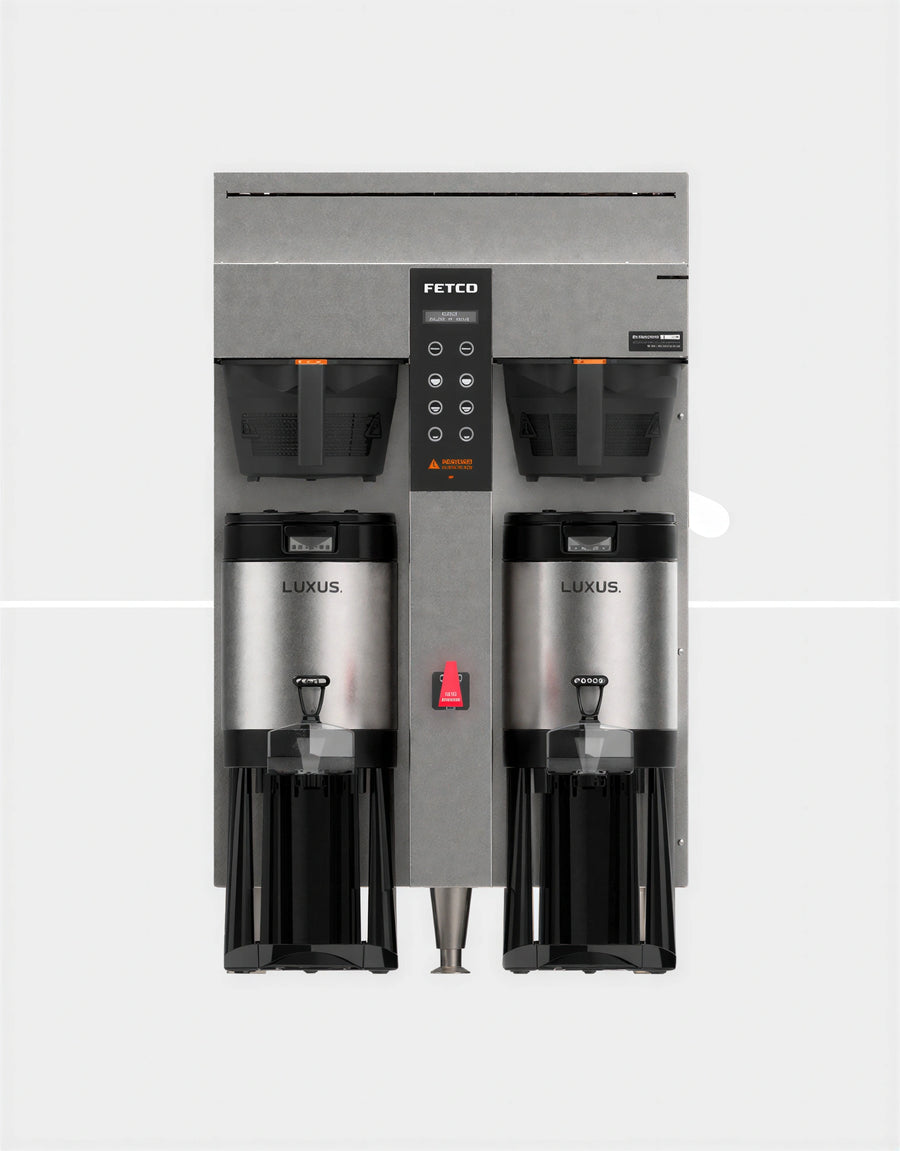

Play manufacturer video for FETCO E1253US-UB250-MM110 Double Commercial Coffee Brewer, 2-Gallon Capacity, Digital Touchpad, Manual Water FillFETCO E1253US-UB250-MM110 Double Commercial Coffee Brewer, 2-Gallon Capacity, Digital Touchpad, Manual Water Fill
SKU: E1253US-UB250-MM110
$2,947.20
The FETCO CBS-1253 Plus is a double coffee brewer with a 2.0-gallon capacity, digital touchpad operation, and manual water fill.
- Brewing: Includes a metal brew basket, brew basket sensor and locks, and a bypass valve.
- Features: Includes ECO Mode and a USB plug-in feature.
- Electrical: Uses 208-240 V service with terminal block connection and the listed 1-phase or 3-phase heater configurations.
Overall Dimensions:
21.88"W x 22.5"D x 36.88"HProduct Weight:
97.0 lbDouble brewer
Configured as a double brewer.
2.0-gallon capacity
Specified with a 2.0-gallon capacity.
Digital touchpad operation
Uses digital touchpad operation.
Manual water fill
Listed as a manual water fill brewer.
Manual hot water faucet
Includes a manual hot water faucet.
Metal brew basket
Uses a metal brew basket.
Brew basket sensor and locks
The specification lists a brew basket sensor and locks.
Bypass valve
Includes a bypass valve.
ECO Mode
Includes ECO Mode.
USB plug-in feature
Includes a USB plug-in feature.
Brewer series
CBS-1253 Plus coffee brewer
Brewer configuration
Double
Capacity
2.0 gal
Brew per batch
1-1/2 gal
Operation
Digital touchpad; manual water fill
Hot water faucet
Manual
Brew basket
Metal, 16 x 6 in
Base finish
Stainless steel
Features
Brew basket sensor and locks; bypass valve; ECO Mode; USB plug-in feature
Voltage
208-240 V
Heater configuration
2 x 5.0 kW / 240 V or 3 x 5.0 kW / 240 V
Phase
1 or 3
Wires
2+G or 3+G
Power
10.0 kW or 15.0 kW
Maximum amperage
42.2 A or 36.6 A
Connection
Terminal block
Water inlet
3/8 in male flare
Water pressure
20-75 psig / 1.37-5.17 bar
Minimum flow rate
1.50 gpm / 5.68 L/min
Tank capacity
10.48 gal / 39.67 L
Certifications
NSF, cULus
Certifications & Compliance
Documents
Frequently Asked Questions
The brewer has a 2.0-gallon capacity, with a listed brew-per-batch range of 1 to 1-1/2 gallons.
It uses digital touchpad operation.
Yes. It is specified as manual water fill and has a manual hot water faucet.
The brewer uses 208-240 V service and is specified with either 2 x 5.0 kW heaters on 1 phase with 2+G wires, or 3 x 5.0 kW heaters on 3 phase with 3+G wires. Both configurations use a terminal block connection.
It uses a metal 16 x 6 in brew basket.
The listed dimensions are 21.88 in wide, 22.5 in deep, and 36.88 in high, with a listed weight of 97.0 lb.
