FETCO E1253US-UB230-MM110 Double Commercial Coffee Brewer, 2-Gallon Capacity, Digital Touchpad, Manual Water Fill

SKU: E1253US-UB230-MM110
$2,947.20
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

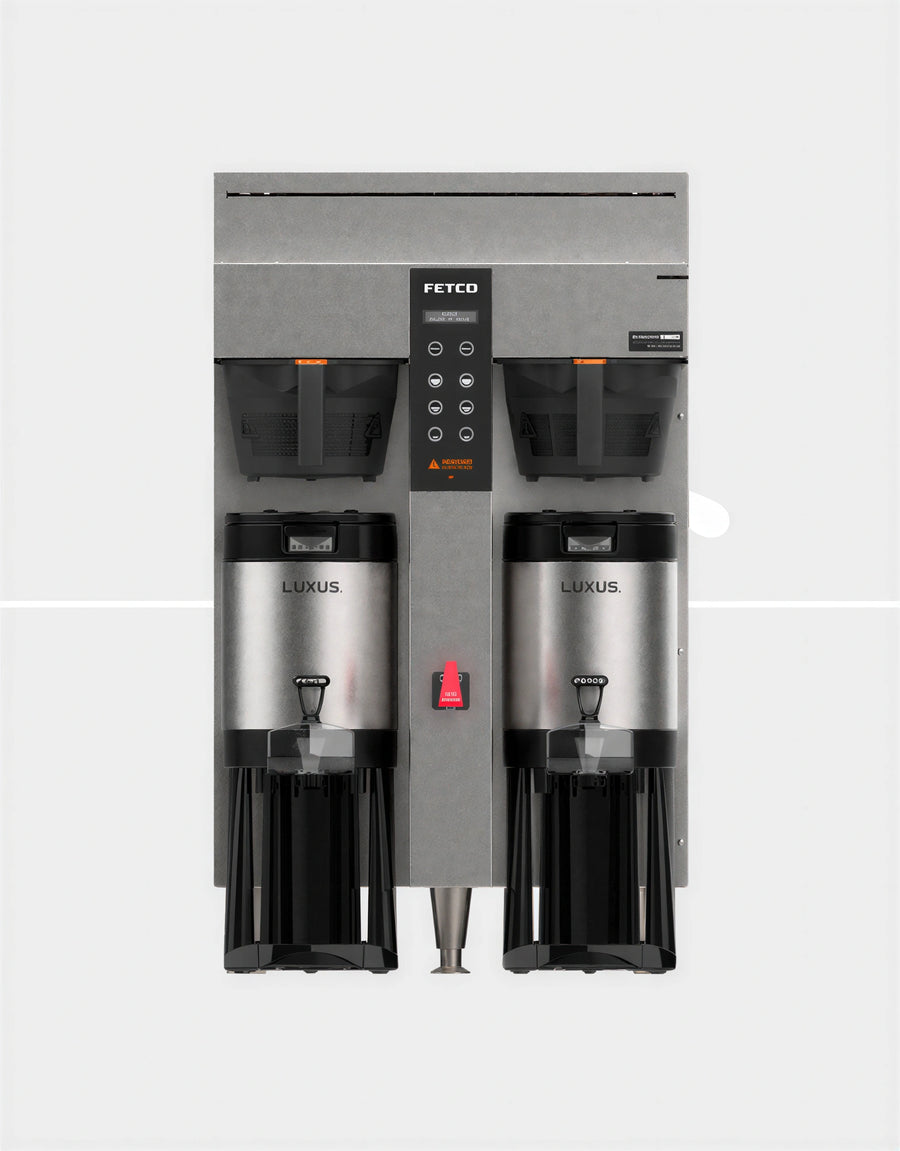

FETCO E1253US-UB230-MM110 is a double CBS-1253 Plus commercial coffee brewer with a 2.0-gallon capacity, digital touchpad operation, manual water fill, and a manual hot water faucet.

  • Metal brew basket with brew basket sensor and locks
  • Bypass valve, ECO Mode, and USB plug-in feature
  • 208-240 V electrical configurations with listed 6.0 kW or 9.0 kW heater configurations and terminal block connection
  • Use with FETCO L4D-20 (D450), sold separately

The brewer measures 21.88 inches wide, 22.5 inches deep, and 36.88 inches high.

Overall Dimensions:

21.88"W x 22.5"D x 36.88"H

Product Weight:

97.0 lb

Double brewing format

Configured as a double CBS-1253 Plus coffee brewer.

2.0-gallon capacity

The brewer has a stated 2.0-gallon capacity.

Digital touchpad operation

Operation is controlled through a digital touchpad.

Manual water fill

The product is specified with manual water fill.

Manual hot water faucet

Includes a manual hot water faucet.

Metal brew basket

Specified with a metal brew basket.

Brew basket sensor and locks

Includes a brew basket sensor and locks.

ECO Mode

Includes ECO Mode.

USB plug-in feature

Includes a USB plug-in feature.

Bypass valve

Includes a bypass valve.

Electrical configurations

Listed configurations use 208-240 V with either 2 x 3.0 kW heaters at 1 phase or 3 x 3.0 kW heaters at 3 phase; both use terminal block connection.

Related Searches

Airpot Coffee Makers Best Sellers Beverage Equipment Beverage Equipment Beverage Equipment Coffee Brewers Commercial Coffee Brewers Commercial Coffee Makers Equipment FETCO Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment
Brewer series CBS-1253 Plus
Brewer quantity Double
Capacity 2.0 gallons
Brew per batch 1–1.5 gallons
Operation Digital touchpad
Water fill Manual
Hot water faucet Manual
Brew basket Metal
Base finish Stainless steel
Electrical designation Dual phase
Voltage 208-240 V
Heater configuration 2 x 3.0 kW, 1 phase, 2+G wires; or 3 x 3.0 kW, 3 phase, 3+G wires
Total power 6.0 kW at 1 phase; 9.0 kW at 3 phase
Current 25.5 A at 1 phase; 22.2 A at 3 phase
Electrical connection Terminal block

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The brewer has a stated 2.0-gallon capacity, with a listed brew-per-batch range of 1–1.5 gallons.
The product is specified for 208-240 V dual-phase service. Listed configurations are 2 x 3.0 kW at 1 phase with 2+G wires and 6.0 kW total power, or 3 x 3.0 kW at 3 phase with 3+G wires and 9.0 kW total power. Both use a terminal block connection.
Yes. It is specified as a manual water fill brewer.
The product is specified for use with the FETCO L4D-20 (D450), which is sold separately.
The product measures 21.88 inches wide, 22.5 inches deep, and 36.88 inches high, with a listed weight of 97.0 pounds.
The listed certifications are NSF and cULus.
