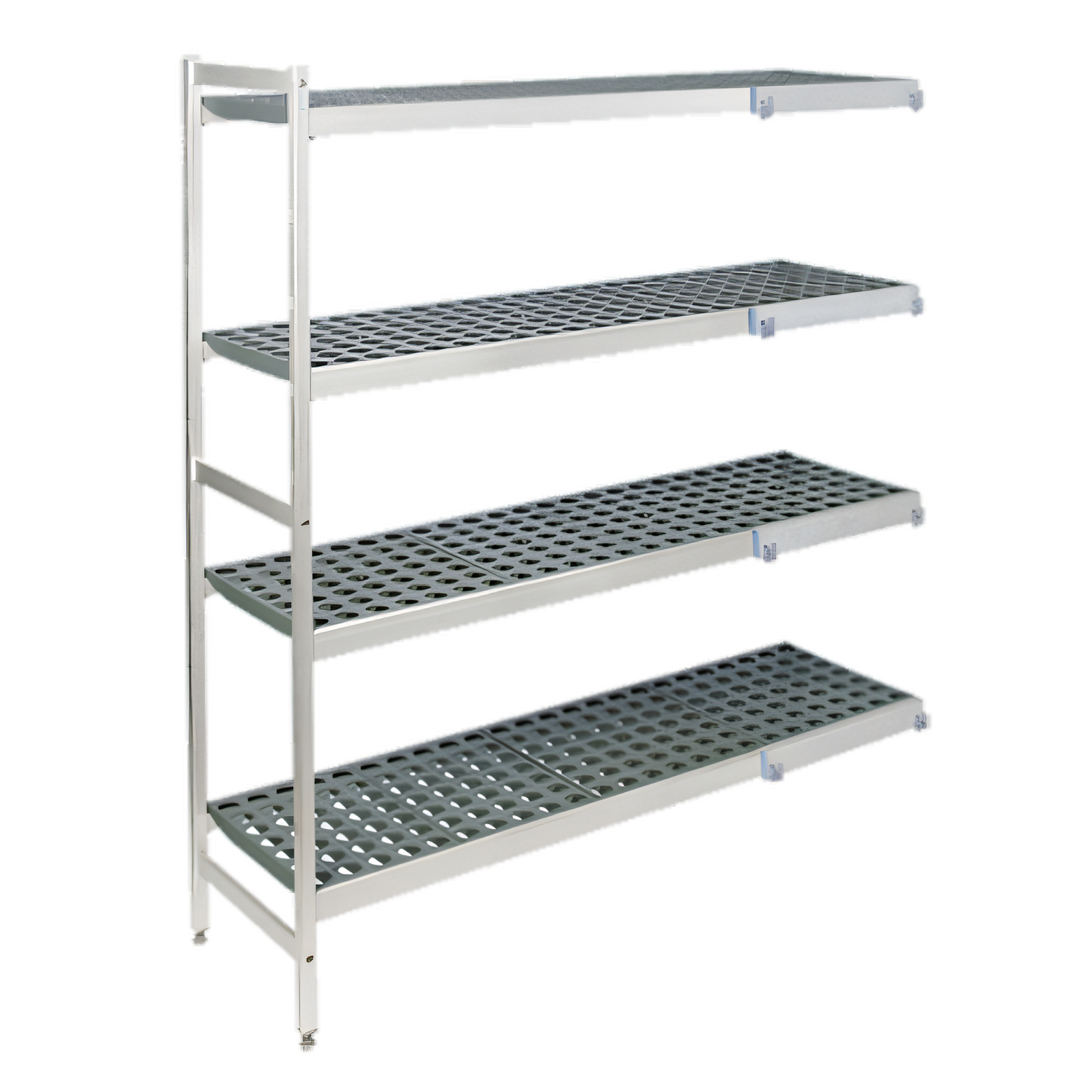

Fermod Fermostock 4-Tier Corner Expansion Kit — 83" H x 47" W x 22" D, Anodized Aluminum (NSF)

Includes 1 upright, 4 shelves & 4 angle corners; removable dishwasher-safe polymer shelf inserts

Corrosion-resistant anodized aluminum corner expansion for Fermod's modular shelving — tool-free assembly, dishwasher-safe shelf inserts, and an 800 lb per-shelf capacity for hygienic commercial storage.

  • Corner expansion kit for Fermod Fermostock modular shelving — 47" W x 22" D footprint with four shelves at 83" height.
  • Extruded aluminum construction with 20 micron deep anodized finish for long-term corrosion resistance.
  • Removable food-grade polymer shelf inserts are dishwasher-safe to 212°F (100°C) for easy cleaning and sanitation.
  • Tool-free assembly with machined conical aluminum clips; uprights ship pre-assembled and include adjustable feet.
  • High load capacity — 800 lb. per shelf (evenly distributed); NSF certified and made in France.

Overall Dimensions:

47.0"W x 22.0"D x 83.0"H

Product Weight:

45.3 lb

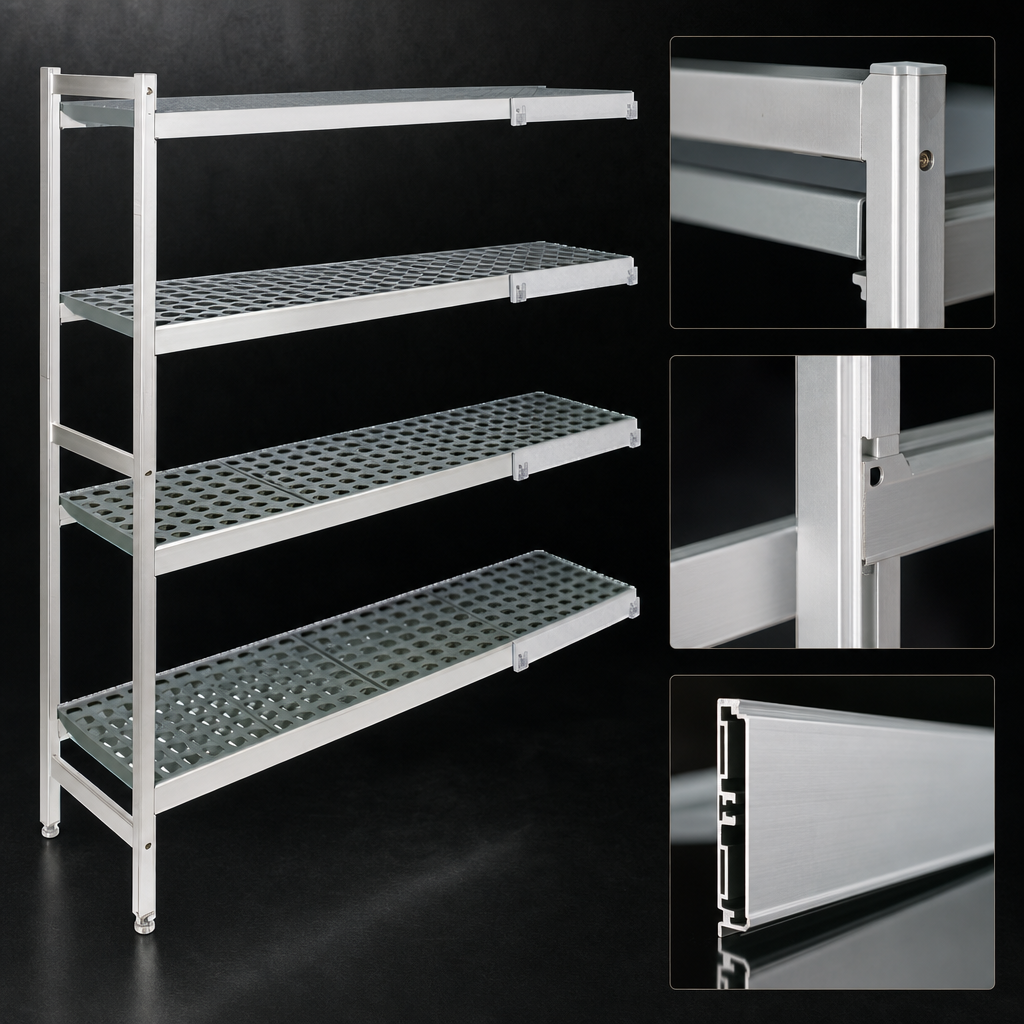

Construction

Extruded aluminum uprights and cross-rails with a 20 micron deep anodized finish for strength, light weight, and corrosion resistance.

Shelf Inserts

Removable, food‑grade polymer shelf inserts that are machine-washer safe to 100°C/212°F for fast, sanitary cleaning.

Tool-Free Assembly

Machined anodized aluminum conical clips attach into pre-drilled uprights for quick, tool-free assembly; uprights delivered pre-assembled from the factory.

Corner Configuration

Designed as a corner expansion with full-depth connection and four angle corners to provide unobstructed access and enable combining different shelf depths at corners.

Load Capacity

Rated 800 lb. per shelf (evenly distributed). System-level limits: up to 2000 lb. between two uprights, and 1300 lb. between two uprights with angle configuration.

Temperature & Cleaning

Operating range -40°F to 140°F (-40°C to 60°C) with intermittent exposure up to 212°F (100°C) for cleaning; use non-abrasive food-safe cleaners.

Adjustability

Incremental height adjustment in 6 in. (150 mm) increments and adjustable composite feet for leveling on uneven floors.

Warranty & Certification

NSF and NF certified; comes with Fermod's standard lifetime warranty against rust and corrosion. Product made in France.

Type Add-On Unit
Style Perforated
Material Aluminum
Finish 20 Micron Deep Anodized
Color Gray
Capacity 800 lb. Per Shelf (Evenly Distributed)
Temperature Range -40°F to 140°F (-40°C to 60°C); intermittent exposure to 212°F (100°C) for cleaning
Installation Type Floor Model (Add-On)
Selling Unit Each
Units Per Case 1
Shipping Width 47 Inches
Shipping Depth 22 Inches
Shipping Height 83 Inches
Shipping Weight 45.3 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Lifetime warranty against rust and corrosion.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

This is a corner expansion kit (–CE). It includes 1 upright, 4 shelves and 4 angle corners and is designed to connect to the Fermod starter units or existing shelving — it is not a full standalone starter unit.
Maximum load is 800 lb. per shelf when evenly distributed. System-level limits from Fermod note up to 2000 lb. between two uprights, and up to 1300 lb. between two uprights when using angle configuration.
Removable polymer shelf inserts are dishwasher/machine-washer safe to 100°C/212°F. Regular cleaning with a non-abrasive, food-safe cleaner is recommended for the aluminum structure.
Assembly is tool-free using machined anodized aluminum conical clips that clip into pre-drilled holes in the uprights; uprights are delivered pre-assembled and feet are adjustable for leveling.
Operating temperature range is -40°F to 140°F (-40°C to 60°C) with intermittent exposure to 212°F (100°C) during cleaning.
