Federal Industries

Federal Industries Vision Series VRSL3678S Slim-Line Self-Serve Open-Air Refrigerated Display Case, 36W x 24D x 78H

SKU: VRSL3678S
$11,983.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Federal Industries Vision Series VRSL3678S Slim-Line Self-Serve Open-Air Refrigerated Display Case, 36W x 24D x 78H

4-tier adjustable shelves, LED top light, self-contained R290 refrigeration

Built for tight footprints and high-impact merchandising, this 24-inch-deep display case presents packaged refrigerated products across four adjustable tiers with bright LED lighting and self-contained R290 refrigeration.

  • Slim 24-inch depth and 78-inch high-profile design make the most of limited floor space.
  • Four tiers of adjustable black metal shelves can be set flat or slanted down 10 degrees.
  • Self-contained R290 refrigeration with electronic temperature control helps maintain 38°F to 40°F.
  • 3500K LED top light, tempered glass end panels, and a stainless steel display deck create a strong presentation.
  • Energy-saving night curtain and front air intake/front discharge support efficient operation.
  • Black interior and black price tag molding help keep packaged refrigerated products organized and visible.

Overall Dimensions:

36.0"W x 24.0"D x 78.0"H

Product Weight:

500.0 lb

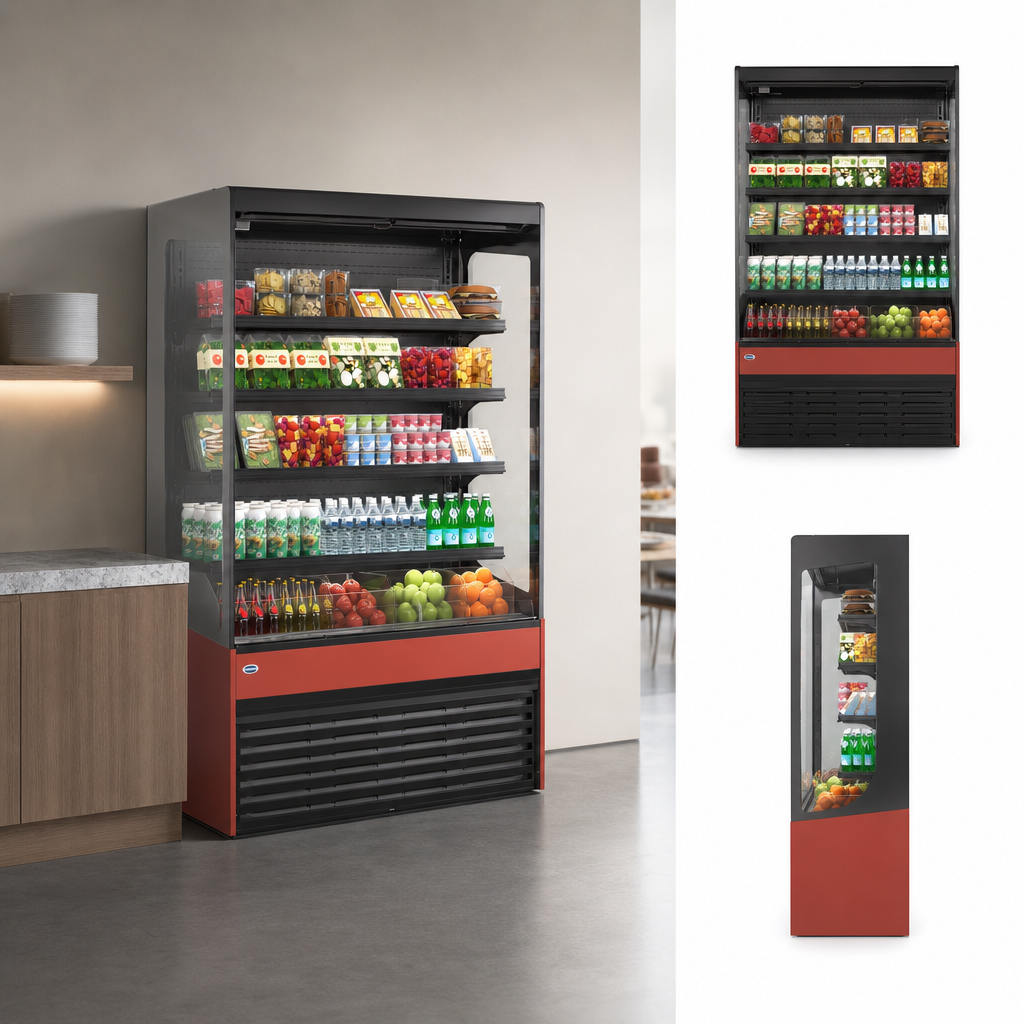

Slim-Line Vertical Case

A 36-inch-wide, 24-inch-deep vertical design that is built to merchandise in limited space.

Slim-Line Vertical Case

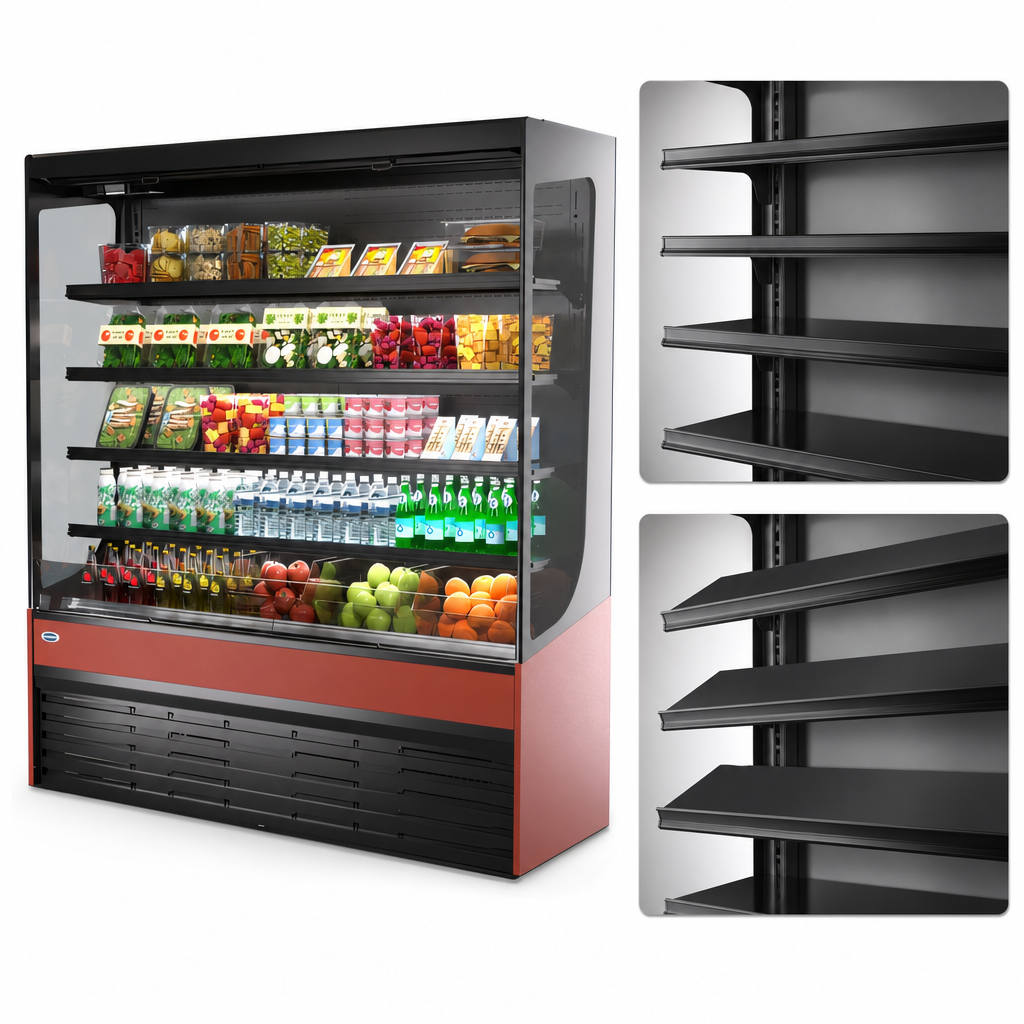

Four-Tier Adjustable Shelving

Four tiers of black metal shelves with black price tag molding; shelves can be set flat or slanted down 10 degrees.

Four-Tier Adjustable Shelving

Electronic Temperature Control and On-Demand Defrost

Maintains consistent refrigerated holding temperatures and includes clear coil on-demand defrost and a digital thermometer.

3500K LED Top Light

Top-mounted LED lighting helps highlight packaged refrigerated merchandise.

Energy-Saving Night Curtain

Helps conserve energy and protect product when the case is not in active use.

Black Interior and Stainless Steel Display Deck

A black interior paired with a stainless steel display deck creates a clean, durable merchandising surface.

Front Air Intake / Front Discharge

Self-contained airflow design supports condenser performance and rear wall placement requirements.

Clear Tempered Glass End Panels

Tempered glass end panels improve side visibility and provide a modern display look.

Type Open-Air Cooler
Style Vertical
Installation Type Floor Model
Refrigeration Type Self-Contained
Refrigerant Type R290
Capacity 13.30 Cubic Feet
Temperature Range 38°F to 40°F (3.3°C to 4.4°C)
Controls Electronic
Voltage 120 Volts
Amps 15.2 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Breaker Size 20 Amps
Finish Laminate
Interior Finish Black Powder Coated
Country of Origin USA
Shipping Width 36 Inches
Shipping Depth 24 Inches
Shipping Height 78 Inches
Shipping Weight 500 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

1 year parts and labor; compressor parts only from years 2 through 5.

Frequently Asked Questions

Packaged refrigerated products.
The electronic control maintains 38°F to 40°F (3.3°C to 4.4°C) under normal conditions.
Four tiers of adjustable black metal shelves; shelves can be set flat or slanted down 10 degrees.
120/60/1 power, 15.2 amps, NEMA 5-20P cord and plug, with a 20 amp max fuse size.
The spec sheet calls for 6 inches behind the unit for condenser air ventilation, with 3 inches of clearance at the back and 6 inches at the top.
Yes. A roll-down locking security cover is optional in black, white, or gray; it adds 7.18 inches to overall height and is not available on continuous line-ups.
