Federal Industries VHSS3678C Vision Series Hot Food Displays
Description

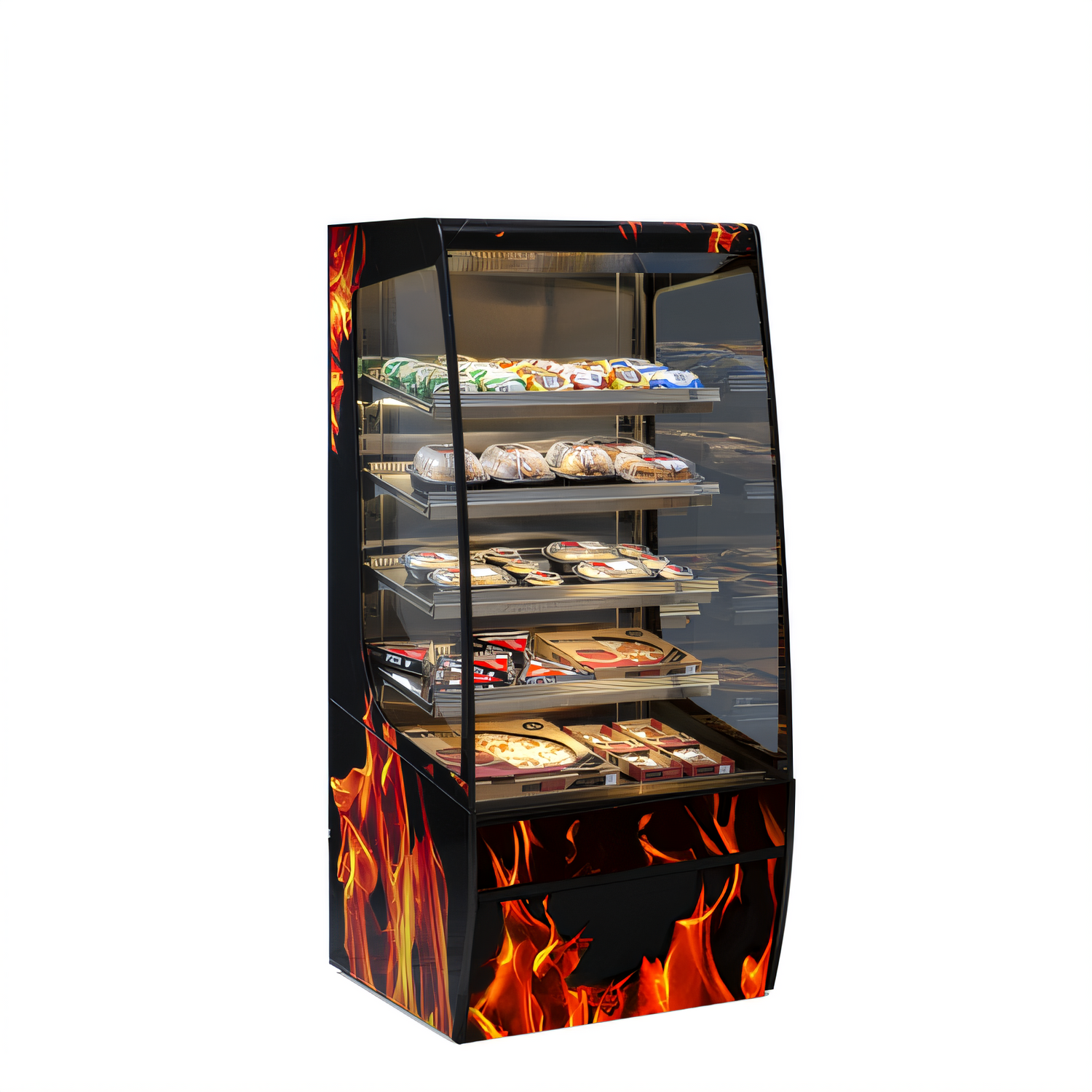

Vision Series 36" Curved-End Heated Self-Serve Merchandiser
Federal Industries • Model VHSS3678C • 78" High-ProfileDrive impulse sales of pizza slices, breakfast sandwiches, burritos and other grab-and-go favourites while holding them at a food-safe 160 °F (71 °C). The Vision Series combines proven Federal Industries reliability with a dramatic curved-glass design that puts hot packaged product right where customers can see—and serve—themselves.
Why You’ll Love It

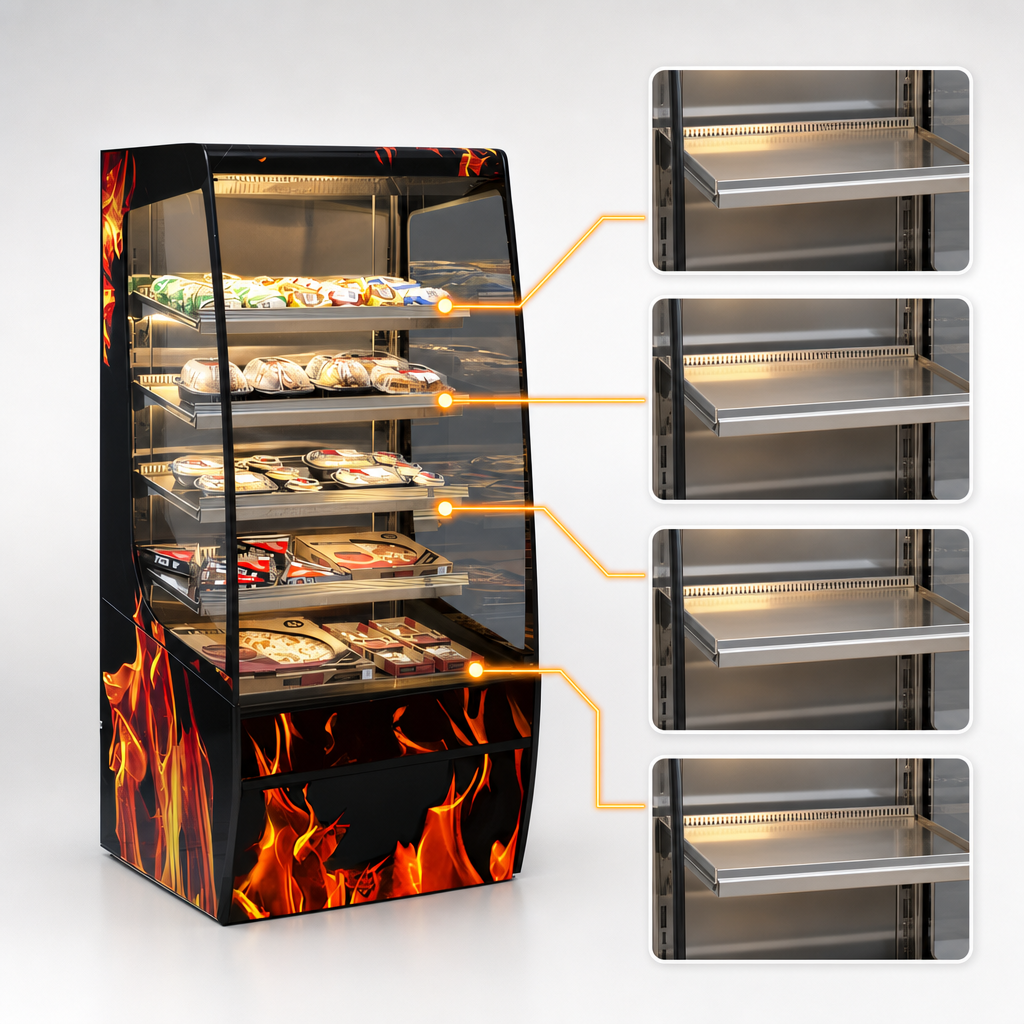

- Four independently controlled heated shelves plus a removable heated deck—each with its own thermostat.
- Stainless-steel interior & shelving for durability, easy wipe-downs and superior heat transfer.

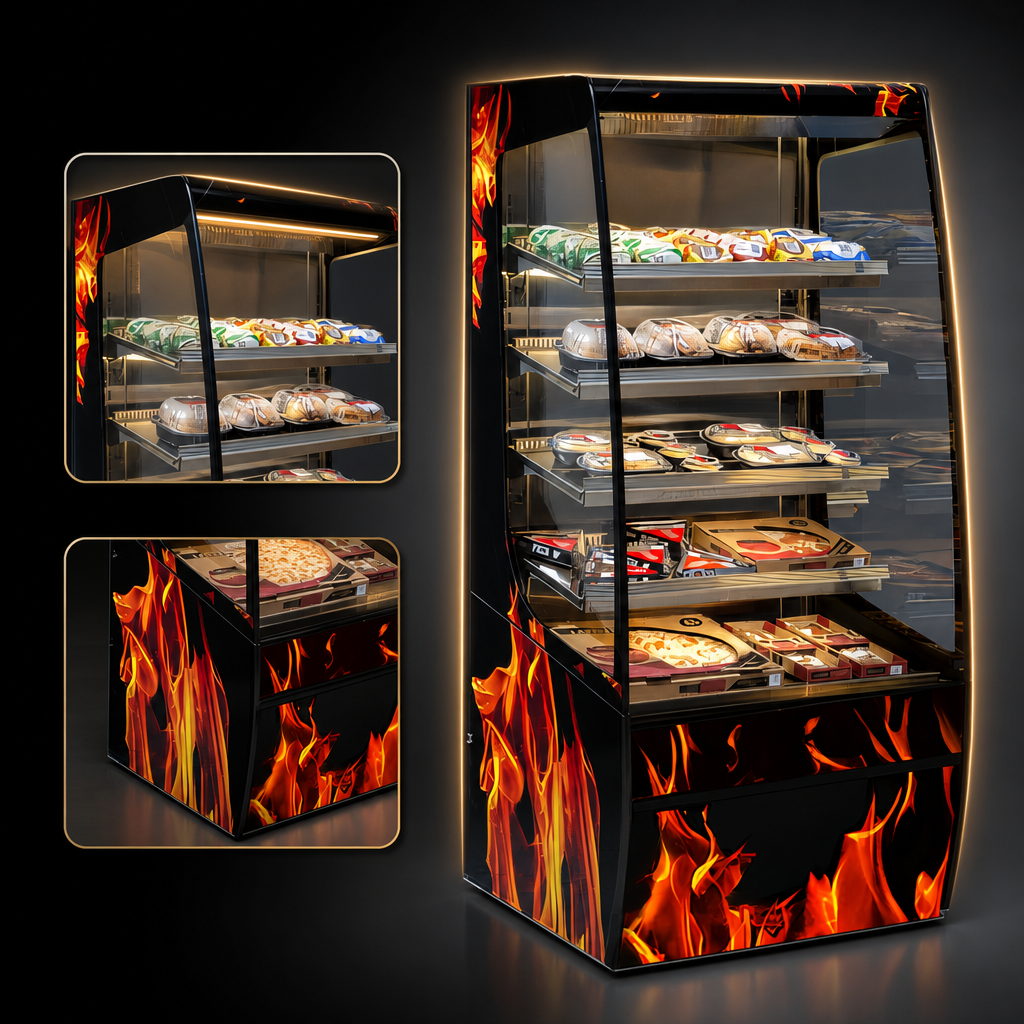

- Striking curved tempered-glass ends and low-profile black trim create an open, high-visibility display.
- Bright, energy-saving 3500 K LED top light showcases every item.
- Digital micro-processor controls are front-mounted for quick temperature checks or adjustments.
- Adjustable leg levelers steady the unit on uneven floors; cord & plug ship installed for fast set-up.
- UL, cUL & NSF 4 listed for electrical and sanitation compliance in the U.S. and Canada.
Built for Everyday Demands
- Black powder-coated steel base frame with moisture-resistant end-panel construction.
- Shelves accept industry-standard 1 1/8" price tag molding and can be positioned flat or at a 10° downward angle.
- Six standard laminate colour choices on lower millwork panel—match your brand without extra lead time.
- Field-replaceable heated deck simplifies service and cleaning.
Heating Performance
- Average holding temperature: 160 °F / 71 °C.
- Individual shelf thermostats let you fine-tune zones for different menu items.
- Main power & light switches located behind the front tilt-out control panel for easy access.
Technical Specifications
| Exterior dimensions (W × D × H) | 36" × 33" × 78" | 914 × 838 × 1981 mm |
|---|---|
| Display levels | 4 heated tiers + stainless-steel heated deck |
| Electrical | 208–240 V / 60 Hz / 1-phase, 13.5 A |
| Power connection | 8' (2.4 m) cord with NEMA 6-20P plug (factory-installed) |
| Lighting | 3500 K LED top light (optional shelf LEDs available) |
| Shipping weight | Approx. 555 lb / 252 kg |
| Agency approvals | UL, cUL, NSF 4 |
| Warranty | 1 yr parts & labour, 5 yr motor-compressor (standard Federal Industries coverage) |
Popular Factory Options (Sold Separately)
- Clear or reflective sliding rear doors (solid hinged on 24" cases)
- LED lights beneath each shelf
- Front cart bumper or recessed casters
- 4" or 6" legs, skirt base, or seismic-rated legs
- Custom exterior laminate, stainless-steel exterior, graphics packages & reflective end glass
- Joining kit for continuous line-ups
Designed for indoor environments not exceeding 75 °F (24 °C) and 55 % relative humidity. Specifications are subject to change without notice—please refer to the latest Federal Industries data sheet for confirmation.
