Federal Industries SG7748HD High Volume Series Hot Food Displays
Description

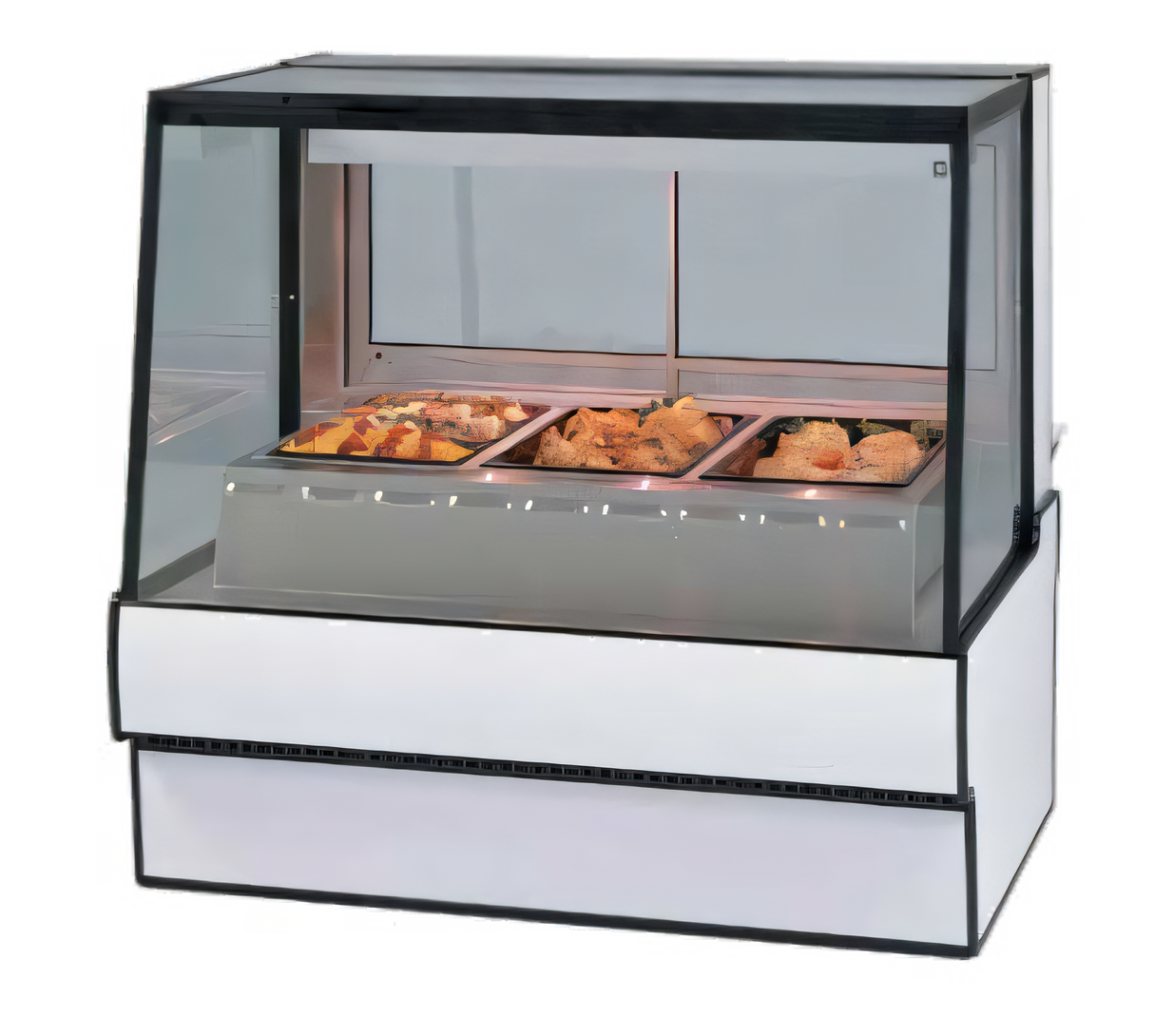

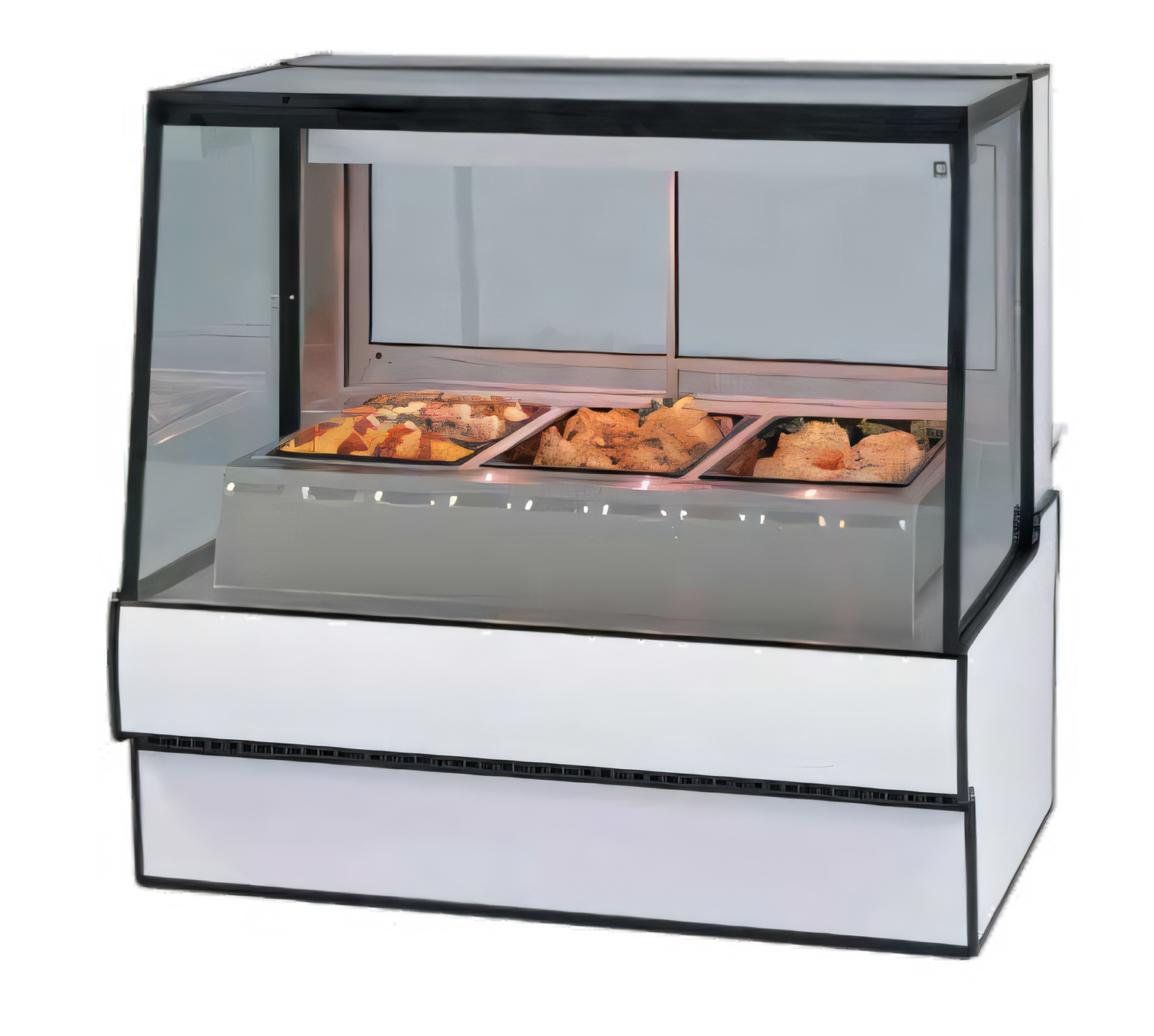

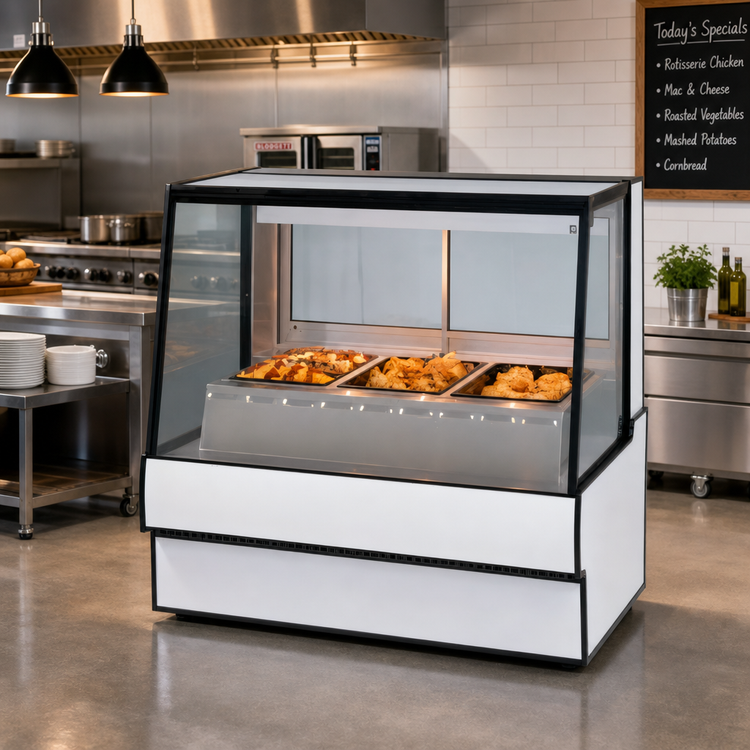

High Volume Series – 77" Heated Deli Merchandiser
Model SG7748HD | Made in the USABuilt for busy supermarkets, delis, and commissaries, the Federal Industries High Volume Series keeps large-batch hot foods at peak flavor and presentation—all day long. Five independent hot wells, a full-length infrared heater, and a moisture-resistant glass design work together to serve more customers, faster.
Why you’ll love it
- Wet or dry operation—ideal for everything from carved meats to sauced entrées.

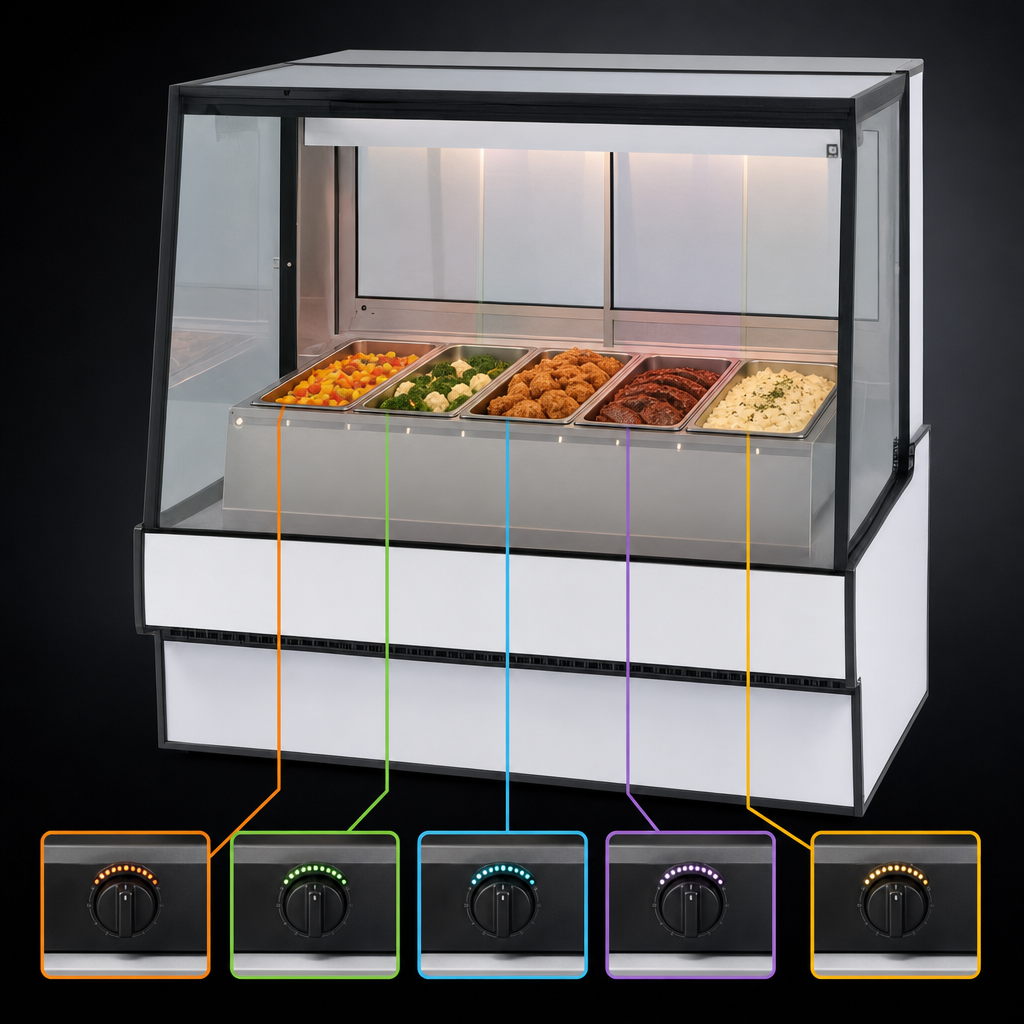

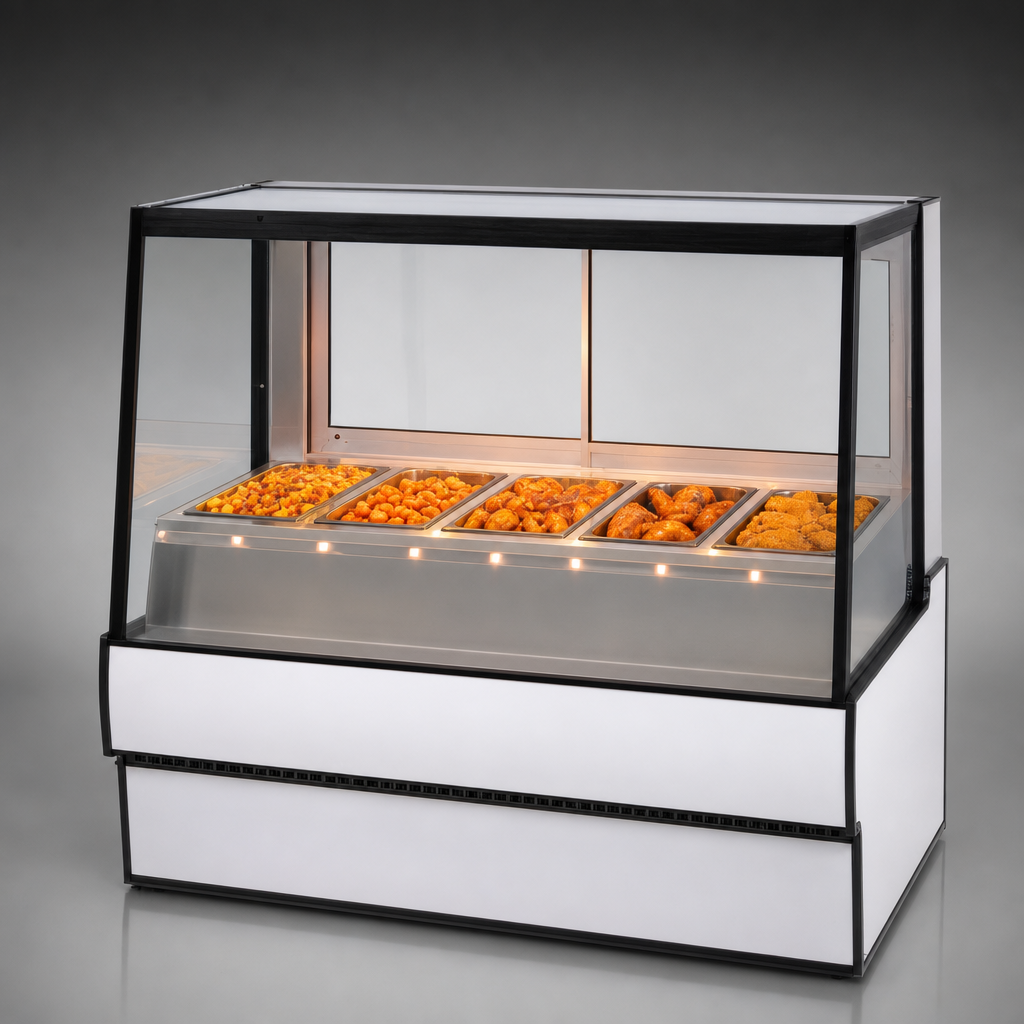

- (5) full-size stainless steel wells, each with its own Calrod® element & thermostat for precise holding.
- Top-mounted infrared heater evens out surface temperatures and prevents cold spots.
- Sloped, Thermopane tilt-front glass cleans in seconds and maximizes product visibility.
- Forced-air front glass defogger plus vented sliding rear doors stop condensation before it starts.
- Bright, energy-efficient LED top lighting showcases colors and textures.
- Tempered glass ends and rugged stainless steel deck stand up to daily commercial use.
- Removable rear wrapping board speeds up service and sanitizing.
- No floor drain required—simply plug in and start selling.
- Black trim with your choice of six standard laminates complements any décor; kits available for continuous line-ups.
At-a-glance specifications
| Overall dimensions (W × D × H) | 77 1/8" × 35 5/16" × 48" (1959 × 897 × 1219 mm) |
|---|---|
| Number / size of wells | 5 × full-size steam-table pans |
| Heat type | Wet or dry (individually controlled) |
| Electrical | 120/208–240 V, 60 Hz, 1 φ, 32.3 A, 3-wire + ground |
| Lighting | LED top light (incandescent available) |
| Shipping weight | 800 lb / 363 kg |
| Listings | cULus & UL EPH Classified, ANSI/NSF 4 |
| Country of origin | USA |
Popular factory options
- Package shelf (with or without under-shelf LED)
- Reflective or mirrored interior ends
- Front glass & rear-door locks
- Scale platform or top cutting board
- Joining kit for seamless line-ups
Warranty & peace of mind
• 1-year parts & labor coverage
• 5-year compressor parts warranty
