Description

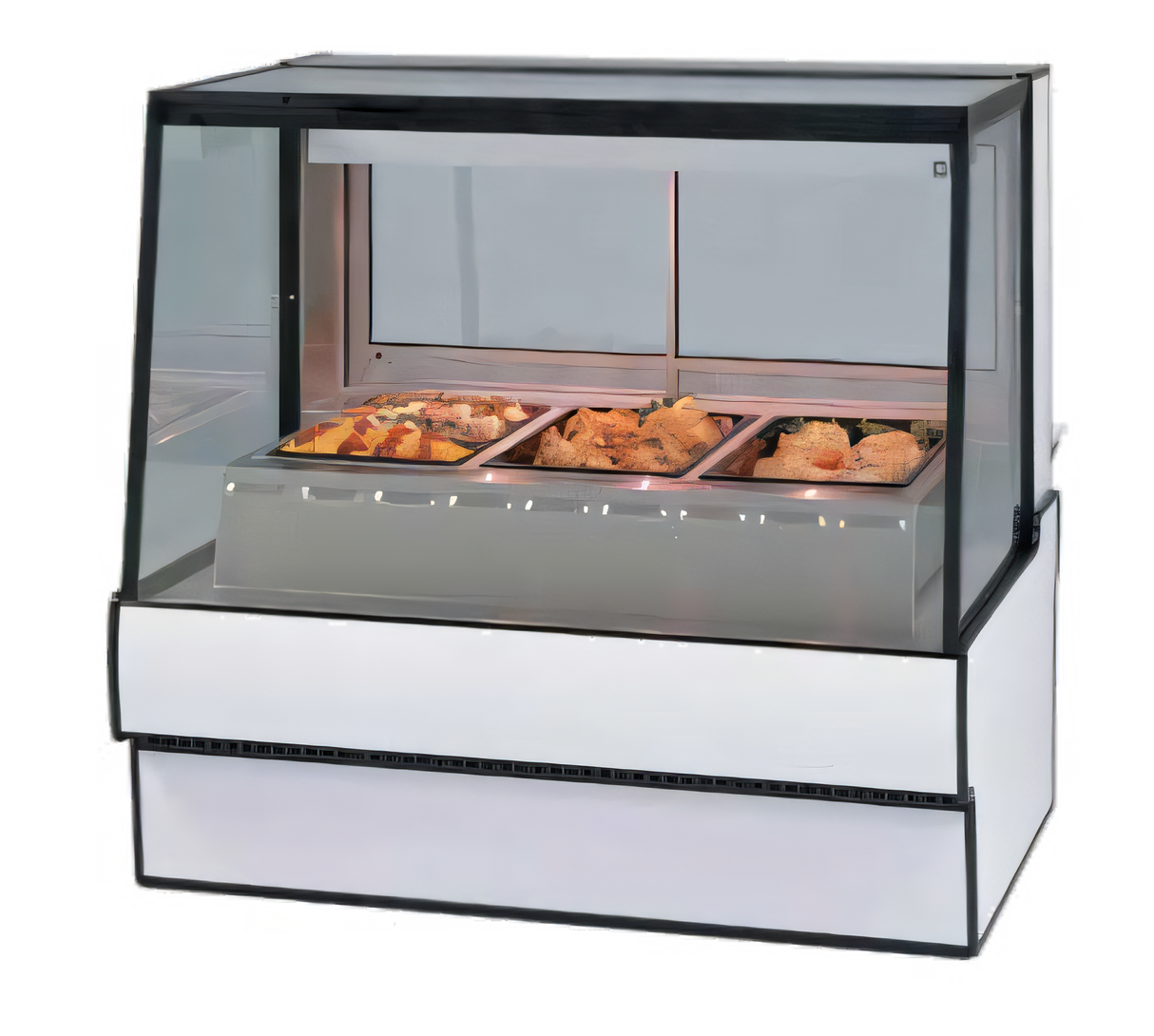

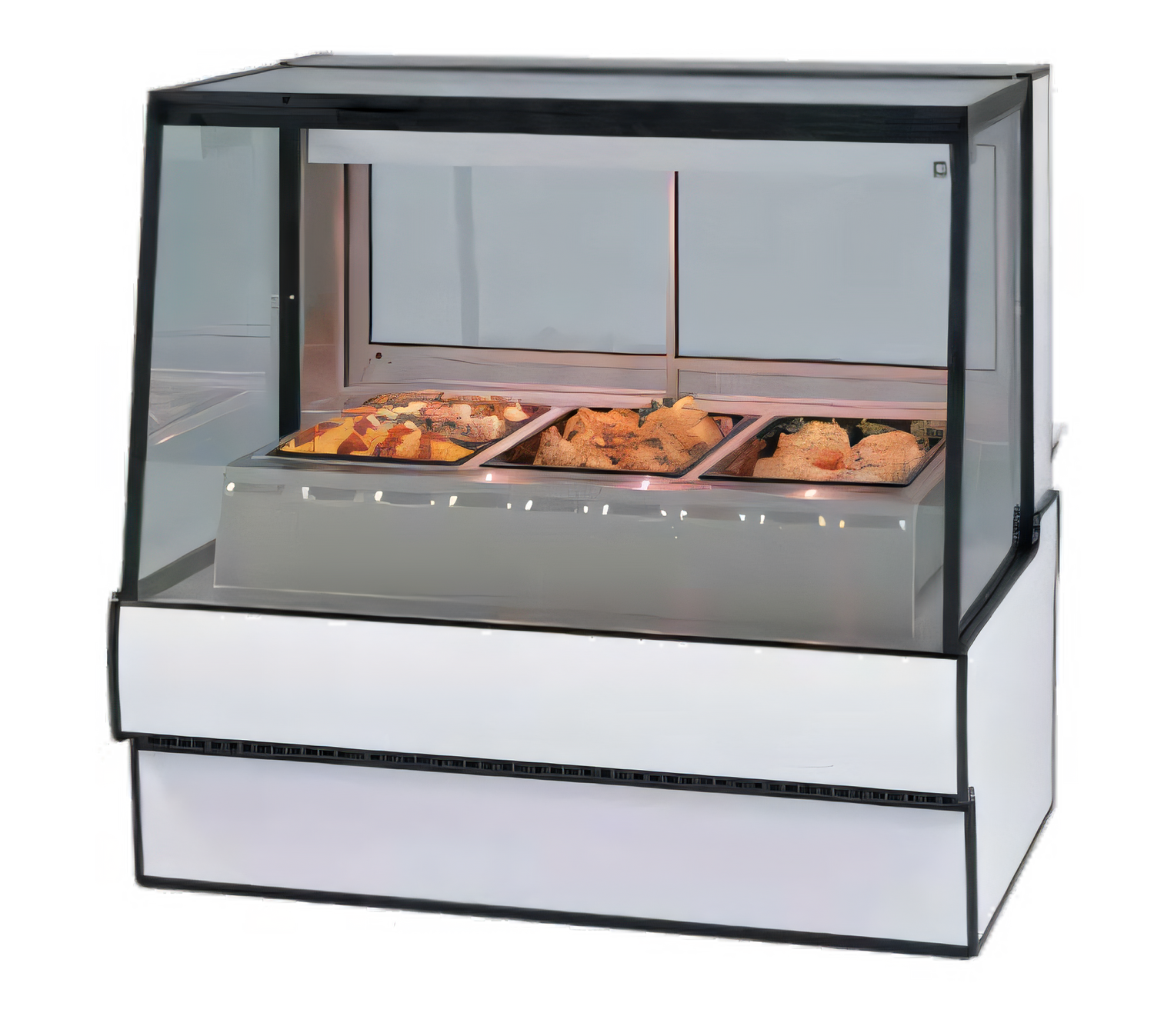

High Volume Series 50" Heated Deli Display Case

Federal Industries • Model SG5048HD

Move more product and serve more customers during peak rushes—without sacrificing food quality or eye-catching presentation. The SG5048HD is the smallest footprint in Federal Industries’ High Volume Series, yet it’s packed with the same rugged construction and operator-friendly features trusted by busy delis, grocers, and c-stores nationwide.

Key Benefits

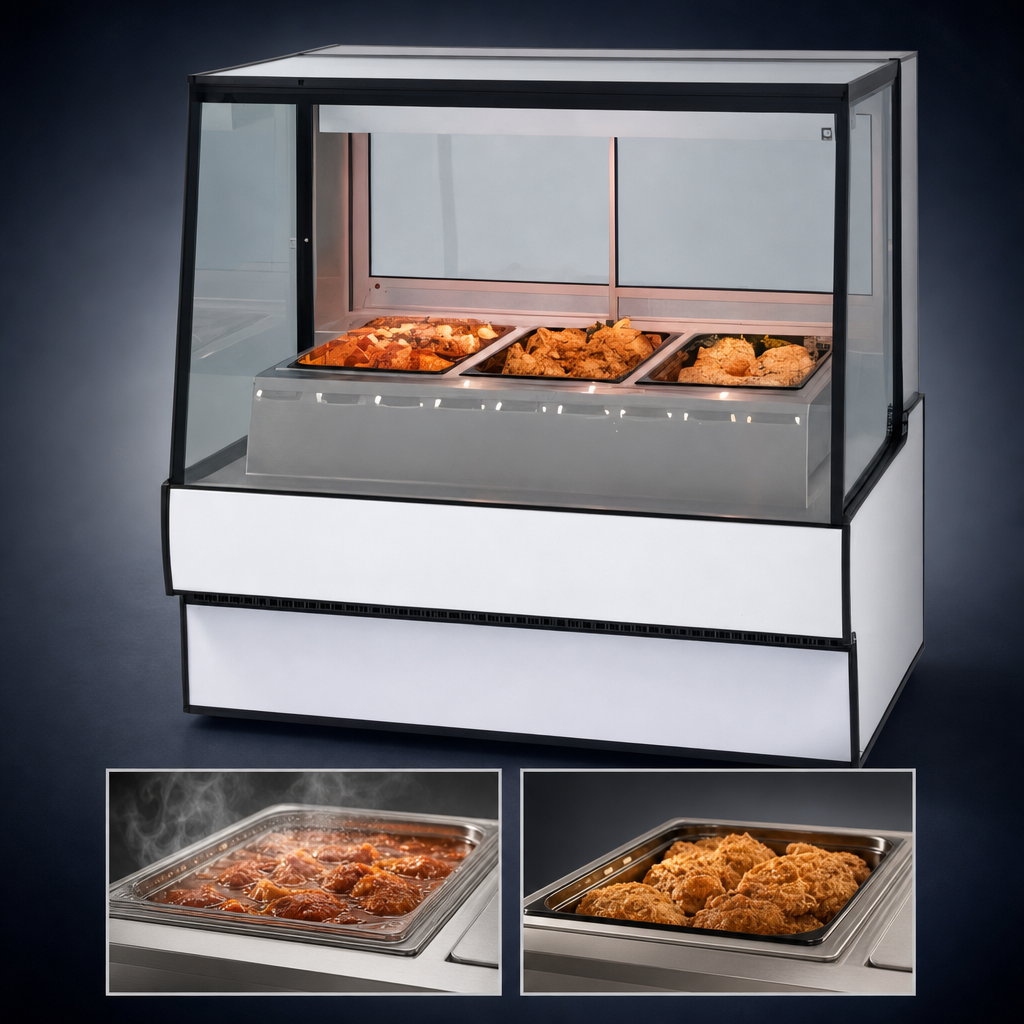

  • Wet or dry operation for menu versatility.

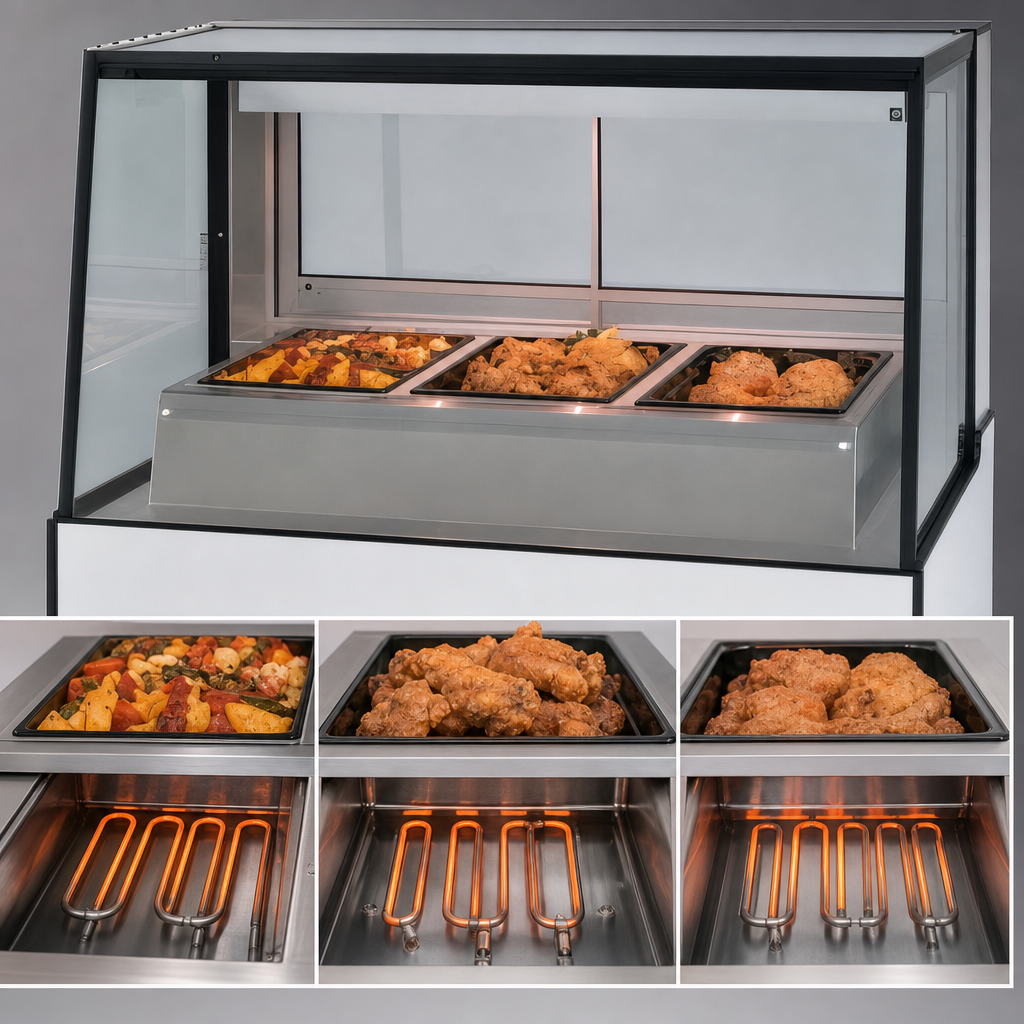

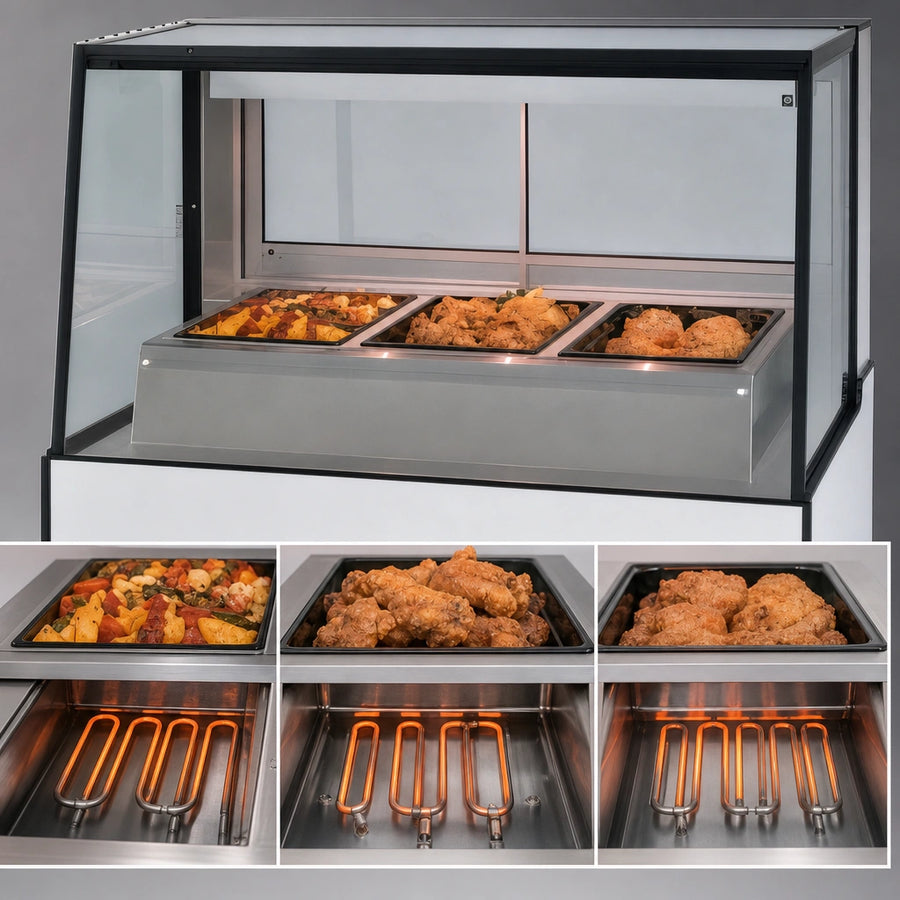

  • Three full-size stainless wells, each with its own Calrod® element & thermostat for precise zone control.
  • Top-mounted infrared heater maintains uniform holding temperature and appetizing color.
  • Sloped Thermopane tilt-out front glass for easy cleaning and optimal viewing angle.
  • Forced-air front-glass defogger keeps the view crystal-clear.
  • Bright, energy-efficient LED top lighting highlights every dish.
  • Sliding rear glass doors with moisture vents speed service while retaining humidity.
  • Self-contained wells—no floor drain required.
  • Stainless steel deck & removable rear wrap board built for heavy daily use.
  • Designed for seamless continuous line-ups; matching black trim and multiple laminate choices.
  • cULus & UL EPH Classified, Made in USA.

Specifications

Exterior Dimensions (W × D × H) 50.13" × 35.31" × 48"  |  1273 × 897 × 1219 mm
Hot Wells 3 full-size pans (individually controlled)
Heat Type Wet or dry with independent thermostats
Electrical 120/208-240 V, 60 Hz, 1-phase, 19.6 A, 3-wire plus ground
Lighting LED top light
Shipping Weight ≈ 535 lb / 243 kg
Certifications cULus, UL EPH Classified
Warranty 1-year parts & labor, 5-year compressor parts
Country of Origin Made in USA

Standard Construction

  • Tempered glass front, top, ends, and doors
  • Black trim with choice of six standard laminate bases
  • Adjustable leg levelers

Popular Options (sold separately)

  • Package shelf with optional undershelf lighting
  • Reflective or white ends / mirrored interior
  • Front glass & rear door locks
  • Scale platform or white top cutting board
  • Joining kit for multi-case line-ups
Have questions about configurations or accessories? Our food-service experts are ready to help.

Features & Specs

Manufacturer

Federal Industries

Brand_name

High Volume Series

Certifications

cULus, UL EPH Classified, Made in USA

Height

48.0in

Width

50.13in

Depth

35.31in

Shipping Weight

535.0lbs

Exterior Finish

specify exterior

Service Type

full service

Intermediate Shelves

deck only

Front

slanted glass

Width (side - side)

49" - 54"

Interior Finish

stainless steel interior

Specifications

High Volume Heated Deli Case, 50-1/8"W x 35-5/16"D x 48”H, wet or dry heat, (3) wells, independently controlled stainless steel heating wells each with a Calrod® heating element, Infrared top heater, sloped Thermopane tilt-front glass, forced air front-glass defogger, LED top light, glass sliding rear doors with moisture vents, stainless steel deck, tempered glass ends, removable wrapping board, designed for continuous lineups, choice of laminate, black trim, No drain required, cULus, UL EPH Classified, Made In USA
