Federal Industries

Hybrid Self-Serve Hot Over Self-Serve Refrigerated Merchandiser, 36.25" W x 39" D x 69.75" H

SKU: CH3628SSD/RSS3SC
$15,953.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

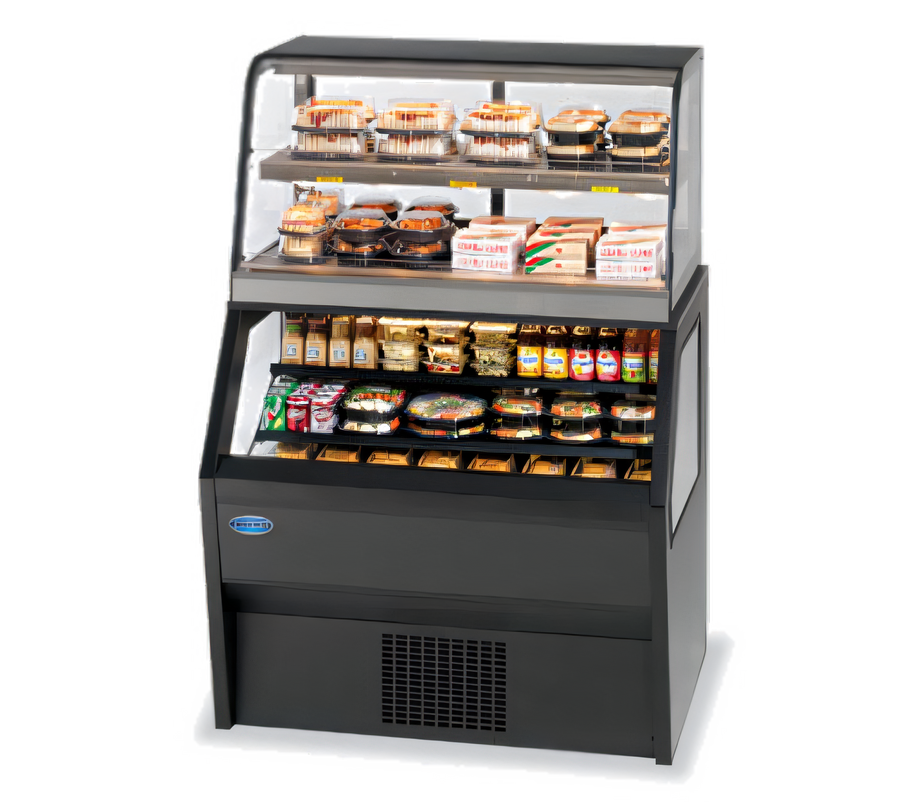

Hybrid Self-Serve Hot Over Self-Serve Refrigerated Merchandiser, 36.25" W x 39" D x 69.75" H

Black laminate exterior, self-contained refrigeration, tempered glass ends, and heated self-serve top display.

Display hot and cold packaged foods in one high-visibility merchandiser that combines a refrigerated self-serve base with a heated self-serve top.

  • Hybrid merchandiser combines a self-serve refrigerated bottom with a heated self-serve top.
  • Compact 36.25-inch-wide footprint delivers a strong display presence without taking up unnecessary floor space.
  • Black laminated exterior, black trim, and tempered glass ends create a clean, retail-ready presentation.
  • Refrigerated section uses electronic temperature control to hold 38°F to 40°F for packaged products.
  • Top section includes three hinged lift-up front doors, sliding rear doors, and adjustable stainless steel heated shelves.
  • Display lighting helps merchandise stand out for better visibility and impulse sales.

Overall Dimensions:

36.25"W x 39.0"D x 69.75"H

Product Weight:

790.0 lb

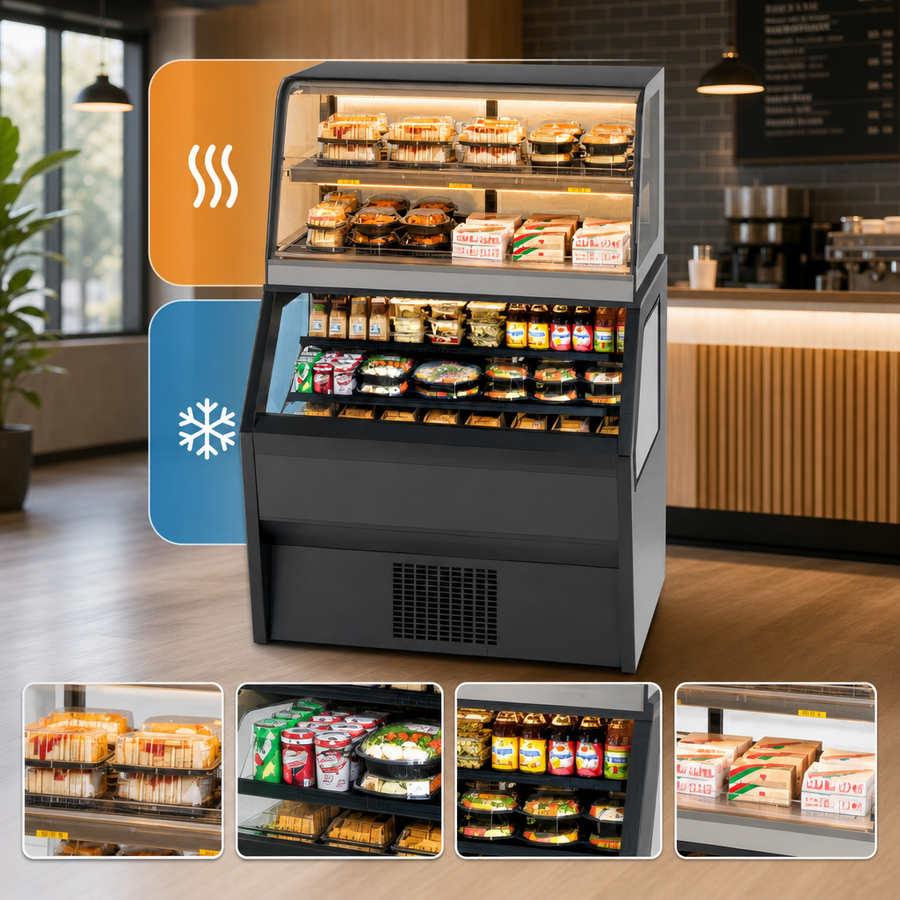

Hybrid Display Design

Combines a refrigerated self-serve bottom with a heated self-serve top so you can present cold and hot items in one unit.

Refrigerated Base Display

The bottom section is designed for self-serve refrigerated merchandising with black interior surfaces, glass ends, and two tiers of black metal shelves.

Heated Self-Serve Top

The top section includes three hinged lift-up front doors, sliding rear doors, a stainless steel deck, and two adjustable stainless steel heated shelves.

Display Lighting

Includes horizontal top and front lighting on the refrigerated section plus top and shelf lighting for improved product visibility.

Temperature Control

Electronic temperature control maintains the refrigerated case at 38°F to 40°F for packaged refrigerated products.

Retail Presentation

Black laminated exterior and black trim provide a sleek merchandising look while tempered glass ends help showcase the contents.

Type Hybrid Merchandiser
Style Self-Serve Hot Over Self-Serve Refrigerated
Installation Type Floor Model
Refrigeration Type Self-Contained Refrigeration
Controls Electronic
Temperature Range 38°F to 40°F
Voltage 120 Volts
Amps 16 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P Cord & Plug
Breaker Size 20 Amps
Color Black
Finish Black Laminate
Country of Origin USA
Shipping Width 37 Inches
Shipping Depth 39 Inches
Shipping Height 70 Inches
Shipping Weight 790 lb.

Frequently Asked Questions

It is a hybrid merchandiser with a self-serve refrigerated bottom and a heated self-serve top.
The electronic temperature control maintains the refrigerated case at 38°F to 40°F.
The refrigerated base includes two tiers of black metal shelves, and the heated top includes two adjustable stainless steel heated shelves.
The top section has three hinged lift-up front doors and sliding rear doors.
It operates on 120/60/1 power and draws 16 amps with a NEMA 5-20P cord and plug.
The warranty is one year parts and labor, with compressor service covered for parts only from years 2 through 5 in the U.S. and Canada.
