Federal Industries CH3628 Countertops Hot Food Displays
Federal Industries CH3628 Countertops Hot Food Displays is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Federal Industries CH3628 Countertops Hot Food Displays
Description

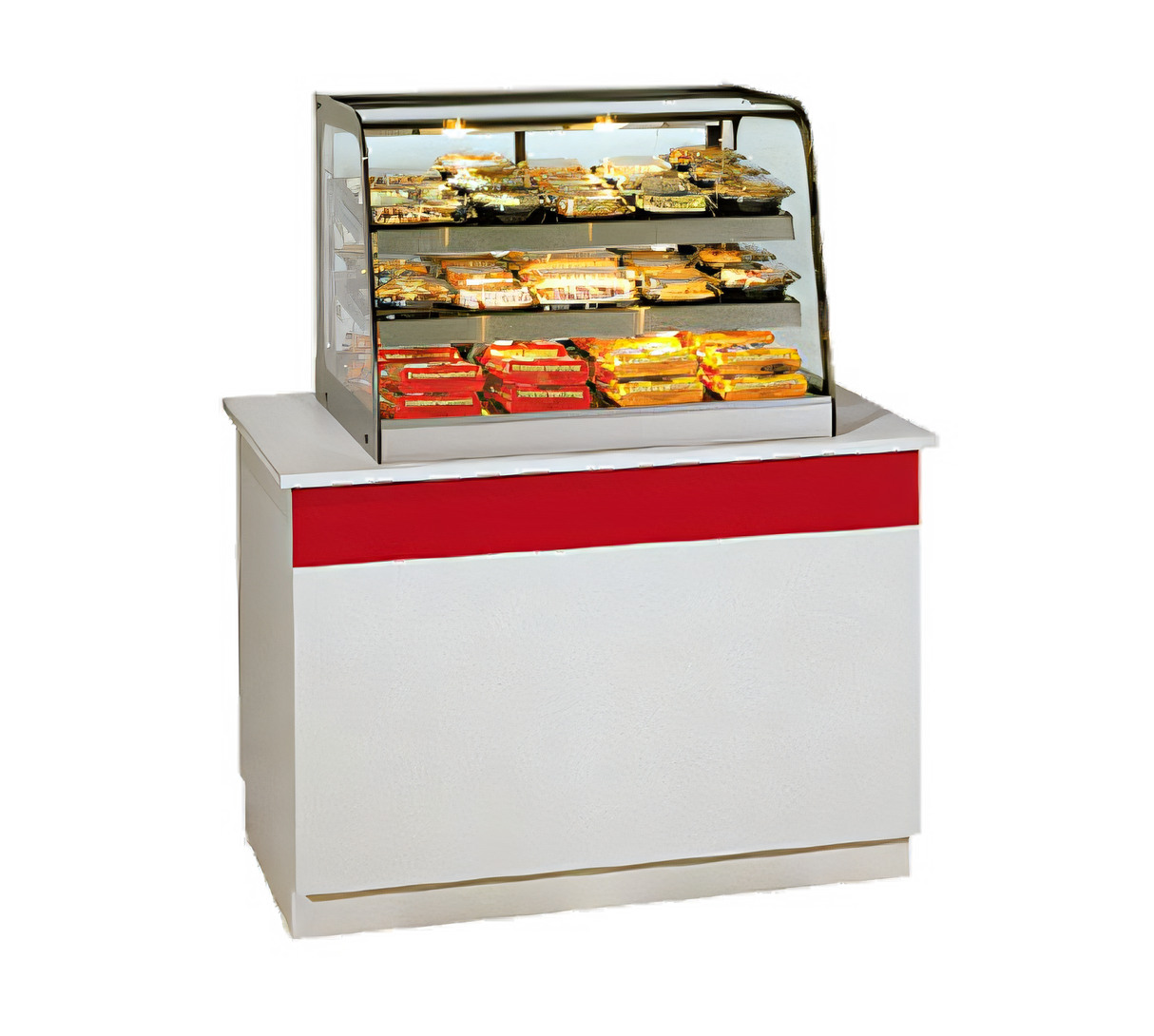

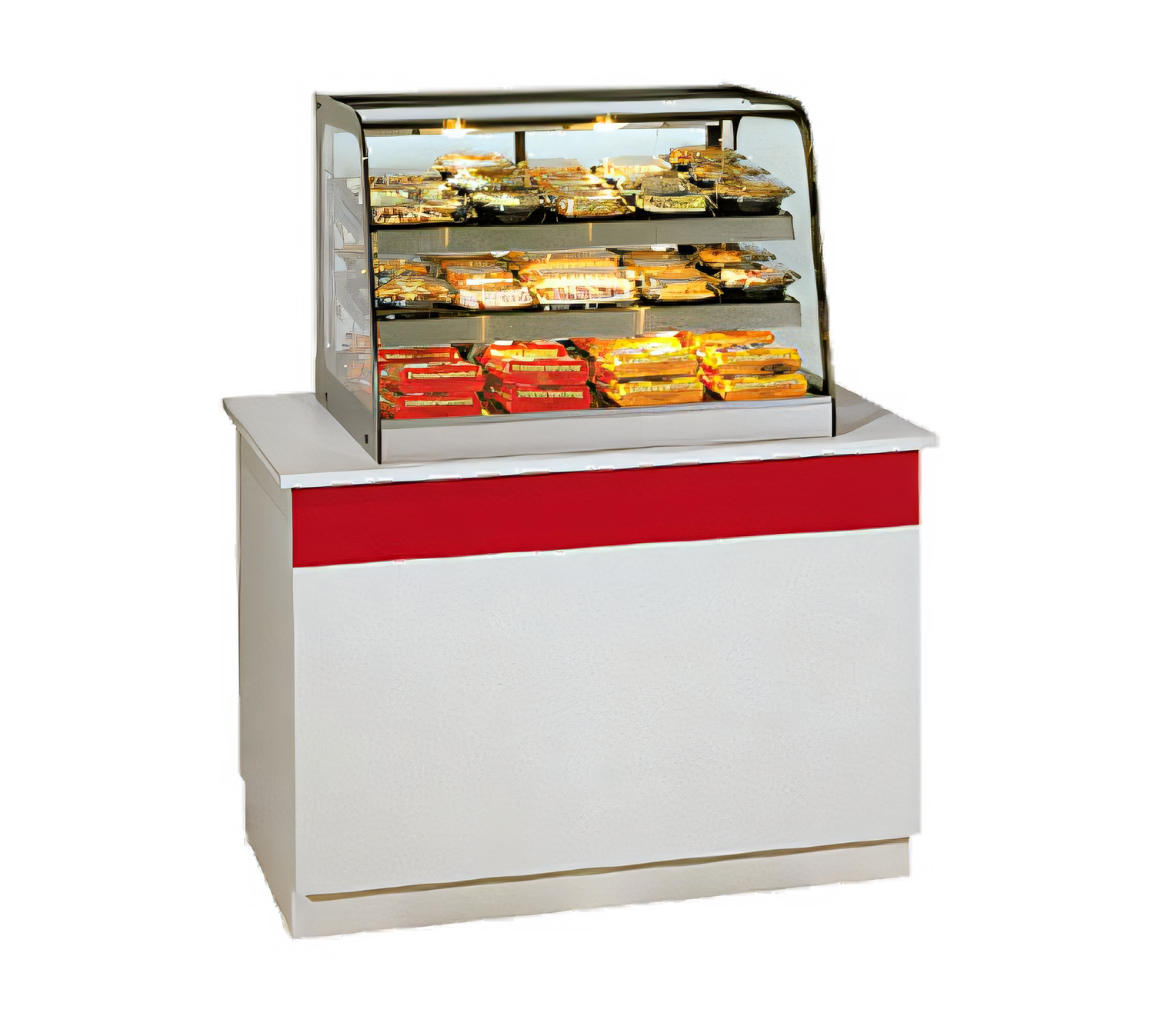

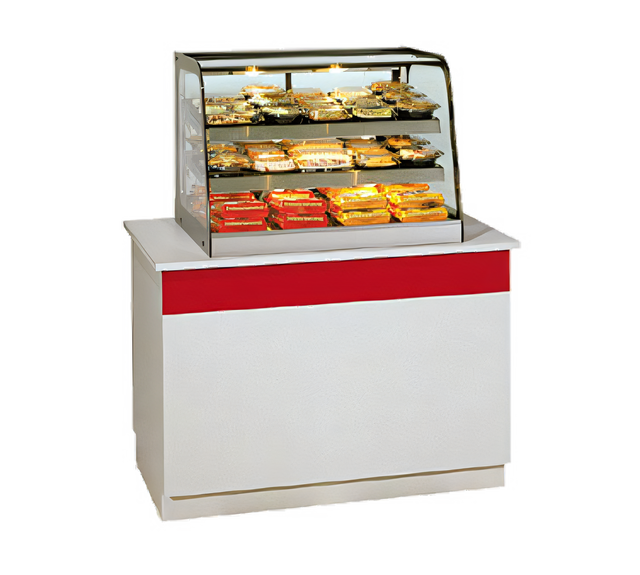

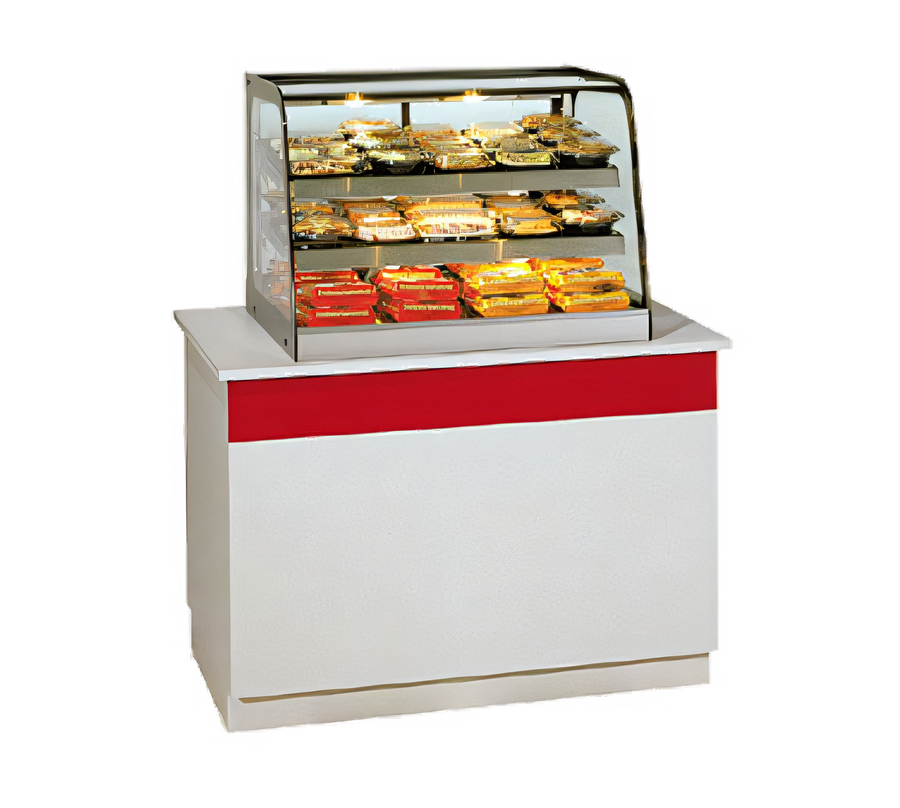

Federal Industries CH3628 Countertop Heated Display Case – 35"
Signature Series | Curved-Glass, Humidified, Two-Tier MerchandiserTurn impulse traffic into profitable sales! At just 35 inches wide, the CH3628 drops right onto any counter and surrounds your hot sandwiches, pizza slices, baked goods, and entrées with brilliant lighting and crystal-clear curved glass. A gentle humidified air system and individually heated stainless-steel shelves lock in flavor and maintain safe 160 °F (71 °C) holding temperatures without drying product out.
Why You’ll Love It

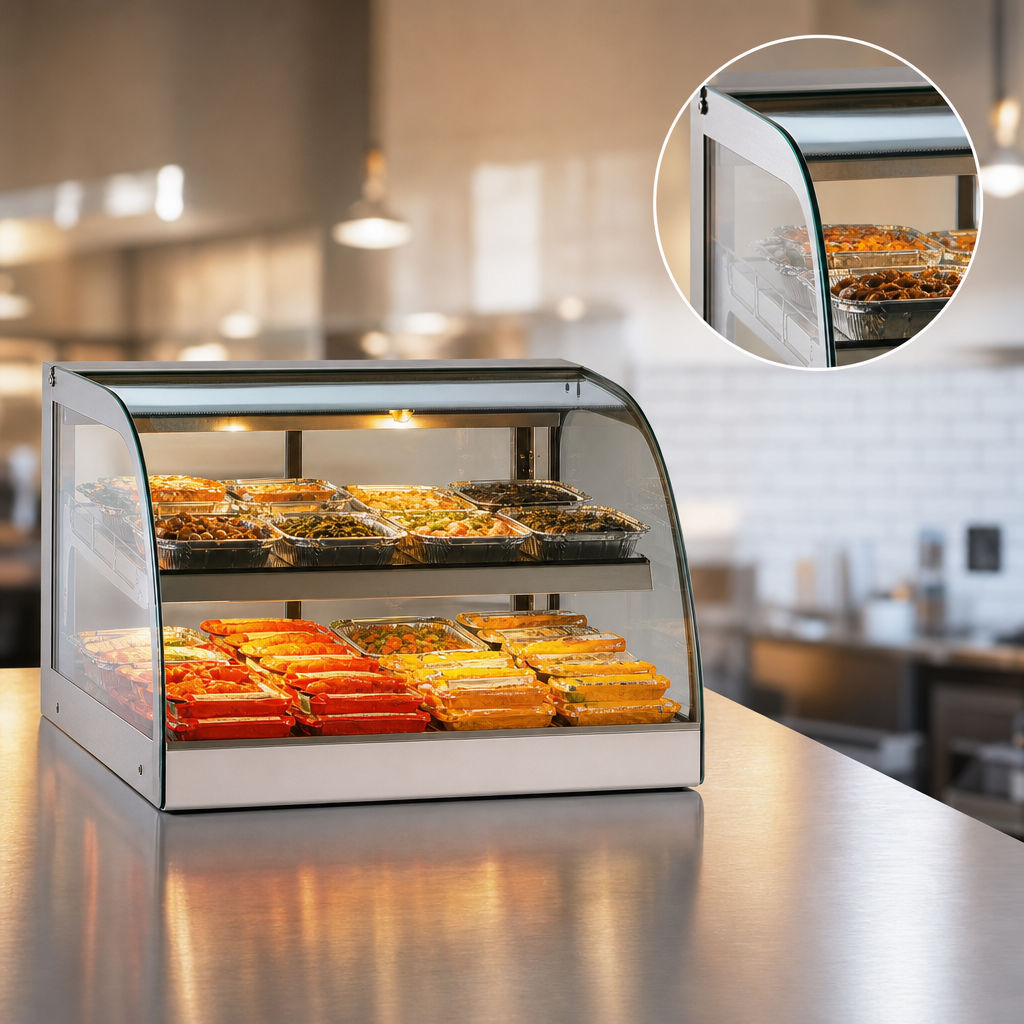

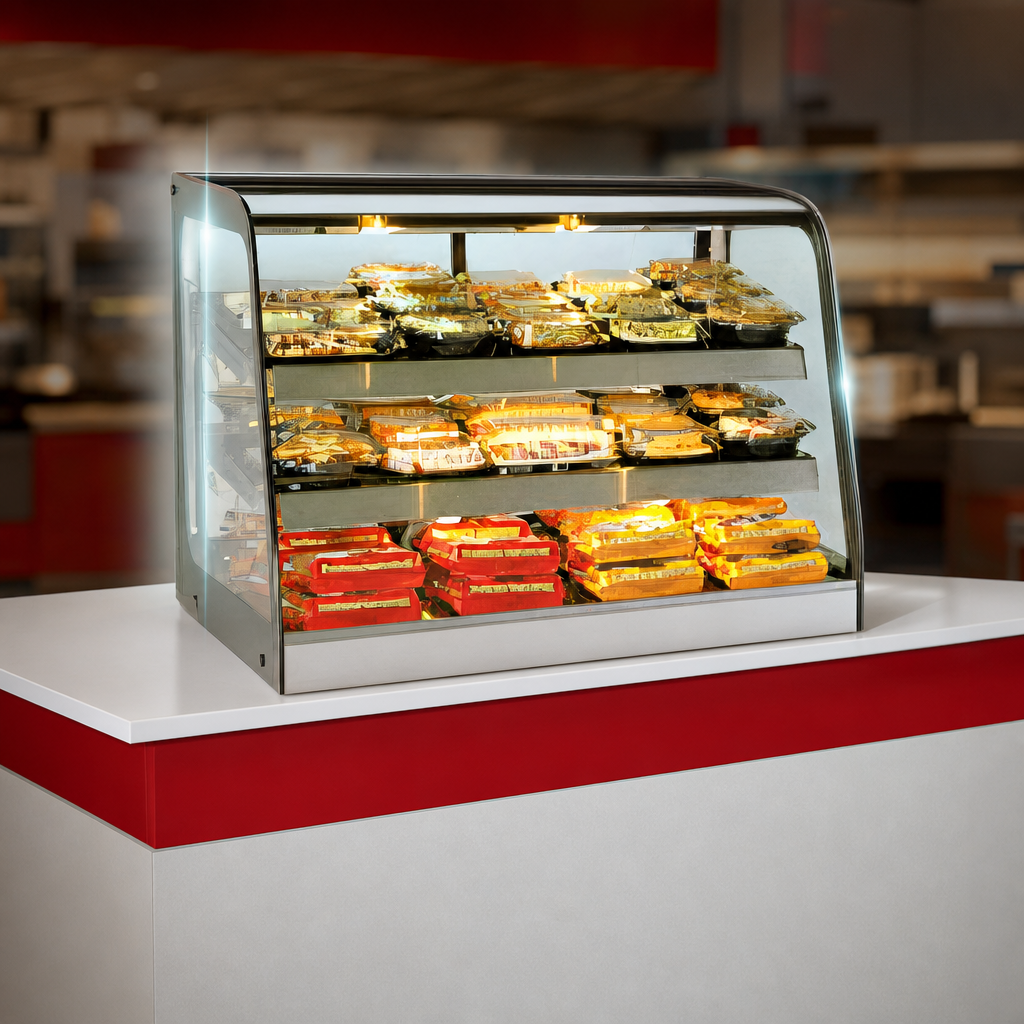

- Merchandising power: Tempered curved front glass, lighted shelves, and top light showcase product from every angle.
- Humidity-assisted heat: Built-in water pan introduces moisture so foods stay juicy and appetizing for hours.
- Flexible presentation: Two stainless-steel shelves adjust up/down or tilt (two positions) for optimal visibility.
- Easy operator access: Removable sliding rear glass doors simplify loading, serving, and cleaning.
- Durable & hygienic: All-stainless interior, tempered safety glass, and NSF/ANSI 4 sanitation listing.
- Ready to plug in: 120 V cord with NEMA 5-15P—no drain or hardwiring required.
- Made in the USA: Manufactured in Belleville, Wisconsin and backed by Federal Industries’ renowned support.
Technical Specifications
| Model | CH3628 |
|---|---|
| Exterior dimensions (W × D × H) | 35" × 29.7" × 25.1" 889 × 754 × 638 mm |
| Interior volume | 9.25 cu ft |
| Shelf tiers | (2) heated, adjustable/tilt stainless-steel shelves + stainless display deck |
| Lighting | Incandescent top light & shelf lights (bulbs included) |
| Heat control | Rear-mounted variable thermostat with on/off light switch |
| Holding temperature | Up to 160 °F / 71.1 °C average product temp |
| Electrical | 120 V, 60 Hz, 1 Ø, 8.5 A, 15 A max fuse, NEMA 5-15P cord & plug |
| Construction | Stainless steel with black accent trim, tempered glass front & ends |
| Certifications | cULus Safety, UL EPH Classified (NSF/ANSI 4) |
| Shipping weight | 333 lb / 151 kg |
| Country of origin | USA |
Warranty: 1 year parts & labor • 5 year compressor (parts only).
Designed for indoor use in ambient conditions up to 75 °F / 55 % RH. Not for outdoor installation.
