Federal Industries CG7748HD Curved Glass Series Hot Food Displays
Description

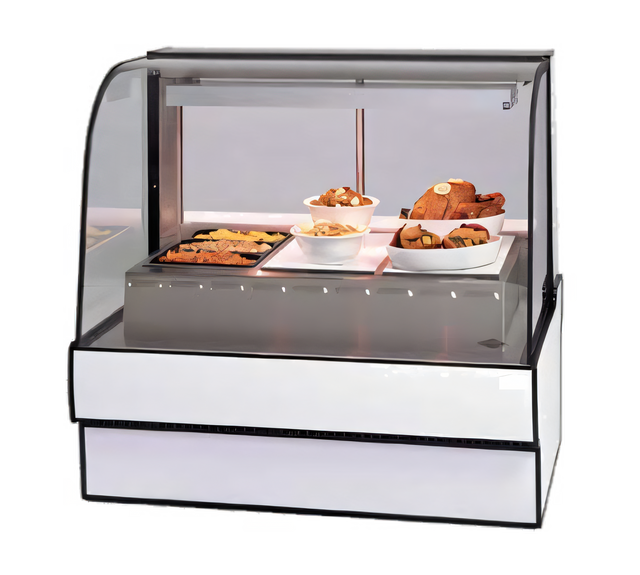

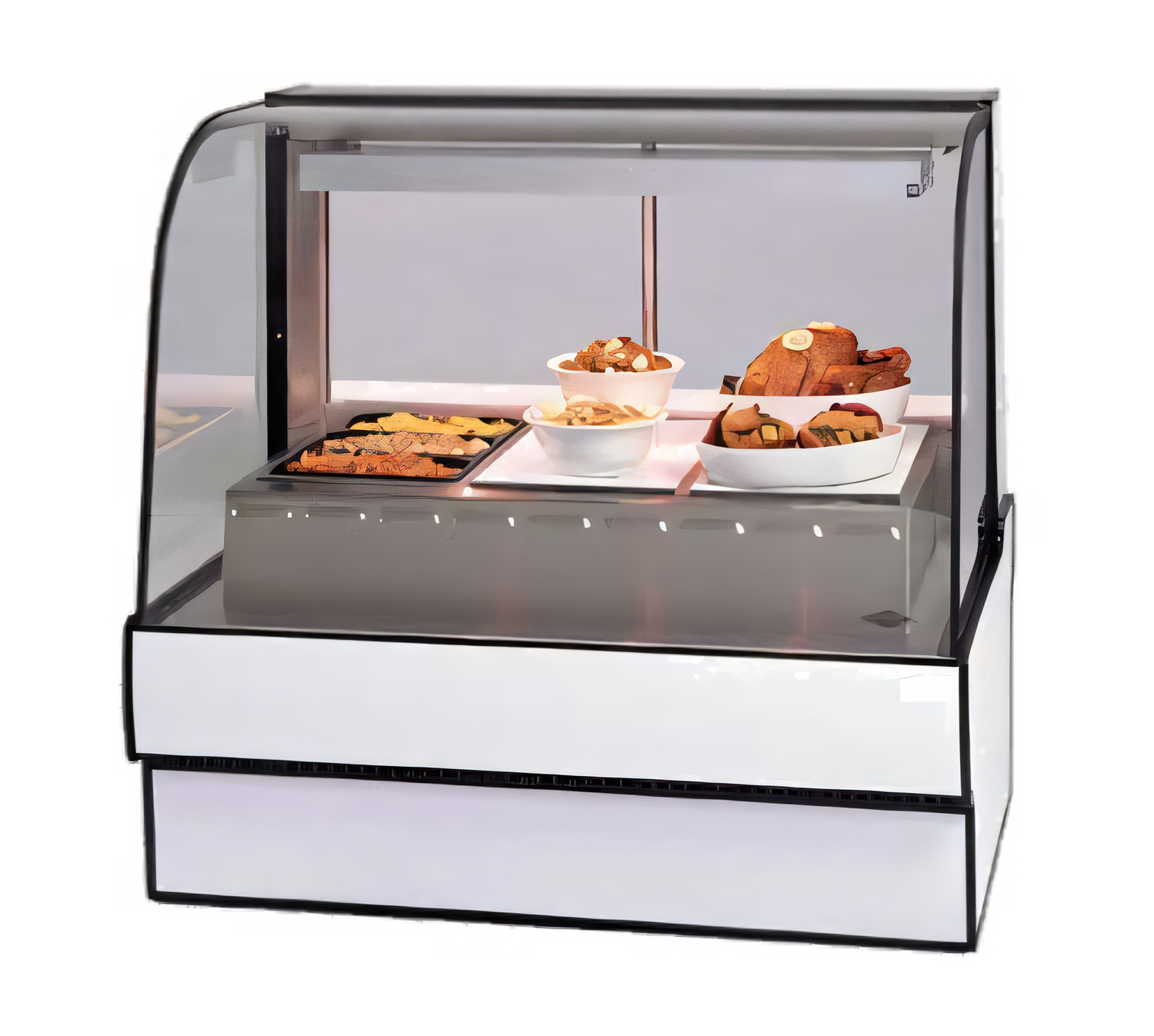

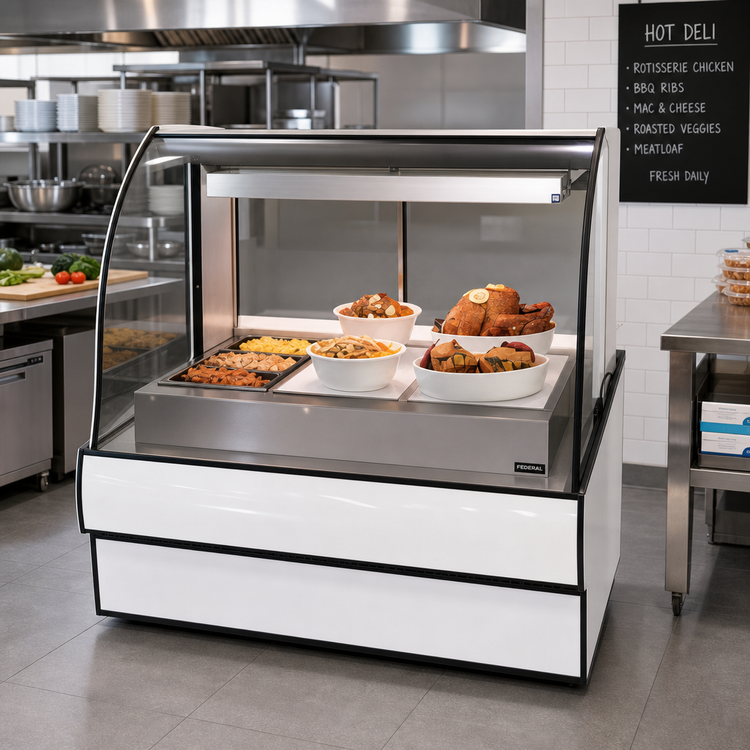

Curved Glass Series – 77" Hot Deli Display Case (CG7748HD)
Five-well wet or dry heated merchandiser from Federal IndustriesShowcase your signature entrées, sides, and comfort-food favorites at perfect serving temperature while drawing shoppers in with sleek, contemporary styling. The Federal Industries CG7748HD combines a curved, tilt-front Thermopane glass façade with powerful wet/dry holding technology, giving grocers, cafeterias, and delis a dependable hot case that’s as eye-catching as it is easy to maintain.
Performance & Presentation Highlights
- Five independently controlled stainless-steel wells – each fits a full-size pan and features its own Calrod® heating element for pinpoint temperature control.

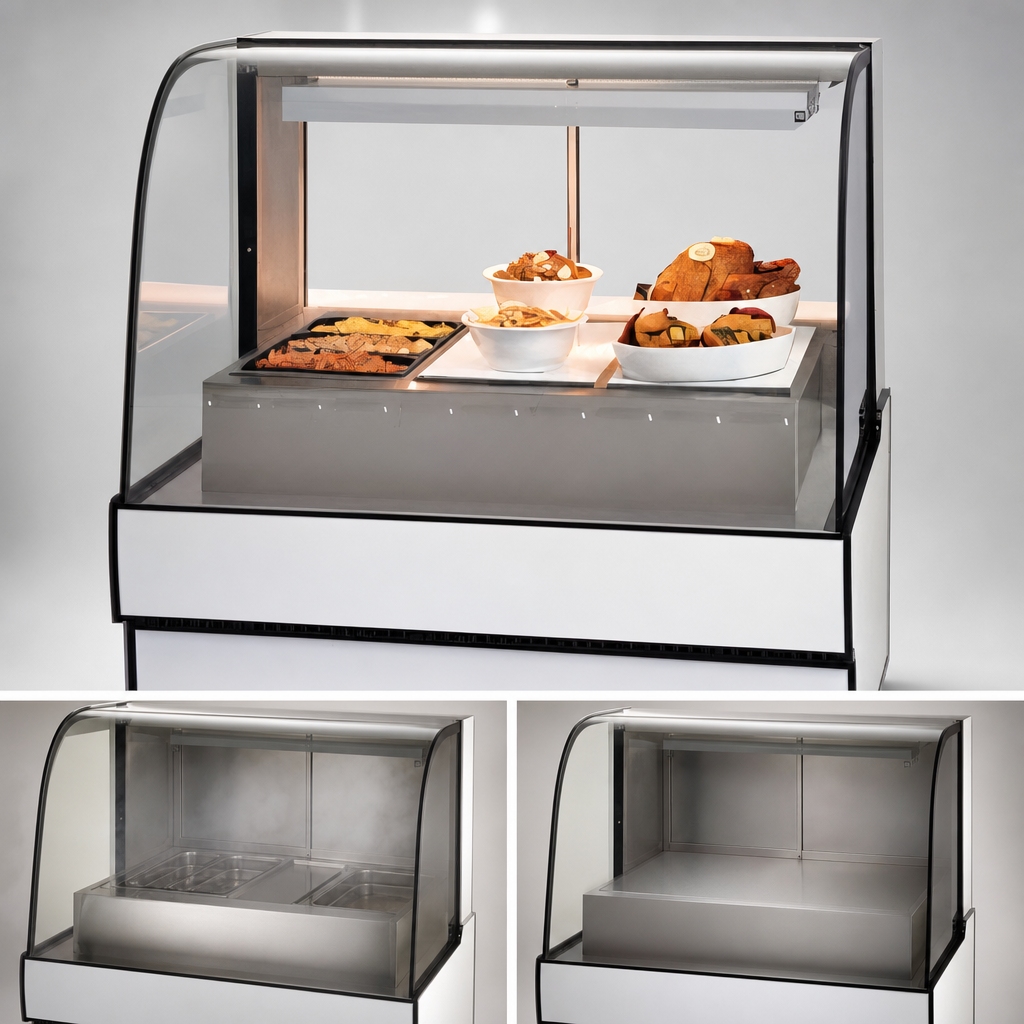

- Wet or dry operation with no plumbing drain connection required, giving you flexible installation and menu options.
- Full-length overhead infrared heater plus LED top lighting to keep foods hot and appetizing from open to close.

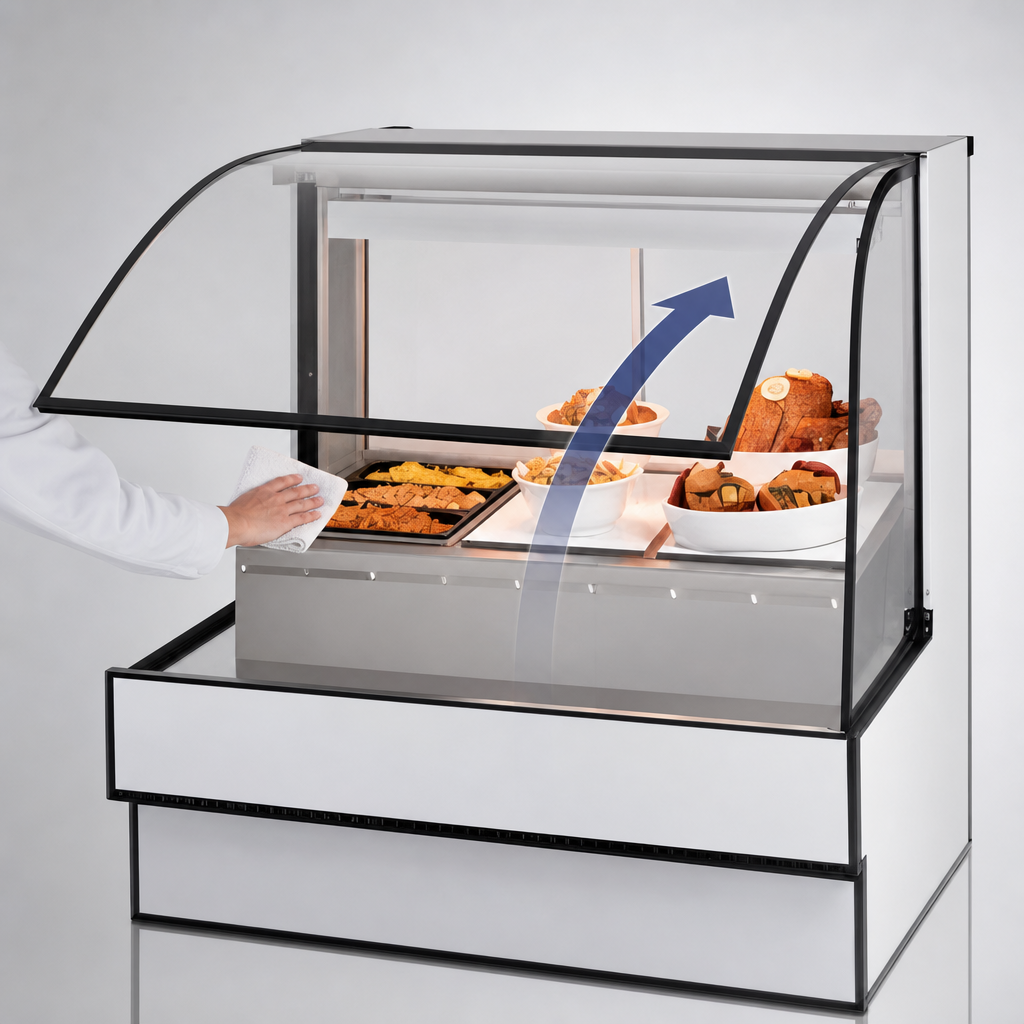

- Curved Thermopane tilt-front glass with forced-air defogger prevents condensation and tilts out for effortless cleaning.
- Tempered glass sliding rear doors with adjustable moisture vents maintain ideal humidity while providing easy operator access.
- Removable rear wrapping board streamlines packaging and plating.
- Durable stainless-steel deck and tempered glass ends ensure long-lasting, food-safe performance.
- Steel base with your choice of laminate and coordinated black trim – engineered for seamless continuous line-ups.
- Adjustable leg levelers for a perfect fit on uneven floors.
- UL Safety & UL EPH Classified for sanitation compliance.
Model Specifications – CG7748HD
| Overall Dimensions (W × D × H) | 77.13" × 35.31" × 48" (1959 × 897 × 1219 mm) |
|---|---|
| Number of Wells / Pan Capacity | 5 wells | 5 full-size steam table pans |
| Heat Type | Wet or dry with individual thermostats + top infrared heater |
| Electrical | 120/208-240 V, 60 Hz, 1-phase, 32.3 A, 3-wire plus ground |
| Lighting | LED top light |
| Shipping Weight | 800 lb (363 kg) |
| Agency Listings | UL Safety, UL EPH Classified (ANSI/NSF 4) |
| Warranty | 1-year parts & labor | 5-year compressor parts |
Popular Options (sold separately)
- Special base laminate or mirrored interior finishes
- Package shelf or lighted package shelf
- Front glass & rear door locks
- Scale or cutting-board platforms
- Reflective ends or rear doors for enhanced merchandising
- Joining kit for continuous line-ups
Designed to operate in ambient conditions up to 75 °F (24 °C) and 55 % relative humidity.
