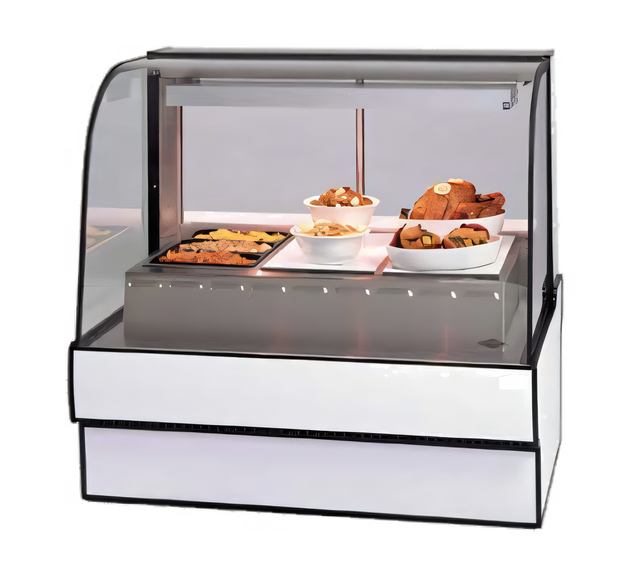

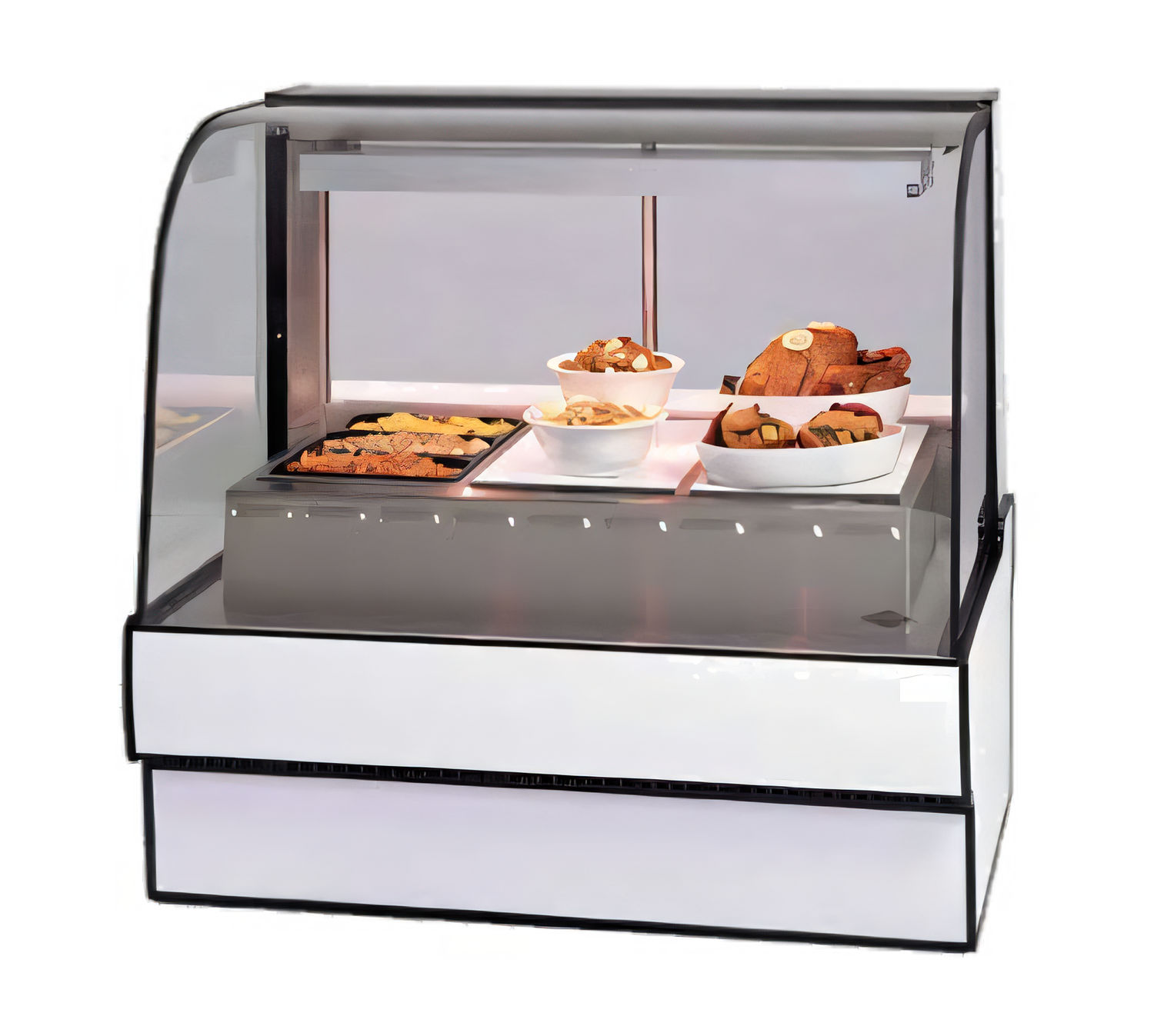

Federal Industries Curved Glass Full-Service Heated Deli Case with 3 Wells, 59.13-Inch Wide

Wet or Dry Heat, Stainless Steel Deck, Continuous Lineup Design

A curved-glass heated deli case that keeps hot foods visible, accessible, and evenly heated in busy full-service lines.

  • Curved glass styling creates an attractive display for hot deli items and prepared foods.
  • Three independently controlled stainless steel wells provide flexible hot-holding.
  • Designed for wet or dry heat service with a full-length infrared top heater.
  • Forced-air defogging and vented sliding rear doors help reduce condensation.
  • Stainless steel deck, tempered glass ends, and a removable wrap board support daily service.
  • Built for continuous lineups and available with multiple base finish options.

Overall Dimensions:

59.13"W x 35.31"D x 48.0"H

Product Weight:

660.0 lb

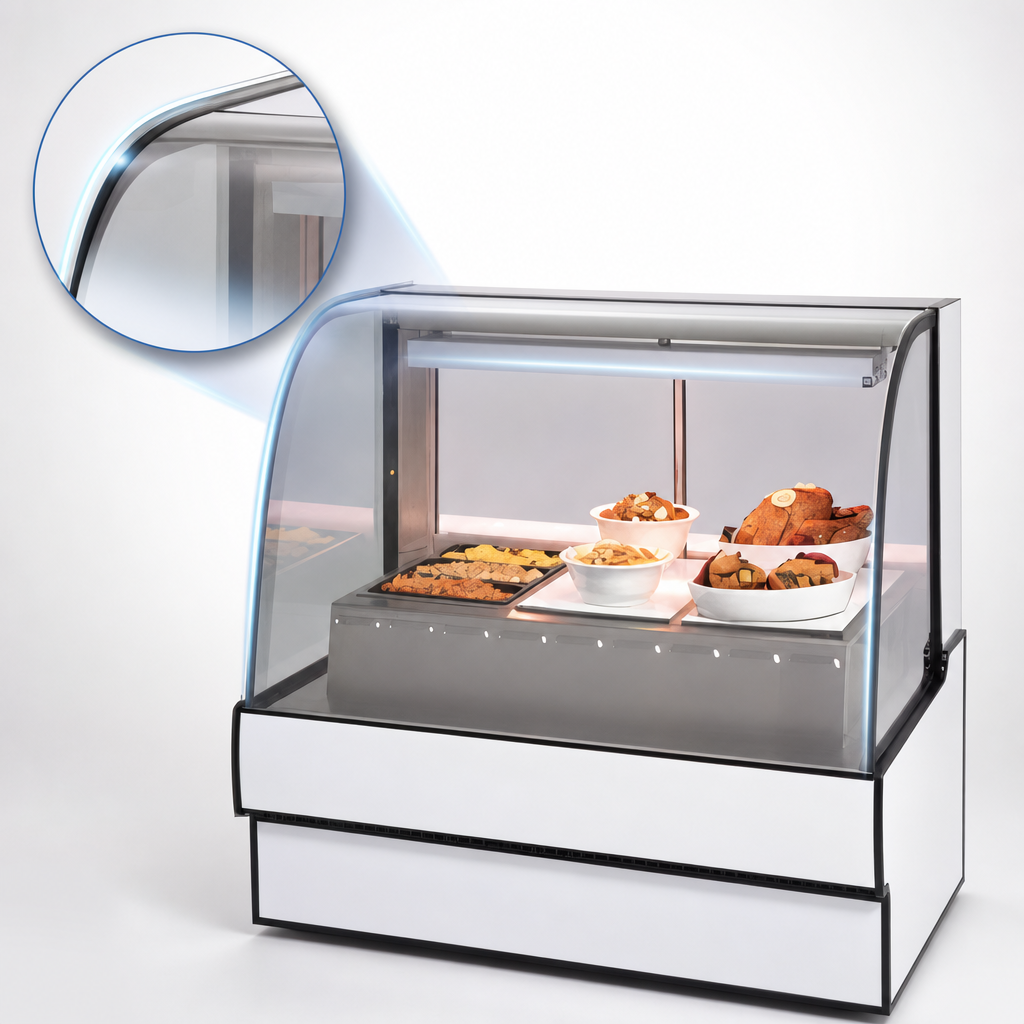

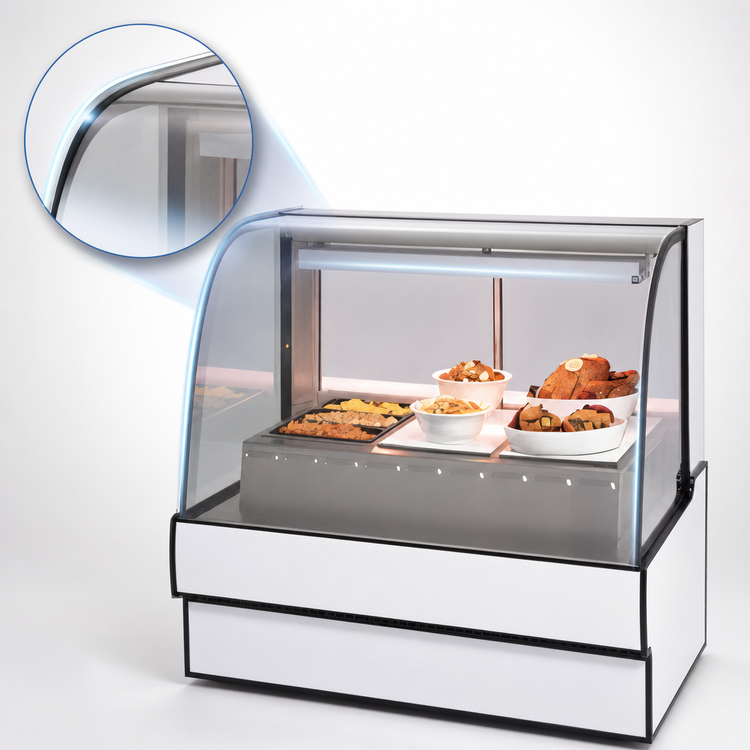

Curved Thermopane Front Glass

Curved, tempered tilt-front glass improves product visibility and makes cleaning easier.

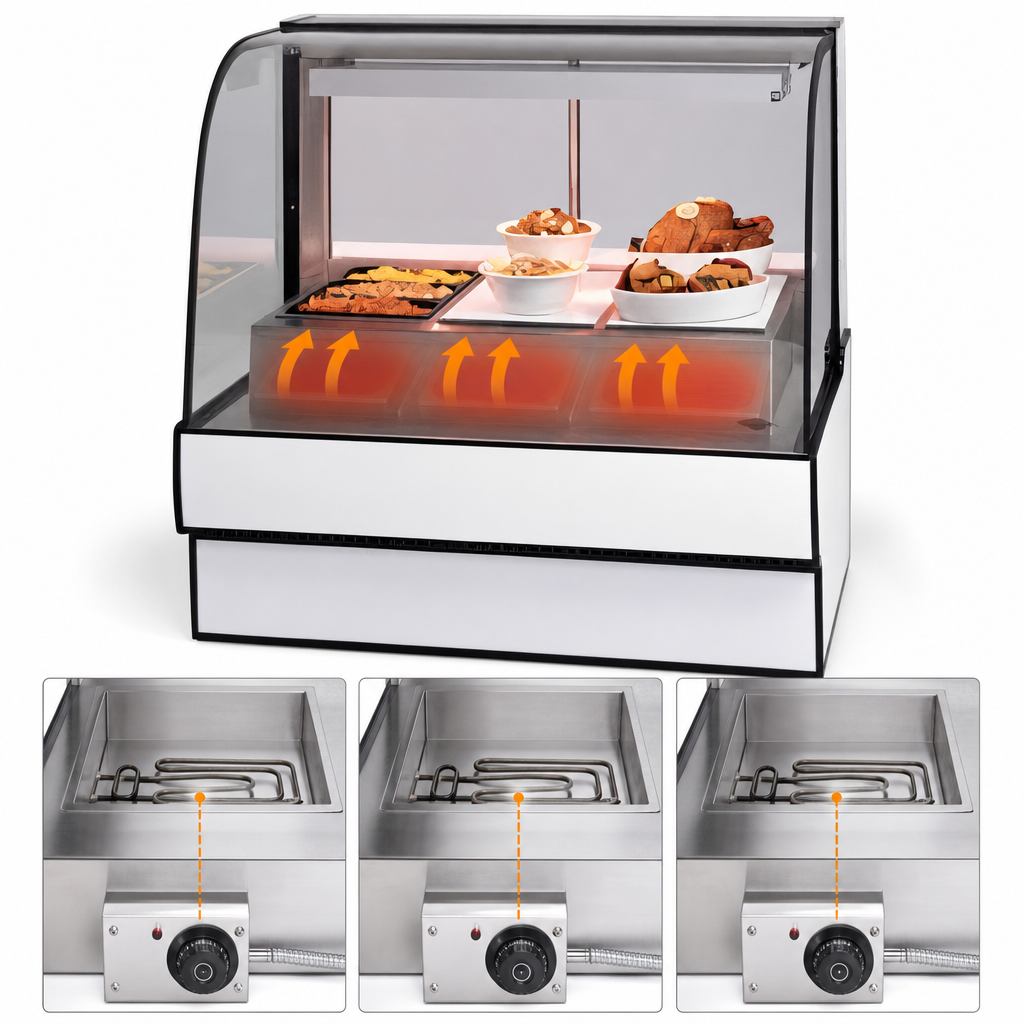

Three Independent Heated Wells

Each stainless steel well has its own Calrod heating element and thermostat for separate temperature control.

Wet or Dry Heat Operation

Designed to operate with either wet or dry heat service needs.

Full-Length Infrared Top Heater

Top-mounted infrared heat helps maintain a more uniform product temperature across the display.

Forced-Air Defogger

The front-glass defogger helps minimize moisture buildup and keep products visible.

Sliding Rear Doors with Moisture Vents

Removable rear doors provide access for serving and include moisture vents to help manage condensation.

Stainless Steel Deck and Tempered Glass Ends

Durable food-contact and display surfaces are built for heavy daily use.

Continuous Lineup Design

Designed to line up end-to-end without middle end glass; a joining kit is available as an accessory.

Type Heated Deli Case
Style Curved Glass
Installation Type Floor Model
Capacity 3 Full-Size Pans
Material Stainless Steel
Interior Finish Stainless Steel
Controls Independent Thermostats
Voltage 120/208-240 Volts
Amps 19.6 Amps
Hertz 60 Hz
Phase 1-Phase
Drain Connection Not Required
Country of Origin USA
Shipping Width 60 Inches
Shipping Depth 36 Inches
Shipping Height 48 Inches
Shipping Weight 660 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Installation & operations manual PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. The case is designed for either wet or dry heat operation.
It has three stainless steel heating wells.
No external drain connection is required.
Each well has its own Calrod heating element and individual thermostat.
Yes. It is designed for continuous case lineups without middle end glass.
The unit requires 120/208-240V, 60 Hz, single-phase power and draws 19.6 amps.
