Federal Industries CG5048HD Curved Glass Series Hot Food Displays
Description

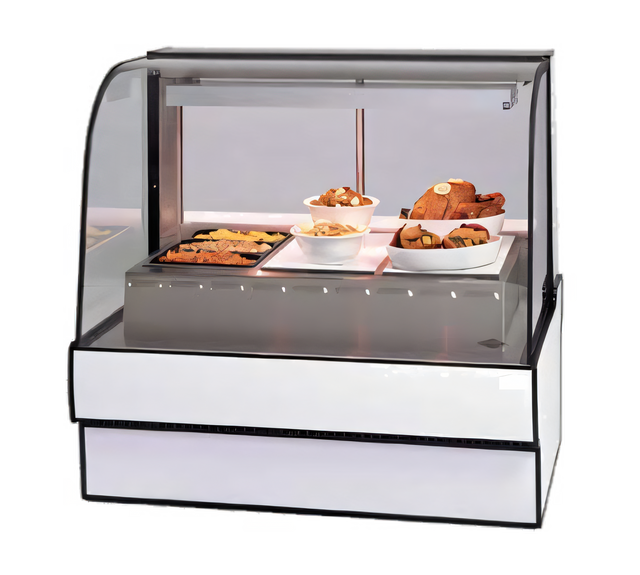

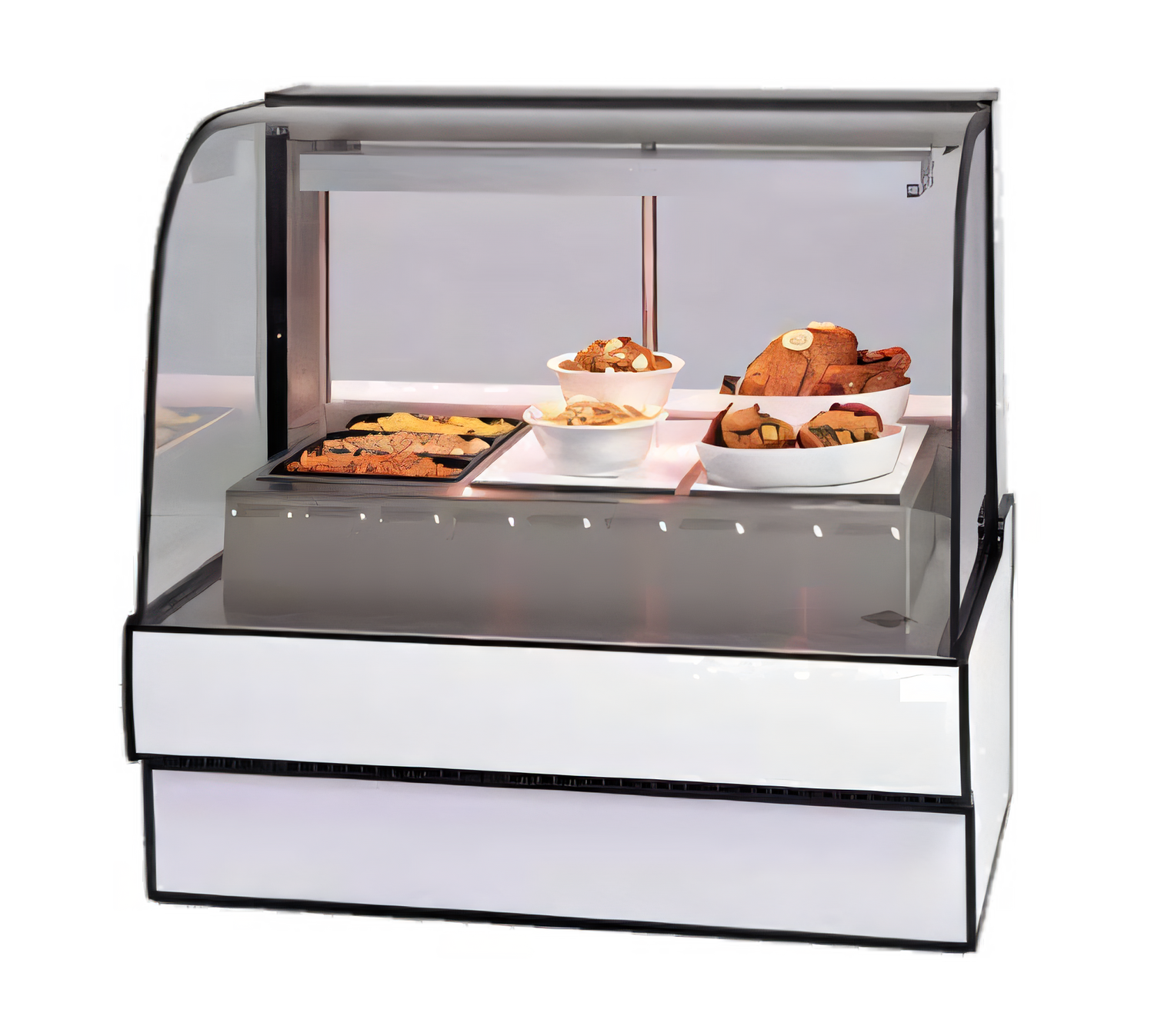

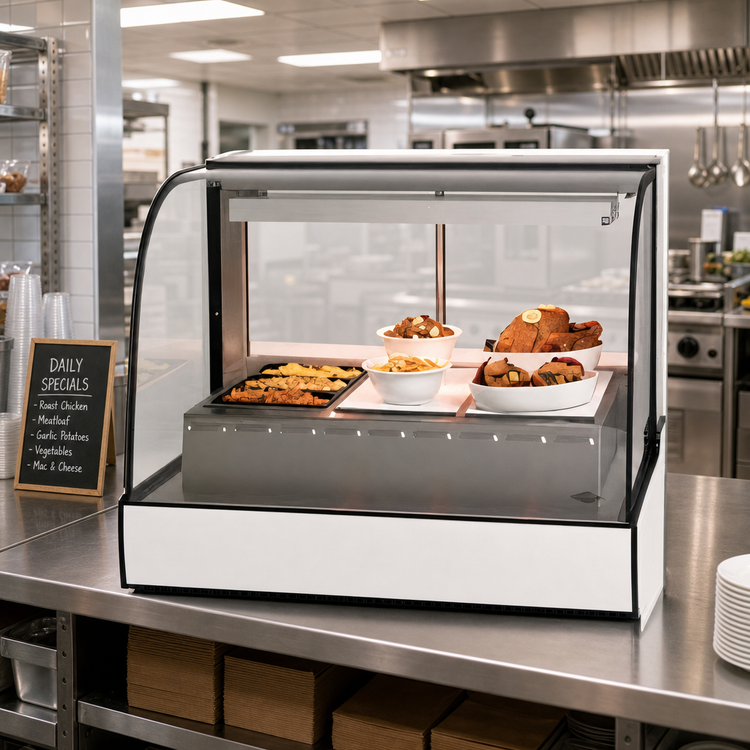

Federal Industries Curved Glass Hot Deli Case – 50″ (Model CG5048HD)
3-Well | Wet or Dry Heat | Self-ContainedGive your hot food program the merchandising power it deserves. The CG5048HD combines Federal Industries’ signature curved Thermopane glass with independently controlled heating wells and a top-mounted infrared heater to keep entrées, sides and proteins at ideal serving temperatures while maximizing impulse sales.
Key Features
- Three full-size, one-piece stainless-steel wells—each with its own Calrod® element and thermostat for exact temperature control.

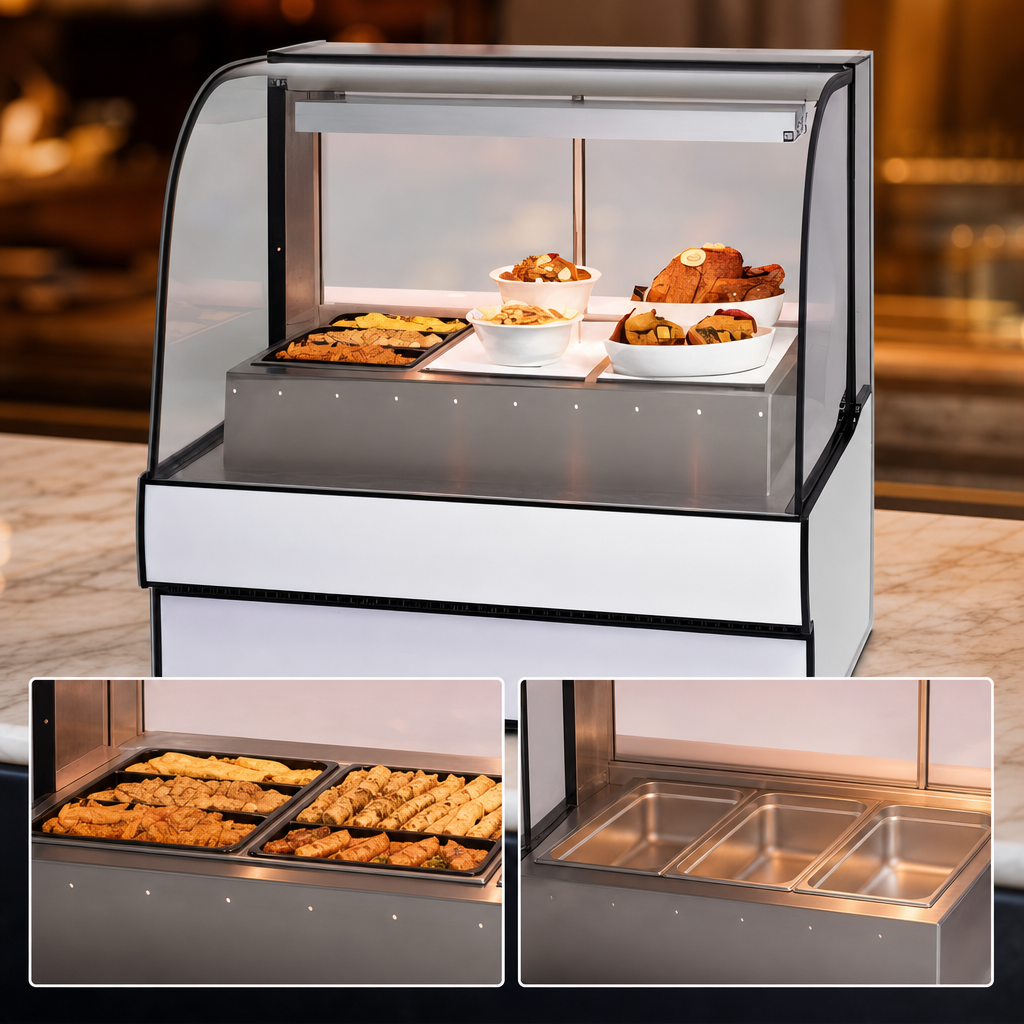

- Operates wet or dry to suit a changing menu.
- Full-length infrared top heater maintains uniform product temperatures.

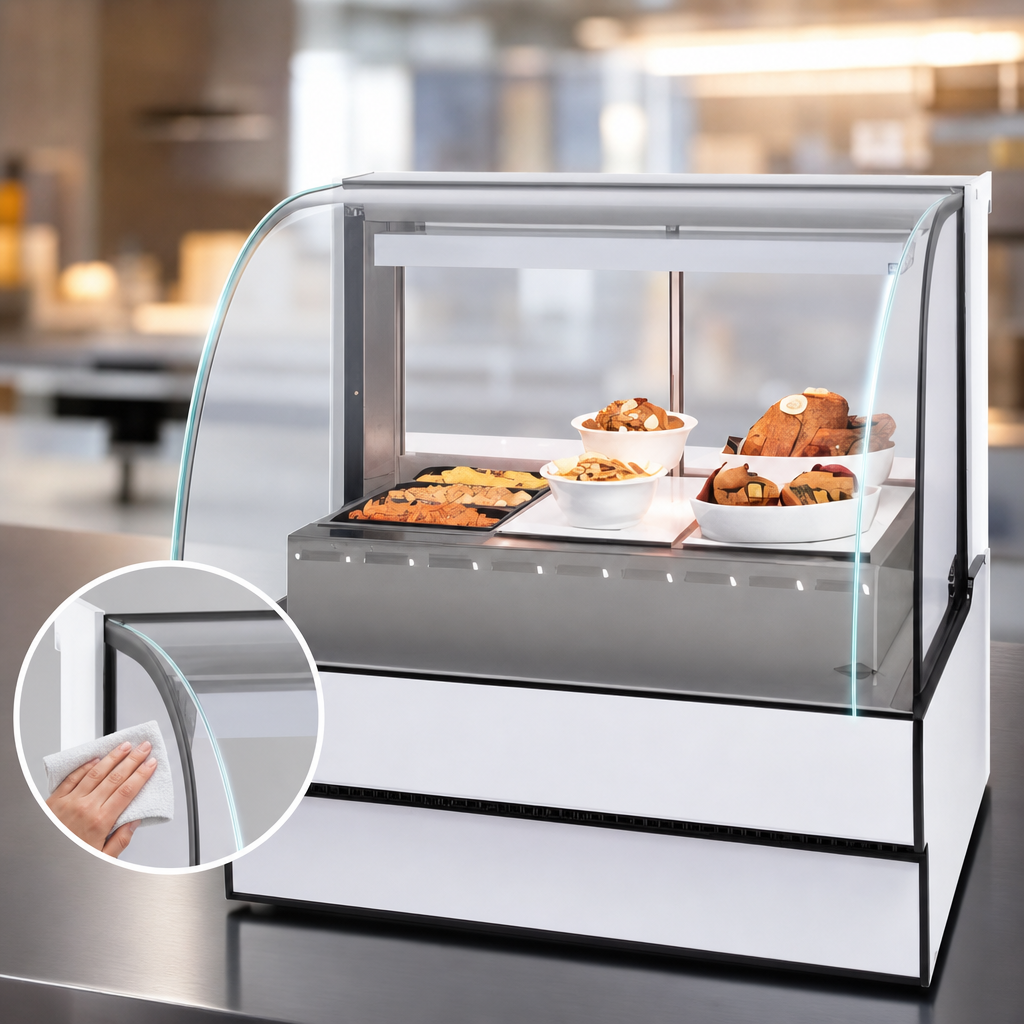

- Curved tilt-out Thermopane front glass and tempered glass ends for a crystal-clear view and fast cleaning.
- Forced-air front-glass defogger eliminates condensation during peak periods.
- Bright, energy-efficient LED top lighting showcases food without adding heat.
- Glass sliding rear doors with adjustable moisture vents speed service and help retain heat.
- Removable rear wrapping board and stainless-steel deck simplify prep and cleanup.
- Heavy-duty steel base with your choice of six standard laminates; contrasting black trim included.
- Designed for continuous line-ups—add additional cases without middle end glass.
- Self-contained drains on each well—no floor drain hookup required.
- Adjustable leg levelers for quick, accurate installation.
- UL & UL EPH Classified for safety and sanitation.
Model Specifications
| Model | CG5048HD |
|---|---|
| Overall Dimensions (W × D × H) | 50.13″ × 35.31″ × 48″ (1273 × 897 × 1219 mm) |
| Number of Wells | 3 full-size pans |
| Heat Type | Wet or dry |
| Top Heat | Infrared |
| Lighting | LED, top-mounted |
| Electrical | 120/208-240 V, 60 Hz, 1-ph, 19.6 A (3-wire + ground) |
| Shipping Weight | 585 lb (265 kg) |
| Agency Approvals | UL Safety, UL EPH, ANSI/NSF 4 |
Included With Every Unit
- Adjustable leg levelers
- Black trim package
- Removable rear wrapping board
- Operator’s manual
Popular Factory Options
- Special base finishes or mirrored interior
- Package shelf or lighted package shelf
- Front glass & rear door locks
- Scale platform
- Reflective ends or rear doors
- Joining kit for multi-case line-ups
Warranty: 1 year parts & labor, plus 5 years parts on the compressor (USA & Canada).
