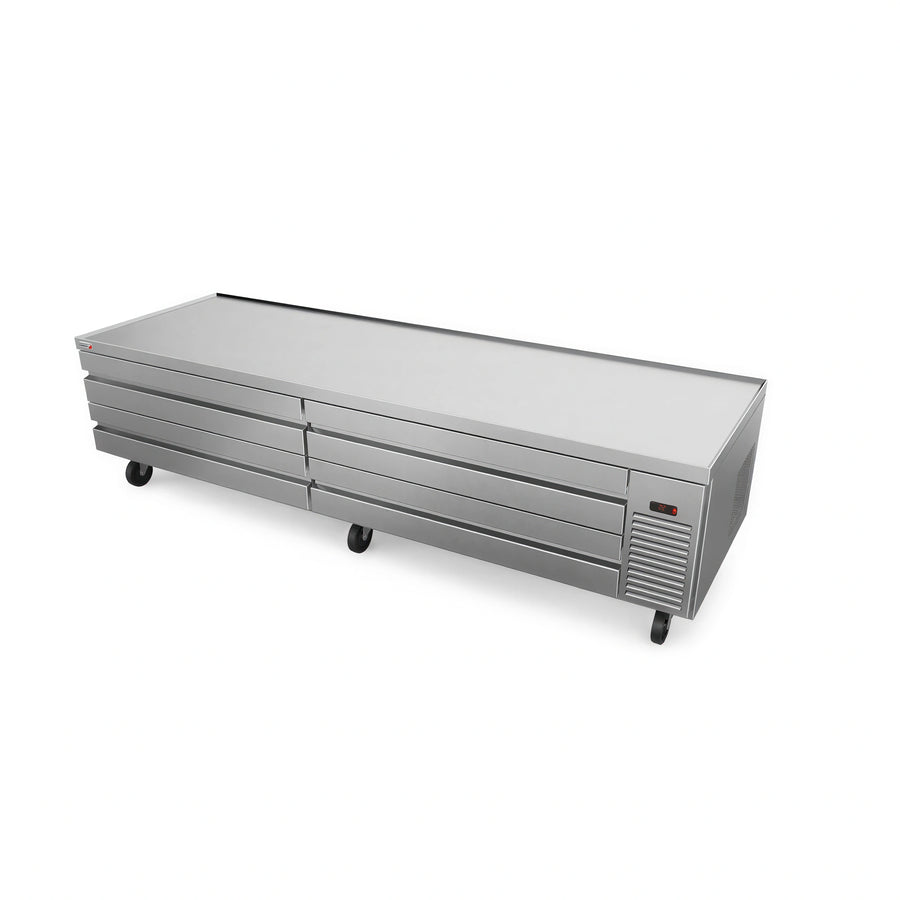

Fagor Refrigeration FCBR-96 Refrigerated Chef Base Equipment Stand, 96-5/8"W, 4 Drawers, Self-Contained, Stainless Steel Top

SKU: FCBR-96
$12,888.89
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Work Tables Equipment Stands Fagor Refrigeration Kitchen Equipment Tables New Arrivals Refrigerated & Freezer Equipment Bases Refrigeration & Ice Refrigerators & Freezers Restaurant Equipment Undercounter & Worktop Cabinet Equipment Undercounter & Worktop Refrigeration

FCBR-96 is a self-contained refrigerated chef base with four drawers and a stainless steel top, measuring 96-5/8 inches wide.

Each drawer accommodates three 12 × 20 × 4-inch-deep pans. The unit features stainless steel construction on the top, front, sides, interior, and drawers, with a galvanized back panel, digital controls, and 4-inch casters.

  • Side-mounted refrigeration system for built-in applications
  • Automatic, time-initiated defrost
  • 115 V connection with an 8-foot cord and NEMA 5-15P plug
  • Pans sold separately

Overall Dimensions:

96.62"W x 32.0"D x 25.38"H

Product Weight:

640.0 lb

Four drawers

Each drawer accommodates three 12 × 20 × 4-inch-deep pans. Pans are sold separately.

Stainless steel construction

The top, front, sides, interior, and drawers are stainless steel; the back panel is galvanized.

Self-contained refrigeration

The side-breathing refrigeration system has a right-side-mounted compressor and is specified for built-in applications.

Digital controls and defrost

The unit includes a digital controller and thermostat with automatic, time-initiated defrost.

Refrigerant and insulation

The refrigeration system uses R-290 refrigerant and 2-inch CFC-free polyurethane insulation foamed in place.

Four-inch casters

The unit is supplied with equipment-mounted 4-inch casters.

Electrical connection

The unit is specified for 115 V and 3.0 A operation with an 8-foot cord and NEMA 5-15P plug.

Drawer count 4 drawers
Pan accommodation 3 pans per drawer; each pan 12 × 20 × 4 in deep
Refrigeration system Self-contained, side-breathing
Compressor rating 1/4 HP
Compressor location Right-side mounted
Refrigerant R-290
Controls Digital controller and thermostat
Defrost Automatic, time initiated
Voltage 115 V
Amperage 3.0 A
Plug type NEMA 5-15P
Power cord length 8 ft
Caster size 4 in
Insulation 2 in CFC-free polyurethane, foamed in place
Exterior construction Stainless steel top, front, and sides; galvanized back panel
Interior construction Stainless steel interior with coved corner floor

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

Three-year parts and labor warranty plus an additional two-year sealed compressor parts warranty.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The FCBR-96 has four drawers.
Each drawer accommodates three 12 × 20 × 4-inch-deep pans. Pans are sold separately.
The unit measures 96.62 inches wide, 32.0 inches deep, and 25.38 inches high. The listed 32-inch depth does not include the 1-inch bumper.
It is specified for 115 V and 3.0 A operation with an 8-foot cord and NEMA 5-15P plug.
The FCBR-96 uses a self-contained capillary tube refrigeration system with R-290 refrigerant and a right-side-mounted compressor.
No. The specifications state that pans are sold separately.
The warranty provides three years of parts and labor coverage plus an additional two-year sealed compressor parts warranty, subject to the manufacturer's warranty terms.
