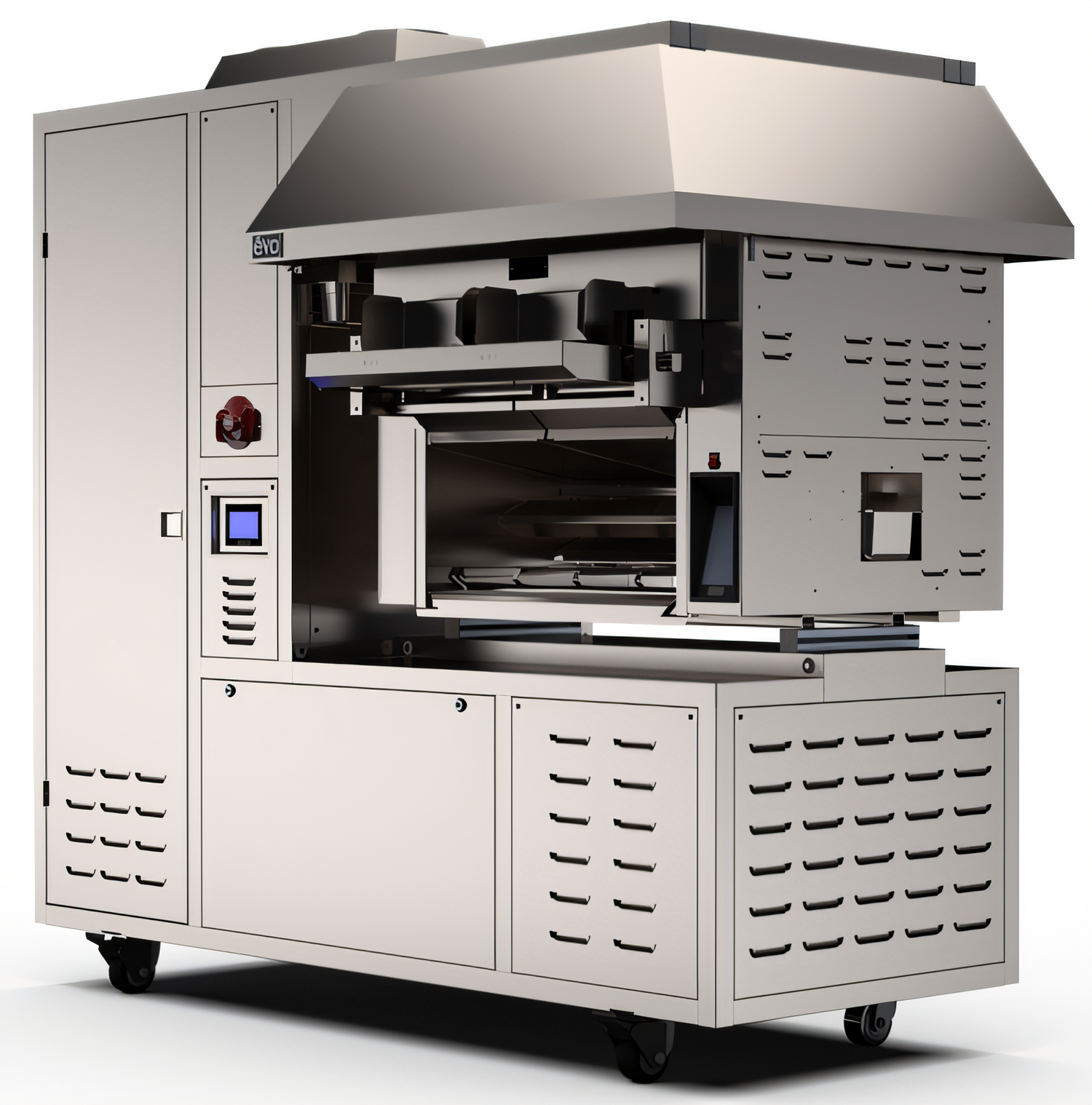

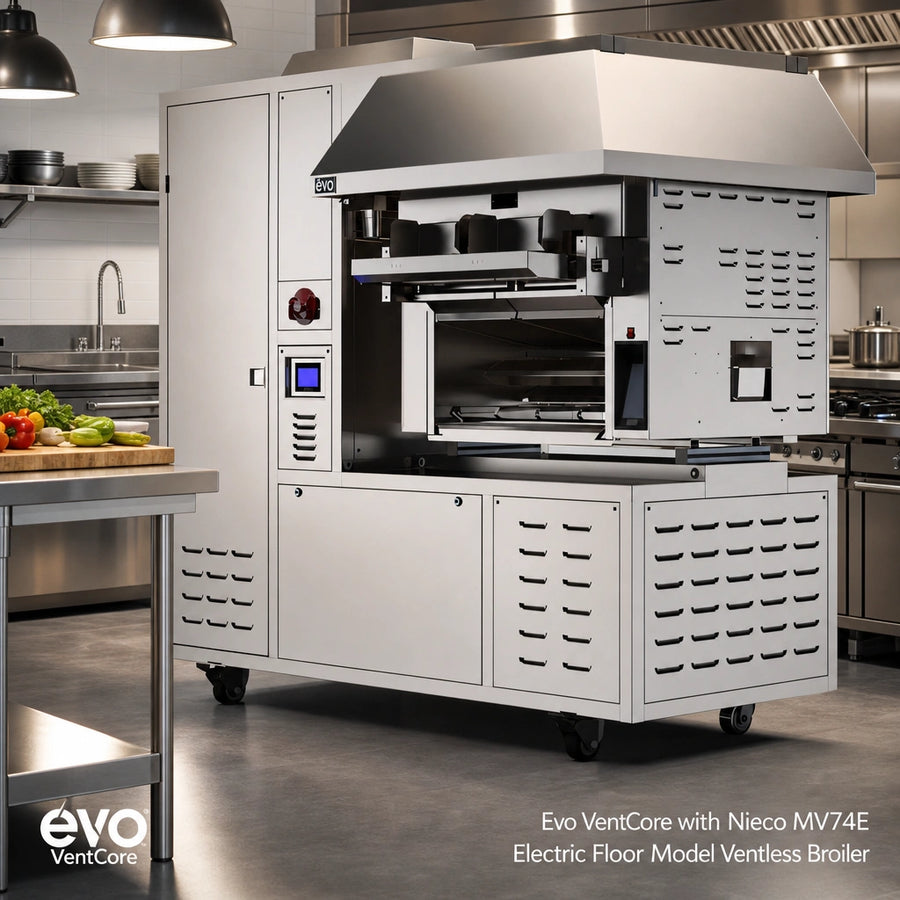

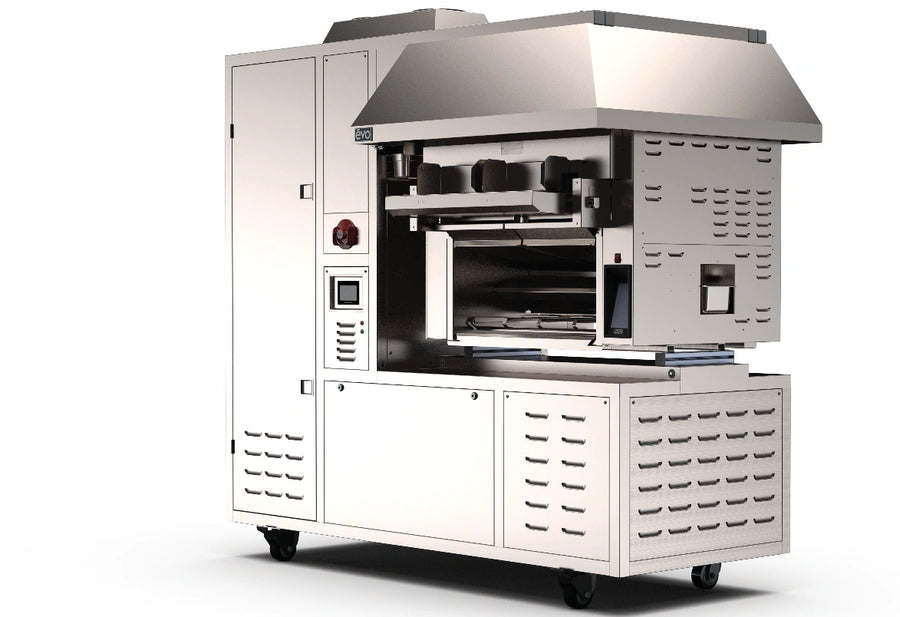

Evo VentCore with Nieco MV74E Electric Floor Model Ventless Broiler
Evo VentCore with Nieco MV74E Electric Floor Model Ventless Broiler
45 Inch, Double Feed Chain Cooking, Self-Contained 4-Stage Filtration
Experience high-capacity, charbroiled flavor without the need for traditional ventilation, thanks to the Evo VentCore with Nieco MV74E's integrated 4-stage filtration and fire protection system.
- Ventless operation with a self-contained 4-stage filtration system, complying with UL710B and EPA 202 standards.
- Nieco MV74E broiler delivers consistent charbroiled flavor and sear marks using radiant, reflective, and convective heat.
- Pre-engineered, factory-installed Ansul R102 fire protection system provides enhanced safety and meets NFPA 96 standards.
- User-friendly resistive interactive touchscreen controls offer instant status updates for filters and maintenance scheduling.
- Durable welded stainless steel construction, mounted on locking caster wheels for easy mobility and cleaning.
- Designed for high-capacity locations, reducing operating costs with optimized cooking technology and no disposable filters.
Overall Dimensions:
45.0"W x 88.45"D x 84.63"HProduct Weight:

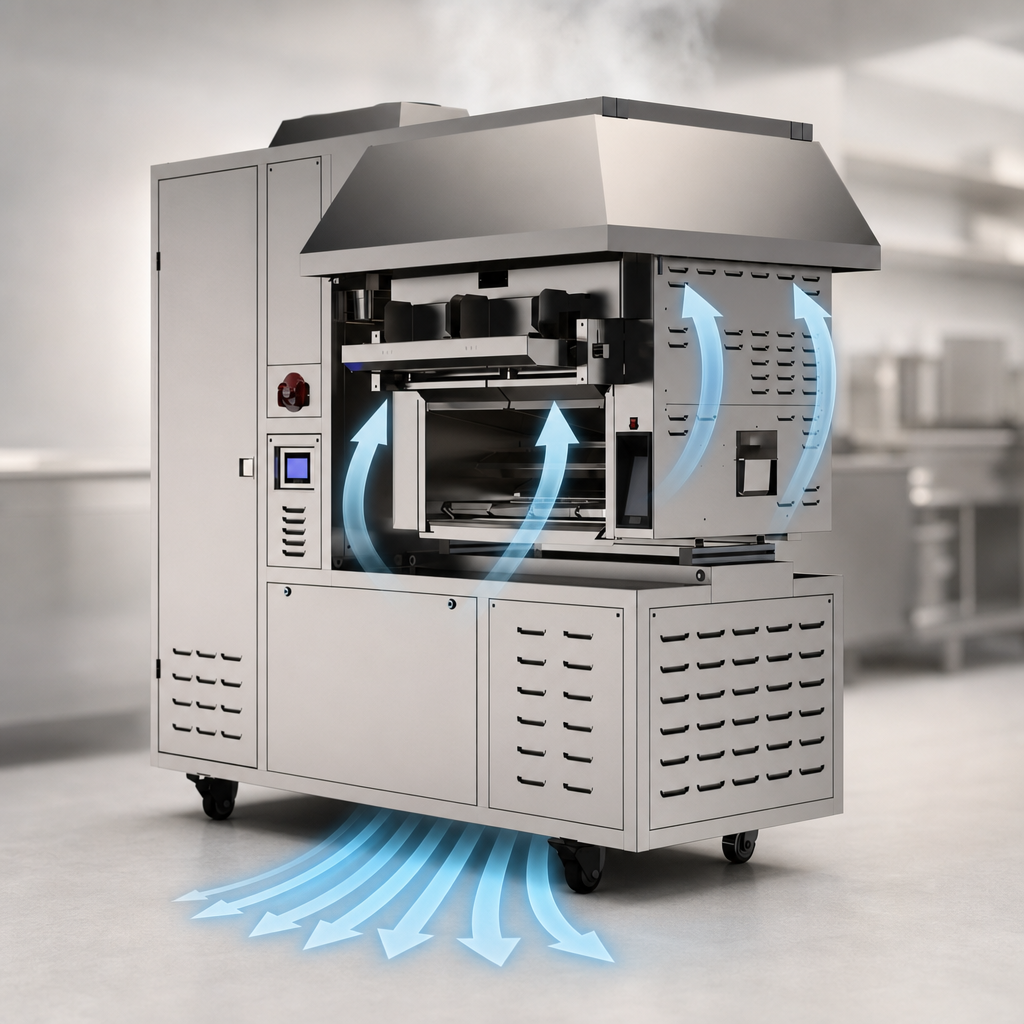

1871.0 lbVentless Recirculating Ventilation System
Captures and processes cooking vapor, returning clean air to the occupied space, eliminating the need for a traditional exhaust hood. The system discharges clean filtered air under the unit for evenly dispersed airflow.

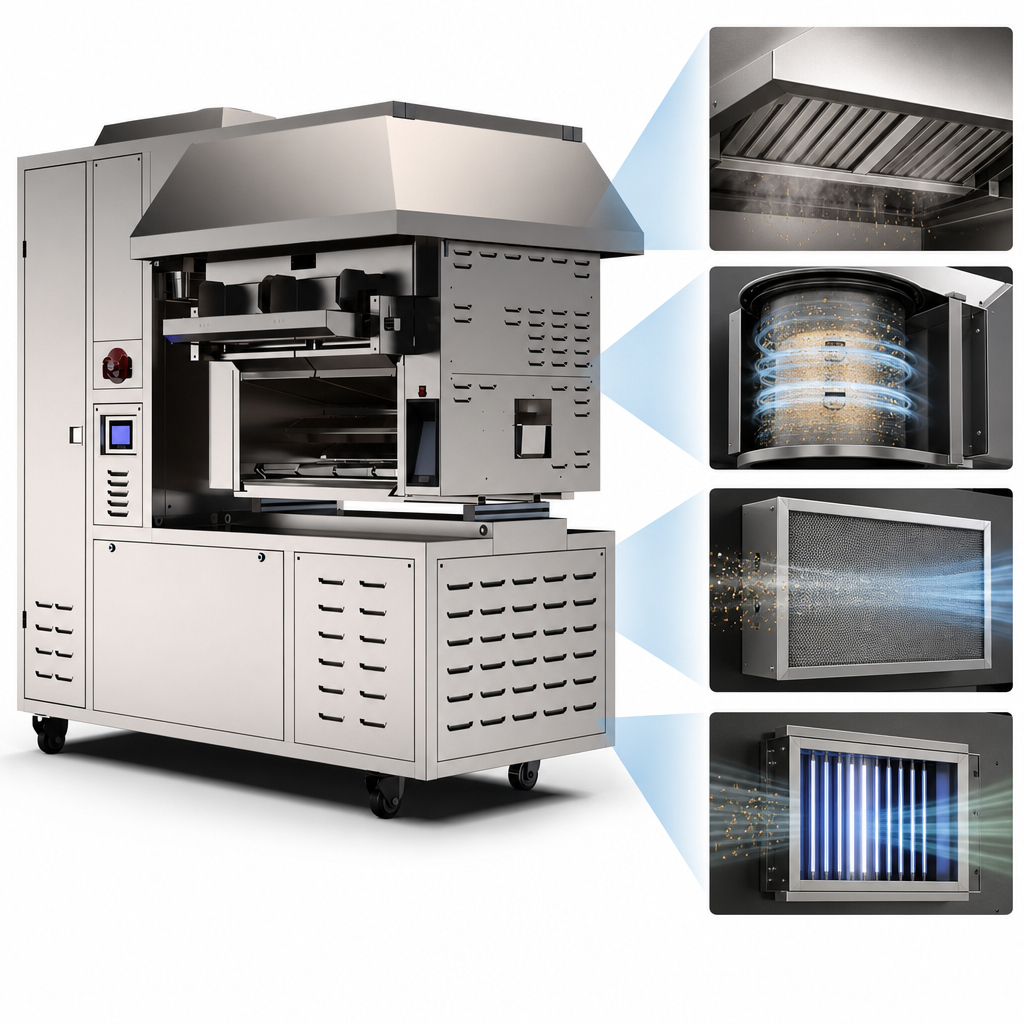

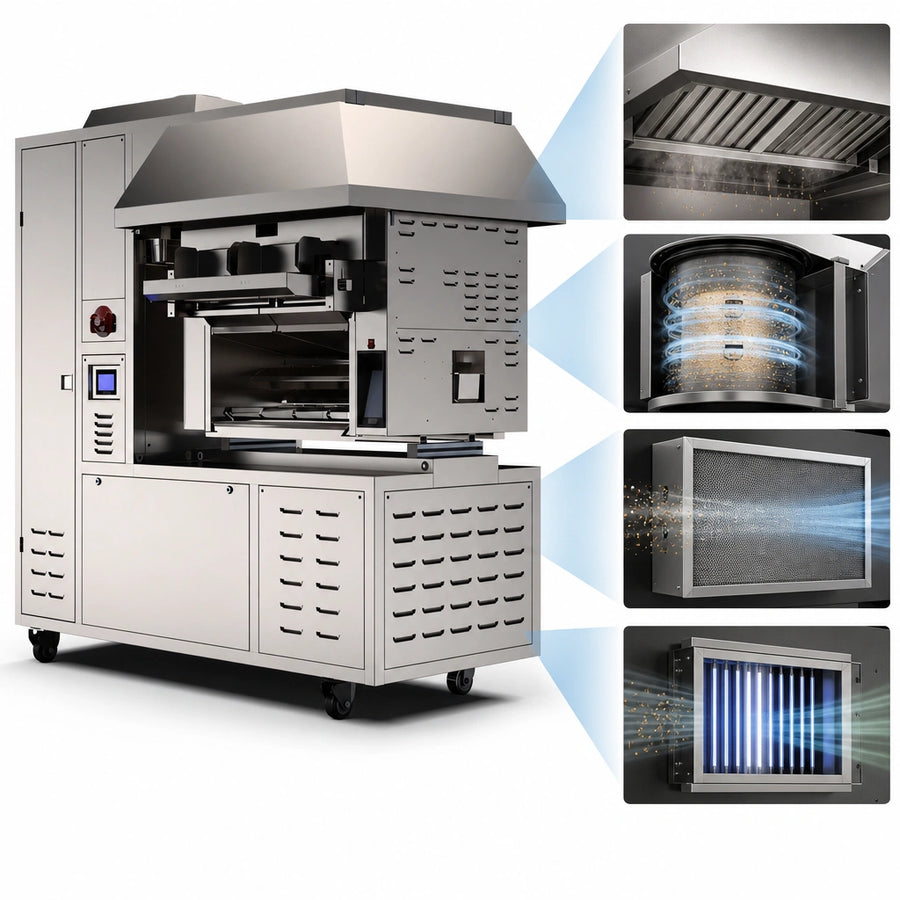

4-Stage Filtration System
Completely self-contained system utilizes washable stainless steel grease baffle filters, a cyclonic particulate separation filter, mesh particulate filters, and electrostatic precipitator filters to reduce grease emissions below EPA 202 levels, complying with UL710B Standard.
Nieco MV74E Broiler
High-capacity broiler designed to produce consistent charbroiled flavor and surface sear marks by combining radiant, reflective, and convective heat technologies.
Factory Installed Ansul R102 Fire Protection System
Pre-engineered system includes a liquid suppression tank, nitrogen cartridge, system control head, piping, flex cable, fusible link, nozzles, and a manual pull station. Tested to the UL300 Standard and meets NFPA 96 requirements.
Dry Contact Fire Alarm Micro Switch
Integrated micro switch provides immediate notification to a central fire alarm system, enhancing kitchen safety.
Resistive Interactive Touchscreen Controls
User-friendly interface displays instant status of filters and filter doors, along with periodic maintenance schedules.
Double Feed Chain Cooking
Optimized feeder chain speed and preset cooking temperatures for high volume and consistent cooking results.
Welded Stainless Steel Construction
Ensures durability, strength, and ease of cleaning for the entire unit.
Low Operating Noise
Operates at an average sound level of less than 70 dBA, contributing to a quieter kitchen environment.
Semi-Mobile Design
Mounted on locking caster wheels for easy positioning, maintenance, and cleaning.
Cross-Pattern Nozzles
Part of the Ansul fire suppression system, these nozzles provide a continuous zone of fire protection.
Airflow Sensors with Interlock System
Continuously monitor airflow and grease removal, preventing the unit from operating if filters are missing or clogged.
Certifications & Compliance
Warranty & Protection
Limited one-year parts and labor warranty
