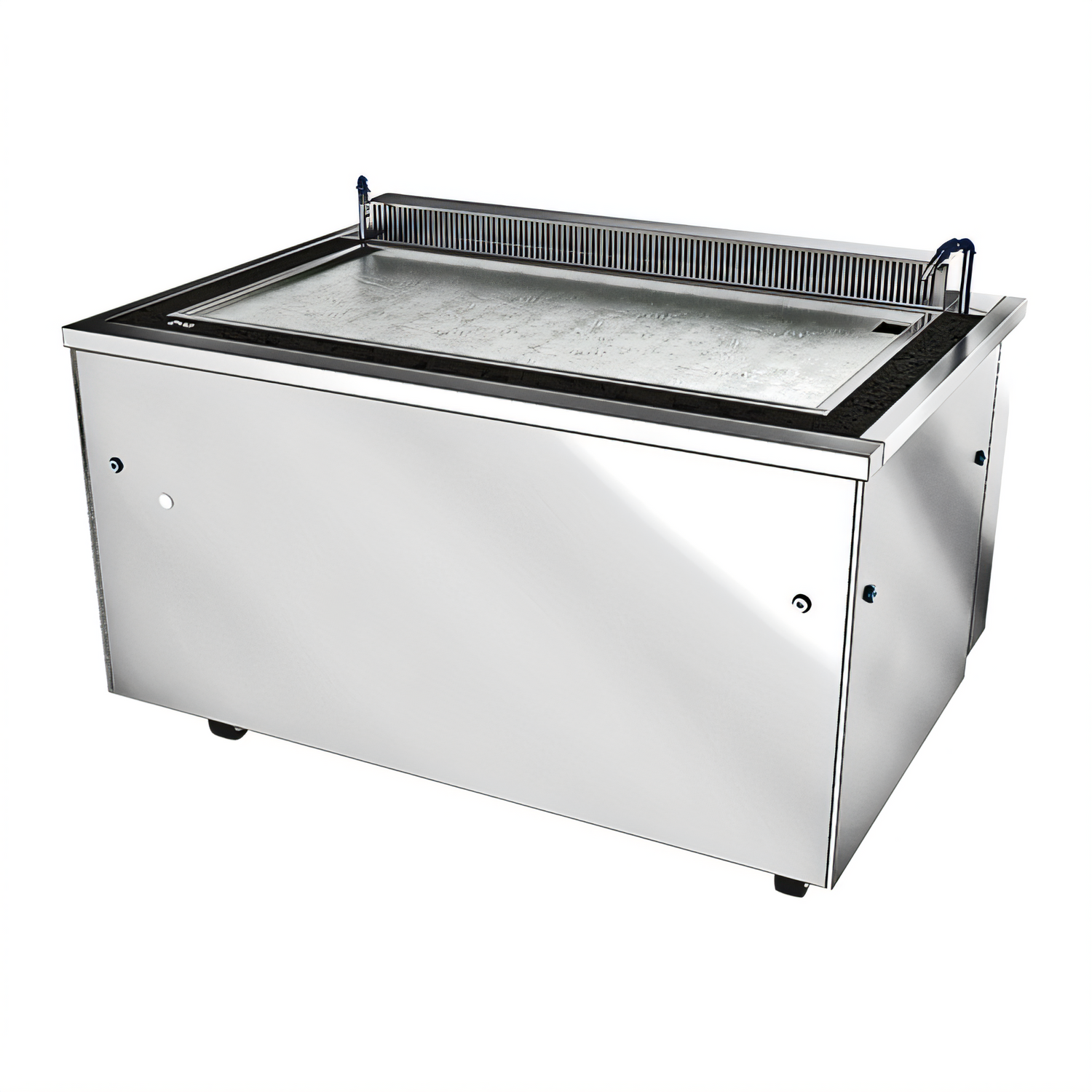

Evo EVent 48E PLUS Electric Ventless Rectangular Griddle Cooking Station
Evo EVent 48E PLUS Electric Ventless Rectangular Griddle Cooking Station
Full Metal Surround, 48" x 24" Cooktop, 6 Heaters, 3-Phase
Revolutionize your front-of-house cooking with the Evo EVent 48E PLUS, an integrated electric griddle with a self-contained ventless system and advanced fire suppression, perfect for interactive display cooking.
- Integrated ventless recirculating ventilation system ideal for front-of-house cooking, eliminating the need for an external hood.
- Advanced 4-stage filtration system effectively reduces grease, smoke, and odors, complying with NFPA 96 and ANSI UL710B standards.
- Features a factory-installed Buckeye® Kitchen Mister fire suppression system for enhanced safety and compliance.
- Equipped with a 48" x 24" rectangular steel cooktop and 6 combined heaters for high capacity throughput.
- Precise temperature control from 100°F to 425°F via an interactive touchscreen display for versatile cooking.
- Durable stainless steel and aluminum construction with a black granite surround ensures longevity and ease of cleaning.
- Semi-mobile design allows for easy movement of the unit for housekeeping and maintenance.
- Proudly Made in USA, certified by UL and UL EPH Classified for safety and sanitation.

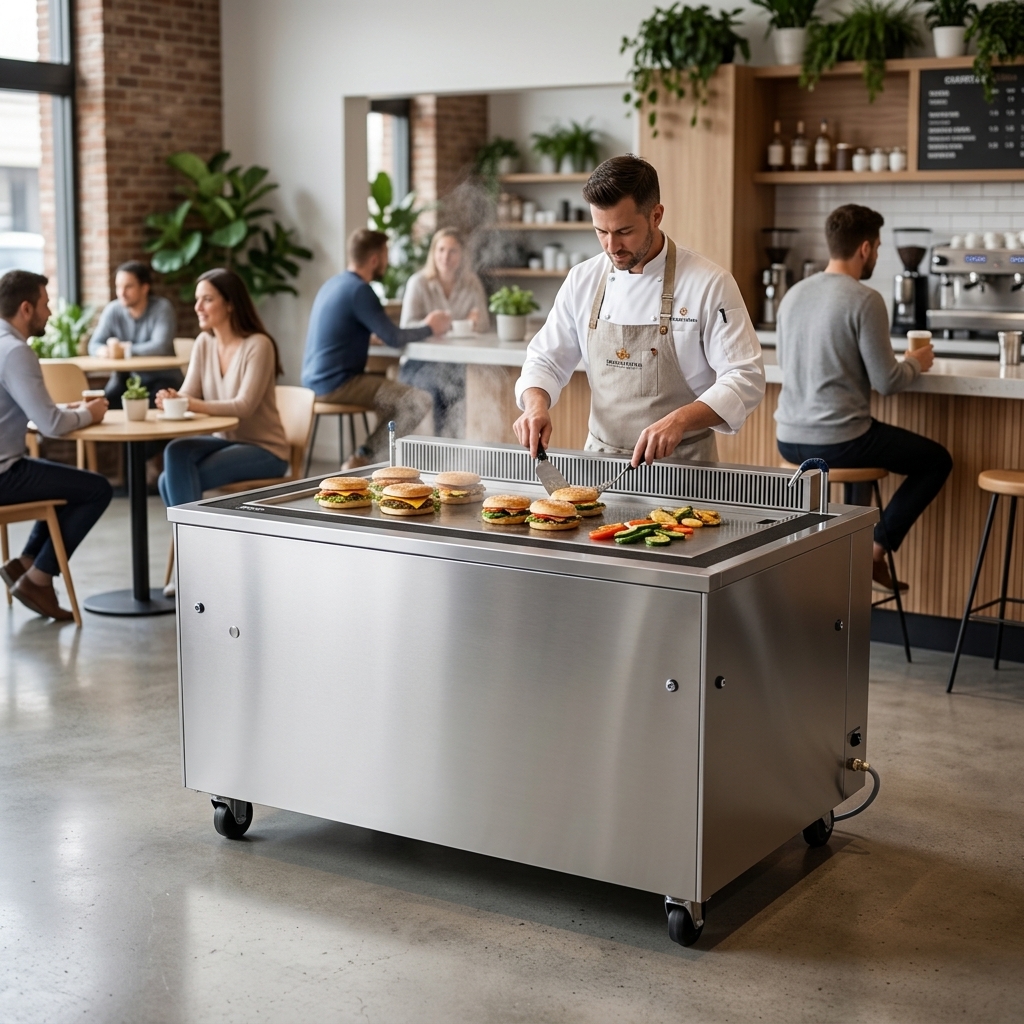

Self-Contained Ventless System
Integrated recirculating ventilation unit allows for cooking without an overhead exhaust hood, suitable for front-of-house applications.

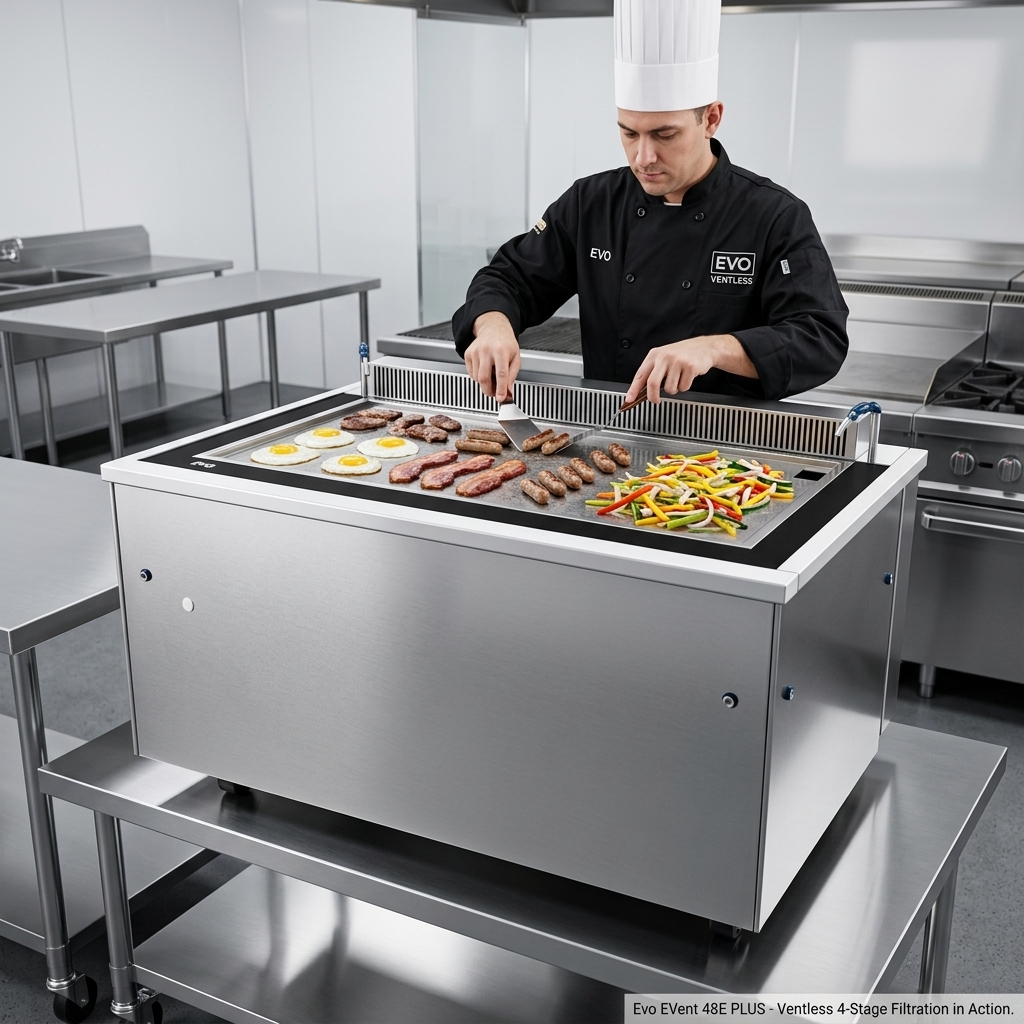

4-Stage Filtration System
Completely self-contained filtration process reduces grease emissions and smoke below NFPA 96 and ANSI UL710B standards, utilizing EPA 202 test method. Includes a washable stainless steel grease baffle filter, mesh particulate filter, electrostatic precipitator (ESP), and replaceable activated charcoal filter.

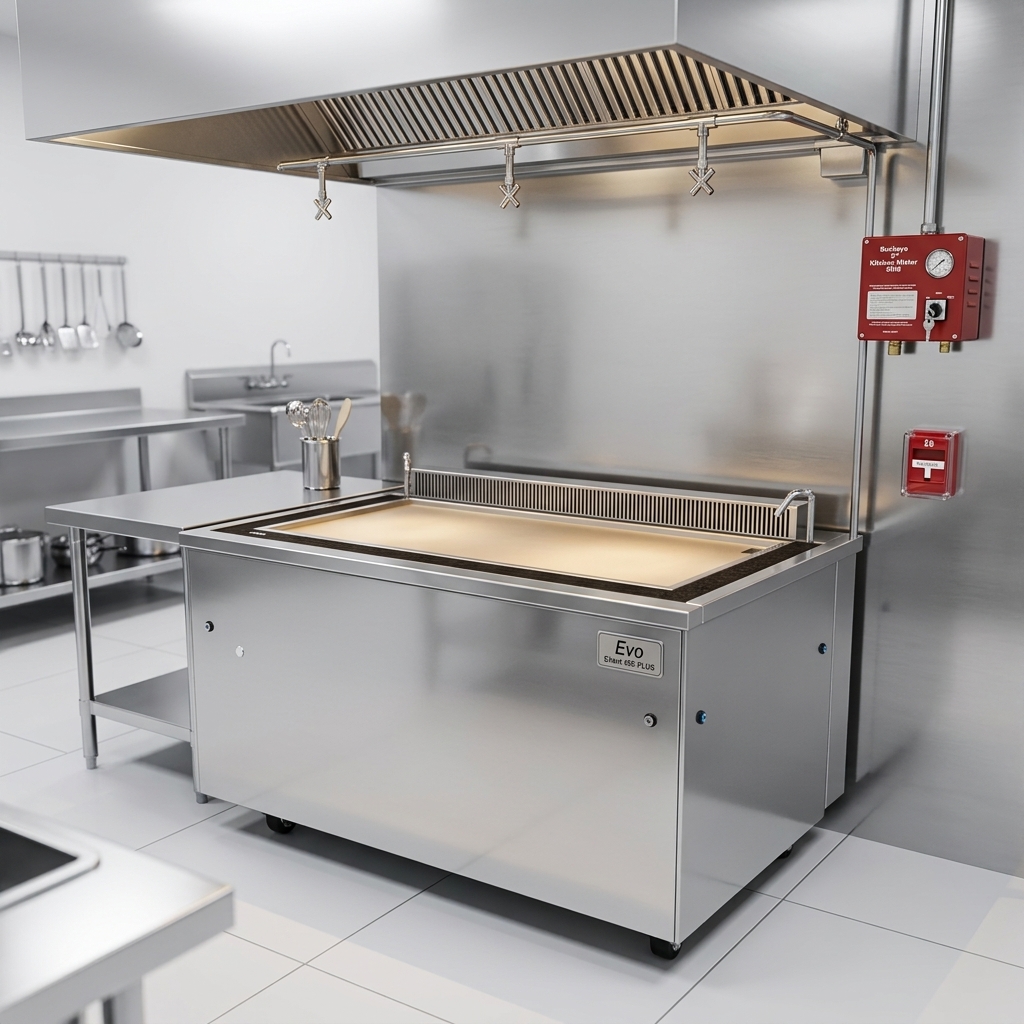

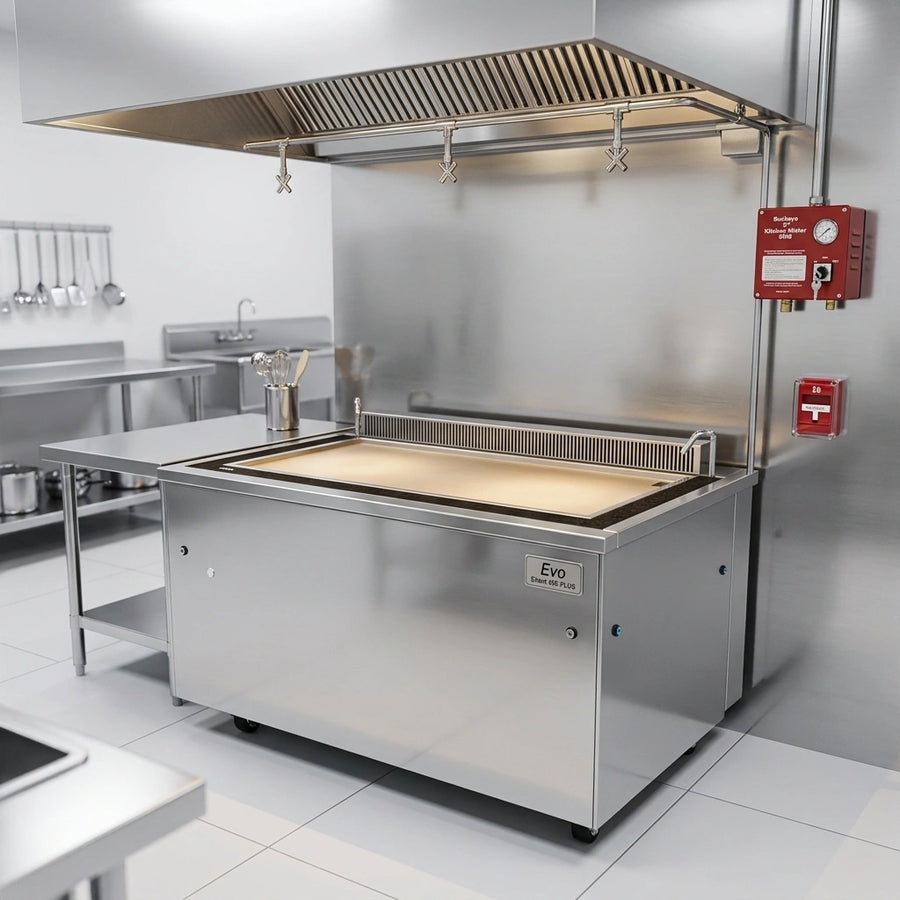

Integrated Fire Protection
Factory-installed Buckeye® Kitchen Mister system includes BFR-5 tank, nitrogen cartridges, SRM control head, piping, flex cable, fusible link, cross-pattern nozzles, and a manual pull station, meeting NFPA 96 Chapter 13 and UL300 standards.
Intelligent Heating Cooktop
Features a 48" x 24" (1219mm x 610mm) flat rectangular steel cook surface with Evo® patented intelligent heating technology, providing a 36" x 17" heated cooking area.
High Capacity Heaters
Equipped with 6 combined heaters for high capacity throughput, ensuring consistent cooking performance.
Precise Temperature Control
Offers variable temperatures ranging from 100°F to 425°F (38°C to 218°C) for a wide array of cooking applications.
Resistive Touchscreen Display
An interactive touchscreen display provides instant status of filters, grease drawers, and allows control over temperature presets.
Durable Construction
Constructed from stainless steel and aluminum for exceptional durability, strength, and ease of cleaning, surrounded by black granite.
Easy Maintenance
Chef-side accessible, easily removable filters (grease baffle, mesh particulate, ESP, and disposable activated charcoal filter) with an included 8 MM hex key.
Low Noise Operation
Operates at a low average noise level of only 70 dBA, making it ideal for front-of-house settings.
Semi-Mobile Design
Evo EVent units are semi-mobile, facilitating easy movement for routine housekeeping and maintenance tasks.
Central Fire Alarm Connection
Includes a dry contact micro switch for convenient connection to a central fire alarm system.
Included Accessories
Ships with one complete set of 4 filters, a grill surface cleaning kit, 2 stainless steel spatulas, a grill scraper, and an owner's manual.
Airflow Sensors & Interlock System
Continually monitors airflow and grease removal, with an interlock system preventing operation if filters are missing, clogged, or in the event of a fire.
Specifications
| Type | Cooking Station |
|---|---|
| Style | Ventless Griddle |
| Installation Type | Floor Model (With Casters) |
| Cooking Surface Width | 48 Inches |
| Cooking Surface Depth | 24 Inches |
| Cooking Surface Area | 1152 Square Inches |
| Heated Area | 36 Inches x 17 Inches |
| Cooking Surface Material | Steel |
| Exterior Finish | Stainless Steel & Aluminum |
| Griddle Plate Finish | Smooth Steel |
| Controls | Programmable Digital Touchscreen |
| Temperature Range | 100°F to 425°F |
| Compartments | 1 |
| Voltage | 208 Volts |
| Phase | 3-Phase |
| Hertz | 60 Hz |
| Amps | 32 Amps |
| Breaker Size | 40 Amps (Dedicated) |
| Plug Type | NEMA 15-50P |
| Cord Length | 8 Feet |
| Noise Level | 70 dBA |
| Filtration System | 4-Stage |
| Fire Suppression System | Buckeye Kitchen Mister |
| Country of Origin | USA |
| Selling Unit | Each |
| Units Per Case | 1 |
| Shipping Width | 60 Inches |
| Shipping Depth | 40 Inches |
| Shipping Height | 36 Inches |
| Shipping Weight | 1235 lb. |
Overall Dimensions:
59.14"W x 39.5"D x 36.0"HProduct Weight:
1235.0 lbCertifications & Compliance
Warranty & Protection
1-year parts and labor warranty
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
