Evo America, LLC (Middleby)

Evo EVent 48E Full Metal Surround 48 Inch Electric Ventless Cooking Station

SKU: 10-0148-EVT
$70,402.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Electric Griddles Evo America, LLC (Middleby) Griddles & Flat Tops New Arrivals Restaurant Equipment

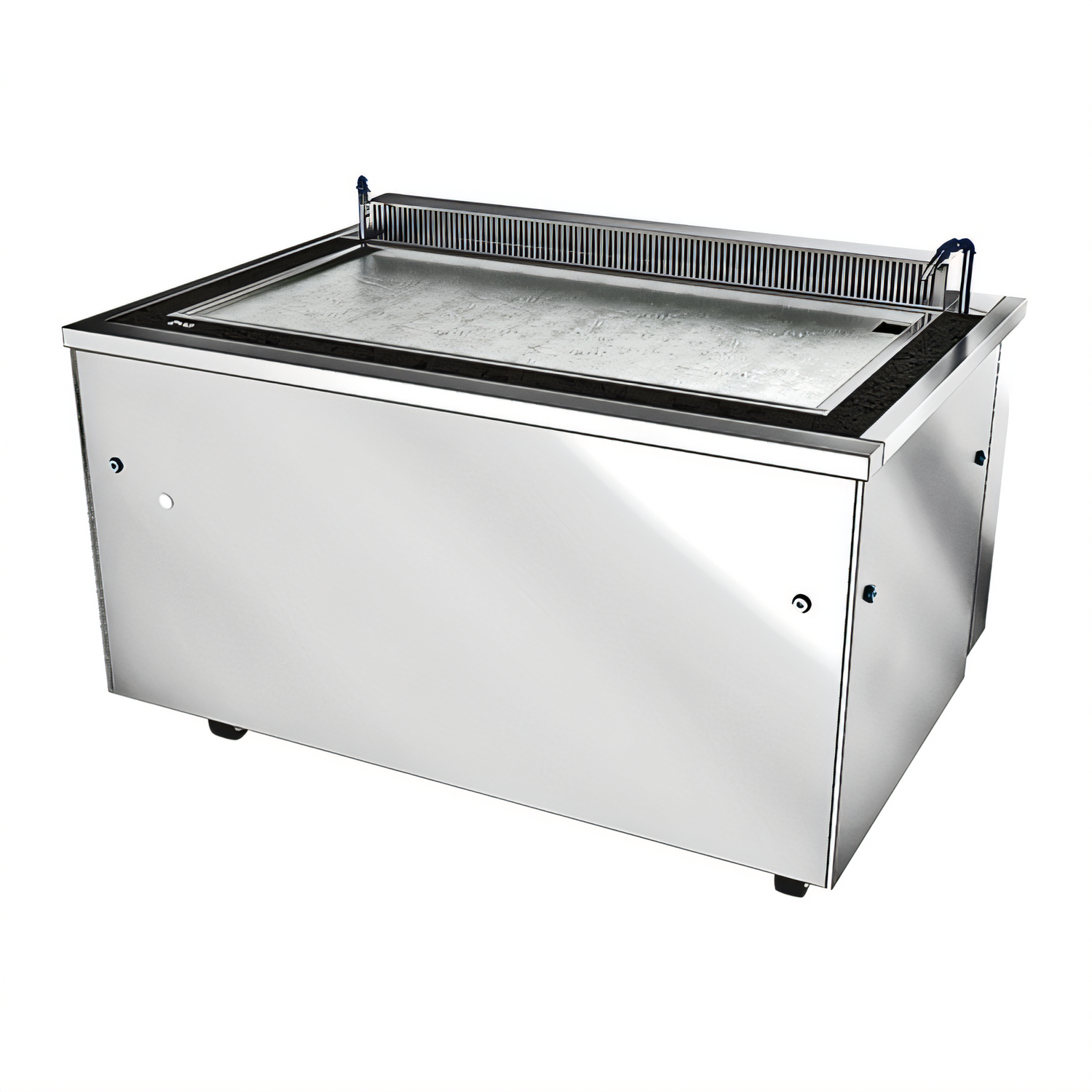

Evo EVent 48E Full Metal Surround 48 Inch Electric Ventless Cooking Station

Full-Size, Electric, Ventless, Countertop/Floor Model

Revolutionize your front-of-house cooking with the Evo EVent 48E, combining a powerful electric griddle with an integrated 4-stage ventless filtration and fire suppression system.

  • Integrated 4-stage ventless recirculating ventilation system eliminates the need for an overhead hood.
  • Features a 48"W x 24"D rectangular steel cooktop with a temperature range of 100°F to 550°F.
  • Equipped with a factory-installed Buckeye® Kitchen Mister fire suppression system for enhanced safety.
  • Resistive interactive touchscreen display provides instant status updates and precise temperature control.
  • Constructed from durable stainless steel and aluminum, designed for semi-mobile use in commercial environments.
  • Reduces grease emissions below NFPA 96 and ANSI UL710B standards using the EPA 202 test method.

Overall Dimensions:

59.14"W x 39.5"D x 36.0"H

Product Weight:

1235.0 lb

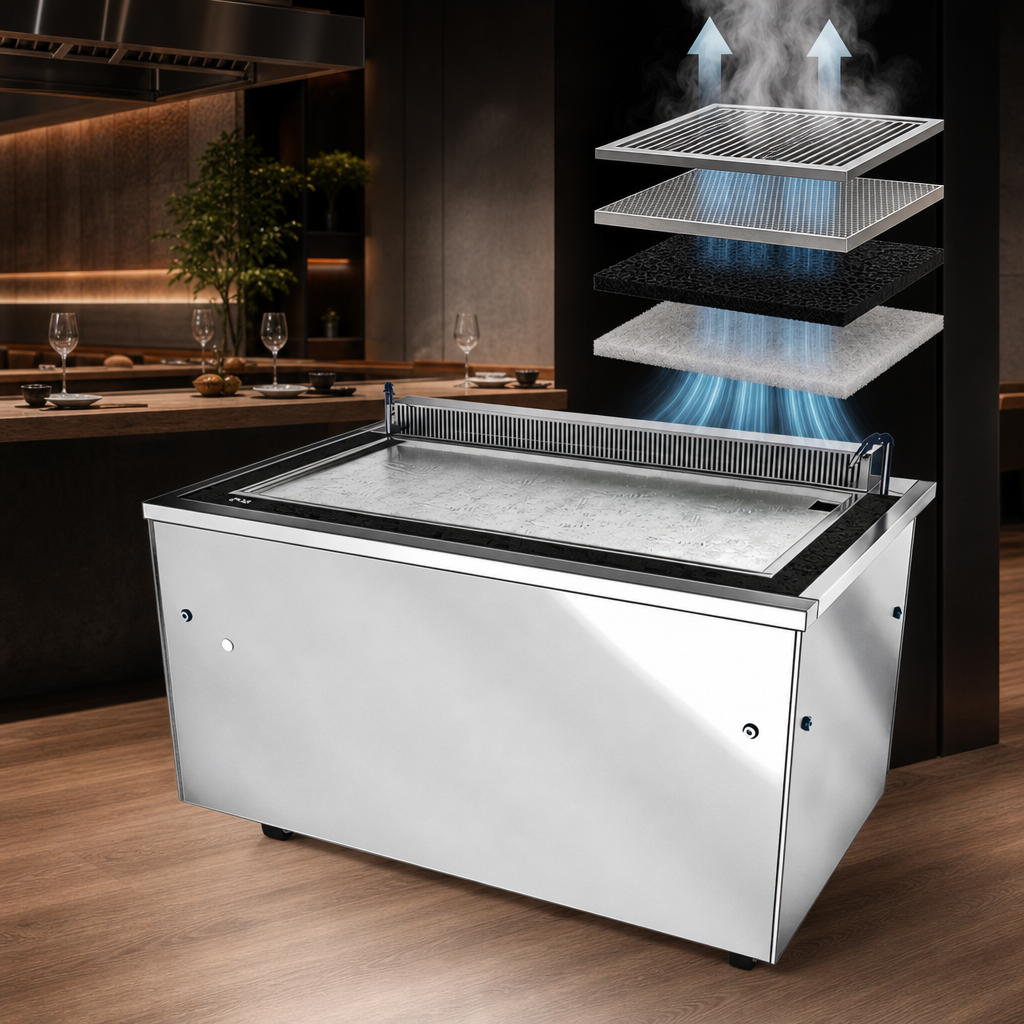

Integrated Ventless Design

Self-contained 4-stage filtration system removes smoke and grease, allowing for front-of-house cooking without external ventilation or a dedicated make-up air unit.

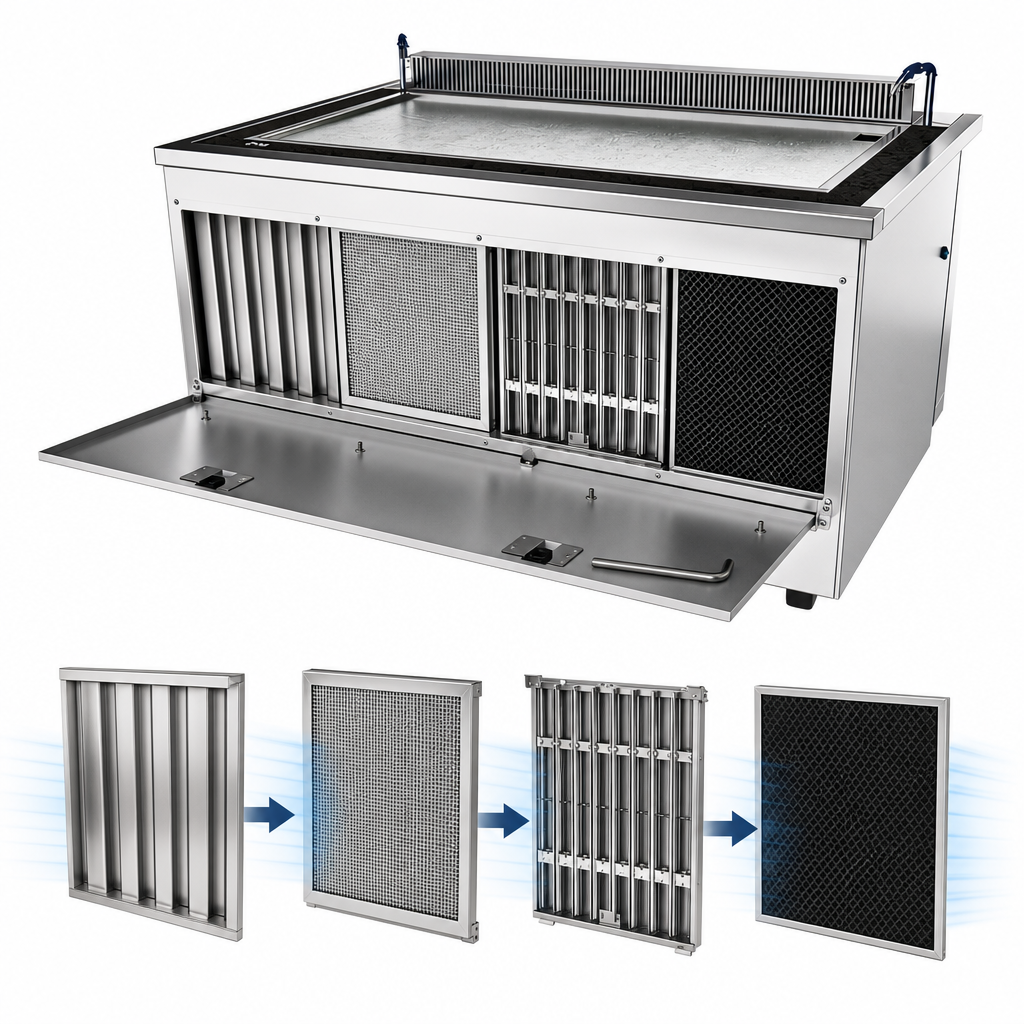

Advanced Filtration System

Features a washable stainless steel grease baffle filter, mesh particulate filter, electrostatic precipitator (ESP), and a replaceable activated charcoal filter, all easily removable with an 8MM hex key.

Factory-Installed Fire Suppression

Includes a pre-engineered Buckeye® Kitchen Mister system with BFR-5 tank, nitrogen cartridges, control head, piping, nozzles, and a manual pull station, meeting NFPA 96 Chapter 13 and UL300 standards.

Intuitive Touchscreen Controls

Resistive interactive touchscreen display provides real-time feedback on filter status, grease drawers, and allows for control of temperature presets.

Durable Construction

Built with stainless steel and aluminum for strength, longevity, and ease of cleaning, ensuring commercial-grade performance.

Precise Temperature Control

Offers a variable temperature range from 100°F to 550°F (38°C to 288°C) across a 24" x 17" heated cooking area, powered by Evo patented intelligent heating technology.

Easy Maintenance

Large removable grease collection tray and chef-side accessible filters simplify cleaning and upkeep. Charcoal filter replacement is recommended every 2 weeks.

Low Noise Operation

Operates at a low average noise level of only 70 dBA, making it suitable for open dining environments.

Semi-Mobile Design

Designed to be semi-mobile, allowing easy relocation for housekeeping and maintenance.

Integrated Fire Alarm Micro Switch

Pre-engineered fire protection system includes a dry contact micro switch for connection to a central fire alarm system (operator's responsibility).

Included Accessories

Ships with one complete set of 4 filters, a grill surface cleaning kit, two stainless steel spatulas, a grill scraper, and an owner's manual.

Black Granite Surround

The rectangular steel cooktop is surrounded with an elegant black granite countertop.

Type Ventless Cooking Station
Style Griddle
Installation Type Floor Model (With Casters)
Controls Resistive Touchscreen
Cooking Surface Width 48 Inches
Cooking Surface Depth 24 Inches
Cooking Surface Material Steel
Interior Finish Steel (Cooktop), Stainless Steel (Duct System)
Temperature Range 100° F to 550° F
Voltage 208/240 Volts
Amps 32 Amps
Phase 1-Phase
Hertz 60 Hz
Breaker Size 40 Amp Dedicated
Plug Type NEMA 6-50P
Cord Length 8 Feet
Material Stainless Steel
Exterior Finish All Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 60 Inches
Shipping Depth 40 Inches
Shipping Height 36 Inches
Shipping Weight 1235 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

Limited one-year parts and labor warranty

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Middleby financial flyer PDF Download

Frequently Asked Questions

No, the Evo EVent 48E features a completely self-contained, 4-stage recirculating ventilation system that reduces grease emissions and smoke, eliminating the need for external ventilation or a dedicated make-up air unit.
The unit comes with a factory-installed Buckeye® Kitchen Mister automatic fire suppression system, including a BFR-5 tank, nitrogen cartridges, control head, piping, nozzles, and a manual pull station, tested to UL300 standards.
The disposable activated charcoal post-filter should be replaced approximately every 2 weeks for optimal performance.
Yes, the Evo EVent 48E is designed to be semi-mobile, making it easy to roll out for housekeeping and maintenance. Caster kits are available as accessories.
The unit operates on 208 or 240 Volts, 1-Phase, 60 Hz, drawing 32 Amps. It requires a 40 Amp dedicated circuit and comes with an 8-foot cord and a NEMA 6-50P plug.
The stainless steel grease baffle filter, aluminum mesh pre-filter, and electrostatic precipitator (ESP) are all washable. The activated charcoal filter is disposable and needs to be replaced regularly. Airflow sensors continually monitor filters, and an interlock system prevents operation if filters are missing or clogged.
