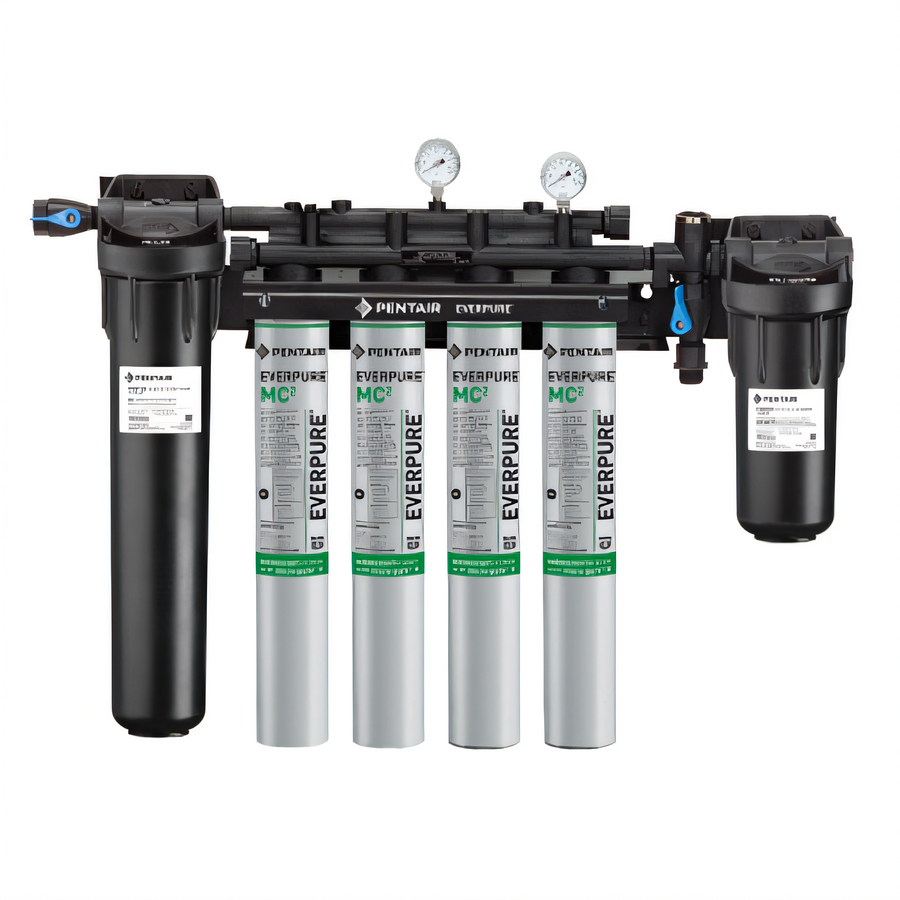

Everpure High Flow CSR Quad-MC2 Commercial Water Filtration System with Low Pressure Alarm

36,000-Gallon Capacity, 6.7 GPM Max, 0.2 Micron, 3/4-Inch Inlet/Outlet

A high-capacity quad filtration system that delivers clean, great-tasting water to fountain, coffee, and ice equipment while helping control scale.

  • One system provides filtered water for multiple fountain, coffee, and ice applications.
  • 36,000-gallon capacity and 6.7 GPM maximum flow support high-volume service.
  • 0.2-micron precoat filtration helps reduce chlorine, taste & odor, and fine particles.
  • SR-X scale reduction feeder helps inhibit scale buildup in ice machines and coffee brewers.
  • Low pressure alarm and sanitary cartridge changeouts make maintenance easier.
  • 3/4-inch inlet and outlet connections suit commercial plumbing setups.

Overall Dimensions:

34.0"W x 6.75"D x 25.7"H

Product Weight:

43.0 lb

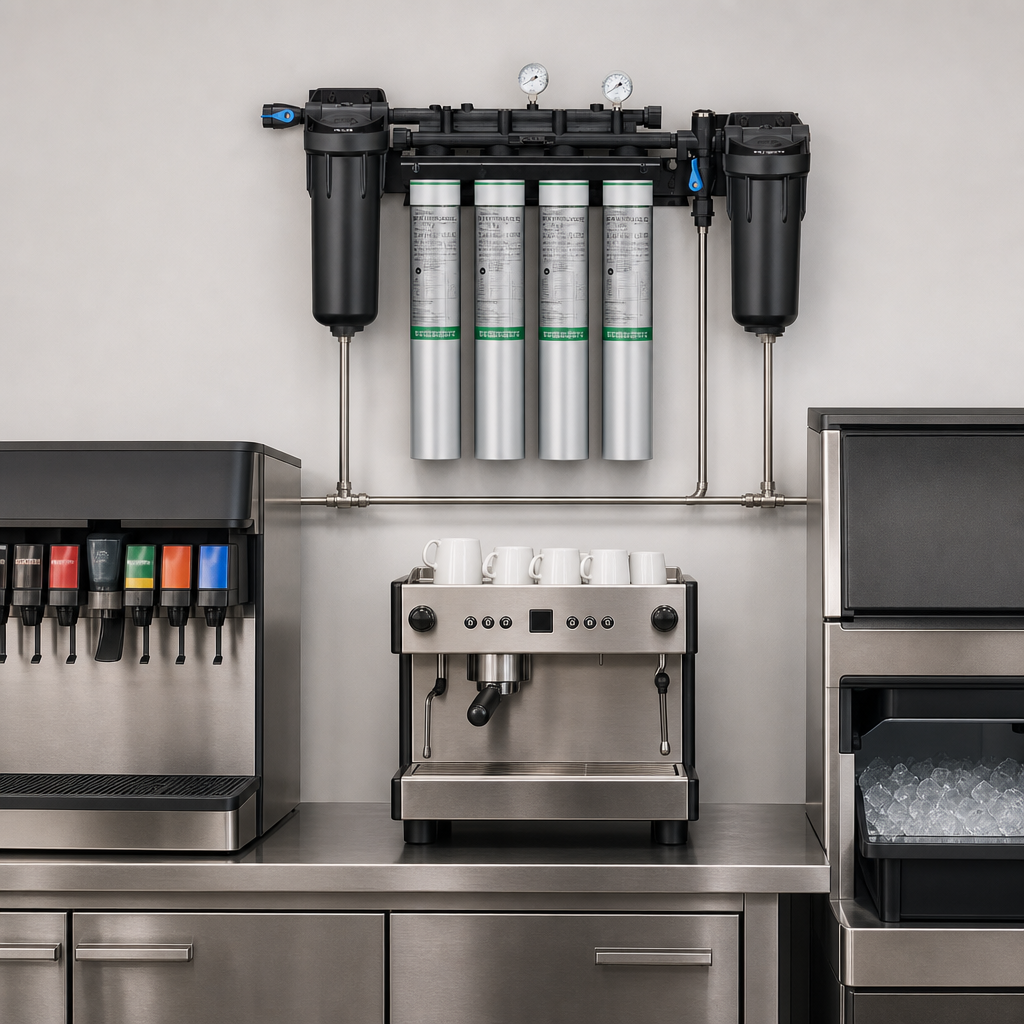

High-Volume Combination Application System

Designed to supply premium-quality water to fountain, coffee, and ice equipment from one filtration system.

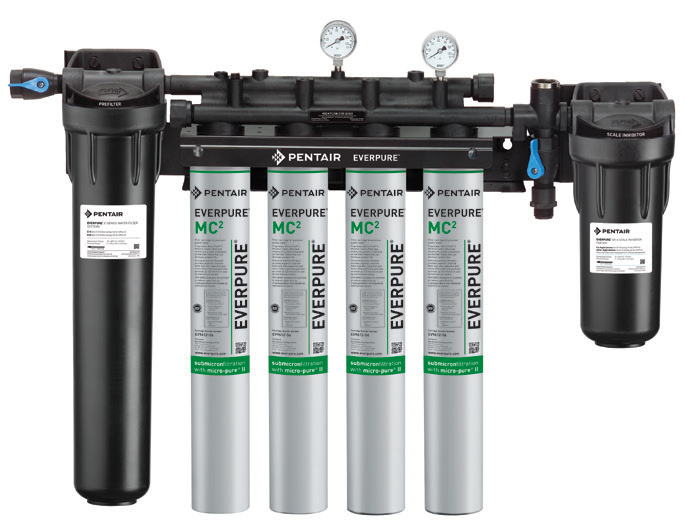

Quad Filtration Configuration

Uses four MC2 primary filtration cartridges along with an EC210 prefilter for multi-stage treatment.

0.2-Micron Precoat Filtration

Filters dirt and particles as small as 0.2 micron and helps reduce chlorine taste and odor.

SR-X Scale Reduction Feeder

Helps inhibit scale buildup in ice machines and coffee brewers.

Low Pressure Alarm

Signals when cartridges need changing or when system pressure drops.

Sanitary Cartridge Replacement

Cartridge changes are quick and clean, with internal filter parts never exposed to handling or contamination.

High Capacity And Flow

Rated for 36,000 gallons with a maximum service flow rate of 6.7 GPM.

NSF/ANSI 42 And 53 Certified

Certified for reduction of chlorine taste & odor and cysts such as Cryptosporidium and Giardia.

3/4-Inch Water Connections

Uses 3/4-inch inlet and outlet connections for installation.

110V Alarm Connection

Electrical connection required for the low pressure alarm.

Type Water Filtration System
Style Quad
Installation Type Wall Mounted
Capacity 36,000 Gallons
Service Flow Rate 6.7 GPM
Micron Rating 0.2 Microns
Filter Quantity 4
Pressure Range 10 - 125 PSI
Temperature Range 35 - 100 °F
Water Inlet Size 3/4 Inch
Water Outlet Size 3/4 Inch
Voltage 110 Volts
Selling Unit Each
Units Per Case 1
Shipping Width 34 Inches
Shipping Depth 7 Inches
Shipping Height 26 Inches
Shipping Weight 43 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

5-year limited warranty on the system; 1-year limited warranty on replaceable elements.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is designed for multiple equipment combination applications, including high-volume fountain, coffee, and ice machine setups.
The system is rated for 36,000 gallons and has a maximum service flow rate of 6.7 GPM.
The system uses 3/4-inch water connections, with 3/4-inch inlet and outlet connections.
The documentation recommends a six-month preventive maintenance program, or changing cartridges when capacity is reached or pressure falls below 10 psi.
Install it vertically with the cartridges hanging down, and allow 2.5 inches of clearance below the cartridges for easy replacement.
It reduces chlorine taste and odor, fine particles as small as 0.2 micron, and is NSF/ANSI 53 certified for cyst reduction.
