Everpure

Everpure Insurice PF Quad-7SI Quad Ice Machine Water Filtration System, 0.5 Micron, 100,000 Gallon, 14 GPM

SKU: EV932477
$1,122.13
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Everpure Ice Maker Filters New Arrivals Parts & Accessories Refrigeration, Freezer & Ice Parts Restaurant Equipment Water Filters

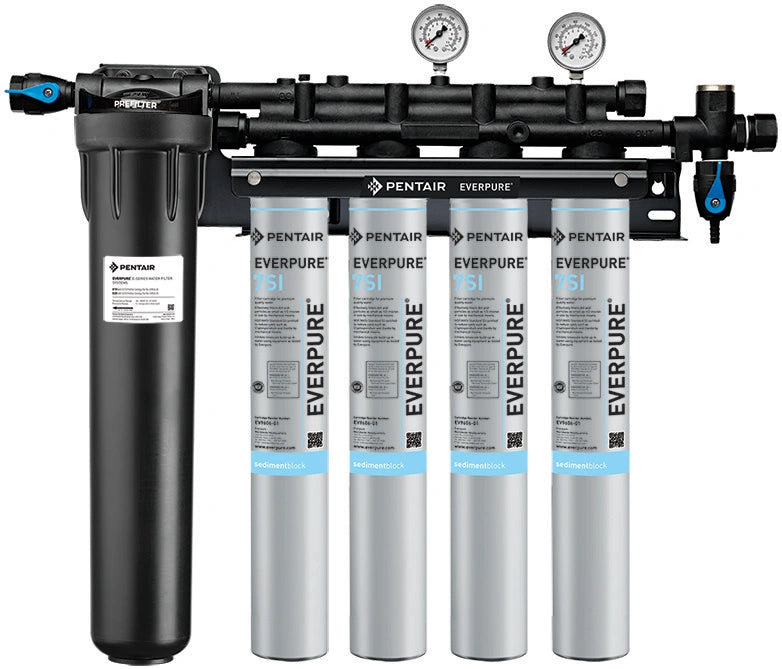

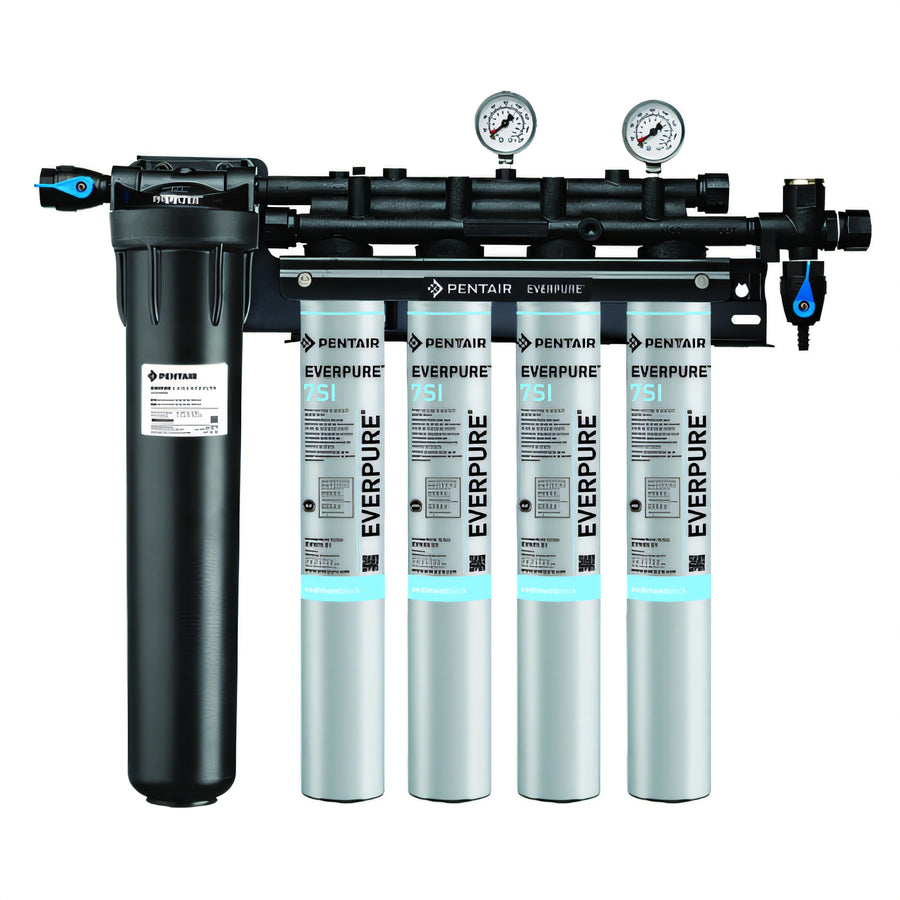

Everpure Insurice PF Quad-7SI Quad Ice Machine Water Filtration System, 0.5 Micron, 100,000 Gallon, 14 GPM

Includes 1 EC210 Prefilter and 4 7SI Fibredyne Submicron Cartridges

Built for high-volume ice applications, this quad system delivers 0.5-micron filtration, long service life, and sanitary cartridge changes to help keep ice equipment cleaner and downtime lower.

  • Quad filtration system combines one prefilter with four submicron cartridges for ice applications.
  • 0.5-micron sediment filtration helps improve water quality for ice machines.
  • Rated for up to 100,000 gallons with a maximum 14 GPM service flow.
  • NSF/ANSI 42 and 53 tested for aesthetic reduction and cyst reduction.
  • Helps reduce scale buildup, slime growth, maintenance, and service downtime.
  • Sanitary cartridge replacement keeps internal filter parts enclosed during changeouts.

Overall Dimensions:

29.36"W x 6.75"D x 25.59"H

Product Weight:

43.0 lb

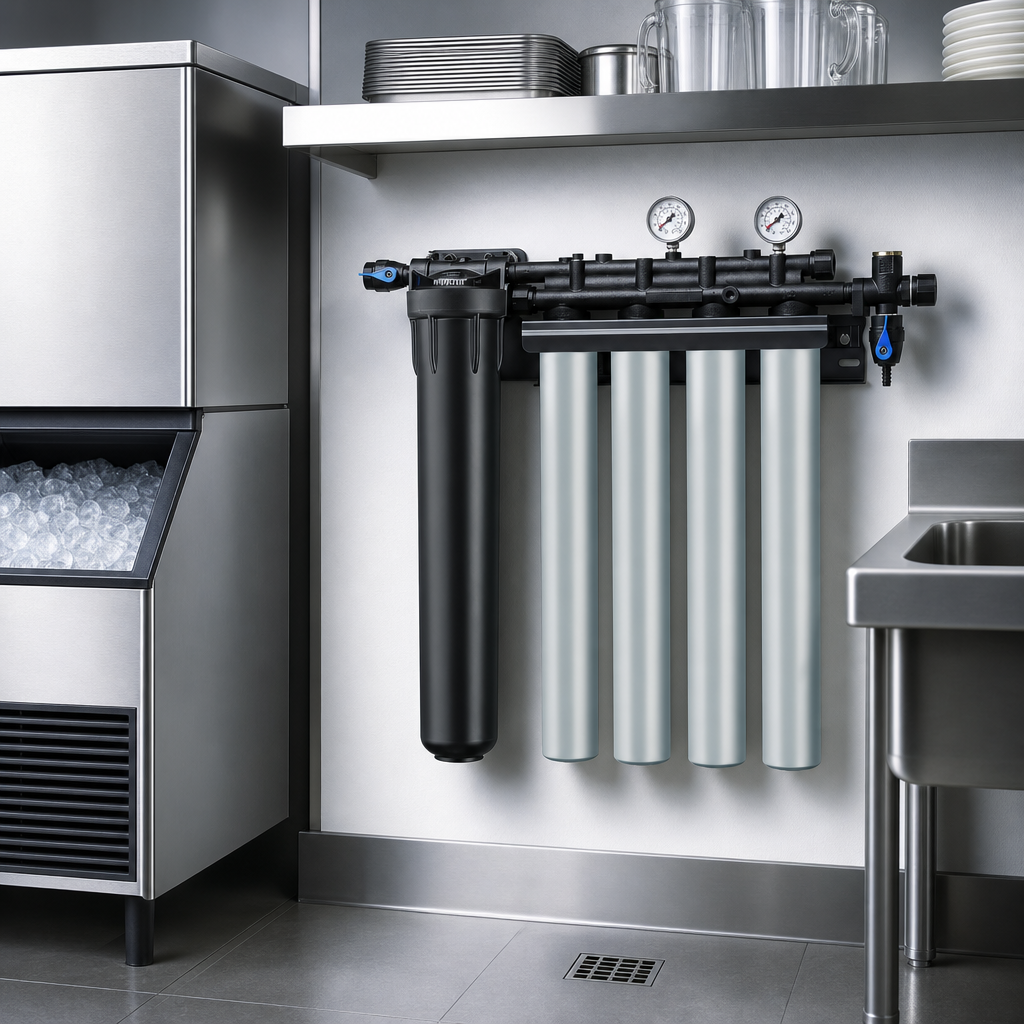

Quad PF-7SI Configuration

Uses one EC210 prefilter cartridge and four 7SI Fibredyne submicron cartridges for high-capacity filtration.

Quad PF-7SI Configuration

0.5-Micron Filtration

Filters dirt and particles as small as 1/2 micron by mechanical means.

High Service Capacity

Rated for 100,000 gallons with a maximum service flow rate of 14 GPM.

NSF/ANSI 42 and 53 Tested

Tested to reduce aesthetic effects and cysts such as Cryptosporidium and Giardia.

Helps Protect Ice Equipment

Designed to help reduce scale buildup, slime growth, maintenance costs, and downtime.

Sanitary Cartridge Replacement

Replacement is quick and clean, with internal filter parts never exposed to handling or contamination.

Designed for Insurice Manifold Systems

Made for use with Pentair Everpure Insurice and Insurice PF manifold systems.

Type Water Filtration System
Style Quad
Capacity 100,000 Gallons
Micron Rating 0.5 Microns
Service Flow Rate 14 GPM
Water Inlet Size 3/4 Inch FNPT
Water Outlet Size 3/4 Inch FNPT
Pressure Requirements 10 to 125 PSI
Temperature Range 35 to 100 Degrees F
Shipping Width 30 Inches
Shipping Depth 7 Inches
Shipping Height 26 Inches
Shipping Weight 43 Pounds
Selling Unit Each
Units Per Case 1

Warranty & Protection

5-year limited warranty on the system; 1-year limited warranty on replaceable elements.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is designed for ice machines and other high-volume ice applications.
The system provides 0.5-micron sediment filtration.
It has a maximum service flow rate of 14 GPM and a rated capacity of 100,000 gallons.
The system uses 3/4 inch FNPT inlet and outlet connections.
Install it vertically with the cartridges hanging down and allow about 2 1/2 inches of clearance below the cartridges for replacement.
