Everpure Single Big Bowl Prefilter Housing with Outlet Pressure Gauge

SKU: EV910031
$244.34
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers New Arrivals Restaurant Equipment Restaurant Equipment Parts Water Filter Parts

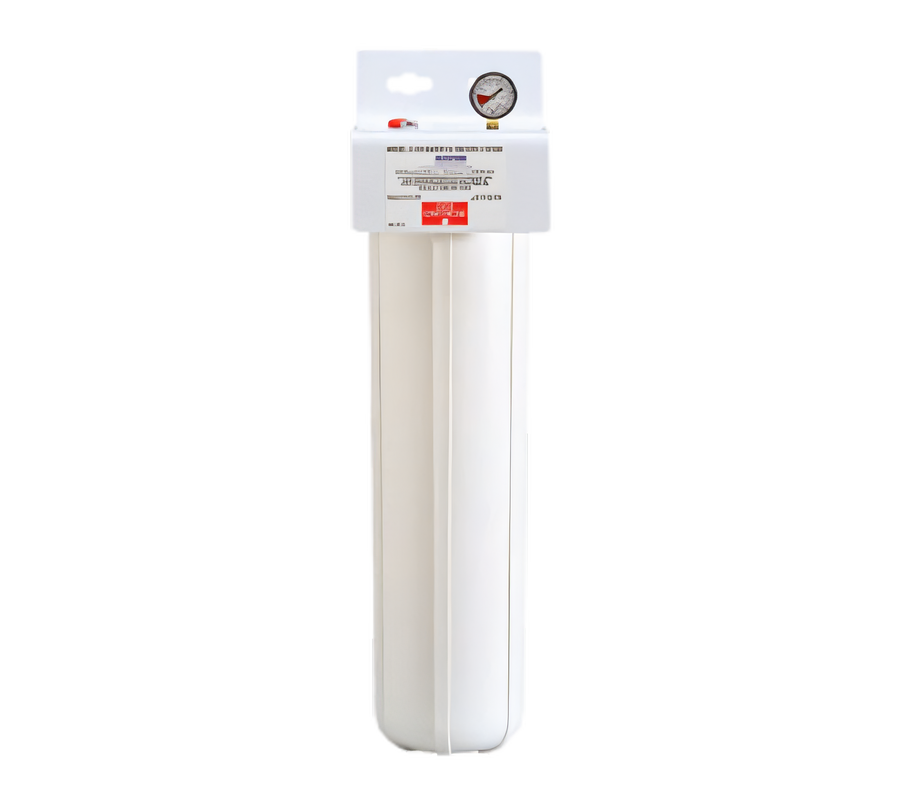

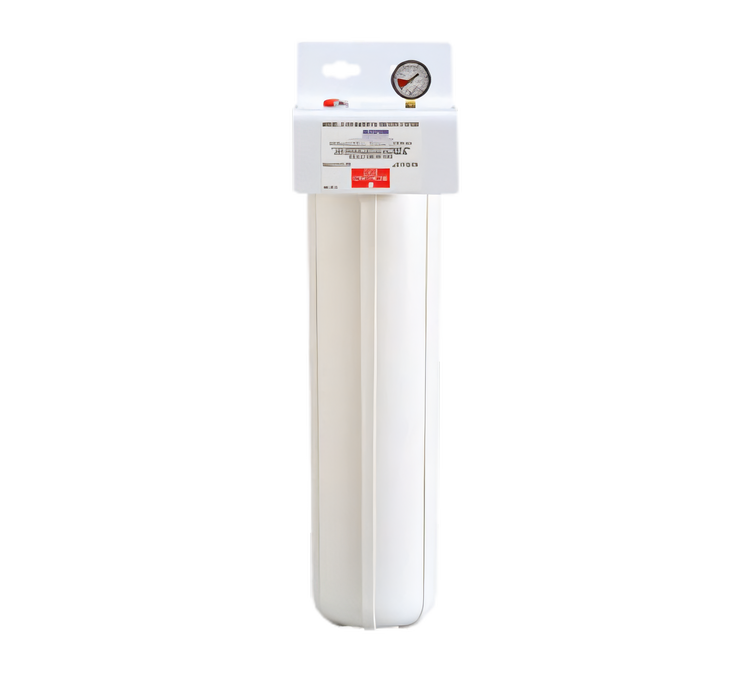

Everpure Single Big Bowl Prefilter Housing with Outlet Pressure Gauge

5.0 GPM, 3/4 Inch FNPT Inlet/Outlet, Wall Mounted

A high-flow big bowl prefilter housing that combines easy pressure monitoring with a modular design for expandable filtration capacity.

  • High-pressure housing includes the head, mounting bracket, and bowl.
  • Integral outlet pressure gauge helps monitor system operation.
  • Modular package makes it easy to expand capacity as needed.
  • Maximum service flow rate of 5.0 GPM.
  • 3/4-inch FNPT inlet and outlet connections.
  • Designed for cold water line installation only.
  • No electrical connection required.

Overall Dimensions:

7.35"W x 8.5"D x 25.9"H

Product Weight:

18.0 lb

High-Pressure Housing

Includes the head, mounting bracket, and bowl for a complete installation.

Outlet Pressure Gauge

Built-in gauge monitors outlet pressure to help track system performance.

Modular Design

Complete modular package allows capacity expansion as needed.

5.0 GPM Service Flow

Supports a maximum service flow rate of 5.0 gallons per minute.

3/4 Inch FNPT Connections

Uses 3/4-inch FNPT inlet and outlet connections.

Cold Water Line Use

Install on cold water lines only.

No Electrical Connection

Operates without an electrical connection.

Type Water Filter Housing
Style Big Bowl
Installation Type Wall Mounted
Service Flow Rate 5.0 GPM
Pressure Requirements 25-100 psi (1.4 - 6.9 bar), non-shock
Temperature Range 35-100 °F (2-38 °C)
Water Inlet Size 3/4 Inch FNPT
Water Outlet Size 3/4 Inch FNPT
Electrical Connection None Required
Shipping Width 8 Inches
Shipping Depth 9 Inches
Shipping Height 26 Inches
Shipping Weight 18 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

5-year limited warranty on the water treatment system; replaceable elements are covered for 1 year.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The maximum service flow rate is 5.0 GPM (19 LPM).
It uses 3/4-inch FNPT inlet and outlet connections.
No. Electrical connection is not required.
No. The unit is intended for cold water lines only.
The pressure requirement is 25-100 psi (1.4 - 6.9 bar), non-shock.
The documentation recommends a regular six-month preventative maintenance program, or changing cartridges when the pressure difference reaches 20 psi or more.
