$951.35
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?

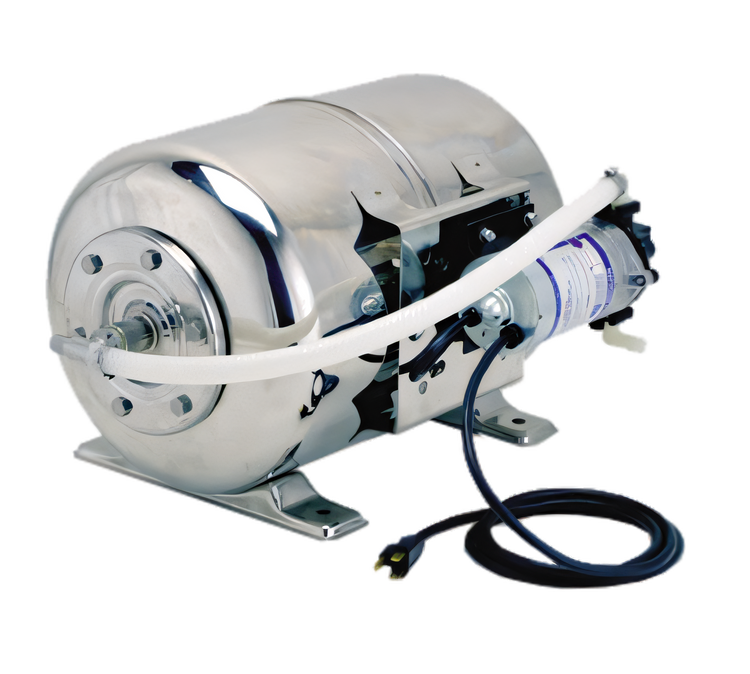

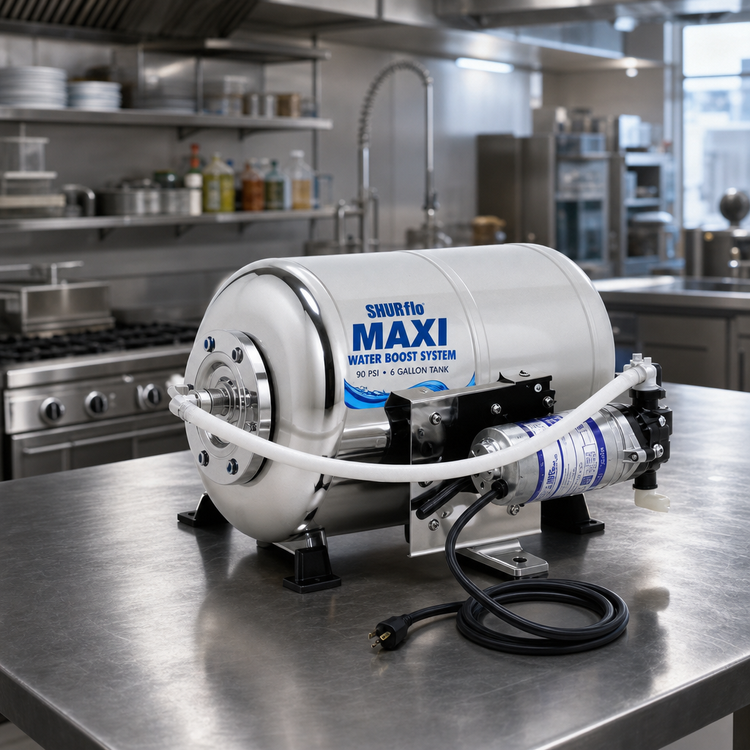

ShurFlo Maxi 90 PSI Water Boost System with 6 Gallon Tank, 115V
Integrated tank system for steady water pressure in dish room applications
Deliver consistent water pressure for commercial dishwashing with a compact 90 PSI boost system that includes a 6 gallon tank and 115V power.
- Boosts incoming water pressure up to 90 PSI for more consistent dishwasher performance.
- Includes a 6 gallon tank to help smooth pressure fluctuations.
- Operates on standard 115V electrical service.
- Features 3/8" inlet and 1/2" outlet connections for straightforward plumbing hookup.
- Compact footprint is well suited to back-of-house installation.
Overall Dimensions:
11.0"W x 19.0"D x 16.0"HProduct Weight:

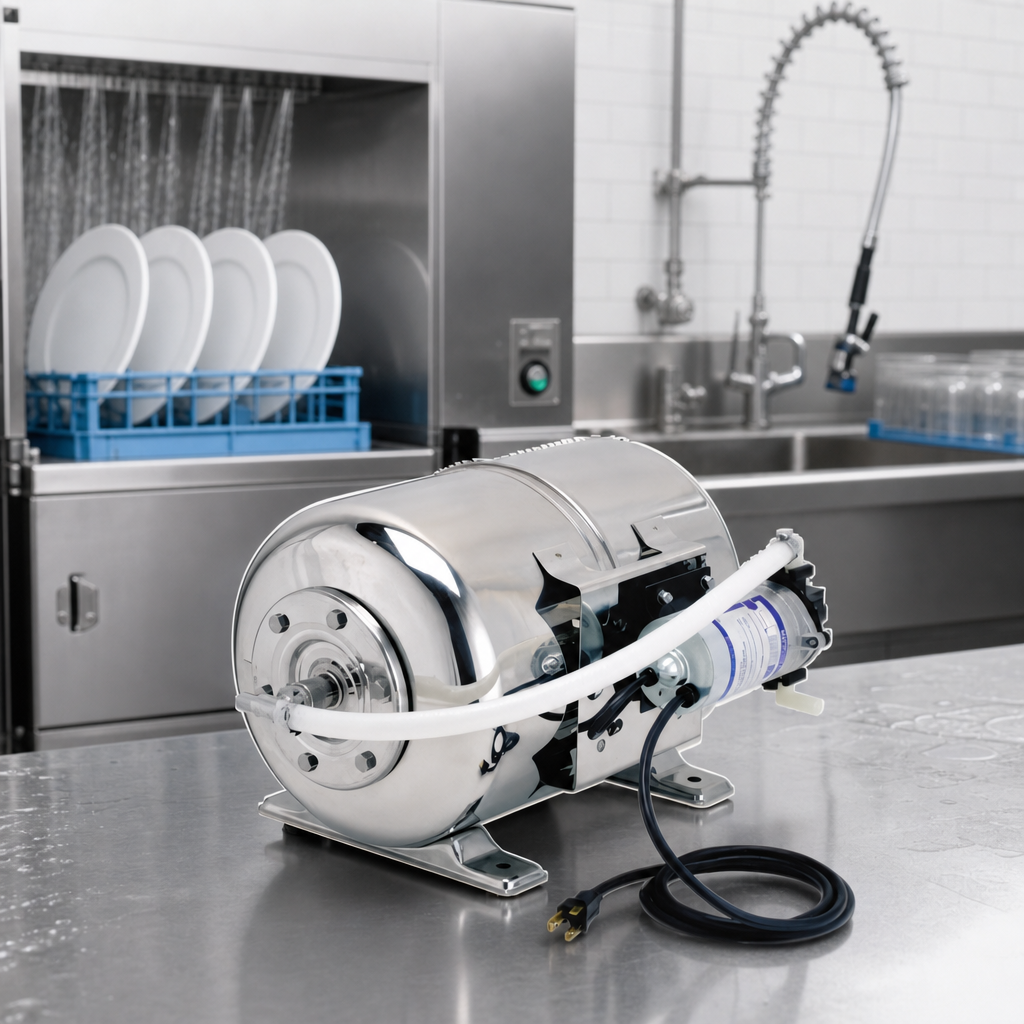

19.0 lb90 PSI Boost Pump
Designed to increase incoming water pressure up to 90 PSI for dish room applications.

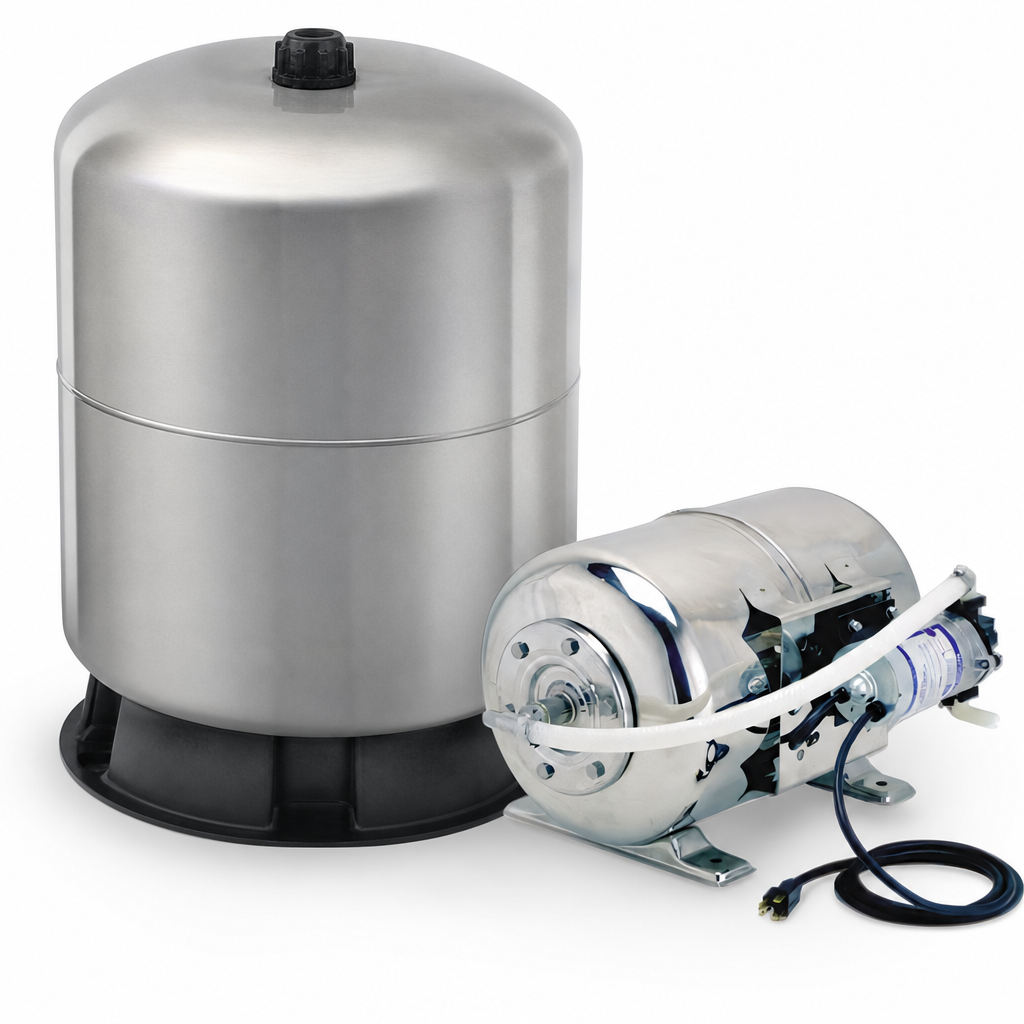

6 Gallon Tank Included
Includes one 6 gallon tank to help maintain more stable water delivery.
115V Operation
Runs on 115V power for compatibility with standard electrical service.
3/8 Inch Inlet and 1/2 Inch Outlet
Plumbing connection sizes are specified for easier installation planning.
Compact Footprint
The unit measures 11 inches wide, 19 inches deep, and 16 inches high for space-conscious installation.
Type
Water Boost System
Style
With Tank
Capacity
6 Gallons
Voltage
115 Volts
Water Inlet Size
3/8 Inch
Water Outlet Size
1/2 Inch
Selling Unit
Each
Units Per Case
1
Shipping Width
11 Inches
Shipping Depth
19 Inches
Shipping Height
16 Inches
Shipping Weight
19 Pounds
Documents
Frequently Asked Questions
The product includes one Maxi 90 PSI water boost pump, one 6 gallon tank, a 3/8" inlet, a 1/2" outlet, and 115V power.
The boost pump is rated up to 90 PSI.
It operates on 115V power.
It has a 3/8" inlet and a 1/2" outlet.
Yes. The unit measures 11 inches wide, 19 inches deep, and 16 inches high.
Yes, the product is UL listed.
