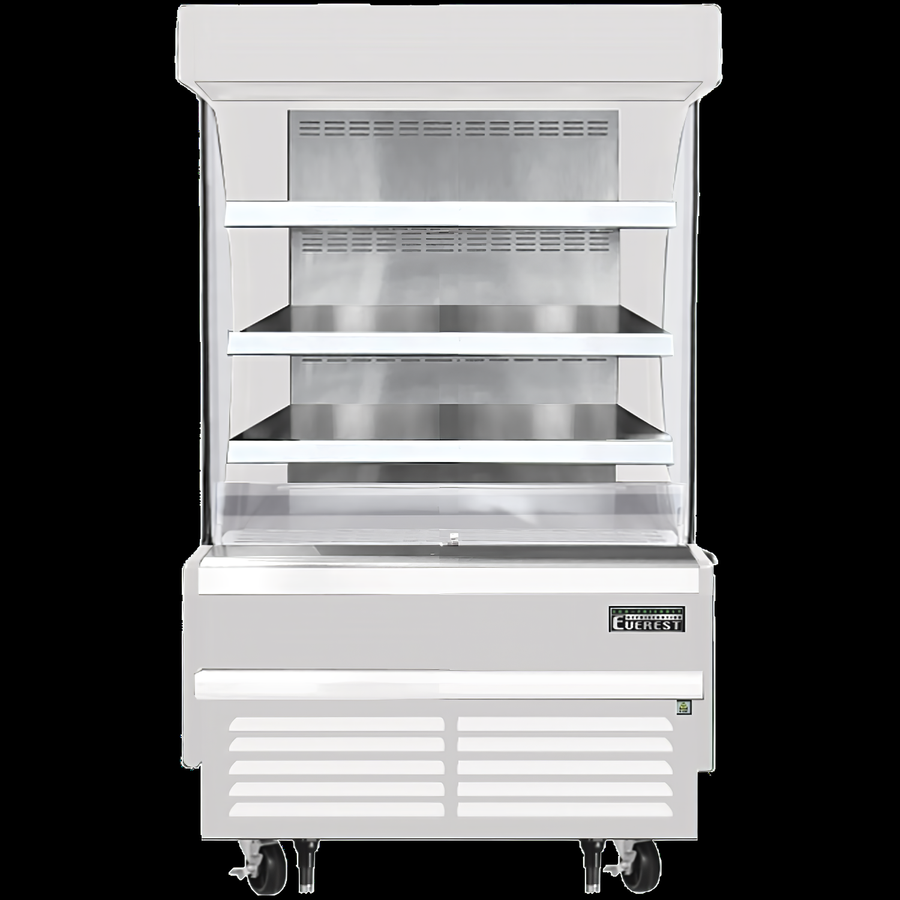

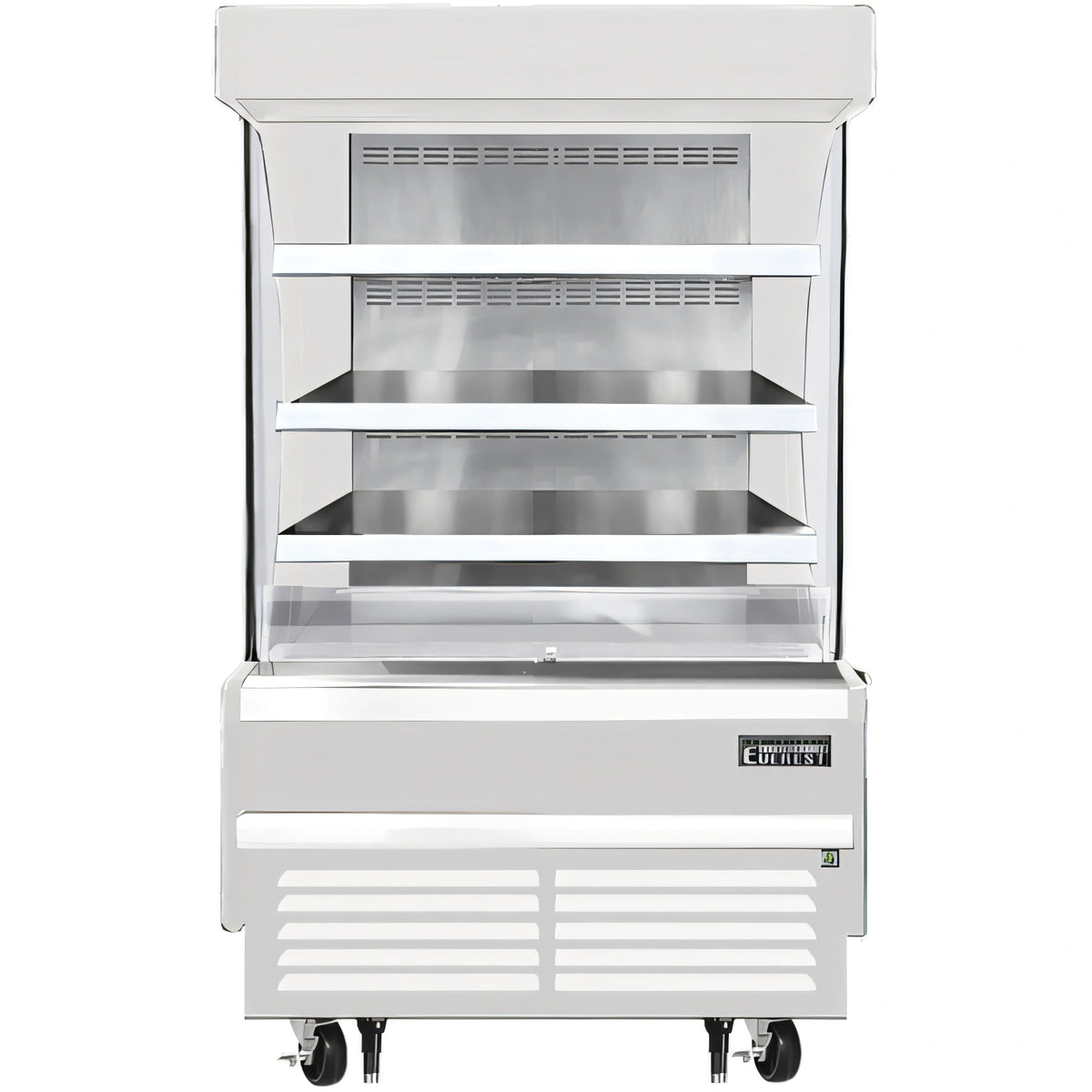

Everest Refrigeration EOMV-36-W-28-S Vertical Open-Air Refrigerated Merchandiser, 9.3 Cu. Ft., Self-Contained, White
- Product type
- Vertical open display merchandiser
- Capacity
- 9.3 cu. ft.
- Dimensions
- 37.25"W × 28.38"D × 60.13"H
- Refrigeration system
- Bottom-mounted, self-contained
- Airflow
- Front air intake; rear air discharge
- Refrigerant
- R-290 hydrocarbon
Specifications
Description
The Everest EOMV-36-W-28-S is a 9.3 cu. ft. vertical open display merchandiser with bottom-mounted, self-contained refrigeration and a white exterior.
- Front air intake and rear air discharge support side-by-side installation.
- Three adjustable stainless steel shelves can be positioned flat or at a 10° downward angle.
- Shielded LED lighting is installed under the shelves and in the canopy.
- A retractable night curtain provides energy-saving coverage and security when the case is not in use.
- The stainless steel interior has a perforated back wall for airflow and floor drains for cleaning.
- The unit includes 5-inch swivel casters with front locks and leg stabilizers.
- It is pre-wired for 115 V, 60 Hz, single-phase operation with a NEMA 5-20P plug.
The case uses R-290 refrigerant and includes an audible overheat protection alarm for the compressor and condenser coil.
Overall Dimensions:
37.25"W x 28.38"D x 60.13"HProduct Weight:

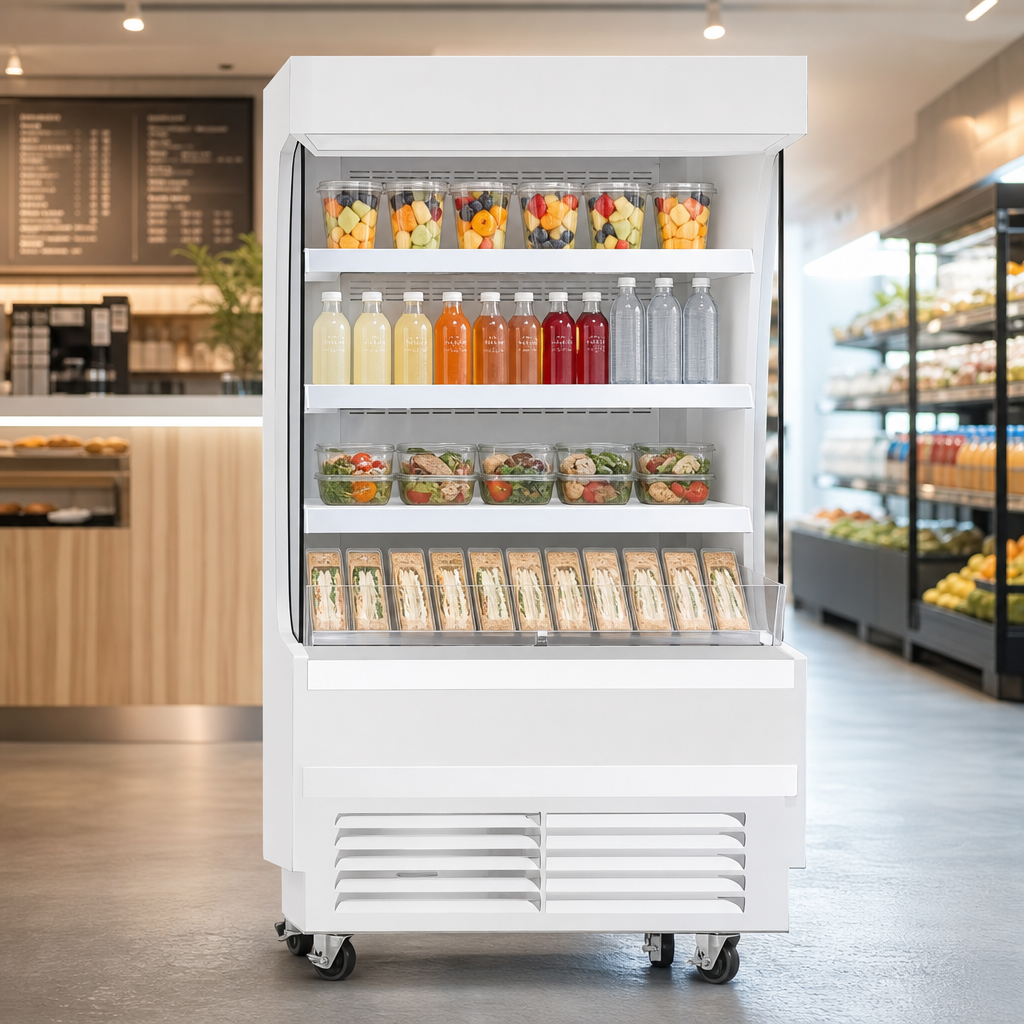

524.0 lbVertical open display
Provides a vertical open display format with 9.3 cu. ft. of capacity.

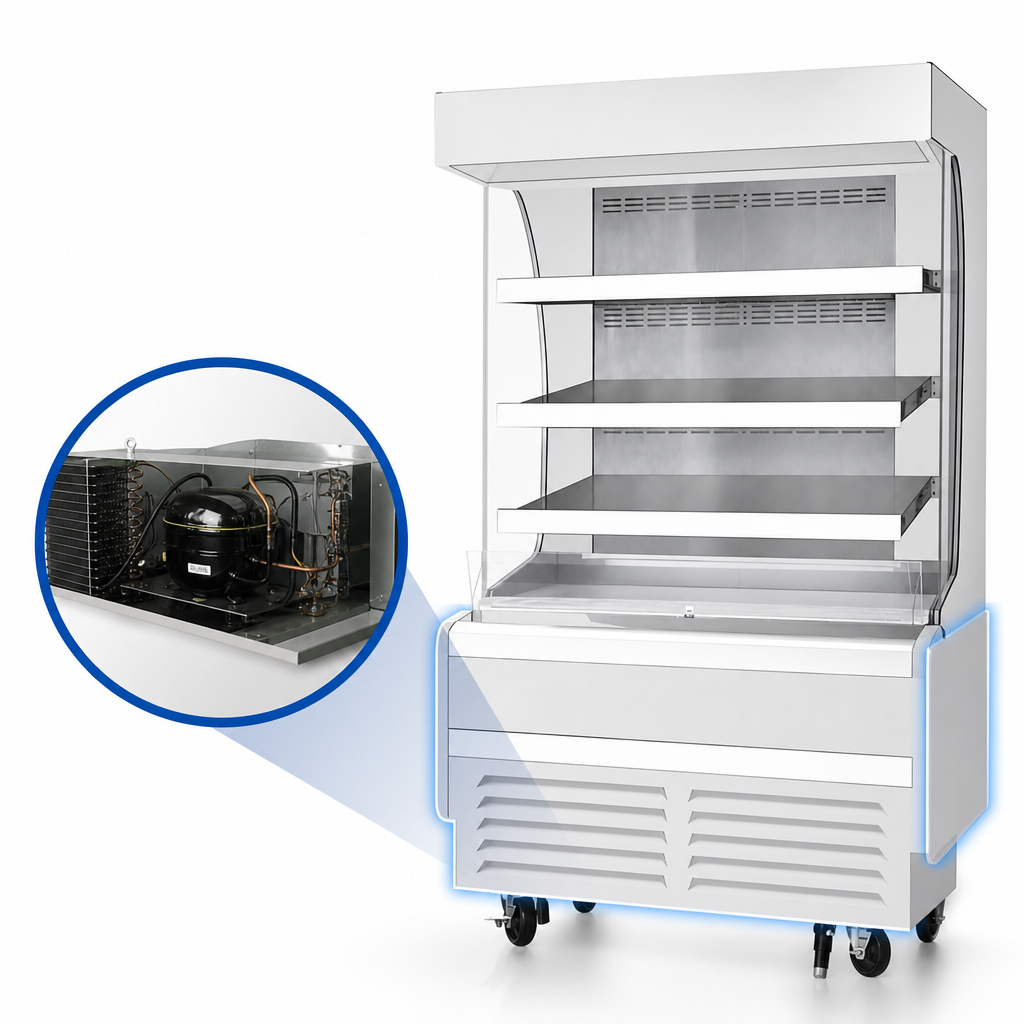

Self-contained refrigeration
The refrigeration system is bottom mounted and self-contained, with a fully detachable condensing unit.
Airflow design
Front air intake and rear air discharge allow side-by-side installation.
Adjustable shelving
Includes three adjustable stainless steel shelves that can be positioned flat or at a 10° downward angle.
LED lighting
Shielded LED bar lighting is installed under the shelves and in the canopy.
Retractable night curtain
The integrated retractable night curtain provides coverage when the merchandiser is not in use.
Cabinet construction
The unit has a white exterior, stainless steel interior, perforated back wall, floor drains, and 2.5-inch high-density polyurethane insulation.
Overheat protection
An audible alarm provides overheat protection for the compressor and condenser coil.
Condensate management
The self-maintaining condensate drain pan requires no external drain or electric heater.
Mobility and stability
Includes 5-inch swivel casters with locks on the front set and leg stabilizers.
Temperature control
The factory preset temperature is 35°F and maintains a combined average product temperature of 40°F or less under the stated operating conditions.
Electrical setup
The unit is pre-wired for 115 V, 60 Hz, single-phase operation and uses a NEMA 5-20P plug.
